# Arrow AB which is a line segment exactly 5 units along with

Author Message
TAGS:

### Hide Tags

Intern
Joined: 11 Jul 2012
Posts: 31
Followers: 0

Kudos [?]: 104 [14] , given: 1

Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

24 Sep 2012, 21:48
14
KUDOS
72
This post was
BOOKMARKED
00:00

Difficulty:

95% (hard)

Question Stats:

27% (03:13) correct 73% (02:50) wrong based on 1476 sessions

### HideShow timer Statistics

Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536
[Reveal] Spoiler: OA

Last edited by Bunuel on 25 Sep 2012, 01:02, edited 2 times in total.
Edited the question.
Manager
Joined: 20 Sep 2012
Posts: 51
Concentration: Finance, Entrepreneurship
Schools: HSG '15 (A)
GMAT 1: 750 Q50 V40
GPA: 3.37
Followers: 4

Kudos [?]: 50 [11] , given: 34

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

25 Sep 2012, 00:01
11
KUDOS
2
This post was
BOOKMARKED
If A and B have the same x-coordinate then we have 10 pairs of y-coordinate of A and B per x-coordinate. (eg: 1-5, 2-6...) => 10*10 = 100 arrows.
Similarly, if A and B have the same y-coordinate then we have another 100 arrows.
If A(a,b) and B(c,d) don't have the same x-coordinate or y-coordinate then either |a-b|=3,|c-d|=4 or |a-b|=4,|c-d|=3
In the first case, there are 14 pairs of x-coordinate, and 12 pairs of y-coordinate. => 14*12 = 168 arrows.
Similarly in the second case, there are 168 arrows.
Therefore, We have 100 + 100 + 168 + 168 = 536 arrows.
Manager
Status: Never ever give up on yourself.Period.
Joined: 23 Aug 2012
Posts: 152
Location: India
Concentration: Finance, Human Resources
GMAT 1: 570 Q47 V21
GMAT 2: 690 Q50 V33
GPA: 3.5
WE: Information Technology (Investment Banking)
Followers: 10

Kudos [?]: 294 [1] , given: 35

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

02 Oct 2012, 20:24
1
KUDOS
I didn't get the explaination....
what i did was i formed the grid on xy plane with info provided. total grid points i got were 100 and we need to select 2 points to form an arrow...so 100C2 : 4950...which is nowhere near the answer....whr exactly i m making the mistake?

Posted from my mobile device
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7076
Location: Pune, India
Followers: 2089

Kudos [?]: 13304 [3] , given: 222

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

02 Oct 2012, 20:40
3
KUDOS
Expert's post
1
This post was
BOOKMARKED
daviesj wrote:
I didn't get the explaination....
what i did was i formed the grid on xy plane with info provided. total grid points i got were 100 and we need to select 2 points to form an arrow...so 100C2 : 4950...which is nowhere near the answer....whr exactly i m making the mistake?

Posted from my mobile device

What you forgot to consider is that the length of the arrow must be 5 units.
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199 Veritas Prep Reviews Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 7076 Location: Pune, India Followers: 2089 Kudos [?]: 13304 [43] , given: 222 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 02 Oct 2012, 21:09 43 This post received KUDOS Expert's post 25 This post was BOOKMARKED harikris wrote: Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ? A. 50 B. 168 C. 200 D. 368 E. 536 Consider the diagram. The arrows could be vertical, horizontal or diagonal. Attachment: Ques4.jpg [ 25.55 KiB | Viewed 21863 times ] The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. You have another 50 vertical arrows which are the same arrows but with the arrow head on the opposite end (shown by the red arrow). So you have a total of 100 vertical arrows. Similarly, you have 100 horizontal arrows. Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows. Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows. Total = 100 + 100 + 168 + 168 = 536 _________________ Karishma Veritas Prep | GMAT Instructor My Blog Get started with Veritas Prep GMAT On Demand for$199

Veritas Prep Reviews

Manager
Status: Never ever give up on yourself.Period.
Joined: 23 Aug 2012
Posts: 152
Location: India
Concentration: Finance, Human Resources
GMAT 1: 570 Q47 V21
GMAT 2: 690 Q50 V33
GPA: 3.5
WE: Information Technology (Investment Banking)
Followers: 10

Kudos [?]: 294 [0], given: 35

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

03 Oct 2012, 03:44
Thanks for the wonderful explanation Karishma. Kudos for that.
Now what my concern is, should we expect to get this type of problems in the real exam?...I mean in this problem we need to draw the figure and need to manually count the possibilities that is time consuming.

Thanks.
_________________

Don't give up on yourself ever. Period.
Beat it, no one wants to be defeated (My journey from 570 to 690) : http://gmatclub.com/forum/beat-it-no-one-wants-to-be-defeated-journey-570-to-149968.html

Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7076
Location: Pune, India
Followers: 2089

Kudos [?]: 13304 [0], given: 222

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

03 Oct 2012, 19:32
Expert's post
2
This post was
BOOKMARKED
daviesj wrote:
Thanks for the wonderful explanation Karishma. Kudos for that.
Now what my concern is, should we expect to get this type of problems in the real exam?...I mean in this problem we need to draw the figure and need to manually count the possibilities that is time consuming.

Thanks.

This question is based on an OG question. The OG question uses this concept though it doesn't require you to manually count the different cases. I have discussed that question in this post:
http://www.veritasprep.com/blog/2011/09 ... o-succeed/

Given unlimited time, you should be able to do this question i.e. conceptually you should be clear with this. It is a time consuming laborious question so I wouldn't expect GMAT to give this. It is missing the excitement - you can do most GMAT in under a minute or perhaps even 30 secs. The fun is to be able to figure out the logical trick that makes it tick.
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199 Veritas Prep Reviews Intern Joined: 20 Jun 2011 Posts: 46 Followers: 1 Kudos [?]: 80 [0], given: 1 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 12 Oct 2012, 06:15 MonSama wrote: ANSWER: E If A and B have the same x-coordinate then we have 10 pairs of y-coordinate of A and B per x-coordinate. (eg: 1-5, 2-6...) => 10*10 = 100 arrows. Similarly, if A and B have the same y-coordinate then we have another 100 arrows. If A(a,b) and B(c,d) don't have the same x-coordinate or y-coordinate then either |a-b|=3,|c-d|=4 or |a-b|=4,|c-d|=3 In the first case, there are 14 pairs of x-coordinate, and 12 pairs of y-coordinate. => 14*12 = 168 arrows. Similarly in the second case, there are 168 arrows. Therefore, We have 100 + 100 + 168 + 168 = 536 arrows. How did you find the coordinate pairs? Thanks. Math Expert Joined: 02 Sep 2009 Posts: 35932 Followers: 6860 Kudos [?]: 90091 [0], given: 10413 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 14 Jul 2013, 23:59 Expert's post 1 This post was BOOKMARKED From 100 hardest questions Bumping for review and further discussion. _________________ Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 7076 Location: Pune, India Followers: 2089 Kudos [?]: 13304 [3] , given: 222 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 22 Jul 2013, 20:56 3 This post received KUDOS Expert's post VeritasPrepKarishma wrote: The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. Responding to a pm: This is what this statement means: Draw an arrow starting from (0, 0) to (0, 5). Head of the arrow is at (0, 5). Then draw another one starting from (0, 1) to (0, 6). Another from (0, 2) to (0, 7). Another from (0, 3 to 0, 8). Another from (0, 4) to (0, 9). You are able to draw these 5 arrows such that x co-ordinate is 0 in each case. You cannot go higher up because y co-ordinate cannot be more than 9. Similarly, draw an arrow starting from (1, 0) to (1, 5). Another from (1, 1) to (1, 6) and so on... You will again be able to draw 5 such arrows. Keep increasing x co-ordinate by 1 and you will get 5 arrows each time till you reach x = 9. So you will get 10 groups of 5 vertical arrows each i.e. 50 such arrows. _________________ Karishma Veritas Prep | GMAT Instructor My Blog Get started with Veritas Prep GMAT On Demand for$199

Veritas Prep Reviews

Current Student
Joined: 04 Nov 2013
Posts: 19
Schools: Owen '18 (A)
Followers: 0

Kudos [?]: 0 [0], given: 0

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

05 Nov 2013, 06:07
VeritasPrepKarishma wrote:
harikris wrote:
Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536

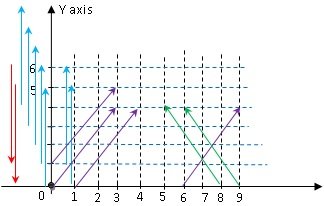

Consider the diagram.
The arrows could be vertical, horizontal or diagonal.

Attachment:

The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. You have another 50 vertical arrows which are the same arrows but with the arrow head on the opposite end (shown by the red arrow). So you have a total of 100 vertical arrows.
Similarly, you have 100 horizontal arrows.

Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows.

Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows.

Total = 100 + 100 + 168 + 168 = 536

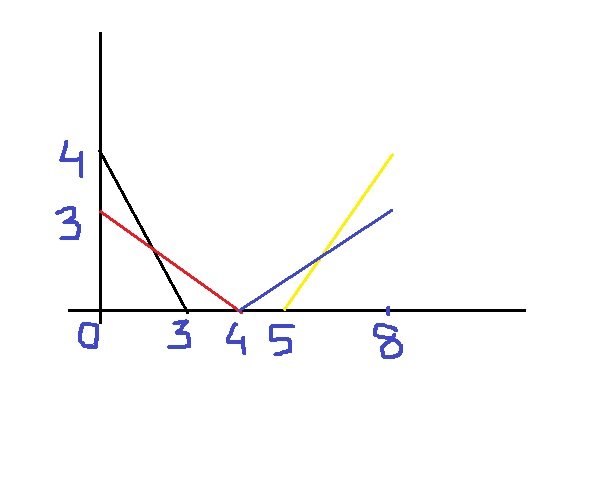

Hi, cant we make slanting arrows also in the opposite direction like vertical and horizontal arrows i.e. just reversing the coordinates of A and B.

thanks
Abhishek
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7076
Location: Pune, India
Followers: 2089

Kudos [?]: 13304 [0], given: 222

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

06 Nov 2013, 05:30
Astral wrote:
VeritasPrepKarishma wrote:
harikris wrote:
Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536

Consider the diagram.
The arrows could be vertical, horizontal or diagonal.

Attachment:

The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. You have another 50 vertical arrows which are the same arrows but with the arrow head on the opposite end (shown by the red arrow). So you have a total of 100 vertical arrows.
Similarly, you have 100 horizontal arrows.

Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows.

Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows.

Total = 100 + 100 + 168 + 168 = 536

Hi, cant we make slanting arrows also in the opposite direction like vertical and horizontal arrows i.e. just reversing the coordinates of A and B.

thanks
Abhishek

Look at the highlighted part above. We have already taken care of it.
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199 Veritas Prep Reviews Current Student Joined: 04 Nov 2013 Posts: 19 Schools: Owen '18 (A) Followers: 0 Kudos [?]: 0 [0], given: 0 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 07 Nov 2013, 01:07 VeritasPrepKarishma wrote: Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows. Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows. Total = 100 + 100 + 168 + 168 = 536 Hi, cant we make slanting arrows also in the opposite direction like vertical and horizontal arrows i.e. just reversing the coordinates of A and B. thanks Abhishek Look at the highlighted part above. We have already taken care of it.[/quote] Thanks a lot for the reply. There can be 4 different types of lines with 4 different slopes that may have 5 units as length (for eg. co-ordinates - (4,0)&(0,3); (3,0)&(0,4); (0,0)&(3,4); (0,0)&(4,3). Thus total number of lines 42*4=168. And if arrows are reversed number will be 168*2 = 336. Request you to please let me know if I am going wrong somewhere. thanks. Attachments Untitled.jpg [ 21.32 KiB | Viewed 19833 times ] Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 7076 Location: Pune, India Followers: 2089 Kudos [?]: 13304 [0], given: 222 Re: Arrow AB which is a line segment exactly 5 units along with [#permalink] ### Show Tags 29 Jun 2014, 20:51 Quote: VeritasPrepKarishma wrote: Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3 (these are your blue and yellow arrows). So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows. Similarly, you can make arrows in the opposite direction shown by the green arrows. (these are your red and black arrows) So you have another 168 arrows. Total = 100 + 100 + 168 + 168 = 536 There can be 4 different types of lines with 4 different slopes that may have 5 units as length (for eg. co-ordinates - (4,0)&(0,3); (3,0)&(0,4); (0,0)&(3,4); (0,0)&(4,3). Thus total number of lines 42*4=168. And if arrows are reversed number will be 168*2 = 336. Request you to please let me know if I am going wrong somewhere. thanks. Note that we have already taken all 4 of them them into account in the highlighted part above. _________________ Karishma Veritas Prep | GMAT Instructor My Blog Get started with Veritas Prep GMAT On Demand for$199

Veritas Prep Reviews

Manager
Joined: 10 Jun 2015
Posts: 128
Followers: 1

Kudos [?]: 25 [0], given: 0

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

10 Jun 2015, 23:36
harikris wrote:
Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536

I guess it is more than 400. ans is E
Intern
Joined: 15 Apr 2015
Posts: 8
Followers: 0

Kudos [?]: 2 [0], given: 13

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

22 Jun 2015, 10:45
Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers),..
Manager
Joined: 08 Jun 2015
Posts: 127
Followers: 3

Kudos [?]: 30 [0], given: 40

Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

25 Jul 2015, 17:53
The way I did the diagonal arrows is... I drew a 3x4 (right 3, up 4) box from the origin. For each of those, you can have 4 sets of coordinates for A and B (e.g. A(0,0)+B(3,4); A(3,4)+B(0,0); A(3,0)+B(0,4); A(0,4)+B(3,0).

Moving up, you can make 5 more boxes, so that's 6 for the first column. Using the same 3x4 boxes, you can move right 6 times, so there are 7 of those. That's 6x7=42 times the box is made, with each box having 4 distinct arrows with their respective vectors. So, that's 42x4 = 168.

You can also make 4x3 squares from the origin. Using the same idea, you get another 168 distinct arrows.

So far in total that's 336 arrows.

Combine that with the 100 vertical and 100 horizontal arrows, then the total is 536 arrows.
Intern
Joined: 25 May 2016
Posts: 12
Followers: 0

Kudos [?]: 1 [0], given: 2

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

21 Jul 2016, 02:05
1
This post was
BOOKMARKED
There is a much simpler way to do this, without having to visualise it.

The formula for distance between two points is d=Sqrt[(x2-x1)^2+(y2-y1)^2].

Now we know the distance is 5. so we get:

5=Sqrt[(x2-x1)^2+(y2-y1)^2].

25=[(x2-x1)^2+(y2-y1)^2]

Lets keep this aside, and look at our inequalities: 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9.

This means the difference x2-x1 and y2-y1 can lie between 0 and 9.

Since our sum of the squares of the difference needs to be 25. The difference can be either 5 and 0, 0 and 5, 4 and 3 or 3 and 4.

The number of different coordinates for x1 and x2 which will give us a difference of:

5 is 10
0 is 10
4 is 12
3 is 14

Same for y coordinates.

So number of lines possible where the difference between x coordinates is 5 and y coordinates is 0 is 100. Interchange the differences and you get 100 more lines.

Number of lines possible where the difference between x coordinates is 4 and y coordinates is 3 is 168. Interchange the differences and you get 168 more lines.

Therefore total number of lines possible is - 100+100+168+168 = 536.
Manager
Joined: 06 Oct 2015
Posts: 60
Followers: 0

Kudos [?]: 3 [0], given: 29

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

24 Aug 2016, 13:09
VeritasPrepKarishma wrote:
harikris wrote:
Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536

Consider the diagram.
The arrows could be vertical, horizontal or diagonal.

Attachment:

The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. You have another 50 vertical arrows which are the same arrows but with the arrow head on the opposite end (shown by the red arrow). So you have a total of 100 vertical arrows.
Similarly, you have 100 horizontal arrows.

Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows.

Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows.

Total = 100 + 100 + 168 + 168 = 536

Hi Karishma,
Can't the arrows start from point (1,2), (1,3), (2,3) etc.
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7076
Location: Pune, India
Followers: 2089

Kudos [?]: 13304 [1] , given: 222

Re: Arrow AB which is a line segment exactly 5 units along with [#permalink]

### Show Tags

24 Aug 2016, 20:55
1
KUDOS
Expert's post
NaeemHasan wrote:
VeritasPrepKarishma wrote:
harikris wrote:
Arrow AB which is a line segment exactly 5 units along with an arrowhead at A is to be constructed in the xy-plane. The x and y coordinates of A and B are to be integers that satisfy the inequalities 0 ≤ x ≤ 9 and 0 ≤ y ≤ 9. How many different arrows with these properties can be constructed ?

A. 50
B. 168
C. 200
D. 368
E. 536

Consider the diagram.
The arrows could be vertical, horizontal or diagonal.

Attachment:

The vertical arrows are shown by the blue arrows. 5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. You have another 50 vertical arrows which are the same arrows but with the arrow head on the opposite end (shown by the red arrow). So you have a total of 100 vertical arrows.
Similarly, you have 100 horizontal arrows.

Now check out the diagonal arrows. One co-ordinate should be of length 3 and another of 4 (so that the arrow length is 5 and all points are integers). Look at the purple arrows. The x co-ordinate is 3 and the y co-ordinate is 4. You can make 7*6 = 42 such arrows. Similarly, you can make 42 arrows with x cor-ordinate as 4 and y co-ordinate as 3. So you have 84 arrows. But you get another set of 84 arrows by keeping the arrows the same but putting the arrow head on the opposite end so you get a total of 2*84 = 168 arrows.

Similarly, you can make arrows in the opposite direction shown by the green arrows. So you have another 168 arrows.

Total = 100 + 100 + 168 + 168 = 536

Hi Karishma,
Can't the arrows start from point (1,2), (1,3), (2,3) etc.

Yes, they can. In the solution above:

"...5 of them will start from x = 0, 5 from x = 1 and so on till x = 9. So you have 50 of these blue arrows. "

5 will start from x = 0. For these, y will be 0, 1, 2, 3 and 4.
So the arrows will start from (0, 0), (0, 1), (0, 2) etc

5 will start from x = 1. For these too, y will be 0, 1, 2, 3 and 4.
So the arrows will start from (1, 0), (1, 1), (1, 2) etc

Similarly, arrows will start from (2, 0), ... (2, 4), ... (3, 0) ... etc

Does this help?
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for \$199

Veritas Prep Reviews

Re: Arrow AB which is a line segment exactly 5 units along with   [#permalink] 24 Aug 2016, 20:55

Go to page    1   2    Next  [ 29 posts ]

Similar topics Replies Last post
Similar
Topics:
3 There are 2 parallel line segments AB and CD in a plane. 2 14 Sep 2016, 05:40
If 2 line segments AB and CD is collinear, what is the sum of AB and C 2 08 May 2016, 18:12
2 Which of the following coordinates are on the line segment connecting 2 04 Apr 2016, 06:40
3 What is the length of line segment AB in the figure above? 1 03 Oct 2015, 02:22
3 Line segments AB and CD are of equal length and perpendicula 3 15 Sep 2013, 11:33
Display posts from previous: Sort by
