# In the diagram, what is the length of AB?

Author Message
TAGS:

### Hide Tags

Director
Status: Finally Done. Admitted in Kellogg for 2015 intake
Joined: 25 Jun 2011
Posts: 538
Location: United Kingdom
GMAT 1: 730 Q49 V45
GPA: 2.9
WE: Information Technology (Consulting)
Followers: 68

Kudos [?]: 2472 [0], given: 217

In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 17:30
8
This post was
BOOKMARKED
00:00

Difficulty:

65% (hard)

Question Stats:

63% (02:04) correct 37% (01:22) wrong based on 281 sessions

### HideShow timer Statistics

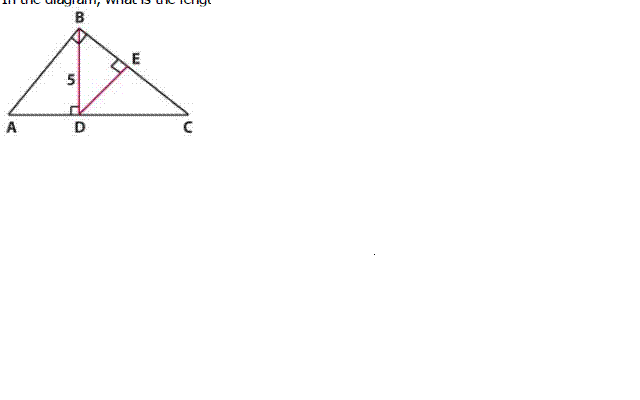

In the diagram, what is the length of AB?

(1) BE = 3
(2) DE = 4

[Reveal] Spoiler:
Attachment:

Triangle.GIF [ 4.41 KiB | Viewed 13107 times ]
[Reveal] Spoiler: OA

_________________

Best Regards,
E.

MGMAT 1 --> 530
MGMAT 2--> 640
MGMAT 3 ---> 610
GMAT ==> 730

Magoosh GMAT Instructor
Joined: 28 Dec 2011
Posts: 3301
Followers: 1121

Kudos [?]: 4914 [7] , given: 54

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 18:10
7
KUDOS
Expert's post
2
This post was
BOOKMARKED
Hi, there! I'm happy to help with this.

When the altitude (i.e. a perpendicular from a vertex) is drawn to the hypotenuse of a right triangle, as it is here, you always get three similar triangles.

Here, altitude BD is drawn to hypotenuse AC, creating similar triangles: Triangle ABC ~ Triangle ADB ~ Triangle BDC. Again, you will always get three similar triangles right away, when you draw an altitude to a hypotenuse.

In addition, the diagram includes segment DE, which creates two more similar triangles:

Triangle ABC ~ Triangle ADB ~ Triangle BDC ~ Triangle BED ~ Triangle DEC

Since the sides of similar triangles are proportional, that implies a whole boatload proportions. So . . .

Statement #1: BE = 3

Using Pythagorean Theorem in Triangle BED, we get DE = 4. That means all five of the similar triangles are 3-4-5 triangles.

AB/BD = BD/DE

AB/5 = 5/4, and we can solve for AB. Statement #1 is sufficient.

Statement #2: DE = 4

Here, we can jump directly to AB/BD = BD/DE ---> AB/5 = 5/4 ---> solve for AB. Statement #2 is sufficient.

Here's another practice question involving similar triangles:

http://gmat.magoosh.com/questions/1022

The question at that link should be followed by a video explanation of the solution. If you are rusty on geometry, you might want to check out Magoosh ---- we have a complete video math curriculum for the GMAT, including everything you will need to know for Geometry.

Does this explanation to the question make sense? Please let me know if you have any further questions.

Mike
_________________

Mike McGarry
Magoosh Test Prep

Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [3] , given: 10016

In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 18:21
3
KUDOS
Expert's post
2
This post was
BOOKMARKED
enigma123 wrote:
In the diagram, what is the length of AB?

(1) BE = 3
(2) DE = 4

In the diagram, what is the length of AB?

Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.

Thus, the perpendicular BD divides right triangle ABC into two similar triangles ADB and BDC (which are also similar to big triangle ABC). Now, in these three triangles the ratio of the corresponding sides will be equal (corresponding sides are the sides opposite the same angles). For example: AB/AC=AD/AB=BD/BC. This property (sometimes along with Pythagoras) will give us the following: if we know ANY 2 values from AB, AD, AC, BC, BD, CD then we'll be able to find the other 4.

The same works for triangle BDC with perpendicular DE.

We know that BD=5 thus one more side and we'll be able to find any other line segment in the diagram.

(1) BE = 3. Sufficient.
(2) DE = 4. Sufficient.

[Reveal] Spoiler:
Attachment:

Triangle2.GIF [ 3.58 KiB | Viewed 14609 times ]

_________________
Director
Status: Finally Done. Admitted in Kellogg for 2015 intake
Joined: 25 Jun 2011
Posts: 538
Location: United Kingdom
GMAT 1: 730 Q49 V45
GPA: 2.9
WE: Information Technology (Consulting)
Followers: 68

Kudos [?]: 2472 [0], given: 217

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 18:49
Hi Mike - In the question that's in the link that you have posted, I am struggling to get how do you get B?
_________________

Best Regards,
E.

MGMAT 1 --> 530
MGMAT 2--> 640
MGMAT 3 ---> 610
GMAT ==> 730

Director
Status: Finally Done. Admitted in Kellogg for 2015 intake
Joined: 25 Jun 2011
Posts: 538
Location: United Kingdom
GMAT 1: 730 Q49 V45
GPA: 2.9
WE: Information Technology (Consulting)
Followers: 68

Kudos [?]: 2472 [0], given: 217

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 18:59
Hi Bunuel - will it possible for you to explain how you make the sides proportion and which sides to make proportionally equal? Is it base to base and height to height ? I hope I am making myself clear. Also, any idea how to solve the question in the link that Mike has provided?
_________________

Best Regards,
E.

MGMAT 1 --> 530
MGMAT 2--> 640
MGMAT 3 ---> 610
GMAT ==> 730

Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [0], given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 19:03
enigma123 wrote:
Hi Bunuel - will it possible for you to explain how you make the sides proportion and which sides to make proportionally equal? Is it base to base and height to height ? I hope I am making myself clear. Also, any idea how to solve the question in the link that Mike has provided?

Check this post: length-of-ac-119652.html?hilit=corresponding#p1029262

The ratio of the corresponding sides are equal (corresponding sides are the sides opposite the same angles).
_________________
Magoosh GMAT Instructor
Joined: 28 Dec 2011
Posts: 3301
Followers: 1121

Kudos [?]: 4914 [0], given: 54

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

05 Feb 2012, 23:00
Dear enigma123,

In the problem at the link: http://gmat.magoosh.com/questions/1022,

Because both Triangles ABE & ACD share (1) a right angle, and (2) angle A, we know they are similar.

Because B is the midpoint of AC, we know 2*(AB) = AC, and thus, the ratio of the two similar triangles is 1:2. In other words, the ratio of any two corresponding sides is equal to 2.

CD/BE = 2, and if we know the length of BE, we can solve for the length of CD. Did you submit your answer and watch the video explanation to the question?

Does what I explain here make sense? Please let me know if I can answer anything else.

Mike
_________________

Mike McGarry
Magoosh Test Prep

Intern
Joined: 18 Jun 2012
Posts: 41
Followers: 1

Kudos [?]: 6 [0], given: 15

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

31 Jul 2012, 01:36
The question doesn't even talk of being a right angle triangle. Should we assume the details just because we see it in the image ?
Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [0], given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

31 Jul 2012, 01:41
smartmanav wrote:
The question doesn't even talk of being a right angle triangle. Should we assume the details just because we see it in the image ?

Attachment:

Triangle.png [ 5.37 KiB | Viewed 14354 times ]

Square signs above (in green circles) indicate that the angles at them are 90 degrees.
_________________
Intern
Joined: 18 Jun 2012
Posts: 41
Followers: 1

Kudos [?]: 6 [0], given: 15

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

31 Jul 2012, 02:00
Bunuel wrote:
smartmanav wrote:
The question doesn't even talk of being a right angle triangle. Should we assume the details just because we see it in the image ?

Attachment:
The attachment Triangle.png is no longer available

Square signs above (in green circles) indicate that the angles at them are 90 degrees.

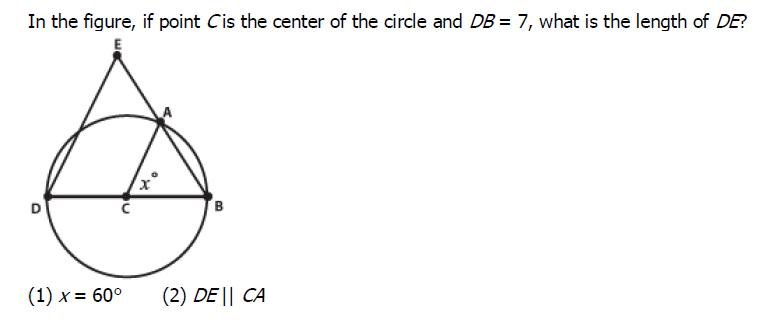

Would you assume the lines as parallel in this question ?
Attachments

File comment: Would you assume the lines as parallel in this question ?

q.JPG [ 18.02 KiB | Viewed 12586 times ]

Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [0], given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

31 Jul 2012, 02:04
smartmanav wrote:
Bunuel wrote:
smartmanav wrote:
The question doesn't even talk of being a right angle triangle. Should we assume the details just because we see it in the image ?

Attachment:

Square signs above (in green circles) indicate that the angles at them are 90 degrees.

Would you assume the lines as parallel in this question ?

Well, the second statement directly gives that DE is parallel to CA (DE||CA), but for the first statement we cannot assume that.
_________________
Manager
Joined: 12 Feb 2012
Posts: 136
Followers: 1

Kudos [?]: 47 [0], given: 28

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

02 Sep 2012, 16:19
Hey Bunuel,

When you extend a line from the vertex of a right angle to the hypotunse, each of the new two triangles are similar to the larger one. But are the two smaller triangles similar to one another?
Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [0], given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

03 Sep 2012, 04:05
alphabeta1234 wrote:
Hey Bunuel,

When you extend a line from the vertex of a right angle to the hypotunse, each of the new two triangles are similar to the larger one. But are the two smaller triangles similar to one another?

Yes, the perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.

Generally if two triangles are similar to the third one, then they are naturally similar to each other.
_________________
Director
Joined: 22 Mar 2011
Posts: 612
WE: Science (Education)
Followers: 90

Kudos [?]: 818 [0], given: 43

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

03 Sep 2012, 04:42
enigma123 wrote:
In the diagram, what is the length of AB?

(1) BE = 3
(2) DE = 4

The key ingredient needed to solve this question is triangle similarity.
Two similar triangles have all the angles congruent. Since the sum of the angles in a triangle is always 180,
knowing that two pairs of angles in the two triangles are congruent is enough to ensure similarity.
To prove that the height in the right triangle ABC determines two similar triangles, look for the congruent angles.

In the given question, even if you don't know the property that the height to the hypotenuse divides the triangle into two similar triangles (and each of them is similar to the initial right triangle), you can still prove that triangle ABD is similar to triangle BDE:
Both are right angled triangles. In addition, because AB is perpendicular to BC and so is DE, AB is parallel to DE, so angle ABD is congruent to angle BDE.
Two pairs of congruent angles means the two triangles are similar.

Knowing all the sides in the triangle BDE, then writing the proportions and because BD belongs to both triangles, you can find AB.
_________________

PhD in Applied Mathematics
Love GMAT Quant questions and running.

Manager
Joined: 12 Feb 2012
Posts: 136
Followers: 1

Kudos [?]: 47 [0], given: 28

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

03 Sep 2012, 10:46
Bunuel wrote:
alphabeta1234 wrote:
Hey Bunuel,

When you extend a line from the vertex of a right angle to the hypotunse, each of the new two triangles are similar to the larger one. But are the two smaller triangles similar to one another?

Yes, the perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.

Generally if two triangles are similar to the third one, then they are naturally similar to each other.

Hey Bunuel,

Thank you very much for your response. I guess then as corrolary to the first question. Since all the angles are the same in all three triangles (let say angles x*,y*, and z*, where z*=90), Is there an easier way to identify which angle is referring to which side in the triangle within the equation you stated, AB/AC=AD/AB=BD/BC? Or are you mentally rotating the triangles making sure angle y* is opposite to AB, angle x* is opposite to AC, and checking it with angle y* opposite to AD, and angle x* is opposite to AB. Are you mentally rotating and checking that the all the sides are in conjunction with (opposite to x*)/(opposite to y*). Or is there an easier, more systematic method your using to ensure that all those sides are in fact in the same proportion.

On another side note, unrelated to my question above:
I also noticed that in your equation that each ratio is of sides of the same triangle equaling the ratio of the other triangle, opposite degree sides. So (Side 1, Triangle A)/(Side 2, Triangle A)=(Side 1 Triangle B)/(Side 2, Triangle B). I always imagined that if Triangle A (sides X,Y,Z) and Triangle B(sides M N P), where triangle A is bigger than B, then their similarity defined the following relationship:

X=Mc , where c is a some positive constant>1 and sides X and M are opposite to the same angle
Y=Nc
Z=Pc

Then the relationship would be defined as c=X/M=Y/N=Z/P= (side 1 Triangle A)/(side 1 Triangle B)=(side 2 Triangle A)/(side 2 Triangle B)=(side 3 Triangle A)/(side 3 Triangle B)
I just noticed that this relationship can always be manipulated to get c=X/M=Y/N ==> new constant=M*c/Y=X/Y=M/N=(Side 1 Triangle A)/(Side 2 Triangle A)=(Side 1 Triangle B)/(Side 2 Triangle B), which i think is very interesting. Same sides of the triangle are also in proportion to the same sides of the other triangle and another new constant the related the two triangles is embedded within the relationship of the triangles own sides!!! (eek, hope that made sense)

I also learned from you that if you had two similar triangles then (Area Triangle A)/(Area Triangle B)=(Side 1 Triangle A)^2/(Side 2 Triangle B)^2.

Are there any other key relationships that are important about similar triangles?
GMAT Club Legend
Joined: 09 Sep 2013
Posts: 11029
Followers: 509

Kudos [?]: 133 [0], given: 0

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

26 Apr 2014, 19:56
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
_________________
Senior Manager
Joined: 15 Aug 2013
Posts: 328
Followers: 0

Kudos [?]: 42 [0], given: 23

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

24 May 2014, 14:02
Bunuel wrote:
enigma123 wrote:
In the diagram, what is the length of AB?

(1) BE = 3
(2) DE = 4

Attachment:

In the diagram, what is the length of AB?

Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.

Thus, the perpendicular BD divides right triangle ABC into two similar triangles ADB and BDC (which are also similar to big triangle ABC). Now, in these three triangles the ratio of the corresponding sides will be equal (corresponding sides are the sides opposite the same angles). For example: AB/AC=AD/AB=BD/BC. This property (sometimes along with Pythagoras) will give us the following: if we know ANY 2 values from AB, AD, AC, BC, BD, CD then we'll be able to find the other 4.

The same works for triangle BDC with perpendicular DE.

We know that BD=5 thus one more side and we'll be able to find any other line segment in the diagram.

(1) BE = 3. Sufficient.
(2) DE = 4. Sufficient.

Hi Bunuel,

I understand that a line perpendicular to a hyp will always create TWO similar triangles. That being said, line BD creates ADB and BDC. Correct?

Now, we have another segment DE, since it's perpendicular to BC, it will create BED and DEC. Correct?

Are BED and DEC similar to ADB and BDC or are the two groups standalone? The reason why I ask is because they are both segmented off another hypotenuse?
Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [1] , given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

24 May 2014, 14:12
1
KUDOS
Expert's post
russ9 wrote:
Bunuel wrote:
enigma123 wrote:
In the diagram, what is the length of AB?

(1) BE = 3
(2) DE = 4

Attachment:

In the diagram, what is the length of AB?

Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.

Thus, the perpendicular BD divides right triangle ABC into two similar triangles ADB and BDC (which are also similar to big triangle ABC). Now, in these three triangles the ratio of the corresponding sides will be equal (corresponding sides are the sides opposite the same angles). For example: AB/AC=AD/AB=BD/BC. This property (sometimes along with Pythagoras) will give us the following: if we know ANY 2 values from AB, AD, AC, BC, BD, CD then we'll be able to find the other 4.

The same works for triangle BDC with perpendicular DE.

We know that BD=5 thus one more side and we'll be able to find any other line segment in the diagram.

(1) BE = 3. Sufficient.
(2) DE = 4. Sufficient.

Hi Bunuel,

I understand that a line perpendicular to a hyp will always create TWO similar triangles. That being said, line BD creates ADB and BDC. Correct?

Now, we have another segment DE, since it's perpendicular to BC, it will create BED and DEC. Correct?

Are BED and DEC similar to ADB and BDC or are the two groups standalone? The reason why I ask is because they are both segmented off another hypotenuse?

Angles in ABC are identical to those in ABD and BDC.
Angles in BDC are identical to those in BDE and DEC.

Obviously, angles in all those triangles are identical.
_________________
Intern
Joined: 25 Aug 2014
Posts: 7
Followers: 0

Kudos [?]: 2 [0], given: 6

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

09 Apr 2015, 14:30
Hi Bunuel,

Can we do this by using isosceles triangle property for triangle ABD in which angle ABD is 45 ( BD is dropping a perpendicular ) so angle A is 45 hence AD is also 5 and we can calculate AB via Pythagoras and same can be done for remaining angles as well.
Math Expert
Joined: 02 Sep 2009
Posts: 34393
Followers: 6247

Kudos [?]: 79325 [0], given: 10016

Re: In the diagram, what is the length of AB? [#permalink]

### Show Tags

10 Apr 2015, 04:28
shekharshrek wrote:
Hi Bunuel,

Can we do this by using isosceles triangle property for triangle ABD in which angle ABD is 45 ( BD is dropping a perpendicular ) so angle A is 45 hence AD is also 5 and we can calculate AB via Pythagoras and same can be done for remaining angles as well.

BD is not a bisector of angle B, so ABD is NOT 45 degrees. BD would be a bisector if AB were equal to BC in this case the perpendicular from B will coincide with the bisector from B.
_________________
Re: In the diagram, what is the length of AB?   [#permalink] 10 Apr 2015, 04:28

Go to page    1   2    Next  [ 25 posts ]

Similar topics Replies Last post
Similar
Topics:
2 In triangle ABC, what is the length of AB? 1 11 Aug 2016, 06:52
If AE = EC, what is the length of AB? 4 10 May 2014, 08:46
8 What is the length of the chord AB 8 29 Jan 2012, 23:52
In the diagram find the length of AB? 5 08 Sep 2011, 14:23
2 In the diagram above, what is the length of MP if LNOQ is a 4 26 Jan 2010, 14:29
Display posts from previous: Sort by
