In the figure shown, what is the value of v+x+y+z+w?

Author Message
TAGS:

Hide Tags

GMAT Club Legend
Joined: 09 Sep 2013
Posts: 12180
Followers: 538

Kudos [?]: 151 [0], given: 0

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

02 Jun 2014, 09:35
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
_________________
Senior Manager
Joined: 08 Apr 2012
Posts: 464
Followers: 2

Kudos [?]: 47 [0], given: 58

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

08 Jun 2014, 07:41
EvaJager wrote:
Bunuel wrote:
The Official Guide for GMAT® Review, 13th Edition - Quantitative Questions Project

In the figure shown, what is the value of v+x+y+z+w?
Attachment:

(A) 45
(B) 90
(C) 180
(D) 270
(E) 360

Diagnostic Test
Question: 10
Page: 21
Difficulty: 650

GMAT Club is introducing a new project: The Official Guide for GMAT® Review, 13th Edition - Quantitative Questions Project

Each week we'll be posting several questions from The Official Guide for GMAT® Review, 13th Edition and then after couple of days we'll provide Official Answer (OA) to them along with a slution.

We'll be glad if you participate in development of this project:
2. Please vote for the best solutions by pressing Kudos button;
3. Please vote for the questions themselves by pressing Kudos button;
4. Please share your views on difficulty level of the questions, so that we have most precise evaluation.

Thank you!

I can suggest two solutions:

Solution A

We can compute the sum of the angles from the five triangles created on the sides of the pentagon ABCDE. In those triangles, we have five pairs of congruent angles (see them marked by colored arcs in the attached drawing). Those angles are external angles for the pentagon and their sum is $$360^o$$. See at the end of the post the justification for the fact that in every convex polygon, the sum of the external angles is $$360^o$$.
Therefore, v + x + y + z + w = 5 ∙ 180 – 2 ∙ 360 = 900 – 720= 180.

Solution B

Since the question is a multiple choice one, we can assume that there is one correct answer and that that answer does not depend on the shape of the “star”. Assuming that the star can be inscribed in a circle, we can see that the requested sum of the angles is 360/2 = 180, because each angle is inscribed in the circle and the five corresponding arcs complete the circle.
Remark: If one of the answers would have been “It cannot be determined” or something similar, than this argument wouldn’t work.

Sum of the external angles for a convex polygon:

We know that the sum of the interior angles in a convex polygon with n sides (n being a positive integer greater than 2) is given by the formula:
(n – 2)∙180 = 180n – 360.
Each external angle is 180 – the corresponding interior angle. Therefore, the total sum of the exterior angles is 180n – (n – 2) ∙ 180 = 180n – 180n + 360 = 360.

Note: Convex polygons have the property that each of their angles is less than 180. All the polygons dealt with on GMAT are convex (triangle, quadrilateral, pentagon, hexagon,...) or are made up of convex polygons. In this question, the figure of the star, without the sides of the small convex pentagon, is an example of a non-convex decagon: it has 10 sides, and 5 angles which are greater, and 5, which are smaller than 180.

I don't get the equation of solution A...
can anyone shed some light?
Current Student
Joined: 19 Jan 2014
Posts: 24
GMAT 1: 730 Q50 V39
WE: Accounting (Accounting)
Followers: 0

Kudos [?]: 13 [0], given: 1

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

01 Jul 2014, 05:17
Attachment:

star-sol.png [ 10.08 KiB | Viewed 1193 times ]

i didn't know the central angle theorem, and tried solving with a different way.
sorry for my mad paint skills :D

here is my solution:
1. Draw a line via vertex of angle Y, parallel to the line between angles V and Z. In a picture the red coloured lines are parallel.
2. Draw a line via vertex of angle Y, parallel to the line between angles X and Z (violet coloured)
3. Draw a line via vertex of angle Y, parallel to the line between angles X and W (blue coloured)

The following can be concluded from the pic accoridng to thales theorem:
a. angles between red and violet lines will be same (angle Z)
b. angles between black and red lines will be same (angle V)
c. angles between blue and black lines will be same (angle W)
d. angles between blue and violet lines will be same (angle X)

as a result sum of 5 angles will be a violet line and equal to 180 degrees

My solution is obviously not as simple and quick as Bunuel's one, but maybe you can use my approach for solving similar problems
Current Student
Joined: 04 Jul 2014
Posts: 284
Location: India
GMAT 1: 640 Q47 V31
GMAT 2: 640 Q44 V34
GMAT 3: 710 Q49 V37
GPA: 3.58
WE: Analyst (Accounting)
Followers: 19

Kudos [?]: 217 [0], given: 403

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

19 Nov 2014, 09:54
Bunuel wrote:
Let's simplify the problem by imagining that we have a star that is inscribed in a circle as shown below:

Hi Bunuel. How can we assume that the star could be inscribed within a circle in the absence of information. Further, the general GMAT assumption is that all diagrams are not drawn to scale unless the contrary is mentioned.

_________________

Cheers!!

JA
If you like my post, let me know. Give me a kudos!

Current Student
Joined: 04 Jul 2014
Posts: 284
Location: India
GMAT 1: 640 Q47 V31
GMAT 2: 640 Q44 V34
GMAT 3: 710 Q49 V37
GPA: 3.58
WE: Analyst (Accounting)
Followers: 19

Kudos [?]: 217 [3] , given: 403

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

19 Nov 2014, 11:21
3
KUDOS
Wow! See what I found with a little googling!

A star is always regularly shaped (this clarifies why Bunuel assumed that the start would get inscribed in the circle)!
1. The sum of the angles formed at the tips of the five pointed star is 180; the sum of the angles formed at the tips of the six pointed star is 360.
2. The formula for the sum of the angle measurements at the tips of an n-pointed star is f(n)=180(n)-720 where n is an integer greater than 4.

This clarifies my doubts Very Happy
_________________

Cheers!!

JA
If you like my post, let me know. Give me a kudos!

Intern
Joined: 11 Jan 2013
Posts: 6
Followers: 0

Kudos [?]: 1 [0], given: 6

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

15 Dec 2014, 23:57
Hi Bunuel,
can you please elaborate how you made the assumption that "Let's simplify the problem by imagining that we have a star that is inscribed in a circle as shown below"?

Thanks alot.
Intern
Joined: 11 Jan 2013
Posts: 6
Followers: 0

Kudos [?]: 1 [0], given: 6

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

15 Dec 2014, 23:57
Hi Bunuel,
can you please elaborate how you made the assumption that "Let's simplify the problem by imagining that we have a star that is inscribed in a circle as shown below"?

Thanks alot.
Intern
Joined: 21 Jul 2015
Posts: 33
Followers: 0

Kudos [?]: 18 [1] , given: 30

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

27 Aug 2015, 18:08
1
KUDOS
Interior angle of a polygon = $$((n-2)180)/n$$
For Pentagon = $$(5-3)180/5$$ = 108
sum of angles in each triangle angle x+(180-108)+(180-108) = 180 .... x = 36
there are 5 triangles ... 36*5 = 180
Intern
Joined: 16 Sep 2015
Posts: 1
Followers: 0

Kudos [?]: 0 [0], given: 0

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

16 Mar 2016, 07:48
Alternate Solution with just the basics.
(I have not named every vertex separately in order to avoid confusion (mess). Every vertex of the star is named by the angle it depicts in the picture)
Attachments

File comment: y+A+B+C = 360 (sum of all the angles in quadrilateral-YABC )
A= 180-(y+v) (sum of all angles in a triangle is 180,Triangle YAV)
B= 180-(x+z) (Triangle XBZ)
C= 180-(y+w) (Triangle YCW)

Now, Substitute the values of A, B and C in the equation : A+B+C+y=360
(180-y-v) + (180-x-z) + (180-y-w) + y =360
By solving the above, we get:
540 - w - v - z - x - 2y + y=360
x+y+v+z+w=180

Govind Kohli
Kudos if this helps

step0004.png [ 5.55 KiB | Viewed 304 times ]

Manager
Joined: 23 Sep 2015
Posts: 238
Location: France
GMAT 1: 690 Q47 V38
GMAT 2: 700 Q48 V38
Followers: 1

Kudos [?]: 38 [1] , given: 48

Re: In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

01 Apr 2016, 03:05
1
KUDOS

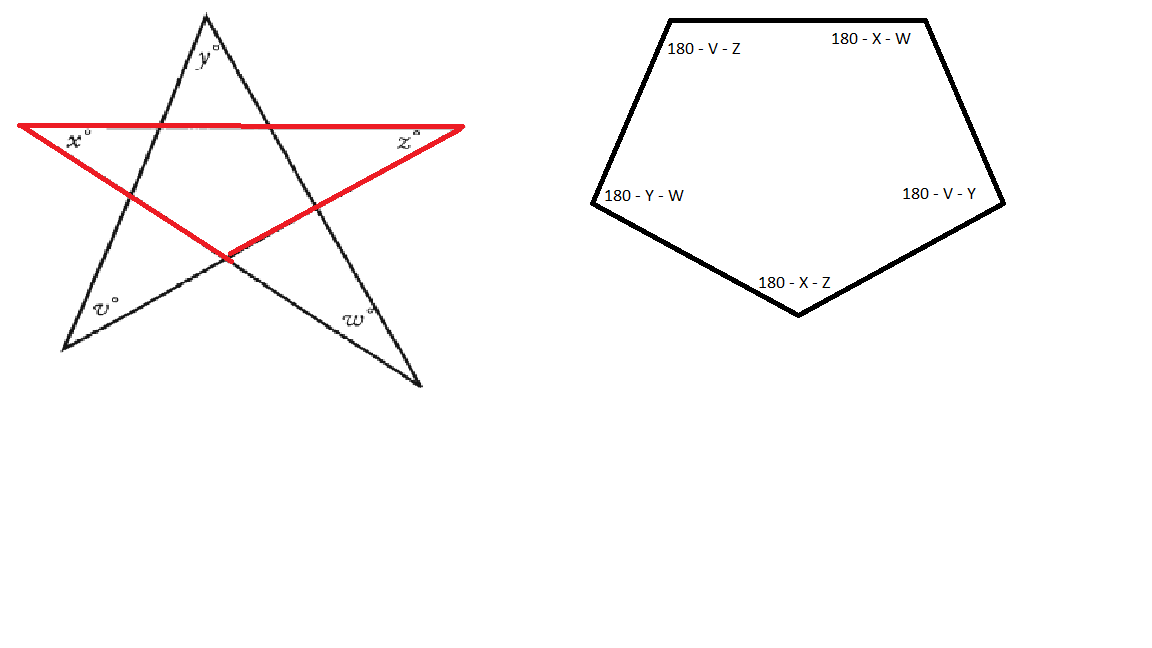

$$A + B + C + D + E = (5-2)*180 = 540$$

$$A+x+z=180$$
$$B+y+v=180$$
$$C+x+w=180$$
$$D+v+z=180$$
$$E+y+w=180$$

$$A + B + C + D + E +2x+2y+2z+2w+2v =900$$

$$540 + 2x+2y+2z+2w+2v = 900$$

$$2x+2y+2z+2w+2v = 360$$

$$x+y+z+w+v=180$$
Attachments

GMAT.png [ 8.59 KiB | Viewed 310 times ]

_________________

New Application Tracker : update your school profiles instantly!

Intern
Joined: 11 Apr 2016
Posts: 15
Location: India
Concentration: Finance, Entrepreneurship
GMAT 1: 730 Q50 V39
GPA: 3.94
WE: Investment Banking (Investment Banking)
Followers: 1

Kudos [?]: 15 [0], given: 9

In the figure shown, what is the value of v+x+y+z+w? [#permalink]

Show Tags

17 Oct 2016, 20:28
In the figure below, what is the value of a+b+c+d+e?

A. 60 Degrees
B. 75 Degrees
C. 90 Degrees
D. 135 Degrees
E. 180 Degrees
Attachments

File comment: Star Figure

Image.JPG [ 12.05 KiB | Viewed 28 times ]

_________________

Last edited by Vyshak on 17 Oct 2016, 20:43, edited 1 time in total.
Topic Merged. Refer to the above discussions
