Author |
Message |
|
Intern
Joined: 14 Apr 2009
Posts: 4
Followers: 0
Kudos [?]:
1
[1] , given: 0
|
1
This post received
KUDOS
Question Stats:
0% (00:00) correct
 0% (00:00) wrong based on 1 sessions
If quadrilateral ABCD is inscribed into a circle, what is the value of \angle BAD ? 1. AC = CD2. \angle ADC = 70^\circSource: GMAT Club Tests - hardest GMAT questions Explanation: If ABCD is a quadrilateral then: total of all angle's is 360. Now, in stmt 1 they are saying that AC (which could be the diameter of the circle) = CD (one of the sides of the quad) - This helps us in understanding that angle ADC = angle DAC = x and that x + x + angle ACD = 180 and that angle ACD = 180 - 2x What we need is angel BAD which is not provided in Stmt 1, thus NS Stmt 2 gives angel ADC = 70 deg which does not help us in estimating any other angle since a quadrilateral can be a square, parallelogram or a rhombus so angles can be different Combining stmt 1 and stmt 2 we get angle ADC = 70 deg = angle CAD But we are still missing information about the other angle's i.e. angle ABC + angle BCD + angle ADC + angle BAD = 360 angle ABC + angle BCD + angle 70 + (angle BAC + angle CAD) = 360 angle ABC + angle BCD + angle 70 + (angle BAC + 70) = 360 Rest of the angles above are still missing. Thus, E If we were told what kind of a quad it is then it would be easier to find out the angle.
|
|
|
|
|
|
|
|
|
Manager
Joined: 12 Apr 2009
Posts: 212
Followers: 2
Kudos [?]:
21
[0], given: 4
|
Well explained - thank you. +1 http://www.algebralab.org/lessons/lesso ... istics.xmlI think it is important to remember a quadrilateral can be a shape of four sides. Any shape is fine. A warped Trapezium of obtuse angles would be a qdrltlt as well. Am I right?
_________________
-talent is the desire to practice-
|
|
|
|
|
|
Manager
Joined: 02 Nov 2010
Posts: 82
Location: india
WE 1: 1.3
Followers: 2
Kudos [?]:
8
[0], given: 15
|
dude,ac cannot be diameter of circle because if that were true,adc=90 deg but we cant be sure of it
|
|
|
|
|
|
Intern
Joined: 16 Jul 2010
Posts: 4
Followers: 0
Kudos [?]:
0
[0], given: 0
|
since ADC = 70 and AC = CD, DAC = 70 and therefore ACD = 180 - 140 = 40 since inscribed angle of point on circle to A and D is 40,center of circle = O AOD = 2 * 40 = 80 in triangle AOD, OAD = ODA = 40 BOC = AOD = 80 therefore AOB = DOC = (360 - 80 -80) / 2 = 100 in triangle AOB, OAB = OBA = 50 BAD = OAB + OAD = 40 + 50 = 90 Answer = C (both statements together) |
|
|
|
|
|
Intern
Joined: 17 Aug 2010
Posts: 18
Followers: 1
Kudos [?]:
1
[0], given: 4
|
hey how can we say that centre lies on the dia AC.
_________________
Kingfisher
The king of good times and a companion in bad ones......
|
|
|
|
|
|
Manager
Joined: 02 Nov 2010
Posts: 82
Location: india
WE 1: 1.3
Followers: 2
Kudos [?]:
8
[0], given: 15
|
how is ac the diameter
|
|
|
|
|
|
Intern
Joined: 21 Oct 2010
Posts: 7
Followers: 0
Kudos [?]:
1
[0], given: 0
|
The answer is E.
We can just find out all angles of ACD - CAD (70), CDA (70), DCA (40). However, we cannot find any other angle.
|
|
|
|
|
|
Intern
Joined: 21 Jun 2010
Posts: 10
Followers: 0
Kudos [?]:
1
[1] , given: 11
|
1
This post received
KUDOS
I know the answer.... its E!
Explanation:
I banged my head against the wall after wasting 15 minutes on this question.
I then figured out that I still cannot get to the answer.
So it has to be E.
PS: I think that was wasteful seriously.
|
|
|
|
|
|
Intern
Joined: 21 Jun 2010
Posts: 10
Followers: 0
Kudos [?]:
1
[0], given: 11
|

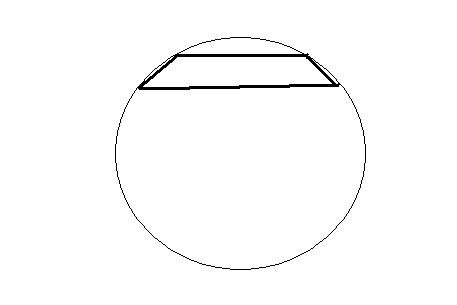

adhithya wrote: how is ac the diameter my question as well... before having a kudos/+1 party please answer the eternal question... "how is ac the diameter?" I had imagined the quadrilateral ABCD inscribed in the the circle at the very top.... let's say in a semi-circle. now how does AC become the diameter???
Attachments
File comment: evidence attached
untitled.JPG [ 7.68 KiB | Viewed 2838 times ]
|
|
|
|
|
|
Manager
Joined: 01 Nov 2010
Posts: 204
Location: India
Concentration: Technology, Marketing
GMAT Date: 08-27-2012
GPA: 3.8
WE: Marketing (Manufacturing)
Followers: 5
Kudos [?]:
10
[1] , given: 26
|
1
This post received
KUDOS
xunil56 wrote: If quadrilateral ABCD is inscribed into a circle, what is the value of \angle BAD ? 1. AC = CD2. \angle ADC = 70^\circSource: GMAT Club Tests - hardest GMAT questions Explanation: If ABCD is a quadrilateral then: total of all angle's is 360. Now, in stmt 1 they are saying that AC (which could be the diameter of the circle) = CD (one of the sides of the quad) - This helps us in understanding that angle ADC = angle DAC = x and that x + x + angle ACD = 180 and that angle ACD = 180 - 2x What we need is angel BAD which is not provided in Stmt 1, thus NS Stmt 2 gives angel ADC = 70 deg which does not help us in estimating any other angle since a quadrilateral can be a square, parallelogram or a rhombus so angles can be different Combining stmt 1 and stmt 2 we get angle ADC = 70 deg = angle CAD But we are still missing information about the other angle's i.e. angle ABC + angle BCD + angle ADC + angle BAD = 360 angle ABC + angle BCD + angle 70 + (angle BAC + angle CAD) = 360 angle ABC + angle BCD + angle 70 + (angle BAC + 70) = 360 Rest of the angles above are still missing. Thus, E If we were told what kind of a quad it is then it would be easier to find out the angle. Hey dude! you cant assume AC as the diameter of circle. even if you have assumed this, then the quad will be a Rectangle or Square and its very easy to find the angles with these 2 stmnts. Sol: Stmt 2: Angl ADC = 70 stmt 1: AC=DC i.e. angl CAD= angl CDA =70 ==> angl DCA =40. since, Angl ADC + Angl ABC =180; ==> Angl ABC = 110. we cant find Angl BAD = 70 + Angl BAC, using these 2 condition. so FInal ANs is E.
_________________
kudos me if you like my post.
Attitude determine everything.
all the best and God bless you.
|
|
|
|
|
|
Manager
Joined: 22 Jun 2010
Posts: 58
Followers: 1
Kudos [?]:
3
[0], given: 10
|
321, how do you get that ABC =110?
We know all angles in the the small triangle ACD. But now B could be ANY point above line AC on the cirlce - does it always end up as the same angle?? If so, please elaborate, how to get that angle.
Regarding the question if AC could or could not be the diameter:
Statement 2 tells you that it is NOT!
Because if AC was the diameter, then ABC and ADC would both be right angles. (but S2 tells you ADC = 70)
|
|
|
|
|
|
Manager
Joined: 01 Nov 2010
Posts: 204
Location: India
Concentration: Technology, Marketing
GMAT Date: 08-27-2012
GPA: 3.8
WE: Marketing (Manufacturing)
Followers: 5
Kudos [?]:
10
[0], given: 26
|
AndreG wrote: 321, how do you get that ABC =110?
We know all angles in the the small triangle ACD. But now B could be ANY point above line AC on the cirlce - does it always end up as the same angle?? If so, please elaborate, how to get that angle.
Regarding the question if AC could or could not be the diameter:
Statement 2 tells you that it is NOT!
Because if AC was the diameter, then ABC and ADC would both be right angles. (but S2 tells you ADC = 70) Hey, Theorem : The sum of the opposite angles in cyclic Quadrilateral are supplementary to one another, i.e., their sum is equal to two right angles so angl ADC + Angl ABC = 180, n angl ADC = 70. its the property of cyclic quad. for more theorem follow the link. http://www.tutornext.com/cyclic-quadril ... rties/1028
_________________
kudos me if you like my post.
Attitude determine everything.
all the best and God bless you.
|
|
|
|
|
|
Intern
Joined: 07 Sep 2010
Posts: 18
Followers: 0
Kudos [?]:
2
[0], given: 3
|
S1: isosceles triangle, so Angle ADC=DAC. Not sufficient
S2: Angle ADC=70 deg. Not sufficient.
Combining we have Angle ACD=40 (Sum of 3 angles in a triangle ADC=180 Deg).
Now that alternate opp. Angles are equal AC bisects AB & DC, we can say Angle CAB=40.
Therefore Angle BAD=110 deg.
kudos if you like my explanation !
|
|
|
|
|
|
Intern
Affiliations: ACCA
Joined: 17 Apr 2010
Posts: 34
Schools: IMD, Insead, LBS, IE, Cambridge, Oxford
Followers: 0
Kudos [?]:
10
[0], given: 2
|
anandthiru wrote: S1: isosceles triangle, so Angle ADC=DAC. Not sufficient
S2: Angle ADC=70 deg. Not sufficient.
Combining we have Angle ACD=40 (Sum of 3 angles in a triangle ADC=180 Deg).
Now that alternate opp. Angles are equal AC bisects AB & DC, we can say Angle CAB=40.
Therefore Angle BAD=110 deg.
kudos if you like my explanation ! it is not statex thar it is paralellogram so ur explanation os wrong E Posted from my mobile device
|
|
|
|
|
|
Manager
Joined: 21 Nov 2010
Posts: 141
Followers: 0
Kudos [?]:
2
[0], given: 12
|
I'm glad there are so many opinions on this answer  I got E. I can only get the measurement for half of angle DAB.
|
|
|
|
|
|
Intern
Joined: 19 Jun 2011
Posts: 38
Followers: 1
Kudos [?]:
0
[0], given: 11
|
I drew ABCD as a rectangle with the points on the circle. I ended up with answer D and was surprised to find out it was E. Since Rectangles have 4 rt angles, for statement 1 I drew a diagonal line through the rectangle to form 2 rt triangles, and since ac = cd, I thought it was isosceles thus I had <ADC and < DAC = 45 each therefore able to answer the original question. For statement 2, Since <ADC=70, I was able to use a similar method and turned the rectangle into 2 rt triangles. I added 90 and 70 and then subtracted from 180 to find <DAC. I then was able to find out the value for <BAD by subtracting <DAC from 90, thus I labeled statement 2 as sufficient. I was wondering what I did wrong since I was off by a lot.
|
|
|
|
|
|
Manager
Joined: 13 May 2010
Posts: 125
Followers: 0
Kudos [?]:
2
[0], given: 4
|
A quick question:
For which quadrilaterals do diagonals bisect the vertex angles?
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
