Quadrilateral ABCD is a rhombus and points C, D, and E are : Data Sufficiency (DS)

2013-12-16T00:06:06-08:00

Because BC=CD, triangle BCD is isosceles. (1) says that angle BCD is 60 degrees, thus triangle BCD is equilateral. Therefore BD=BC=CD. Hope it's clear.

L

Bunuel

Math Expert

Joined: 02 Sep 2009

Posts: 92915

Own Kudos [?]: 619014 [0]

Given Kudos: 81595

Send PM

Re: Rhombus [#permalink]

12 May 2014, 02:11

Expert Reply

russ9 wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi Bunuel,

I'm trying to catch my disconnect and tried to explain the reasoning. Appreciate any input.

1. From the question stem, we know that AB=BC=CD=DA because it's a rhombus. We cannot infer the exact degree's besides stating that the opposite angles will be equal and the adjacent will add up to 180. Is that correct to infer?

2, Additionally, we are told/asked "Is quadrilateral ABDE a rhombus?" -- It does say that ABDE is a quadrilateral, meaning, that the lines AE and BD should be parallel and AB and DE should be parallel. Is that correct to infer? I'm guessing the answer is NO. Maybe i'm confusing quadrilateral with parallelogram?

Now, according to statement A = If I know that BCD is 60 degrees, I can automatically infer that BAD is 60 degrees since it's a rhombus. This makes ADE 60 degrees but I don't know anything about the other two angles DAE and DEA.

INSUFFICIENT

3. Additionally, statement two states that (2) AE is parallel to BD. Now I can infer that since AE is parallel to BD and since BA is parallel to DE, it's at least a parallelogram. Correct?

Now, since I know that it's a parallelogram, I can work my way through the angles and realize that it's a parallelogram with all acute angles equal to each other and all obtuse equal to each other. I also know that BC = BD = BA, therefore a Rhombus.

1 is correct.
2 is not correct. Quadrilateral just means "four sides". So, any four-sided shape is a quadrilateral.
3 is correct.

russ9

Manager

Joined: 15 Aug 2013

Posts: 180

Own Kudos [?]: 332 [0]

Given Kudos: 23

Send PM

Re: Rhombus [#permalink]

15 May 2014, 17:20

Bunuel wrote:

russ9 wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi Bunuel,

I'm trying to catch my disconnect and tried to explain the reasoning. Appreciate any input.

1. From the question stem, we know that AB=BC=CD=DA because it's a rhombus. We cannot infer the exact degree's besides stating that the opposite angles will be equal and the adjacent will add up to 180. Is that correct to infer?

2, Additionally, we are told/asked "Is quadrilateral ABDE a rhombus?" -- It does say that ABDE is a quadrilateral, meaning, that the lines AE and BD should be parallel and AB and DE should be parallel. Is that correct to infer? I'm guessing the answer is NO. Maybe i'm confusing quadrilateral with parallelogram?

Now, according to statement A = If I know that BCD is 60 degrees, I can automatically infer that BAD is 60 degrees since it's a rhombus. This makes ADE 60 degrees but I don't know anything about the other two angles DAE and DEA.

INSUFFICIENT

3. Additionally, statement two states that (2) AE is parallel to BD. Now I can infer that since AE is parallel to BD and since BA is parallel to DE, it's at least a parallelogram. Correct?

Now, since I know that it's a parallelogram, I can work my way through the angles and realize that it's a parallelogram with all acute angles equal to each other and all obtuse equal to each other. I also know that BC = BD = BA, therefore a Rhombus.

1 is correct.
2 is not correct. Quadrilateral just means "four sides". So, any four-sided shape is a quadrilateral.
3 is correct.

Thanks a ton. Very clear now.

G

ENGRTOMBA2018

SVP

Joined: 20 Mar 2014

Posts: 2362

Own Kudos [?]: 3626 [0]

Given Kudos: 816

Concentration: Finance, Strategy

Schools: Kellogg '18 (M)

GMAT 1: 750 Q49 V44 Verified score

GPA: 3.7

WE:Engineering (Aerospace and Defense)

Send PM

Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

14 Jul 2015, 07:35

AccipiterQ wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

How do you know that BD=AB from 1?? Is there some hidden calculations done in there? All I see is BCD=60, you don't know the measures of any other angles so it doesn't really tell you anything

Important thing to remember here: Rhombus is a symmetrical quadrilateral wrt the diagonals. What this means is that any diagonal will divide the rhombus into 2 triangles of equal areas. Also, because of the symmetry it is easy to prove that $\angle A = \angle C$. Additional properties of rhombus are:

•Opposite angles of a rhombus have equal measure.
•The two diagonals of a rhombus are perpendicular
•Its diagonals bisect opposite angles.

Draw BD to complete triangle ABD. Given, $\angle {BCD}$ = 60 degrees. ----> $\angle {BAD}$ = 60 degrees and $\angle {ABC}$ = $\angle {CDA}$ = 120 degrees (to complete 360 degree for sum of all internal angles of a quadrilateral).

Now, diagonal BD will bisect $\angle {CBA}$ and $\angle {CDA}$ such that $\angle {ABD} = \angle {ADB}$ = x.

Thus, in triangle ABD, x+x+60 = 180 ----> x = 60 degrees . Thus triangle ABD is equilateral and hence AB = BD.

B

PathFinder007

Manager

Joined: 10 Mar 2014

Posts: 137

Own Kudos [?]: 675 [0]

Given Kudos: 13

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

05 Aug 2015, 06:49

Bunuel wrote:

russ9 wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi Bunuel,

I'm trying to catch my disconnect and tried to explain the reasoning. Appreciate any input.

1. From the question stem, we know that AB=BC=CD=DA because it's a rhombus. We cannot infer the exact degree's besides stating that the opposite angles will be equal and the adjacent will add up to 180. Is that correct to infer?

2, Additionally, we are told/asked "Is quadrilateral ABDE a rhombus?" -- It does say that ABDE is a quadrilateral, meaning, that the lines AE and BD should be parallel and AB and DE should be parallel. Is that correct to infer? I'm guessing the answer is NO. Maybe i'm confusing quadrilateral with parallelogram?

Now, according to statement A = If I know that BCD is 60 degrees, I can automatically infer that BAD is 60 degrees since it's a rhombus. This makes ADE 60 degrees but I don't know anything about the other two angles DAE and DEA.

INSUFFICIENT

3. Additionally, statement two states that (2) AE is parallel to BD. Now I can infer that since AE is parallel to BD and since BA is parallel to DE, it's at least a parallelogram. Correct?

Now, since I know that it's a parallelogram, I can work my way through the angles and realize that it's a parallelogram with all acute angles equal to each other and all obtuse equal to each other. I also know that BC = BD = BA, therefore a Rhombus.

1 is correct.
2 is not correct. Quadrilateral just means "four sides". So, any four-sided shape is a quadrilateral.
3 is correct.

hi bunuel,

could you please clarify ABDE is a parallelogram (as AE||BD and BA||DE). I just want to know on what basis we are saying ABDE is parallelogram. I am not clear about this.

Thanks

G

ENGRTOMBA2018

SVP

Joined: 20 Mar 2014

Posts: 2362

Own Kudos [?]: 3626 [0]

Given Kudos: 816

Concentration: Finance, Strategy

Schools: Kellogg '18 (M)

GMAT 1: 750 Q49 V44 Verified score

GPA: 3.7

WE:Engineering (Aerospace and Defense)

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

05 Aug 2015, 07:02

PathFinder007 wrote:

hi bunuel,

could you please clarify ABDE is a parallelogram (as AE||BD and BA||DE). I just want to know on what basis we are saying ABDE is parallelogram. I am not clear about this.

Thanks

Any quadrilateral with 2 pairs of parallel lines is a parallelogram. All shapes such as rectangles, rhombuses, squares are parallelograms

G

Nevernevergiveup

Retired Moderator

Joined: 18 Sep 2014

Posts: 1015

Own Kudos [?]: 2755 [4]

Given Kudos: 79

Location: India

Send PM

Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

27 Sep 2015, 02:11

3

Kudos

1

Bookmarks

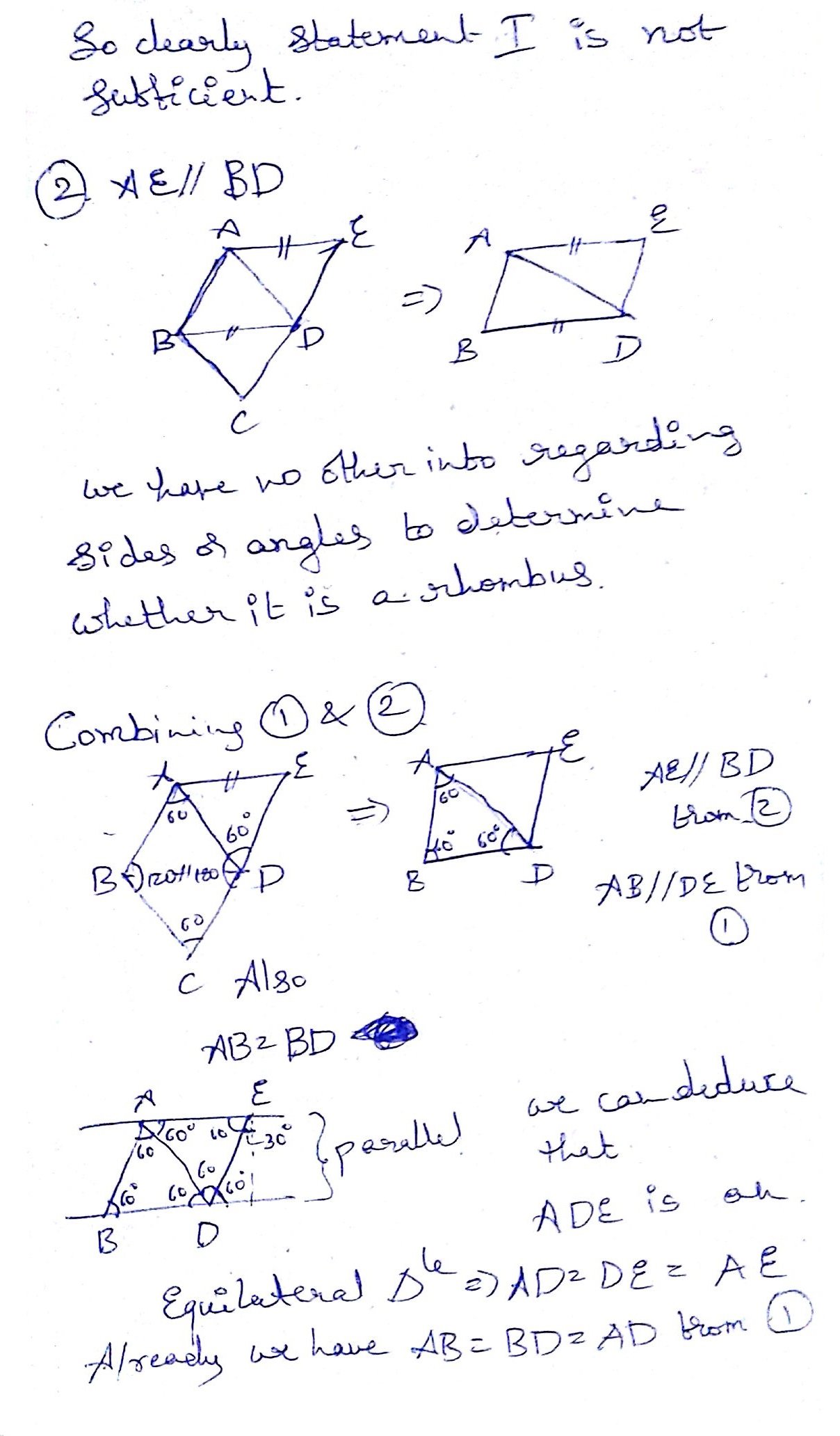

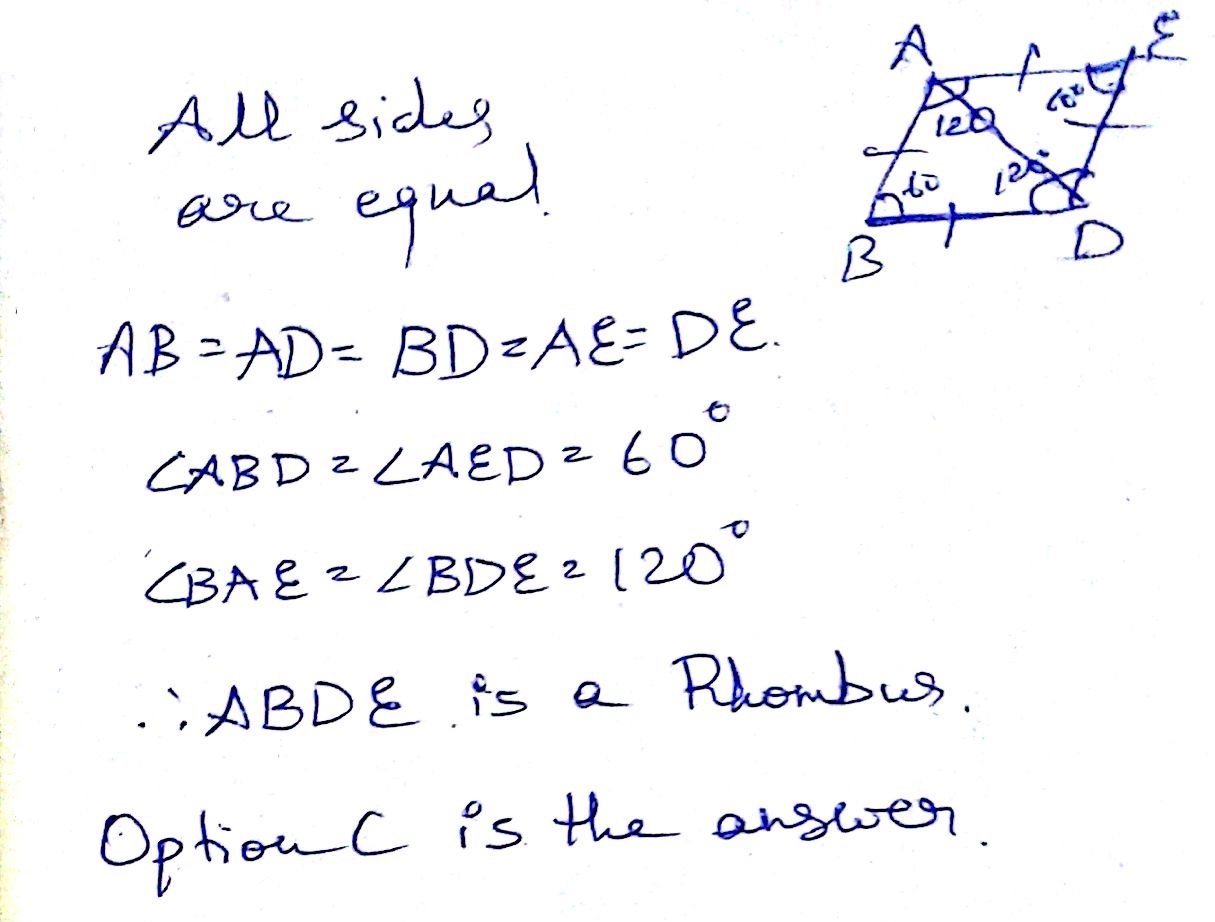

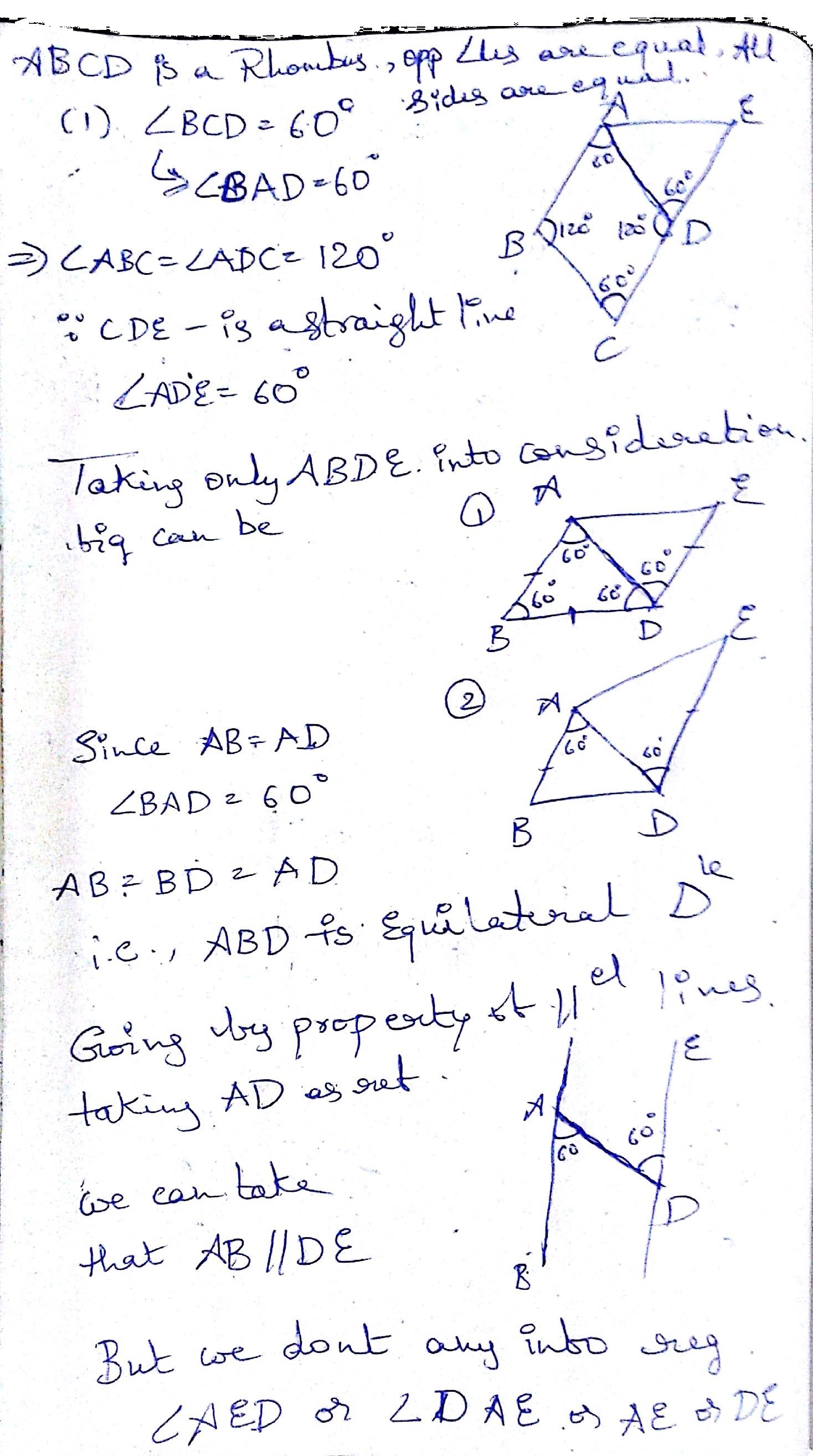

Here is my solution for answer C.

S

Nunuboy1994

Director

Joined: 12 Nov 2016

Posts: 569

Own Kudos [?]: 118 [0]

Given Kudos: 167

Location: United States

Schools: Yale '18

GMAT 1: 650 Q43 V37

GRE 1: Q157 V158

GPA: 2.66

Send PM

Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

19 Apr 2017, 17:01

https://www.math-prof.com/Geom/Ch_22_Fig_02.jpg I think this picture helps- it clearly explains the structure of a rhombus imo- not all diagrams are created equal (e.x many transversals diagrams show a line decreasing from left to right that intersect two parallel lines but a transversal can also be a right increasing from left to right that cuts through two parallel lines- for some people being shown both diagrams can really help them with spatial awareness). Also, a rhombus is basically an equilateral parallelogram- I find this gives me a much clearer understanding of the relationships between the two figures. From statement 2 we could still have a figure that is a parallelogram, or in other words, only two sides are equal instead of all four. Statement 2 is basically a trap answer/ categorization fallacy the test makers know people are likely to pick.

G

goforgmat

Senior Manager

Joined: 09 Feb 2015

Posts: 261

Own Kudos [?]: 88 [0]

Given Kudos: 233

Location: India

Concentration: Social Entrepreneurship, General Management

Schools: Booth '21 (D) Cambridge "21 (D) LBS '22 (D)

GMAT 1: 690 Q49 V34 Verified score

GMAT 2: 720 Q49 V39

GPA: 2.8

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

19 Apr 2017, 23:34

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Since we know all angles in triangle ADE is 60 and since one of the sides is AD ,can we not infer that all sides of triangle ADE are equal and hence All sides of Rhombus ABDE are equal.?
What am i missing here?

L

Bunuel

Math Expert

Joined: 02 Sep 2009

Posts: 92915

Own Kudos [?]: 619014 [1]

Given Kudos: 81595

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

19 Apr 2017, 23:43

1

Bookmarks

Expert Reply

goforgmat wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Since we know all angles in triangle ADE is 60 and since one of the sides is AD ,can we not infer that all sides of triangle ADE are equal and hence All sides of Rhombus ABDE are equal.?
What am i missing here?

Are you talking about the first statement? If yes, then from (1) we k ow that BCD and ABD are equilateral, not ADE.

S

SchruteDwight

Manager

Joined: 03 Sep 2018

Posts: 178

Own Kudos [?]: 90 [0]

Given Kudos: 924

Location: Netherlands

Schools: HEC MiM "22 (S) LBS MiM "21 (A)

GPA: 4

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

22 Oct 2018, 00:19

Bunuel wrote:

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. .

Is this a general property, or how do we know that the diagonal BD equals the side of the rhombus?

S

tinytiger

Manager

Joined: 26 Aug 2017

Posts: 50

Own Kudos [?]: 107 [0]

Given Kudos: 696

Location: Singapore

Schools: INSEAD Sept'21 Intake (A$) Wharton '23 (II)

GMAT 1: 710 Q49 V37 Verified score

GMAT 2: 760 Q50 V44 Verified score

WE:General Management (Health Care)

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

02 Jun 2020, 08:27

For (2), we can look at it in terms of the properties of a rhombus by selecting only 2 more easily comparable shapes of a rhombus:

a) If ABCD comprises of 2 equilateral triangles, then AE // to BD would automatically make ABDE a rhombus. This is the easy shape that most of us can imagine to be sufficient.

b) However, if ABCD = a square (remember that a square is a special type of rhombus where its angles are at 90* and diagonals are congruent), we know that BD is obviously greater than any side of ABCD:
- AB=BC=CD=DA = x, then BD = Rt2 (x).
- Since BD // AE where AB and CDE are // straight lines, then we know BD = AE = Rt2 (X) which is > than AD = DE = X.

So how can ABDE definitely only be a rhombus in the second case? Not sufficient.

B

D4kshGargas

Manager

Joined: 01 Apr 2020

Posts: 89

Own Kudos [?]: 27 [0]

Given Kudos: 283

Location: India

GMAT 1: 650 Q46 V34 (Online) Verified score

GMAT 2: 680 Q48 V35 (Online) Verified score

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

29 Jun 2020, 06:43

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi,
I don't seem to find any such property for Rhombus on the internet.
Can you please confirm?
Thanks!

L

Bunuel

Math Expert

Joined: 02 Sep 2009

Posts: 92915

Own Kudos [?]: 619014 [0]

Given Kudos: 81595

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

29 Jun 2020, 06:47

Expert Reply

D4kshGargas wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi,
I don't seem to find any such property for Rhombus on the internet.
Can you please confirm?
Thanks!

This is not a property. This is true because we are given that (1) The measure of angle BCD is 60 degrees.

BTW, this is already explained in this thread. Please read the whole thread before posting a question.

B

D4kshGargas

Manager

Joined: 01 Apr 2020

Posts: 89

Own Kudos [?]: 27 [0]

Given Kudos: 283

Location: India

GMAT 1: 650 Q46 V34 (Online) Verified score

GMAT 2: 680 Q48 V35 (Online) Verified score

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

29 Jun 2020, 06:50

Bunuel wrote:

D4kshGargas wrote:

Bunuel wrote:

Quadrilateral ABCD is a rhombus and points C, D, and E are on the same line. Is quadrilateral ABDE a rhombus?

Rhombus is a quadrilateral with all four sides equal in length. A rhombus is actually just a special type of parallelogram (just like square or rectangle).

So ABCD is a rhombus means AB=BC=CD=AD.
ABDE to be a rhombus it must be true that AB=BD=DE=AE.

(1) The measure of angle BCD is 60 degrees --> diagonal BD equals to the sides of rhombus, so BD=AB. Know nothing about DE or/and AE. Not sufficient.

(2) AE is parallel to BD --> ABDE is a parallelogram (as AE||BD and BA||DE), hence opposite sides are equal: BD=AE and AB=DE. But we don't know whether all sides are equal (AB=BD=DE=AE). Not sufficient.

(1)+(2) From (1): BD=AB and from (2) BD=AE and AB=DE --> AB=BD=DE=AE --> ABDE is a rhombus. Sufficient.

Answer: C.

Hi,
I don't seem to find any such property for Rhombus on the internet.
Can you please confirm?
Thanks!

This is not a property. This is true because we are given that (1) The measure of angle BCD is 60 degrees.

BTW, this is already explained in this thread. Please read the whole thread before posting a question.

Sorry, my bad!
I didn't move to Page 2
I'll take care in the future!

bumpbot

Non-Human User

Joined: 09 Sep 2013

Posts: 32679

Own Kudos [?]: 822 [0]

Given Kudos: 0

Send PM

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

13 Feb 2023, 02:36

Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.

gmatclubot

Re: Quadrilateral ABCD is a rhombus and points C, D, and E are [#permalink]

13 Feb 2023, 02:36

GMAT Data Sufficiency (DS) Questions

Quadrilateral ABCD is a rhombus and points C, D, and E are
