# The figure above shows the dimensions of a semicircular cros

Author Message
TAGS:

### Hide Tags

Senior Manager
Joined: 02 Dec 2007
Posts: 457
Followers: 2

Kudos [?]: 195 [2] , given: 6

The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

04 Sep 2008, 06:33
2
KUDOS
8
This post was
BOOKMARKED
00:00

Difficulty:

75% (hard)

Question Stats:

55% (02:12) correct 45% (00:49) wrong based on 231 sessions

### HideShow timer Statistics

The figure above shows the dimensions of a semicircular cross section of a one-way tunnel. The single traffic lane is 12 feet wide and is equidistant from the sides of the tunnel. If vehicles must clear the top of the tunnel by at least 1/2 foot when they are inside the traffic lane, what should be the limit on the height of vehicles that are allowed to use the tunnel?

A. 5½ ft
B. 7½ ft
C. 8 ½ ft
D. 9½ ft
E. 10 ft

OPEN DISCUSSION OF THIS QUESTION IS HERE: the-figure-above-shows-the-dimensions-of-a-semicircular-100337.html
[Reveal] Spoiler: OA

Last edited by Bunuel on 23 Jul 2014, 01:23, edited 1 time in total.
Renamed the topic, edited the question, added the OA and moved to PS forum.
SVP
Joined: 07 Nov 2007
Posts: 1820
Location: New York
Followers: 34

Kudos [?]: 862 [4] , given: 5

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

04 Sep 2008, 06:49
4
KUDOS
1
This post was
BOOKMARKED
Nihit wrote:
Attachment:

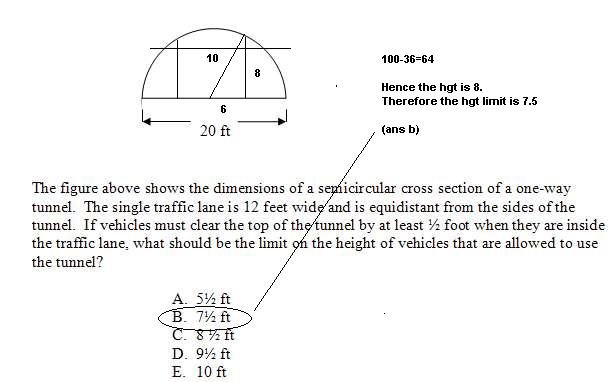

The figure above shows the dimensions of a semicircular cross section of a one-way tunnel(dia= 20 ft). The single traffic lane is 12 feet wide and is equidistant from the sides of the tunnel. If vehicles must clear the top of the tunnel by at least ½ foot when they are inside the traffic lane, what should be the limit on the height of vehicles that are allowed to use the tunnel?

A. 5½ ft
B. 7½ ft
C. 8 ½ ft
D. 9½ ft
E. 10 ft

Say AOB is base of the semi circle.
points X and Y are on edges of the traffic lane (XY=12)
OX=6

Find the height perpendicular to X and touches the semi circle.
= sqrt (6^2+10^2) =8

we need 1/2 ft clearance.

so height must be (8-1/2) =71/2 ft

B.
_________________

Smiling wins more friends than frowning

Senior Manager
Joined: 16 Jul 2008
Posts: 289
Followers: 3

Kudos [?]: 16 [0], given: 4

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

04 Sep 2008, 06:53
B should be the answer. Suresh beat me to it, though ;;)
_________________

http://applicant.wordpress.com/

Manager
Joined: 04 Jan 2008
Posts: 119
Followers: 3

Kudos [?]: 71 [0], given: 0

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

10 Sep 2008, 03:46
x2suresh wrote:
Nihit wrote:
Attachment:

The figure above shows the dimensions of a semicircular cross section of a one-way tunnel(dia= 20 ft). The single traffic lane is 12 feet wide and is equidistant from the sides of the tunnel. If vehicles must clear the top of the tunnel by at least ½ foot when they are inside the traffic lane, what should be the limit on the height of vehicles that are allowed to use the tunnel?

A. 5½ ft
B. 7½ ft
C. 8 ½ ft
D. 9½ ft
E. 10 ft

Say AOB is base of the semi circle.
points X and Y are on edges of the traffic lane (XY=12)
OX=6

Find the height perpendicular to X and touches the semi circle.
= sqrt (6^2+10^2) =8

we need 1/2 ft clearance.

so height must be (8-1/2) =71/2 ft

B.

Minor correction:
The height perpendiculr to X and touches the semi circle
=sqrt (10^2 - 6^2) = 8
SVP
Joined: 07 Nov 2007
Posts: 1820
Location: New York
Followers: 34

Kudos [?]: 862 [0], given: 5

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

10 Sep 2008, 05:02
dancinggeometry wrote:
x2suresh wrote:
Nihit wrote:
Attachment:

The figure above shows the dimensions of a semicircular cross section of a one-way tunnel(dia= 20 ft). The single traffic lane is 12 feet wide and is equidistant from the sides of the tunnel. If vehicles must clear the top of the tunnel by at least ½ foot when they are inside the traffic lane, what should be the limit on the height of vehicles that are allowed to use the tunnel?

A. 5½ ft
B. 7½ ft
C. 8 ½ ft
D. 9½ ft
E. 10 ft

Say AOB is base of the semi circle.
points X and Y are on edges of the traffic lane (XY=12)
OX=6

Find the height perpendicular to X and touches the semi circle.
= sqrt (6^2+10^2) =8

we need 1/2 ft clearance.

so height must be (8-1/2) =71/2 ft

B.

Minor correction:
The height perpendiculr to X and touches the semi circle
=sqrt (10^2 - 6^2) = 8

_________________

Smiling wins more friends than frowning

Manager
Joined: 26 Mar 2007
Posts: 87
Schools: Thunderbird '15
Followers: 1

Kudos [?]: 155 [2] , given: 8

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

10 Nov 2011, 02:07
2
KUDOS
Why are we considering only the line perperndicular to X? Why not another line can be 3 feet away from both sides of the traffic lane?

What am I doing wrong?

Refer attached diagram
Attachments

tunnel.JPG [ 14.54 KiB | Viewed 22608 times ]

Manager
Joined: 17 Jul 2013
Posts: 110
Followers: 0

Kudos [?]: 6 [0], given: 67

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

23 Jul 2014, 01:18
because the limiting case is case 1 as shown in the diagram ...
Math Expert
Joined: 02 Sep 2009
Posts: 36548
Followers: 7077

Kudos [?]: 93116 [9] , given: 10552

Re: The figure above shows the dimensions of a semicircular cros [#permalink]

### Show Tags

23 Jul 2014, 01:24
9
KUDOS
Expert's post
7
This post was
BOOKMARKED
Nihit wrote:

The figure above shows the dimensions of a semicircular cross section of a one-way tunnel. The single traffic lane is 12 feet wide and is equidistant from the sides of the tunnel. If vehicles must clear the top of the tunnel by at least 1/2 foot when they are inside the traffic lane, what should be the limit on the height of vehicles that are allowed to use the tunnel?

A. 5½ ft
B. 7½ ft
C. 8 ½ ft
D. 9½ ft
E. 10 ft

See the diagram attached:

Rectangle inscribed has the length of traffic lane 12. So max height of vehicle will be 1/2 foot less than the width of this rectangle.

Now, let O be the center of the semi-circle, then OA=radius=20/2=10 and OB=12/2=6 --> $$AB=\sqrt{OA^2-OB^2}=\sqrt{10^2-6^2}=8$$.

So max height of the vehicle that are allowed to use the tunnel is 8-0.5=7.5.

OPEN DISCUSSION OF THIS QUESTION IS HERE: the-figure-above-shows-the-dimensions-of-a-semicircular-100337.html
