# In the figure above, points P and Q lie on the circle with

Author Message
TAGS:

### Hide Tags

VP
Joined: 30 Sep 2004
Posts: 1488
Location: Germany
Followers: 6

Kudos [?]: 332 [3] , given: 0

In the figure above, points P and Q lie on the circle with [#permalink]

### Show Tags

12 Sep 2005, 08:02
3
KUDOS
118
This post was
BOOKMARKED
00:00

Difficulty:

95% (hard)

Question Stats:

48% (01:46) correct 52% (00:47) wrong based on 2071 sessions

### HideShow timer Statistics

Attachment:

image.JPG [ 3.91 KiB | Viewed 99521 times ]
In the figure above, points P and Q lie on the circle with center O. What is the value of s?

A. $$\frac{1}{2}$$

B. $$1$$

C. $$\sqrt{2}$$

D. $$\sqrt{3}$$

E. $$\frac{\sqrt{2}}{2}$$
[Reveal] Spoiler: OA

_________________

If your mind can conceive it and your heart can believe it, have faith that you can achieve it.

Intern
Joined: 16 Jun 2009
Posts: 1
Followers: 1

Kudos [?]: 87 [63] , given: 0

### Show Tags

06 Sep 2009, 12:14
63
KUDOS
24
This post was
BOOKMARKED
There's a simple reason and misconception as to why people find this question confusing:
--> the 90 degree angle between P and Q seems like it is cut perfectly right down the centre >> to make two 45 degree angles.
--> that's why your brain instinctively thinks the answer is r = sq(3), since the distance seems the same from the left and to the right of the origin!

However, that's the trick to this question and that's why it is CRUCIAL that you train yourself to be highly critical and weary of accepting the simple answer!

Upon closer inspection of the question:

P(-sq(3),1)
Which means the triangle beneath point P has:
height = 1
base = sq(3)
meaning >> radius = 2 (30-60-90 triangle)

This follows the ideal case of the 30-60-90 triangle, which means that opposite to the height of 1, there is an angle of 30 degrees from the x-axis to point P. This means that from the y-axis to point P, there is an angle of 60 degrees (to make a 90 degrees total from x-axis to y-axis). Therefore on the right side, since the figure shows there is a 90 degree angle between point P and Q, 60 degrees have been taken up from the left of the y-axis, which leaves 30 degrees on the right of the y-axis. Furthermore, this leaves 60 degrees from Point Q to the positive x-axis. Therefore, making the exact same 30-60-90 triangle once again, since the radius is the same (the two points lie on the semi-circle). The 60 degree angle is now where the 30 degree angle was on the other triangle, which makes the height now sq(3) and base now 1 >> therefore, base r = 1!

**Have a look at the attachment and then it should make perfect sense!
Attachments

gmatprep-PSgeoQ.jpg [ 20.74 KiB | Viewed 103204 times ]

Intern
Joined: 23 Dec 2007
Posts: 1
Followers: 0

Kudos [?]: 92 [60] , given: 0

### Show Tags

23 Aug 2009, 14:54
60
KUDOS
32
This post was
BOOKMARKED

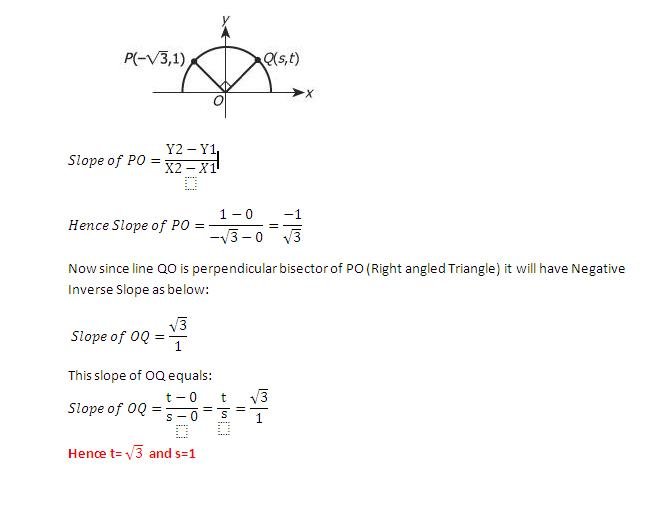

Check another approach for this problem.
Attachments

ps_ans1.JPG [ 25.21 KiB | Viewed 103400 times ]

Senior Manager
Joined: 04 May 2005
Posts: 282
Location: CA, USA
Followers: 1

Kudos [?]: 52 [22] , given: 0

### Show Tags

17 Sep 2005, 21:41
22
KUDOS
8
This post was
BOOKMARKED
there is no need for much calculation,
simply switch their X and Y

P and Q are always perpendicular and same distance from O

OP is perpendicular to OQ means you rotate OQ 90 degrees, you will
get OP, in terms of X,Y value, that is just to switch them and flip the sign
to have (-Y,X)
Current Student
Joined: 03 Aug 2006
Posts: 116
Followers: 4

Kudos [?]: 247 [20] , given: 3

### Show Tags

16 Jun 2009, 09:18
20
KUDOS
4
This post was
BOOKMARKED

Lets see how:
First draw a perpendicular from the x-axis to the point P. Lets call the point on the x-axis N. Now we have a right angle triangle $$\triangle NOP$$. We are given the co-ordinates of P as $$(-\sqrt{3}, 1)$$. i.e. $$ON=\sqrt{3}$$ and $$PN=1$$. Also we know angle $$PNO=90\textdegree$$. If you notice this is a $$30\textdegree-60\textdegree-90\textdegree$$triangle with sides $$1-sqrt3-2$$ and angle $$NOP=30\textdegree$$.

Similarly draw another perpendicular from the x-axis to point Q. Lets call the point on the x-axis R. Now we have a right angle triangle $$\triangle QOR$$. We know angle $$QRO=90\textdegree$$.

Now
angle NOP + angle POQ (= 90 -- given) + angle QOR = 180

$$\Rightarrow 30\textdegree+90\textdegree+angleQOR=180$$

$$\Rightarrow angleQOR=60$$

If you notice $$\triangle QOR$$ is also a $$30\textdegree-60\textdegree-90\textdegree$$triangle with sides $$1-sqrt3-2$$ and angle $$OQR=30\textdegree$$

The side opposite to this angle is OR = 1.

SVP
Joined: 04 May 2006
Posts: 1925
Schools: CBS, Kellogg
Followers: 23

Kudos [?]: 1045 [17] , given: 1

### Show Tags

27 Apr 2008, 21:49
17
KUDOS
7
This post was
BOOKMARKED
jbpayne wrote:
Thats what I thought, but the answer is B, 1. Anyone able to figure this one out?

There are more than one way to solve this. I like this way

The line PO has slope =-1/√3
The line QO has slope = t/s
PO and QO is perpendicular so [-1/√3]*t/s = -1 ==> t/s =√3 or √3/1 so s = 1
_________________
Intern
Joined: 30 Aug 2005
Posts: 9
Followers: 0

Kudos [?]: 7 [6] , given: 0

### Show Tags

18 Sep 2005, 11:20
6
KUDOS
2
This post was
BOOKMARKED
Not sure if this is simpler or even different approach from the others(I maybe just formulizing qpoo's approach!)u.....

Lets say slope of OP =m1 and OQ =m2
Since OP perpendicular to OQ => m1m2=-1
Since m1= -1/sqrt(3)
=>m2=sqrt3
=>s=1,t=sqrt(3)
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7185
Location: Pune, India
Followers: 2167

Kudos [?]: 14019 [6] , given: 222

Re: Plane Geometry, Semicircle from GMATPrep [#permalink]

### Show Tags

05 Jan 2011, 10:46
6
KUDOS
Expert's post
2
This post was
BOOKMARKED
The method I suggested above is very intuitive and useful. I have been thinking of how to present it so that it doesn't look ominous. Let me try to present it in another way:

Imagine a clock face. Think of the minute hand on 10. The length of the minute hand is 2 cm. Its distance from the vertical and horizontal axis is shown in the diagram below. Let's say the minute hand moved to 1. Can you say something about the length of the dotted black and blue lines?
Attachment:

Ques1.jpg [ 7.87 KiB | Viewed 12153 times ]

Isn't it apparent that when the minute hand moved by 90 degrees, the green line became the black line and the red line became the blue line. So can I say that the black line $$= \sqrt{3}$$ cm and blue line = 1 cm

So if I imagine xy axis lying at the center of the clock, isn't it exactly like your question? The x and y co-ordinates just got inter changed. Of course, according to the quadrants, the signs of x and y coordinates will vary. If you did get it, tell me what are the x and y coordinates when the minute hand goes to 4 and when it goes to 7?
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199 Veritas Prep Reviews SVP Joined: 04 May 2006 Posts: 1925 Schools: CBS, Kellogg Followers: 23 Kudos [?]: 1045 [4] , given: 1 Re: GMAT Prep 1 [#permalink] ### Show Tags 27 Apr 2008, 22:08 4 This post received KUDOS bsd_lover wrote: Could you please elaborate the bolded part ? sondenso wrote: There are more than one way to solve this. I like this way The line PO has slope =-1/√3 The line QO has slope = t/s PO and QO is perpendicular so [-1/√3]*t/s = -1 ==> t/s =√3 or √3/1 so s = 1 I know I write like this [the colored] will raise the disscussion. In general slope of PO = a/b slope of QO = t/s PO and QO is perpendicular so [a/b]*[t/s]=-1, so t/s = -b/a In this case, b = √3, a = -1 , so t/s = [-√3]/[-1] = √3/1, so s =1 _________________ Math Expert Joined: 02 Sep 2009 Posts: 37102 Followers: 7251 Kudos [?]: 96455 [4] , given: 10751 Re: Plane Geometry, Semicircle from GMATPrep [#permalink] ### Show Tags 27 Apr 2010, 15:02 4 This post received KUDOS Expert's post 18 This post was BOOKMARKED zz0vlb wrote: I need someone like Bunuel or walker to look at my statement and tell if this is true. Since OP and OQ are perpendicular to each other and since OP=OQ=2(radius) , the coordinates of Q are same as P but in REVERSE order, keep the sign +/- based on Quandrant it lies. in this case Q(1,\sqrt{3)}. In the figure above, points P and Q lie on the circle with center O. What is the value of s? Yes you are right. Point Q in I quadrant $$(1, \sqrt{3})$$; Point P in II quadrant $$(-\sqrt{3}, 1)$$; Point T in III quadrant $$(-1, -\sqrt{3})$$ (OT perpendicular to OP); Point R in IV quadrant $$(\sqrt{3},-1)$$ (OR perpendicular to OQ). _________________ Manager Joined: 27 Feb 2010 Posts: 105 Location: Denver Followers: 3 Kudos [?]: 351 [3] , given: 14 Re: Plane Geometry, Semicircle from GMATPrep [#permalink] ### Show Tags 27 Apr 2010, 14:36 3 This post received KUDOS 1 This post was BOOKMARKED I need someone like Bunuel or walker to look at my statement and tell if this is true. Since OP and OQ are perpendicular to each other and since OP=OQ=2(radius) , the coordinates of Q are same as P but in REVERSE order, keep the sign +/- based on Quandrant it lies. in this case Q(1,\sqrt{3)}. CEO Status: Nothing comes easy: neither do I want. Joined: 12 Oct 2009 Posts: 2795 Location: Malaysia Concentration: Technology, Entrepreneurship Schools: ISB '15 (M) GMAT 1: 670 Q49 V31 GMAT 2: 710 Q50 V35 Followers: 228 Kudos [?]: 1644 [3] , given: 235 Re: Help on a Geometry PS Question [#permalink] ### Show Tags 09 Sep 2010, 15:46 3 This post received KUDOS Attachment: a.jpg [ 12.91 KiB | Viewed 102055 times ] Line OP => y=mx => 1 = $$-sqrt{3} * m$$ => slope of OP = $$\frac{-1}{sqrt{3}}$$ Since OP is perpendicular to OQ => m1*m2 = -1 => slope of OQ = $$sqrt{3}$$ equation of line OQ => y = $$sqrt{3}x$$ since s and t lie on this line t= $$sqrt{3}s$$ also radius of circle = $$sqrt{ 1^2+ 3}$$ = 2 = $$sqrt{ s^2+ t^2}$$ => $$4 = s^2+ t^2 = s^2 + 3s^2 = = 4s^2$$ => s=1 ---------------------------------------------------------------------- Attachment: b.jpg [ 13.36 KiB | Viewed 101994 times ] Using Similar triangles. In triangle APO , angle APO + AOP = 90 ---------------------1 In triangle BOQ , angle BOQ + BQO= 90 ---------------------2 Also SINCE angle POQ = 90 as given. angle AOP + angle BOQ = 90 ------------------3 Using equations 1 and 3 we get Angle APO = Angle BQO -----------4 using equation 2 ,3, 4 we get Angle APO = Angle BQO and AOP = OQB Since hypotenuse is common => both the triangle are congruent => base of triangle APO = height of triangle AQO and vise versa. Thus s = y co-ordinate of P = 1 _________________ Fight for your dreams :For all those who fear from Verbal- lets give it a fight Money Saved is the Money Earned Jo Bole So Nihaal , Sat Shri Akaal Support GMAT Club by putting a GMAT Club badge on your blog/Facebook GMAT Club Premium Membership - big benefits and savings Gmat test review : http://gmatclub.com/forum/670-to-710-a-long-journey-without-destination-still-happy-141642.html Last edited by gurpreetsingh on 09 Sep 2010, 16:00, edited 1 time in total. Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 7185 Location: Pune, India Followers: 2167 Kudos [?]: 14019 [3] , given: 222 Re: Plane Geometry, Semicircle from GMATPrep [#permalink] ### Show Tags 04 Jan 2011, 17:37 3 This post received KUDOS Expert's post 1 This post was BOOKMARKED tonebreeze: As requested, I am giving you my take on this problem (though I guess you have already got some alternative solutions that worked for you) I would suggest you first go through the explanation at the link given below for another question. If you understand that, solving this question is just a matter of seconds by looking at the diagram without using any formulas. http://gmatclub.com/forum/coordinate-plane-90772.html#p807400 P is ($$-\sqrt{3}$$, 1). O is the center of the circle at (0,0). Also OP = OQ. When OP is turned 90 degrees to give OQ, the length of the x and y co-ordinates will get interchanged (both x and y co-ordinates will be positive in the first quadrant). Hence s, the x co-ordinate of Q will be 1 and y co-ordinate of Q will be $$\sqrt{3}$$. _________________ Karishma Veritas Prep | GMAT Instructor My Blog Get started with Veritas Prep GMAT On Demand for$199

Veritas Prep Reviews

Manager
Joined: 08 Oct 2009
Posts: 66
Followers: 1

Kudos [?]: 23 [2] , given: 5

Re: Plane Geometry, Semicircle from GMATPrep [#permalink]

### Show Tags

11 Oct 2009, 11:48
2
KUDOS
Since OP and OQ are the radii of the circle, and we know P has co-ordinates (-\sqrt{3}, 1), from the distance formula we have OP = OQ = 2. Therefore, s^2+t^2=4. -> (1)
Also from the right triangle, we know the length of PQ=2\sqrt{2}.
Again, using the distance formula, (s+\sqrt{3})^2 + (t-1)^2 = PQ^2 = 8. ->(2)

From (1) and (2) you can solve for s.
Hope this helps.
VP
Joined: 24 Jul 2011
Posts: 1134
GMAT 1: 780 Q51 V48
GRE 1: 1540 Q800 V740
Followers: 125

Kudos [?]: 550 [2] , given: 19

### Show Tags

05 Jan 2012, 02:44
2
KUDOS
Note that this is not a reflection problem. The angle POQ is given as = 90, but angle POY is not the same as angle QOY.

To solve, set the product of the slopes of OP and OQ as -1
=> -1/sqrt(3) * t/s =-1
=> t = s*sqrt(3)

Also OQ=OP
=> s^2 + t^2 = 4
=> s^2 + 3*s^2 = 4
=> s^2 = 1
=> s = 1

Option (B)
_________________

GyanOne | Top MBA Rankings and MBA Admissions Blog

Premium MBA Essay Review|Best MBA Interview Preparation|Exclusive GMAT coaching

Get a FREE Detailed MBA Profile Evaluation | Call us now +91 98998 31738

Director
Status: Done with formalities.. and back..
Joined: 15 Sep 2012
Posts: 647
Location: India
Concentration: Strategy, General Management
Schools: Olin - Wash U - Class of 2015
WE: Information Technology (Computer Software)
Followers: 47

Kudos [?]: 556 [2] , given: 23

Re: Coordinate System and Geometry [#permalink]

### Show Tags

19 Nov 2012, 23:55
2
KUDOS
agarboy wrote:
Can someone explain how to do this problem.. I have no clue how to even start on this.

In the attached picture, from question OA = $$\sqrt{3}$$
PA =1

Thus OPA is a 30, 60, 90 triangle. where angle POA is 30.
Also angle POQ is 90, given in question.

therefore, angle QOB = 60
And hence, angle OQB =30

trianlge QOB is also 30, 60, 90 triangle. in which we know OQ =OP =2 (radius)
Therefore BQ = $$\sqrt{3}$$
and OB = 1

We need value of r which is BQ = $$\sqrt{3}$$

Ans D it is!
Attachments

pqrs.jpg [ 10.93 KiB | Viewed 4907 times ]

_________________

Lets Kudos!!!
Black Friday Debrief

Intern
Joined: 28 Mar 2008
Posts: 34
Followers: 0

Kudos [?]: 2 [1] , given: 0

### Show Tags

29 Apr 2008, 08:36
1
KUDOS
sondenso wrote:
bsd_lover wrote:
Could you please elaborate the bolded part ?

sondenso wrote:
There are more than one way to solve this. I like this way

The line PO has slope =-1/√3
The line QO has slope = t/s
PO and QO is perpendicular so [-1/√3]*t/s = -1 ==> t/s =√3 or √3/1 so s = 1

I know I write like this [the colored] will raise the disscussion.
In general
slope of PO = a/b
slope of QO = t/s
PO and QO is perpendicular so [a/b]*[t/s]=-1, so t/s = -b/a
In this case, b = √3, a = -1 , so t/s = [-√3]/[-1] = √3/1, so s =1

From the picture t^2 +s^2 = 4(radius = 2)
By substituting t =√3s we get s=1
Intern
Joined: 08 Nov 2009
Posts: 1
Followers: 0

Kudos [?]: 1 [1] , given: 1

Re: Plane Geometry, Semicircle from GMATPrep [#permalink]

### Show Tags

09 Nov 2009, 19:25
1
KUDOS
Correct me if I'm wrong, (and forgive my english)
the coordinates of a point p(x,y) that lays on a circle can be expressed as p(sen,cos).
we know that sen π/6 = cos π/3,
and that sen π/3 = cos π/6

in this case I just have to invert x with y and y with x -> indeed we have p(y,x)

As we know x and y have to be positive we have to change the sign for x, the new coordinates are p (y,-x).

in this way to solve the problem doesn't take more than 20 secs.
hope I was enough clear.
Senior Manager
Joined: 05 Oct 2008
Posts: 274
Followers: 3

Kudos [?]: 400 [1] , given: 22

gmat prep line semi circle [#permalink]

### Show Tags

17 Nov 2009, 09:52
1
KUDOS
I solved it in the foll manner:

X is point 1 on the y axis

POQ = 90 deg - given
PX = rt 3 - given
XO = 1 - given

Hence PO = 2 (30, 60, 90 triangle)

POQ is 90 deg
90 deg angle rule - a, a, rt2 a
PO = 2
QO = 2
Hence PQ = 2 rt2

XQ = 2 rt2 - rt3
approx - 2.8 - 1.7 = 1

Last edited by study on 02 Dec 2009, 10:43, edited 3 times in total.
Current Student
Joined: 30 Oct 2011
Posts: 203
Followers: 0

Kudos [?]: 29 [1] , given: 88

### Show Tags

05 Jan 2012, 01:41
1
KUDOS
There are some quadrants rules which I kind of forgot something like points on one quadrant are reflection of other. Can somebody explain please
Attachments

GP11.jpg [ 74.19 KiB | Viewed 4110 times ]
