# In the figure shown, point O is the center of the semicircle

Author Message
TAGS:

### Hide Tags

Senior Manager
Joined: 25 Jun 2009
Posts: 289

Kudos [?]: 216 [3], given: 4

In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

15 Dec 2009, 13:09
3
KUDOS
46
This post was
BOOKMARKED
00:00

Difficulty:

95% (hard)

Question Stats:

50% (01:03) correct 50% (01:19) wrong based on 1115 sessions

### HideShow timer Statistics

In the figure shown, point O is the center of the semicircle and points B, C, D lie on the semicircle. If the length of line segment AB is equal to the length of line segment OC, what is the degree measure of angle BAO ?

(1) The degree measure of angle COD is 60º.
(2) The degree measure of angle BCO is 40º.

[Reveal] Spoiler:
Attachment:

Semicirlce.GIF [ 14.09 KiB | Viewed 48077 times ]

Attachment:

Untitled.png [ 1.77 KiB | Viewed 54213 times ]
[Reveal] Spoiler: OA

Last edited by Bunuel on 01 Jul 2015, 01:03, edited 3 times in total.
Edited the question

Kudos [?]: 216 [3], given: 4

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [9], given: 12194

In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

15 Dec 2009, 14:04
9
KUDOS
Expert's post
27
This post was
BOOKMARKED

In the figure shown, point O is the center of the semicircle and B, C, D lie on the semicircle. If the length of line segment AB is equal to the length of line segment OC, what is the degree measure of angle BAO ?

Write down everything you know from the stem:

$$BO=CO=radius=AB$$ --> triangles BOC and ABO are isosceles.
$$\angle BAO = \angle BOA$$ and $$\angle BCO = \angle CBO$$
$$\angle CBO = 2*\angle BAO$$

(1) The degree measure of angle COD is 60º:
$$\angle BAO +\angle ACO = \angle COD = 60º$$ degrees (Using exterior angle theorem)
$$\angle ACO = \angle CBO = 2* \angle BAO$$
$$So, \angle BAO + \angle ACO = 2* \angle BAO + \angle BOA = 3* \angle BAO = 60º$$
$$\angle BAO = 20º$$.
SUFFICIENT

(2) The degree measure of angle BCO is 40º:
$$\angle BCO=40º$$ --> $$\angle BCO = \angle CBO=40º = 2*\angle BAO$$ --> $$\angle BAO=20º$$.
SUFFICIENT

More solutions at:
http://gmatclub.com:8080/forum/viewtopic.php?p=464547
http://gmatclub.com:8080/forum/viewtopic.php?p=398461
http://gmatclub.com:8080/forum/viewtopic.php?p=581082
gmatprep-2-triangle-semicircle-76801.html
http://gmatclub.com:8080/forum/viewtopic.php?p=607910

_________________

Kudos [?]: 129080 [9], given: 12194

Manager
Joined: 23 Nov 2009
Posts: 52

Kudos [?]: 14 [2], given: 1

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

18 Dec 2009, 18:33
2
KUDOS
Given OC = AB
OC = OB since both are radii.
Therefore OB = AB.
Since angles opposite to equal sides are equal. Therefore,
Angle OCB = Angle OBC and Angle OAB = Angle BOA

Statement 1 Angle COD = 60 degrees. Not sufficient. Since we cannot determine angle COB or angle OCB.
Statement 2 Angle OCB = 40 degrees. Not sufficient Since we cannot determine angle COB

Both together helps us determine Angle COB and angle BOA = 180 - angle COD - angle COB
_________________

A kudos would greatly help

Tuhin

Kudos [?]: 14 [2], given: 1

Manager
Joined: 12 Oct 2008
Posts: 56

Kudos [?]: 2 [0], given: 3

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

18 Dec 2009, 20:46
<CBO=2<BAO ?? Why

Kudos [?]: 2 [0], given: 3

Manager
Joined: 09 May 2009
Posts: 204

Kudos [?]: 262 [8], given: 13

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

18 Dec 2009, 21:14
8
KUDOS
1
This post was
BOOKMARKED
tashu wrote:
<CBO=2<BAO ?? Why

actually <CBO=<BAO+<BOA........(RULE EXT ANGLE OF A TRIANGL = SUM OF OPPO INT ANG)
<BAO=<BOA(ANGLES OF EQUAL SIDE)=2<BAO

HENCE <CAO=2<BAO
_________________

GMAT is not a game for losers , and the moment u decide to appear for it u are no more a loser........ITS A BRAIN GAME

Kudos [?]: 262 [8], given: 13

Manager
Status: Applying Now
Joined: 21 Nov 2009
Posts: 62

Kudos [?]: 181 [3], given: 3

WE: Project Management (Manufacturing)
In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

19 Dec 2009, 08:28
3
KUDOS
15
This post was
BOOKMARKED
In the figure shown, point O is the center of the semicircle and B, C, D lie on the semicircle. If the length of line segment AB is equal to the length of line segment OC, what is the degree measure of angle BAO ?

(1) The degree measure of angle COD is 60º.
(2) The degree measure of angle BCO is 40º.

Attachment:

exteriorAngle.GIF [ 14.09 KiB | Viewed 82981 times ]

_________________

If you like my post, consider giving me a kudos. THANKS!

Last edited by Bunuel on 23 Oct 2013, 03:41, edited 3 times in total.
Edited the question

Kudos [?]: 181 [3], given: 3

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [9], given: 12194

In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

19 Dec 2009, 10:25
9
KUDOS
Expert's post
8
This post was
BOOKMARKED

In the figure shown, point O is the center of the semicircle and B, C, D lie on the semicircle. If the length of line segment AB is equal to the length of line segment OC, what is the degree measure of angle BAO ?

Write down everything you know from the stem:

$$BO=CO=radius=AB$$ --> triangles BOC and ABO are isosceles.
$$\angle BAO = \angle BOA$$ and $$\angle BCO = \angle CBO$$
$$\angle CBO = 2*\angle BAO$$

(1) The degree measure of angle COD is 60º:
$$\angle BAO +\angle ACO = \angle COD = 60º$$ degrees (Using exterior angle theorem)
$$\angle ACO = \angle CBO = 2* \angle BAO$$
$$So, \angle BAO + \angle ACO = 2* \angle BAO + \angle BOA = 3* \angle BAO = 60º$$
$$\angle BAO = 20º$$.
SUFFICIENT

(2) The degree measure of angle BCD is 40º:
$$\angle BCO=40º$$ --> $$\angle BCO = \angle CBO=40º = 2*\angle BAO$$ --> $$\angle BAO=20º$$.
SUFFICIENT

More solutions at:
viewtopic.php?p=464547
viewtopic.php?p=398461
viewtopic.php?p=581082
gmatprep-2-triangle-semicircle-76801.html
viewtopic.php?p=607910

_________________

Kudos [?]: 129080 [9], given: 12194

Manager
Status: Applying Now
Joined: 21 Nov 2009
Posts: 62

Kudos [?]: 181 [0], given: 3

WE: Project Management (Manufacturing)
Re: Exterior Angle in a Semi Circle [#permalink]

### Show Tags

19 Dec 2009, 12:33
I still miss it. I saw the Circle Chapter from the Maths book as well.
Why is

<CBO=2<BAO
_________________

If you like my post, consider giving me a kudos. THANKS!

Kudos [?]: 181 [0], given: 3

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [9], given: 12194

Re: Exterior Angle in a Semi Circle [#permalink]

### Show Tags

19 Dec 2009, 12:58
9
KUDOS
Expert's post
msunny wrote:
I still miss it. I saw the Circle Chapter from the Maths book as well.
Why is

<CBO=2<BAO

First of all note that ABO is isosceles triangle. Why? Given that AB=OC, OC is radius, but OB is also radius, hence AB=OC=OB=r --> two sides in triangle ABO namely AB and BO are equal. Which means that angles BAO and BOA are also equal.

So we have <BAO=<BOA.

Next step: angle <CBO is exterior angle for triangle BAO. According to the exterior angle theorem: An exterior angle of a triangle is equal to the sum of the opposite interior angles. --> <CBO=<BAO+<BOA, as <BAO=<BOA --> <CBO=<BAO+<BAO=2<BAO.

Hope it's clear.

_________________

Kudos [?]: 129080 [9], given: 12194

Manager
Joined: 25 Aug 2009
Posts: 165

Kudos [?]: 201 [9], given: 3

Location: Streamwood IL
Schools: Kellogg(Evening),Booth (Evening)
WE 1: 5 Years
Re: Exterior Angle in a Semi Circle [#permalink]

### Show Tags

19 Dec 2009, 13:01
9
KUDOS
1
This post was
BOOKMARKED
Let angle BAO=x
since AB=BO we have angle BOA=x
SInce Angle CBO is an exterior angle to BAo and BOA it is equal to the sum of their individual angles
Angle CBO = x+x=2x

BO and CO are the two radii hence they subtend equal angles thus BCO = 2x
and BOC = 180-4x
We need x
Statement 1 gives COD
Since COD+BOC+AOB = 180
60+180-4x+x=180
We cans olve for x - sufficient

Statement 2 gives
BCO = 2x = 40

we can calculate x hence sufficient.

Answer is D (Hope this is clear.)
_________________

Rock On

Kudos [?]: 201 [9], given: 3

Intern
Joined: 21 Aug 2010
Posts: 29

Kudos [?]: 41 [0], given: 6

Re: Exterior Angle in a Semi Circle [#permalink]

### Show Tags

28 Oct 2010, 10:16
Hi,

What have I missed? I too marked this as C. GMAT Prep says its D, so fine, agreed. But here is my reasoning.
The reason is that it is not mentioned in the question that ABC is one single line. (points A,B,C all lie on the same line).

Why do we need to consider it as one straight line? If we do not consider them on the straight line, we cannot apply Exterior angle sum rule.
If we cannot apply, we will not be able to solve this without both stmt1 and stmt2.

Cheers!
_________________

Kudos me if you like this post!! :)

Kudos [?]: 41 [0], given: 6

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [1], given: 12194

Re: Exterior Angle in a Semi Circle [#permalink]

### Show Tags

02 Nov 2010, 06:09
1
KUDOS
Expert's post
gmatretake wrote:
Hi,

What have I missed? I too marked this as C. GMAT Prep says its D, so fine, agreed. But here is my reasoning.
The reason is that it is not mentioned in the question that ABC is one single line. (points A,B,C all lie on the same line).

Why do we need to consider it as one straight line? If we do not consider them on the straight line, we cannot apply Exterior angle sum rule.
If we cannot apply, we will not be able to solve this without both stmt1 and stmt2.

Cheers!

Ian Stewart:

"In general, you should not trust the scale of GMAT diagrams, either in Problem Solving or Data Sufficiency. It used to be true that Problem Solving diagrams were drawn to scale unless mentioned otherwise, but I've seen recent questions where that is clearly not the case. So I'd only trust a diagram I'd drawn myself. ...

Here I'm referring only to the scale of diagrams; the relative lengths of line segments in a triangle, for example. ... You can accept the relative ordering of points and their relative locations as given (if the vertices of a pentagon are labeled ABCDE clockwise around the shape, then you can take it as given that AB, BC, CD, DE and EA are the edges of the pentagon; if a line is labeled with four points in A, B, C, D in sequence, you can take it as given that AC is longer than both AB and BC; if a point C is drawn inside a circle, unless the question tells you otherwise, you can assume that C is actually within the circle; if what appears to be a straight line is labeled with three points A, B, C, you can assume the line is actually straight, and that B is a point on the line -- the GMAT would never include as a trick the possibility that ABC actually form a 179 degree angle that is imperceptible to the eye, to give a few examples).

So don't trust the lengths of lines, but do trust the sequence of points on a line, or the location of points within or outside figures in a drawing. "

Hope it helps.
_________________

Kudos [?]: 129080 [1], given: 12194

Intern
Joined: 30 Nov 2011
Posts: 30

Kudos [?]: 66 [0], given: 23

Location: United States
GMAT 1: 700 Q47 V38
GPA: 3.54
Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

26 Mar 2012, 05:43
Hi,
how did we know that points A,B, and C are collinear, and hence apply the theorem of the exterior angle ?

Kudos [?]: 66 [0], given: 23

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [0], given: 12194

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

26 Mar 2012, 06:02
Hi,
how did we know that points A,B, and C are collinear, and hence apply the theorem of the exterior angle ?

So, if what appears to be a straight line is labeled with three points A, B, C, you can assume the line is actually straight, and that these points are actually on the line in the order given on the diagram.
_________________

Kudos [?]: 129080 [0], given: 12194

Intern
Joined: 21 Mar 2012
Posts: 11

Kudos [?]: 5 [0], given: 0

Location: United States
Concentration: Technology, Marketing
GMAT 1: 710 Q50 V36
GPA: 2.9
WE: Information Technology (Entertainment and Sports)
In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

28 Mar 2012, 12:21
option # 1, angle COD = 60
proves, angle CBO = 30 (angle at center = 2 times angle at any point in circle)
proves angle ABO = 180-30 = 150 (straight line)
proves BAO = (180-150)/2 = 15 (isoceles triangle, equal sides, equal angles)

option # 2,angle BCO = 40
proves angle CBO = 40 (isoceles triangle, equal sides, equal angles)
proves angle ABO = 140 (straight line)
proves angle BAO = (180-140)/2 = 20 (isoceles triangle, equal sides, equal angles)

This would be my approach.

Kudos [?]: 5 [0], given: 0

Intern
Joined: 08 Jun 2012
Posts: 2

Kudos [?]: 2 [0], given: 0

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

27 Jul 2012, 12:21
this is how is understood.

let angle BAO = x
let angle BOA = x

let angle BCO = y
let angle CBO = y

2x + 180 - y = 180 EQN(1)
So, from statement 1, it implies that
2y + 120 - x = 180 EQN(2)
Solve for 2 unknowns done.

Statement 2 is self explainatory. hope it helps someone.

Kudos [?]: 2 [0], given: 0

Intern
Joined: 10 Apr 2012
Posts: 23

Kudos [?]: 41 [8], given: 0

Concentration: Finance, Economics
GMAT 1: 760 Q50 V44
In the figure shown, point O is the center of the semicircle and [#permalink]

### Show Tags

01 Apr 2013, 15:40
8
KUDOS

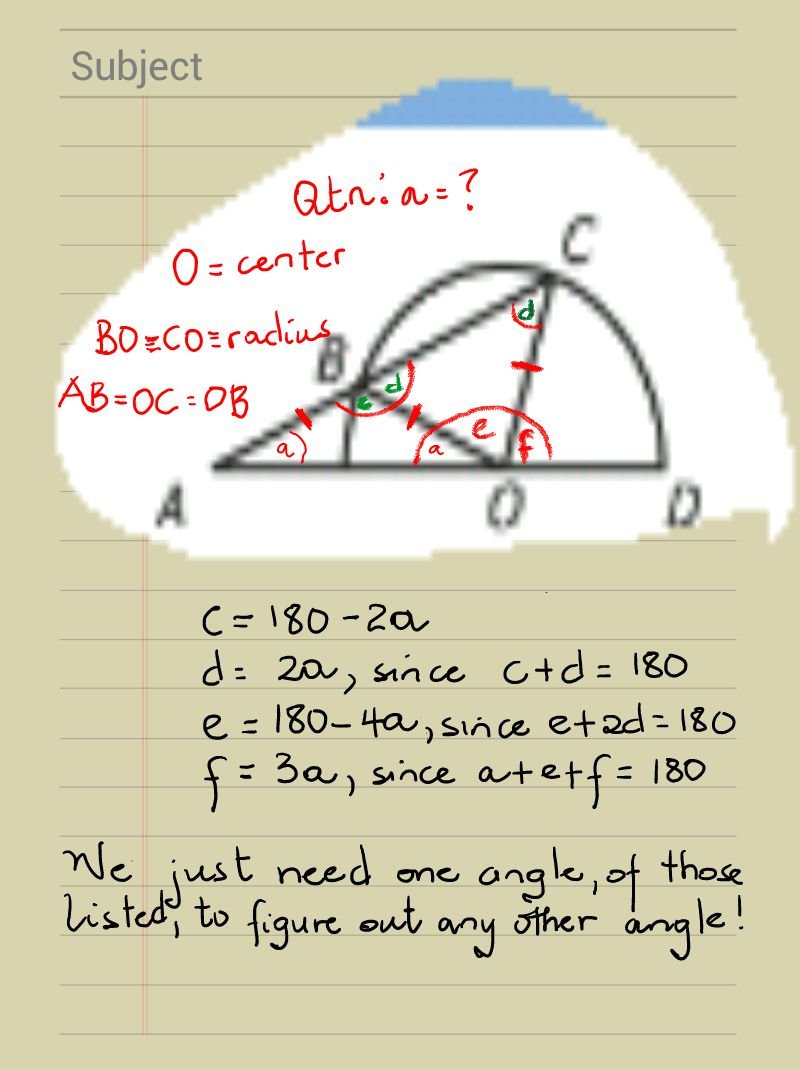

Img always makes it pretty clear
Attachments

Note_20130401_173652_01.jpg [ 86.68 KiB | Viewed 62622 times ]

Kudos [?]: 41 [8], given: 0

Manager
Joined: 18 Dec 2012
Posts: 96

Kudos [?]: 57 [0], given: 34

Location: India
Concentration: General Management, Strategy
GMAT 1: 660 Q49 V32
GMAT 2: 530 Q37 V25
GPA: 3.32
WE: Manufacturing and Production (Manufacturing)
Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

30 Jul 2013, 04:38
Where does it say that Points A, B and C lie on the same line? Assumption?
_________________

I'm telling this because you don't get it. You think you get it which is not the same as actually getting it. Get it?

Kudos [?]: 57 [0], given: 34

Math Expert
Joined: 02 Sep 2009
Posts: 41892

Kudos [?]: 129080 [0], given: 12194

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

30 Jul 2013, 04:42
Qoofi wrote:
Where does it say that Points A, B and C lie on the same line? Assumption?

OG13, page 272:
A figure accompanying a data sufficiency problem will conform to the information given in the question but will not necessarily conform to the additional information given in statements (1) and (2).
Lines shown as straight can be assumed to be straight and lines that appear jagged can also be assumed to be straight.
You may assume that the positions of points, angles, regions, and so forth exist in the order shown and that angle measures are greater than zero degrees.
All figures lie in a plane unless otherwise indicated.

Hope it helps.
_________________

Kudos [?]: 129080 [0], given: 12194

Director
Joined: 29 Nov 2012
Posts: 868

Kudos [?]: 1412 [10], given: 543

Re: In the figure shown, point O is the center of the semicircle [#permalink]

### Show Tags

05 Nov 2013, 06:59
10
KUDOS
5
This post was
BOOKMARKED
You can solve this question quickly if you do everything up front. Look at the attached diagram

The portion marked in Red are equal => AB = OC ( given in the question stem)

Let Angle AOB = X

Statement 1 says COD = 60 = 3x ( as per diagram) => X=20

Statement 2 says BCO = 40 = 2x ( as per diagram) => X=20

Answer is D each statement is sufficient!
Attachments

circle triangle.jpg [ 17.29 KiB | Viewed 58554 times ]

_________________

Click +1 Kudos if my post helped...

Amazing Free video explanation for all Quant questions from OG 13 and much more http://www.gmatquantum.com/og13th/

GMAT Prep software What if scenarios http://gmatclub.com/forum/gmat-prep-software-analysis-and-what-if-scenarios-146146.html

Kudos [?]: 1412 [10], given: 543

Re: In the figure shown, point O is the center of the semicircle   [#permalink] 05 Nov 2013, 06:59

Go to page    1   2    Next  [ 32 posts ]

Display posts from previous: Sort by
