# In the figure above, the radius of the circle with center O

Author Message
TAGS:
Manager
Joined: 14 May 2007
Posts: 173
Location: India
Followers: 2

Kudos [?]: 31 [2] , given: 11

In the figure above, the radius of the circle with center O [#permalink]  11 Sep 2008, 04:49
2
KUDOS
00:00

Difficulty:

25% (low)

Question Stats:

72% (01:41) correct 27% (00:23) wrong based on 47 sessions

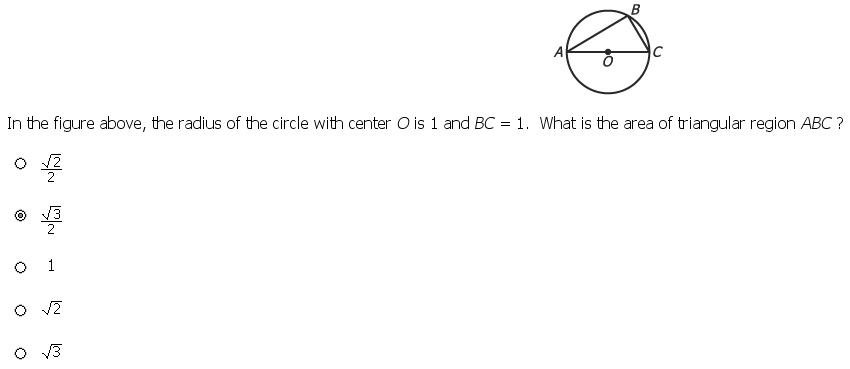

In the figure above, the radius of the circle with center O is 1 and BC = 1. What is the area of triangular region ABC ?

(A) √2/2
(B) √3/2
(C) 1
(D) √2
(E) √3

OPEN DISCUSSION OF THIS QUESTION IS HERE: in-the-figure-above-the-radius-of-circle-with-center-o-is-83121.html
[Reveal] Spoiler: OA

Attachments

tmp.JPG [ 16.95 KiB | Viewed 10150 times ]

Last edited by Bunuel on 20 Oct 2013, 03:28, edited 2 times in total.
Renamed the topic, edited the question, added the OA and moved to PS forum.
 Kaplan GMAT Prep Discount Codes Knewton GMAT Discount Codes Manhattan GMAT Discount Codes
Director
Joined: 12 Jul 2008
Posts: 519
Schools: Wharton
Followers: 15

Kudos [?]: 90 [2] , given: 0

Re: Geometry ques...tricky [#permalink]  11 Sep 2008, 05:26
2
KUDOS
greatchap wrote:
Hi Everyone,

I encountered the following question in GMAT Prep Exam and was unable to solve it. The answer that is selected (image below) is correct. Though I did select the right answer but it was a fluke.

Q-1) In the figure above (below here) , the radius of circle with center O is 1 and BC = 1. What is the area of triangular region ABC ?

(a) sqrt(2)/2
(b) sqrt(3)/2
(c) 1
(d) sqrt(2)
(e) sqrt(3)

Image below shows diagram and ques.

Can anyone help me out??

Thanks,

Cheers,
GR

All triangles inscribed in a circle with the hypotenuse as the diameter of the circle are right triangles.

Therefore

x^2 + 1^2 = 2^2
x = sqrt(3)
Area = x*1*(1/2) = sqrt(3)/2
Director
Joined: 27 Jun 2008
Posts: 549
WE 1: Investment Banking - 6yrs
Followers: 1

Kudos [?]: 42 [0], given: 92

Re: Geometry ques...tricky [#permalink]  11 Sep 2008, 05:36
Given,
OA=OC=1
BC=1

Angle ABC = 90
=> ab^2+bc^2 = ac^2
=> ab^2 = ac^2 - bc^2
=> ab^2 = 2^2 - 1^2 = sqrt 3

Area of a traingle = b*h/2
=> 1*sqrt 3/2

B
Manager
Joined: 14 May 2007
Posts: 173
Location: India
Followers: 2

Kudos [?]: 31 [1] , given: 11

Re: Geometry ques...tricky [#permalink]  11 Sep 2008, 07:04
1
KUDOS
Thanks a lot guys for the explanation. I got it. Cheers...
Manager
Affiliations: The Earth organization, India
Joined: 25 Dec 2010
Posts: 195
WE 1: SAP consultant-IT 2 years
WE 2: Entrepreneur-family business 2 years
Followers: 4

Kudos [?]: 10 [0], given: 12

Re: Geometry ques...tricky [#permalink]  07 Jun 2011, 08:55
I did not apply pythagoras.

I solved this pretty quickly, as I interpreted this as a right triangle inscribed in a circle as 30-60-90 triangle.

so longer leg = 1/2*hypotenuse*root3.

area = 1/2 *root 3 * 1

hope I am correct ?
_________________

Cheers !!

Quant 47-Striving for 50
Verbal 34-Striving for 40

Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 4032
Location: Pune, India
Followers: 860

Kudos [?]: 3618 [1] , given: 144

Re: Geometry ques...tricky [#permalink]  07 Jun 2011, 10:28
1
KUDOS
Expert's post
bblast wrote:
I did not apply pythagoras.

I solved this pretty quickly, as I interpreted this as a right triangle inscribed in a circle as 30-60-90 triangle.

so longer leg = 1/2*hypotenuse*root3.

area = 1/2 *root 3 * 1

hope I am correct ?

Yes, you are. There are multiple ways of arriving at the value of AB.
You see that Cos C = 1/2 so C must be 60 degrees
Sin 60 = \sqrt{3}/2 so AB = \sqrt{3}
(Let me point out here that you are not expected to know trigonometry in GMAT.)

Or since the sides are 1 and 2, the third side must be \sqrt{3} by Pythagorean theorem.
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Save $100 on Veritas Prep GMAT Courses And Admissions Consulting Enroll now. Pay later. Take advantage of Veritas Prep's flexible payment plan options. Veritas Prep Reviews Manager Affiliations: The Earth organization, India Joined: 25 Dec 2010 Posts: 195 WE 1: SAP consultant-IT 2 years WE 2: Entrepreneur-family business 2 years Followers: 4 Kudos [?]: 10 [0], given: 12 Re: Geometry ques...tricky [#permalink] 08 Jun 2011, 07:11 thanks karishma so whenever I see a triangle in a circle and one arm of triangle as diameter if circle, I can quickly solve it using 30-60-90 formulas ? _________________ Cheers !! Quant 47-Striving for 50 Verbal 34-Striving for 40 Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 4032 Location: Pune, India Followers: 860 Kudos [?]: 3618 [3] , given: 144 Re: Geometry ques...tricky [#permalink] 08 Jun 2011, 07:26 3 This post received KUDOS Expert's post bblast wrote: thanks karishma so whenever I see a triangle in a circle and one arm of triangle as diameter if circle, I can quickly solve it using 30-60-90 formulas ? Actually no. Here we know that the diameter is 2 units and one side is 1 unit so the triangle is 30-60-90. It may not always be the case. Say, if the diameter is 2 and one side is given as root 2, it will be a 45-45-90 triangle. GMAT generally questions you on one of 30-60-90 and 45-45-90... _________________ Karishma Veritas Prep | GMAT Instructor My Blog Save$100 on Veritas Prep GMAT Courses And Admissions Consulting
Enroll now. Pay later. Take advantage of Veritas Prep's flexible payment plan options.

Veritas Prep Reviews

Manager
Affiliations: The Earth organization, India
Joined: 25 Dec 2010
Posts: 195
WE 1: SAP consultant-IT 2 years
WE 2: Entrepreneur-family business 2 years
Followers: 4

Kudos [?]: 10 [0], given: 12

Re: Geometry ques...tricky [#permalink]  08 Jun 2011, 07:36
Thank u . +1 Kudos

But it makes sense that if one triangle-circle holds this relation. Any triangle having the diameter as the hypotenuse should. As the angles for it in a circle will not change. Only the sides will grow or shrink. But ya maybe the ratio 1:\sqrt{3} :2 occurs at this particular size of the 2 geometric figures !!

So I will put ur words in my flashcard.
_________________

Cheers !!

Quant 47-Striving for 50
Verbal 34-Striving for 40

Intern
Status: Don't worry about finding inspiration. It eventually come >>>>>>>
Joined: 31 May 2011
Posts: 23
Location: Î Ñ D Ï Â
Followers: 0

Kudos [?]: 6 [2] , given: 2

Re: Geometry ques...tricky [#permalink]  08 Jun 2011, 18:06
2
KUDOS
These type of question can easily be solved by applying a simple formula.

A question in which triangle is given within a circle and we find out the area of triangle,then we can apply the formula given below

A= abc/4R
where a,b,c are the side of a triangle and R is the circum radius.

here,
a = AC = 2
b = BC = 1
c = AB = √3 ( AB²+BC²=AC² )
R = 1

Put these values on the formula, we get
A= (2*1*√3)/(4*1)
A= √3/2 Ans.

For such formula's, click the link below
http://gmatclub.com/forum/fundas-of-geometry-part-i-114507.html
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 4032
Location: Pune, India
Followers: 860

Kudos [?]: 3618 [2] , given: 144

Re: Geometry ques...tricky [#permalink]  08 Jun 2011, 18:17
2
KUDOS
Expert's post
bblast wrote:
Thank u . +1 Kudos

But it makes sense that if one triangle-circle holds this relation. Any triangle having the diameter as the hypotenuse should. As the angles for it in a circle will not change. Only the sides will grow or shrink. But ya maybe the ratio 1:\sqrt{3} :2 occurs at this particular size of the 2 geometric figures !!

So I will put ur words in my flashcard.

Attachment:

Ques2.jpg [ 10.94 KiB | Viewed 8647 times ]

_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Save $100 on Veritas Prep GMAT Courses And Admissions Consulting Enroll now. Pay later. Take advantage of Veritas Prep's flexible payment plan options. Veritas Prep Reviews Manager Affiliations: The Earth organization, India Joined: 25 Dec 2010 Posts: 195 WE 1: SAP consultant-IT 2 years WE 2: Entrepreneur-family business 2 years Followers: 4 Kudos [?]: 10 [0], given: 12 Re: Geometry ques...tricky [#permalink] 08 Jun 2011, 20:06 Yup, the lights are finally switched on inside my cranium, +1 again for clearing this, _________________ Cheers !! Quant 47-Striving for 50 Verbal 34-Striving for 40 Manager Joined: 08 Sep 2010 Posts: 173 Followers: 0 Kudos [?]: 12 [0], given: 18 Re: Geometry ques...tricky [#permalink] 09 Jun 2011, 20:48 B...using Pythagoras theorem and using the property that a triangle with the hypotenuse as the diameter of a circle subtends a 90 degree anywhere on the circle. _________________ My will shall shape the future. Whether I fail or succeed shall be no man's doing but my own. If you like my explanations award kudos. Manager Joined: 22 Mar 2011 Posts: 72 Followers: 1 Kudos [?]: 2 [0], given: 10 Re: Geometry ques...tricky [#permalink] 20 Nov 2011, 21:45 VeritasPrepKarishma wrote: bblast wrote: thanks karishma so whenever I see a triangle in a circle and one arm of triangle as diameter if circle, I can quickly solve it using 30-60-90 formulas ? Actually no. Here we know that the diameter is 2 units and one side is 1 unit so the triangle is 30-60-90. It may not always be the case. Say, if the diameter is 2 and one side is given as root 2, it will be a 45-45-90 triangle. GMAT generally questions you on one of 30-60-90 and 45-45-90... Hi Karishma I wanted to clarify my misunderstanding. In 45:45:90 the multiples will be x:x: \sqrt{2x} So if the diameter is 2 the other 2 sides should be 2 and 2\sqrt{2x}? Thanks Veritas Prep GMAT Instructor Joined: 16 Oct 2010 Posts: 4032 Location: Pune, India Followers: 860 Kudos [?]: 3618 [0], given: 144 Re: Geometry ques...tricky [#permalink] 21 Nov 2011, 20:35 Expert's post melguy wrote: Hi Karishma I wanted to clarify my misunderstanding. In 45:45:90 the multiples will be x:x: \sqrt{2x} So if the diameter is 2 the other 2 sides should be 2 and 2\sqrt{2x}? Thanks In 45-45-90, the sides will be in the ratio 1:1:\sqrt{2} or you can say they will be x, x and \sqrt{2}x (Mind you, the root is only on 2, not on x). \sqrt{2}x, the longest side, is the hypotenuse. Here, the diameter is the hypotenuse i.e. the longest side. The right angle is opposite to the diameter. We know that the side opposite to the largest angle is the longest side. Hence the diameter has to be the longest side i.e. \sqrt{2}x. If \sqrt{2}x = 2 x = \sqrt{2} So the other two equal sides will be \sqrt{2} each. _________________ Karishma Veritas Prep | GMAT Instructor My Blog Save$100 on Veritas Prep GMAT Courses And Admissions Consulting
Enroll now. Pay later. Take advantage of Veritas Prep's flexible payment plan options.

Veritas Prep Reviews

Manager
Joined: 05 Mar 2011
Posts: 156
Followers: 0

Kudos [?]: 6 [0], given: 3

Re: Geometry ques...tricky [#permalink]  28 Nov 2011, 22:59
VeritasPrepKarishma wrote:
bblast wrote:
thanks karishma

so whenever I see a triangle in a circle and one arm of triangle as diameter if circle, I can quickly solve it using 30-60-90 formulas ?

Actually no. Here we know that the diameter is 2 units and one side is 1 unit so the triangle is 30-60-90. It may not always be the case. Say, if the diameter is 2 and one side is given as root 2, it will be a 45-45-90 triangle.
GMAT generally questions you on one of 30-60-90 and 45-45-90...

thanks- ur ex helped a lot
Intern
Joined: 10 Aug 2013
Posts: 1
Followers: 0

Kudos [?]: 0 [0], given: 3

Re: Geometry ques...tricky [#permalink]  19 Oct 2013, 11:30

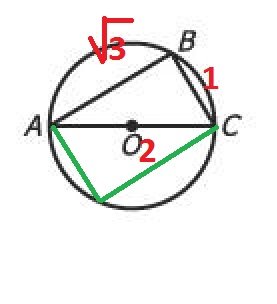

Can someone explain why sq.root 3 is the height in this question
Math Expert
Joined: 02 Sep 2009
Posts: 16878
Followers: 2776

Kudos [?]: 17637 [1] , given: 2233

Re: Geometry ques...tricky [#permalink]  20 Oct 2013, 03:29
1
KUDOS
Expert's post
armesca wrote:
Can someone explain why sq.root 3 is the height in this question

Hope it helps.
_________________
Re: Geometry ques...tricky   [#permalink] 20 Oct 2013, 03:29
