fskilnik wrote:
GMATH practice exercise (Quant Class 19)

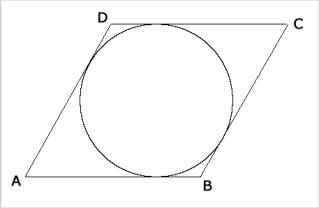

What percent of the area of the rhombus ABCD is the area of the circle that is inscribed in it?
(1) Angle BCD is equal to 60 degrees
(2) AB = 4
\(? = {{{S_{{\rm{circle}}}}} \over {{S_{{\rm{rhombus}}}}}}\)
\(\left( 1 \right)\,\,\,\left\{ \matrix{\\
BCD = {60^ \circ } \hfill \cr \\
ABCD\,\,{\rm{rhombus}} \hfill \cr} \right.\,\,\,\,\,\, \Rightarrow \,\,\,\,\,\,\Delta \,CBD\,\,{\rm{and}}\,\,\Delta ABD\,\,{\rm{equilaterals}}\,\,\,\left( * \right)\,\,\,\,\,\)
\(?\,\,\mathop = \limits^{\left( * \right)} \,\,\frac{{{S_{{\text{circle}}}}}}{{2 \cdot {S_{\Delta {\text{ABD}}}}}}\,\,\mathop = \limits^{\left( * \right)} \,\,\frac{{\pi \cdot O{E^2}}}{{2 \cdot \left( {\frac{1}{2} \cdot BD \cdot \frac{{BD \cdot \sqrt 3 }}{2}} \right)}}\,\,\,\,\,\,\, \Leftrightarrow \,\,\,\,\,\,\,? = {\left( {\frac{{OE}}{{BD}}} \right)^2}\,\,\,\,\,\, \Leftrightarrow \,\,\,\,\,\,\,\boxed{\,? = \frac{{OE}}{{BD}}\,}\)
\(\left\{ \matrix{\\
\,\Delta OEB\,\,\,\,\left[ {{{30}^ \circ },{{60}^ \circ },{{90}^ \circ }} \right] \hfill \cr \\
\,{1 \over 2}BD = OB\,\,\,{\rm{hyp}}\,\,\,\,\,\mathop \Rightarrow \limits^{\left[ {{{30}^ \circ },{{60}^ \circ },{{90}^ \circ }} \right]} \,\,\,\,OE = {{OB \cdot \sqrt 3 } \over 2} \hfill \cr} \right.\,\,\,\,\,\,\,\, \Rightarrow \,\,\,\,\,? = {{OE} \over {BD}} = {{OE} \over {2 \cdot OB}} = {1 \over 2}\left( {{{\sqrt 3 } \over 2}} \right)\,\,\,\,\,\,\,\, \Rightarrow \,\,\,\,\,{\rm{SUFF}}.\)
\(\left( 2 \right)\,\,{\rm{Insuff}}.\,\,\,\,\left( {{\rm{geometric}}\,\,{\rm{bifurcation}}\,{\rm{,}}\,\,{\rm{see}}\,\,{\rm{images}}} \right)\)
The correct answer is (A).
We follow the notations and rationale taught in the
GMATH method.
Regards,
Fabio.
