A circle is inscribed in an equilateral triangle, Find area

  new topic post reply Question banks Downloads My Bookmarks Reviews Important topics
Author Message
TAGS:

Hide Tags

1 KUDOS received
Manager
Manager
avatar
B
Joined: 10 Mar 2014
Posts: 214
Premium Member
A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 30 Aug 2014, 05:58
1
This post received
KUDOS
19
This post was
BOOKMARKED
00:00
A
B
C
D
E

Difficulty:

  85% (hard)

Question Stats:

54% (01:50) correct 46% (02:02) wrong based on 269 sessions

HideShow timer Statistics

A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77
2 KUDOS received
Intern
Intern
avatar
Joined: 18 Aug 2014
Posts: 11
Location: India
Concentration: General Management, Finance
GMAT Date: 10-08-2014
GPA: 3.23
WE: Analyst (Retail Banking)
A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post Updated on: 09 Sep 2014, 10:27
2
This post received
KUDOS
1
This post was
BOOKMARKED
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


Assume this as an equilateral triangle with side as a (Yes I know, this isn't an equilateral triangle hence i asked you to assume, this is the only diagram I got from internet and I am too lazy to draw one myself)
Attachment:
File comment: Diagram
Su55k02_m10 (1).gif
Su55k02_m10 (1).gif [ 9.13 KiB | Viewed 33416 times ]


so now area of an equilateral triangle = \(\frac{\sqrt3}{4} * a^2\) -----1
and area of the triangle is also equal to Area of triangle AOC+Area of AOB + Area of BOC = \(\frac{1}{2} * a * r\)( r is height of individual triangle) ---------2

from equation 1 & 2 above

\(\frac{\sqrt3}{4} * a^2 = 3 * \frac{1}{2} * a * r\)

from here we can get the value of a i.e. \(a = 2\sqrt{3} * r\) ---------3

Now, In the question we need to find out \(\frac{Area of circle inscribed}{Area of the equilateral triangle}\)

which is equal to \(\frac{{\pi * r^2}}{{3* 1/2 * (2 \sqrt3 r)^2}}\) ------substituting the value of a from equation 3

=\(\frac{\pi}{{3 * \sqrt3}}\)

\(\approx \frac{3.14}{{3 * 1.72}}\)

\(\approx \frac{3.14}{{3 * 1.72}}\)

\(\approx \frac{2}{3} \approx 0.66\)

Notice that we reduced the numerator by \(0.26\) so our answer is going to be a bit inflated.
Looking at the answer choices, C is the closest. (Notice that there's nothing between 60 and 70 in the options so we can be a little imprecise in this case)

Hence the solution is C
_________________

The buttons on the left are the buttons you are looking for


Originally posted by Anamika2014 on 08 Sep 2014, 08:42.
Last edited by Anamika2014 on 09 Sep 2014, 10:27, edited 1 time in total.
11 KUDOS received
SVP
SVP
User avatar
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1837
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post Updated on: 09 Sep 2014, 19:38
11
This post received
KUDOS
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


Refer diagram below:
Attachment:
qSvMt.png [ 9.17 KiB | Viewed 33071 times ]

Let the dimension of equilateral Triangle = a

Area of the triangle\(= \frac{\sqrt{3}}{4} a^2\)

Radius of inscribed circle \(= \frac{\sqrt{3}}{6} a\)

Area of inscribed circle \(= \frac{\pi a^2}{12}\)

Percentage area \(= \frac{\frac{\pi a^2}{12}}{\frac{\sqrt{3} a^2}{4}} * 100 = \frac{\pi}{3\sqrt{3}} * 100 = 62.8%\)

Answer = C
_________________

Kindly press "+1 Kudos" to appreciate :)


Originally posted by PareshGmat on 08 Sep 2014, 21:26.
Last edited by PareshGmat on 09 Sep 2014, 19:38, edited 1 time in total.
SVP
SVP
User avatar
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1837
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 08 Sep 2014, 21:46
Anamika2014 wrote:
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


Assume this as an equilateral triangle with side as a (Yes I know, this isn't an equilateral triangle hence i asked you to assume, this is the only diagram I got from internet and I am too lazy to draw one myself)
Attachment:
Su55k02_m10 (1).gif


so now area of an equilateral triangle = \(\frac{\sqrt3}{4} * a^2\) -----1
and area of the triangle is also equal to Area of triangle AOC+Area of AOB + Area of BOC = \(\frac{1}{2} * a * r\)( r is height of individual triangle) ---------2

from equation 1 & 2 above

\(\frac{\sqrt3}{4} * a^2 = 3 * \frac{1}{2} * a * r\)

from here we can get the value of a i.e. \(a = 2\sqrt{3} * r\) ---------3

Now, In the question we need to find out \(\frac{Area of circle inscribed}{Area of the equilateral triangle}\)

which is equal to \(\frac{{\pi * r^2}}{{3* 1/2 * (2 \sqrt3 r)^2}}\) ------substituting the value of a from equation 3

=\(\frac{\pi}{{3 * \sqrt3}}\)

\approx \frac{3.14}{{3 * 1.72}}

\(\approx \frac{3.4}{{3 * 1.72}}


[m]\approx \frac{2}{3} \approx 0.66\)

Notice that we reduced the numerator by \(0.26\) so our answer is going to be a bit inflated.
Looking at the answer choices, C is the closest. (Notice that there's nothing between 60 and 70 in the options so we can be a little imprecise in this case)

Hence the solution is C


It has to be 3.14 instead of 3.40
_________________

Kindly press "+1 Kudos" to appreciate :)

Expert Post
1 KUDOS received
Veritas Prep GMAT Instructor
User avatar
P
Joined: 16 Oct 2010
Posts: 8077
Location: Pune, India
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 08 Sep 2014, 22:20
1
This post received
KUDOS
Expert's post
2
This post was
BOOKMARKED
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77



PareshGmat's solution is crisp and perfect. Let me just add the explanation for this:

Radius of inscribed circle =\(\frac{\sqrt{3}a}{6}\)

We know that the altitude of the equilateral triangle will be \(\frac{\sqrt{3}a}{2}\)

The altitude will also be the median and will pass through the center of the circle (since it is an equilateral triangle). We know that centroid divides the median in the ratio 2:1. The centroid will be the center of the circle since each median will pass through it due to symmetry. Hence the radius of the circle will be one third of the altitude.

Radius = \(\frac{\sqrt{3}a}{2} * \frac{1}{3} = \frac{\sqrt{3}a}{6}\)
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199

Veritas Prep Reviews

Expert Post
1 KUDOS received
SVP
SVP
User avatar
P
Joined: 08 Jul 2010
Posts: 2099
Location: India
GMAT: INSIGHT
WE: Education (Education)
Reviews Badge
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 03 Feb 2016, 09:56
1
This post received
KUDOS
Expert's post
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


To answer this question we need (Area of circle/Area of Triangle)*100

If the circle is in Equilateral triangle then (1/3)*Height of equilateral Triangle = Radius of Circle

i.e. Radius of Circle = \((1/3)*(\sqrt{3}/2)*side = Side/2\sqrt{3}\)

(Area of circle/Area of Triangle)*100 = \((Pi Side^2/12)*100/ \sqrt{3}*Side^2/4 = pi*100/3\sqrt{3} = 60%\)

Answer: Option C
_________________

Prosper!!!
GMATinsight
Bhoopendra Singh and Dr.Sushma Jha
e-mail: info@GMATinsight.com I Call us : +91-9999687183 / 9891333772
Online One-on-One Skype based classes and Classroom Coaching in South and West Delhi
http://www.GMATinsight.com/testimonials.html

22 ONLINE FREE (FULL LENGTH) GMAT CAT (PRACTICE TESTS) LINK COLLECTION

1 KUDOS received
Director
Director
avatar
G
Joined: 07 Dec 2014
Posts: 999
A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 10 Mar 2017, 10:07
1
This post received
KUDOS
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77

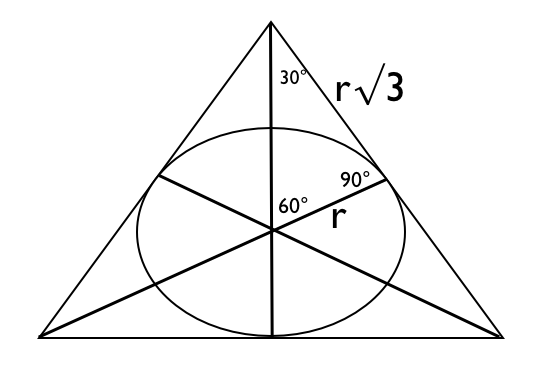

let r=both the radius of the inscribed circle and the base of each of the 6 identical 30-60-90 right triangles subsumed by the equilateral triangle
area of circle=⫪r^2
area of equilateral triangle=6*1/2*r*r√3=3r^2√3
⫪r^2/3r^2√3=⫪/3√3≈.60=60%
C
Attachments

circleintriangle.png [ 30.23 KiB | Viewed 27252 times ]

Director
Director
avatar
S
Joined: 12 Nov 2016
Posts: 776
Location: United States
Schools: Yale '18
GMAT 1: 650 Q43 V37
GRE 1: 315 Q157 V158
GPA: 2.66
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 14 Mar 2017, 23:44
PareshGmat wrote:
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


Refer diagram below:
Attachment:

Let the dimension of equilateral Triangle = a

Area of the triangle\(= \frac{\sqrt{3}}{4} a^2\)

Radius of inscribed circle \(= \frac{\sqrt{3}}{6} a\)

Area of inscribed circle \(= \frac{\pi a^2}{12}\)

Percentage area \(= \frac{\frac{\pi a^2}{12}}{\frac{\sqrt{3} a^2}{4}} * 100 = \frac{\pi}{3\sqrt{3}} * 100 = 62.8%\)

Answer = C


How did you know to apply these formulas? Was there some kind of algebra you did to arrive at root3 divided by 4? I don't understand where you got root 3 divided 4 - I know it works because I plugged it in and tried but don't understand what math I need to do to get there.
Expert Post
2 KUDOS received
Veritas Prep GMAT Instructor
User avatar
P
Joined: 16 Oct 2010
Posts: 8077
Location: Pune, India
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 15 Mar 2017, 01:59
2
This post received
KUDOS
Expert's post
1
This post was
BOOKMARKED
Nunuboy1994 wrote:
PareshGmat wrote:
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77


Refer diagram below:
Attachment:

Let the dimension of equilateral Triangle = a

Area of the triangle\(= \frac{\sqrt{3}}{4} a^2\)

Radius of inscribed circle \(= \frac{\sqrt{3}}{6} a\)

Area of inscribed circle \(= \frac{\pi a^2}{12}\)

Percentage area \(= \frac{\frac{\pi a^2}{12}}{\frac{\sqrt{3} a^2}{4}} * 100 = \frac{\pi}{3\sqrt{3}} * 100 = 62.8%\)

Answer = C


How did you know to apply these formulas? Was there some kind of algebra you did to arrive at root3 divided by 4? I don't understand where you got root 3 divided 4 - I know it works because I plugged it in and tried but don't understand what math I need to do to get there.


If the side of an equilateral triangle is s,

The altitude of the equilateral triangle \(= \frac{\sqrt{3}}{2} * s\)
(Draw the altitude of an equilateral triangle and then use pythagorean theorem on the right triangle obtained)

The area of the equilateral triangle \(= (\frac{1}{2})*base*altitude = (\frac{1}{2})*s*\frac{\sqrt{3}}{2}s = \frac{\sqrt{3}}{4} s^2\)
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199

Veritas Prep Reviews

Director
Director
avatar
S
Joined: 12 Nov 2016
Posts: 776
Location: United States
Schools: Yale '18
GMAT 1: 650 Q43 V37
GRE 1: 315 Q157 V158
GPA: 2.66
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 15 Mar 2017, 18:39
Okay the formulas appear to be more clear and logical now- but my question is how do you divide a number by an imperfect square- for example, in a equilateral triangle with sides of 2, I used the formula root divided by 4 times 2^2 to get the area. The formula needed to solve the problem as stated is area of circle/ area of triangle * 100- so now we have the denominator. Knowing that 1/3 of the height of equilateral triangle is the radius- we can use the Pythagorean Theorem or other formula Karishma stated and arrive at root/ three. The area of the circle is then pi times root/3 squared. We can then simplify and arrive at pi times 1/3 (1/3 is the radius square in simplest form) divided by root 3. On my calculator this equals .60- though how would you make that calculation without a calculator?
Top Contributor
2 KUDOS received
Director
Director
User avatar
S
Affiliations: CrackVerbal
Joined: 03 Oct 2013
Posts: 518
Location: India
GMAT 1: 780 Q51 V46
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 15 Mar 2017, 22:50
2
This post received
KUDOS
Top Contributor
1
This post was
BOOKMARKED
Hi,

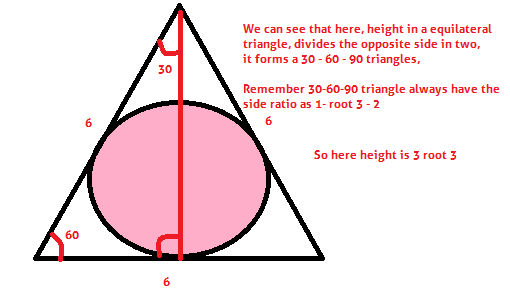

Since couple of replies already used equilateral triangle formula, to solve the question
Let’s see now how to solve this question, with using the basic area of triangle formula,
If the question asks for percentages or ratios always we can try some number out,
Here say the side of the equilateral triangle is “6”,
We have to find the area of the triangle and area of the circle inscribed,
That is,
(Area of the circle inscribed/Area of the triangle)*100
Area of the circle is (pi)* r^2
Area of the triangle is ½ * base * height

Refer to the diagram,

So, here area of the triangle, ½ * 6 * 3 (root 3) = 9 root 3,
Also remember that, radius of the circle is always 1/3 rd the height of the equilateral triangle (This is because, Medians of the triangle intersects at 1:2 ratio).
So here the radius would be, 1/3(3 root 3) = root 3
So the Area of the circle is, pi * (root 3)^2 = 3 * pi,
We can approximate “pi” value as “3“, because answer choices are wide enough, So then area of the circle approximately is 9.
Now, Area of the triangle, we can approximate as 9 root 3 = 9 * 1.7 = 15.3, So we can further approximate it as 15.
So we can find the percentage now,
(Area of the circle inscribed/Area of the triangle)*100
(9/15)* 100.
This is 60%.
So the answer is C.
Hope this helps
Attachments

Triangle - inscribed circle.png
Triangle - inscribed circle.png [ 11.07 KiB | Viewed 27015 times ]


_________________

Register for CrackVerbal MBA Achiever's Summit here -
http://crackverbal.com/mba-summit-2018

Enroll for our GMAT Trial Course here -
http://gmatonline.crackverbal.com/

For more info on GMAT and MBA, follow us on @AskCrackVerbal

Manager
Manager
User avatar
G
Joined: 09 Jan 2016
Posts: 121
GPA: 3.4
WE: General Management (Human Resources)
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 16 Mar 2017, 07:01
VeritasPrepKarishma wrote:
PathFinder007 wrote:
A circle is inscribed in an equilateral triangle, such that the two figures touch at exactly 3 points, one on each side of the triangle. Which of the following is closest to the percent of the area of the triangle that lies within the circle?

A 20
B 45
C 60
D 55
E 77



PareshGmat's solution is crisp and perfect. Let me just add the explanation for this:

Radius of inscribed circle =\(\frac{\sqrt{3}a}{6}\)

We know that the altitude of the equilateral triangle will be \(\frac{\sqrt{3}a}{2}\)

The altitude will also be the median and will pass through the center of the circle (since it is an equilateral triangle). We know that centroid divides the median in the ratio 2:1. The centroid will be the center of the circle since each median will pass through it due to symmetry. Hence the radius of the circle will be one third of the altitude.

Radius = \(\frac{\sqrt{3}a}{2} * \frac{1}{3} = \frac{\sqrt{3}a}{6}\)
PareshGmat's solution is comprehensive ..Could you please give some similar problems Like it...I think this is harder than OG books questions. :-D
Expert Post
Veritas Prep GMAT Instructor
User avatar
P
Joined: 16 Oct 2010
Posts: 8077
Location: Pune, India
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 16 Mar 2017, 08:09
Nunuboy1994 wrote:
Okay the formulas appear to be more clear and logical now- but my question is how do you divide a number by an imperfect square- for example, in a equilateral triangle with sides of 2, I used the formula root divided by 4 times 2^2 to get the area. The formula needed to solve the problem as stated is area of circle/ area of triangle * 100- so now we have the denominator. Knowing that 1/3 of the height of equilateral triangle is the radius- we can use the Pythagorean Theorem or other formula Karishma stated and arrive at root/ three. The area of the circle is then pi times root/3 squared. We can then simplify and arrive at pi times 1/3 (1/3 is the radius square in simplest form) divided by root 3. On my calculator this equals .60- though how would you make that calculation without a calculator?


You are asked for the closest value, so approximate.
sqrt(2) = 1.4
sqrt(3) = 1.7

If needed, these values are likely to be given in the question anyway.

Though most likely, options in actual GMAT questions will retain the irrational numbers. So you would probably see options in terms of sqrt(3).
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199

Veritas Prep Reviews

Senior Manager
Senior Manager
avatar
B
Joined: 05 Jan 2017
Posts: 427
Location: India
Premium Member
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 17 Mar 2017, 03:45
let the side of the triangle be a
area = √3 a^2/4
median length = √3 a/2
radius = 1/3 *√3 a/ 2 = a/ 2√3

area of circle = pi *a/2√3 * a/2√3 = pi * a^2/ 12

therefore percentage = (pi a^2/12)/ √3 a^2/4

around 60%
Non-Human User
User avatar
Joined: 09 Sep 2013
Posts: 6846
Premium Member
Re: A circle is inscribed in an equilateral triangle, Find area [#permalink]

Show Tags

New post 12 Apr 2018, 08:55
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
_________________

GMAT Books | GMAT Club Tests | Best Prices on GMAT Courses | GMAT Mobile App | Math Resources | Verbal Resources

Re: A circle is inscribed in an equilateral triangle, Find area   [#permalink] 12 Apr 2018, 08:55
Display posts from previous: Sort by

A circle is inscribed in an equilateral triangle, Find area

  new topic post reply Question banks Downloads My Bookmarks Reviews Important topics


GMAT Club MBA Forum Home| About| Terms and Conditions and Privacy Policy| GMAT Club Rules| Contact| Sitemap

Powered by phpBB © phpBB Group | Emoji artwork provided by EmojiOne

Kindly note that the GMAT® test is a registered trademark of the Graduate Management Admission Council®, and this site has neither been reviewed nor endorsed by GMAC®.
