In the coordinate axis above, line segment AC is three times

SORT BY:
Date
Kudos
Tags:
Find Similar Topics
Show Tags
Hide Tags
avatar
wastedyouth
Intern
Intern
Joined: 17 Jun 2011
Posts: 24
Own Kudos [?]: 206 [47]
Given Kudos: 14
Send PM
In the coordinate axis above, line segment AC is three times [#permalink] New post   Updated on: 15 Mar 2019, 04:32
5
Kudos
42
Bookmarks
00:00
A
B
C
D
E

Difficulty:

95% (hard)

Question Stats:

30% (03:01) correct 70% (02:53) wrong based on 249 sessions
Hide Show timer Statistics

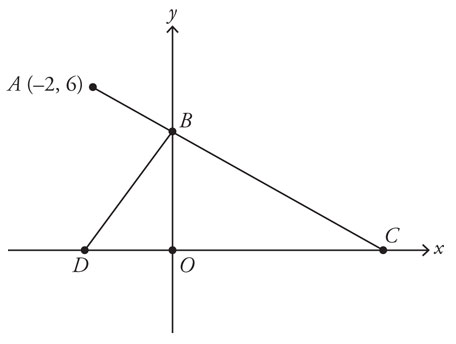

In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

A. 4
B. \(4\sqrt{2}\)
C. 6
D. 8
E. It cannot be determined from the information given.


Show Spoiler
Attachment:
Untitled.png [ 20 KiB | Viewed 7500 times ]
ShowHide Answer
Official Answer
D

Originally posted by wastedyouth on 09 Dec 2013, 11:08.
Last edited by Bunuel on 15 Mar 2019, 04:32, edited 2 times in total.
Edited the question.
Most Helpful Reply
User avatar
L
KarishmaB
Tutor
Joined: 16 Oct 2010
Posts: 14831
Own Kudos [?]: 64936 [25]
Given Kudos: 427
Location: Pune, India
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   09 Dec 2013, 22:39
21
Kudos
4
Bookmarks
Expert Reply
wastedyouth wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?


4

4\sqrt{2}

6

8

It cannot be determined from the information given.


You can use similar triangles concept here.
Drop a perpendicular AE on the y axis.

Attachment:
Ques3.jpg [ 9.95 KiB | Viewed 12238 times ]


Now, triangle BEA is similar to triangle BOC (by the AA rule. Angle ABE = Angle CBO since they are vertically opposite and both triangles have right angles)
Since AB/BC = 1/2, so BE/BO = AE/CO = 1/2
Since AE = 2, CO = 4. Also since EO is 6, BE = 2 and BO = 4.
So BOC is isosceles right triangle so both angles OBC and OCB are 45. This means angle OBD is 45 (since angle DBC is 90) making triangle DOB isosceles as well. Since BO = 4, DO = 4 as well.

Area of triangle DOB = (1/2)*4*4 = 8
User avatar
B
mau5
Verbal Forum Moderator
Joined: 10 Oct 2012
Posts: 485
Own Kudos [?]: 3093 [13]
Given Kudos: 141
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   10 Dec 2013, 11:08
7
Kudos
6
Bookmarks
wastedyouth wrote:
Attachment:
The attachment dia.png is no longer available
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

A. 4
B. \(4\sqrt{2}\)
C. 6
D. 8
E. It cannot be determined from the information given.

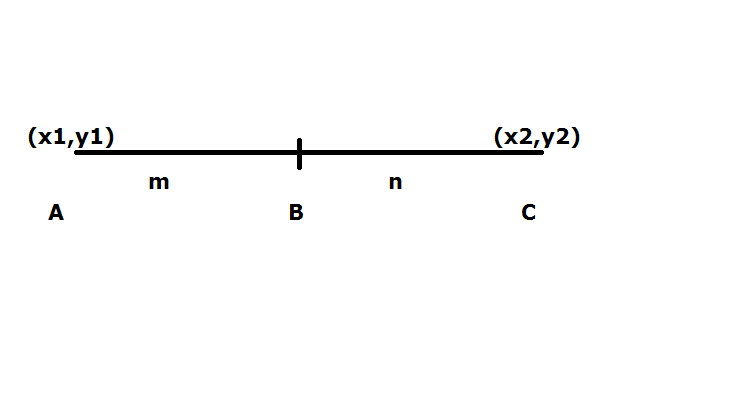

The given line segment AC is divided by B in the ratio 1:2

In general, the co-ordinates of Point B that divides a line segment in the ratio of m:n is

X-coordinate of B : \(\frac{(m*x2+n*x1)}{m+n}\)

Y-coordinate of B : \(\frac{(m*y2+n*y1)}{m+n}\)

Back to out problem,

1. we know that B lies on the Y-axis.
2.m:n = 1:2

Hence, the Y -coordinate of B: \(\frac{(m*x2+n*x1)}{m+n} \to \frac{(1*0+2*6)}{1+2} = 4\). Thus, B(0,4)

Again, slope of AB : \(\frac{6-4}{-2-0} = -1\), hence slope of BD where D has the coordinates as (p,0) =\(\frac{4-0}{0-p} = 1 \to p=-4\).

Thus, the area of \(\triangle ADB = \frac{4*4}{2} = 8.\)

D.
Attachments

1.png [ 3.35 KiB | Viewed 12051 times ]

General Discussion
User avatar
G
mikemcgarry
Magoosh GMAT Instructor
Joined: 28 Dec 2011
Posts: 4452
Own Kudos [?]: 28574 [4]
Given Kudos: 130
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   Updated on: 06 Jun 2016, 10:24
2
Kudos
2
Bookmarks
Expert Reply
wastedyouth wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

(A) 4
(B) 4\sqrt{2}
(C) 6
(D) 8
(E) It cannot be determined from the information given.

I'm happy to help. :-)

This is tricky because the diagram is not to scale, but we can use proportional reasoning. If 3*AB = BC, that means (BC)/(AC) = 2/3, that means from the origin to B must be (2/3) of the distance from the x-axis up to point A --- (2/3) of 6 is 4, so B = (0, 4). That's a 45 degree line, so C = (4, 0), and D = (-4, 0). Here's a scaled diagram:
Attachment:
scaled triangle.JPG
scaled triangle.JPG [ 22.86 KiB | Viewed 11971 times ]

DOB is a 45-45-90 triangle, with DO = OB = 4, so area = 8. Answer = (D).

Does all this make sense?
Mike :-)

Originally posted by mikemcgarry on 09 Dec 2013, 14:57.
Last edited by mikemcgarry on 06 Jun 2016, 10:24, edited 1 time in total.
User avatar
sahilchaudhary
Manager
Manager
Joined: 25 Nov 2013
Status:Work hard in silence, let success make the noise
Posts: 106
Own Kudos [?]: 262 [0]
Given Kudos: 84
Location: India
Concentration: Finance, General Management
Schools: Schulich '16 (D) Mays '17 Queens'17 Sauder '17
GMAT 1: 540 Q50 V15
GMAT 2: 640 Q50 V27
GPA: 3.11
WE:Consulting (Computer Software)
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   10 Dec 2013, 07:38
Hi wastedyouth,

Excellent question.

I marked E because I was unable to determine the area of the triangle DOB.
But, after reading the various explanations, I am convinced with the answer.
User avatar
jlgdr
VP
VP
Joined: 06 Sep 2013
Posts: 1345
Own Kudos [?]: 2391 [0]
Given Kudos: 355
Concentration: Finance
Schools: Wharton '17 (A) HBS '17 (WA$)
Send PM
GMAT ToolKit User
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   28 Dec 2013, 09:12
wastedyouth wrote:
Attachment:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

A. 4
B. \(4\sqrt{2}\)
C. 6
D. 8
E. It cannot be determined from the information given.


Good question, let' solve

1. Draw the figure w/labels
2. now distance from A to B is X, distance from B to C is 2X
3. Since B will have x coordinate 0 then we only need to 'y' coordinate. Now since all the height for segment AC is 6 then AB will only have height 2, then 6-2 = 4, so B (0,4)
4. Now, right triangle BOD is an isosceles right triangle with angles 45-45-90. Angle 45 corresponds to 4. So area is 4*4/2 = 8

Answer is 8

Is this clear?

Cheers!
J :)
User avatar
tallyho_88
Manager
Manager
Joined: 15 Mar 2016
Posts: 94
Own Kudos [?]: 29 [1]
Given Kudos: 119
Location: India
Concentration: Operations
Schools: Schulich Sept"19 (S) Sauder 'Dec 18 (A) Degroote McMaster"19 Smeal Penn State "19 Arizona State"19 (II)
GMAT 1: 680 Q47 V36
WE:Engineering (Other)
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   03 Jun 2016, 18:26
1
Kudos
hey,
a slight correction. You have calculated B to be (4,0). It should be (0,4) as it lies on y axis where X=0


mikemcgarry wrote:
wastedyouth wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

(A) 4
(B) 4\sqrt{2}
(C) 6
(D) 8
(E) It cannot be determined from the information given.

I'm happy to help. :-)

This is tricky because the diagram is not to scale, but we can use proportional reasoning. If 3*AB = BC, that means (BC)/(AC) = 2/3, that means from the origin to B must be (2/3) of the distance from the x-axis up to point A --- (2/3) of 6 is 4, so B = (4, 0). That's a 45 degree line, so C = (4, 0), and D = (-4, 0). Here's a scaled diagram:
Attachment:
scaled triangle.JPG

DOB is a 45-45-90 triangle, with DO = OB = 4, so area = 8. Answer = (D).

Does all this make sense?
Mike :-)
User avatar
G
mikemcgarry
Magoosh GMAT Instructor
Joined: 28 Dec 2011
Posts: 4452
Own Kudos [?]: 28574 [0]
Given Kudos: 130
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   06 Jun 2016, 11:03
Expert Reply
tallyho_88 wrote:
hey,
a slight correction. You have calculated B to be (4,0). It should be (0,4) as it lies on y axis where X=0

Dear tallyho_88,
Thank you for pointing that out, my friend.
Mike :-)
User avatar
yosita18
Intern
Intern
Joined: 05 May 2016
Posts: 29
Own Kudos [?]: 58 [0]
Given Kudos: 61
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   14 Jul 2016, 02:00
VeritasPrepKarishma wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

4
4\sqrt{2}
6
8

It cannot be determined from the information given.

You can use similar triangles concept here.
Drop a perpendicular AE on the y axis.

Attachment:


Now, triangle BEA is similar to triangle BOC (by the AA rule. Angle ABE = Angle CBO since they are vertically opposite and both triangles have right angles)
Since AB/BC = 1/2, so BE/BO = AE/CO = 1/2
Since AE = 2, CO = 4. Also since EO is 6, BE = 2 and BO = 4.
So BOC is isosceles right triangle so both angles OBC and OCB are 45. This means angle OBD is 45 (since angle DBC is 90) making triangle DOB isosceles as well. Since BO = 4, DO = 4 as well.

Area of triangle DOB = (1/2)*4*4 = 8


Quote:
Hi Karishma:
Typically, the definition of similarity between two triangles is as follows:

Triangles are similar if:
AAA (angle angle angle)
All three pairs of corresponding angles are the same.
See Similar Triangles AAA.
SSS in same proportion (side side side)
All three pairs of corresponding sides are in the same proportion
See Similar Triangles SSS.
SAS (side angle side)
Two pairs of sides in the same proportion and the included angle equal.
See Similar Triangles SAS.

Here is the source of information:
https://www.mathopenref.com/similartriangles.html

My Question:
Instead of 3 angles (AAA), can we just consider two angles (AA) to conclude that two triangles are similar?
Please share your thoughts.
Thanks in advance.

Regards,
Yosita
User avatar
L
KarishmaB
Tutor
Joined: 16 Oct 2010
Posts: 14831
Own Kudos [?]: 64936 [1]
Given Kudos: 427
Location: Pune, India
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   18 Jul 2016, 23:34
1
Kudos
Expert Reply
yosita18 wrote:
VeritasPrepKarishma wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

4
4\sqrt{2}
6
8

It cannot be determined from the information given.

You can use similar triangles concept here.
Drop a perpendicular AE on the y axis.

Attachment:


Now, triangle BEA is similar to triangle BOC (by the AA rule. Angle ABE = Angle CBO since they are vertically opposite and both triangles have right angles)
Since AB/BC = 1/2, so BE/BO = AE/CO = 1/2
Since AE = 2, CO = 4. Also since EO is 6, BE = 2 and BO = 4.
So BOC is isosceles right triangle so both angles OBC and OCB are 45. This means angle OBD is 45 (since angle DBC is 90) making triangle DOB isosceles as well. Since BO = 4, DO = 4 as well.

Area of triangle DOB = (1/2)*4*4 = 8


Quote:
Hi Karishma:
Typically, the definition of similarity between two triangles is as follows:

Triangles are similar if:
AAA (angle angle angle)
All three pairs of corresponding angles are the same.
See Similar Triangles AAA.
SSS in same proportion (side side side)
All three pairs of corresponding sides are in the same proportion
See Similar Triangles SSS.
SAS (side angle side)
Two pairs of sides in the same proportion and the included angle equal.
See Similar Triangles SAS.

Here is the source of information:
https://www.mathopenref.com/similartriangles.html

My Question:
Instead of 3 angles (AAA), can we just consider two angles (AA) to conclude that two triangles are similar?
Please share your thoughts.
Thanks in advance.

Regards,
Yosita


Sum of all 3 angles of a triangle is always 180. If 2 pairs of angles are equal, the third pair always has to be equal too. So AA is enough.
avatar
B
umabharatigudipalli
Intern
Intern
Joined: 21 Jan 2017
Posts: 27
Own Kudos [?]: 5 [0]
Given Kudos: 45
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   28 Jul 2017, 05:51
VeritasPrepKarishma wrote:
wastedyouth wrote:
In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?


4

4\sqrt{2}

6

8

It cannot be determined from the information given.


You can use similar triangles concept here.
Drop a perpendicular AE on the y axis.

Attachment:


Now, triangle BEA is similar to triangle BOC (by the AA rule. Angle ABE = Angle CBO since they are vertically opposite and both triangles have right angles)
Since AB/BC = 1/2, so BE/BO = AE/CO = 1/2
Since AE = 2, CO = 4. Also since EO is 6, BE = 2 and BO = 4.
So BOC is isosceles right triangle so both angles OBC and OCB are 45. This means angle OBD is 45 (since angle DBC is 90) making triangle DOB isosceles as well. Since BO = 4, DO = 4 as well.

Area of triangle DOB = (1/2)*4*4 = 8



Superb explanation!! Thanks :)
User avatar
L
Kinshook
GMAT Club Legend
GMAT Club Legend
Joined: 03 Jun 2019
Posts: 5344
Own Kudos [?]: 3967 [0]
Given Kudos: 160
Location: India
Schools: HBS '22 CBS '22 Wharton '22
GMAT 1: 690 Q50 V34
WE:Engineering (Transportation)
Send PM
Reviews Badge
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   31 Jul 2019, 04:47
wastedyouth wrote:

In the coordinate axis above, line segment AC is three times as long as line segment AB. In addition, segment AC is perpendicular to segment BD. What is the area of triangle DOB?

A. 4
B. \(4\sqrt{2}\)
C. 6
D. 8
E. It cannot be determined from the information given.


Show Spoiler
Attachment:
The attachment Untitled.png is no longer available

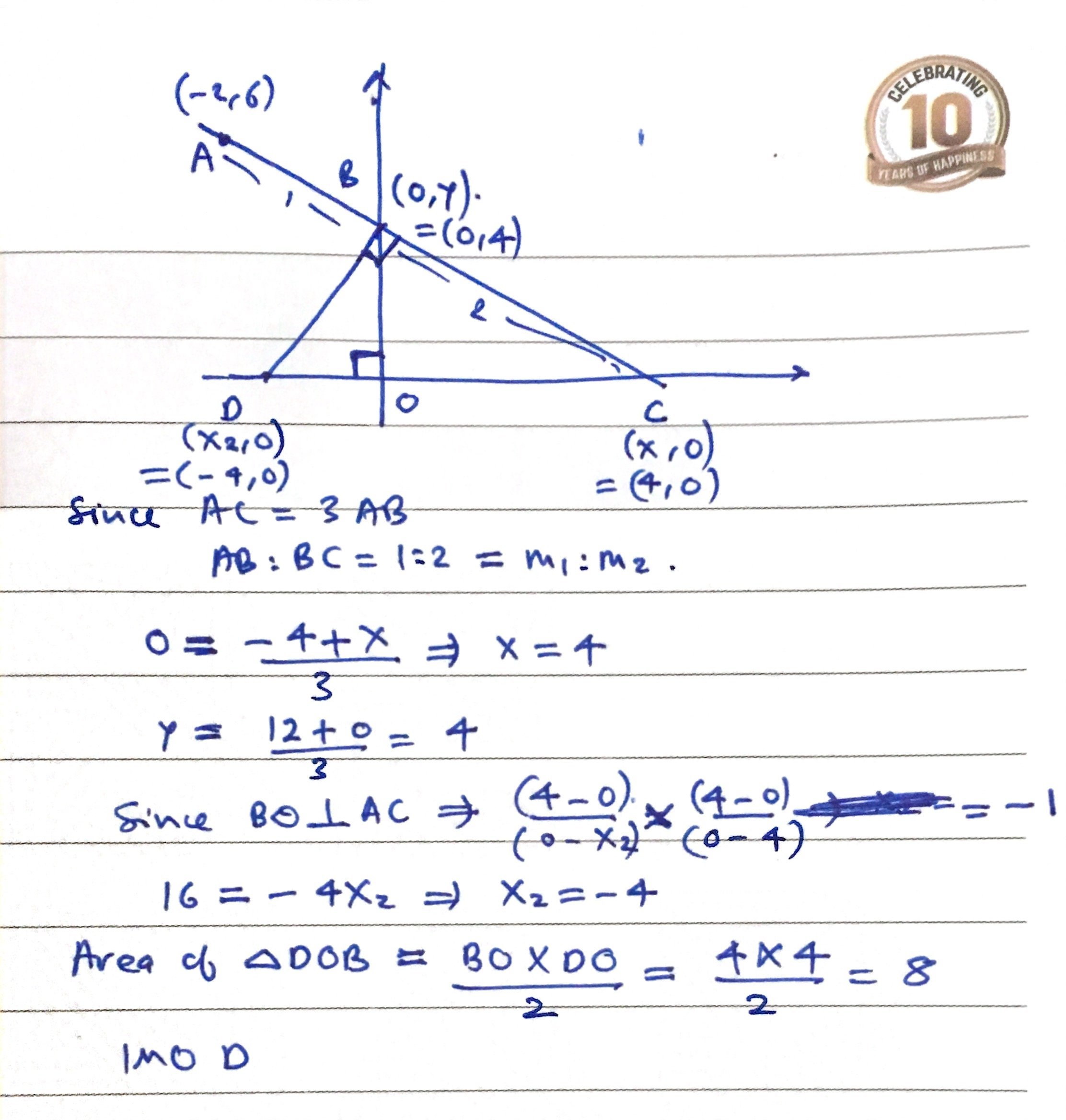

Please see solution in attached image below

IMO D
Attachments

2019-07-31_171630.jpg [ 469.6 KiB | Viewed 6260 times ]

User avatar
bumpbot
Non-Human User
Joined: 09 Sep 2013
Posts: 32688
Own Kudos [?]: 822 [0]
Given Kudos: 0
Send PM
Re: In the coordinate axis above, line segment AC is three times [#permalink] New post   07 Jun 2022, 03:16
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
GMAT Club Bot
gmatclubot
Re: In the coordinate axis above, line segment AC is three times [#permalink]
07 Jun 2022, 03:16
Moderators:
Bunuel
Math Expert
92945 posts
yashikaaggarwal
Senior Moderator - Masters Forum
3137 posts

Powered by phpBB © phpBB Group | Emoji artwork provided by EmojiOne
Main navigation
GMAT Resources
Partners
MBA Resources
www.gmac.com|www.mba.com | | GMAT Club Rules | Terms and Conditions
