If side BX has length 10 and side AC has length 8, what is the area of

Question

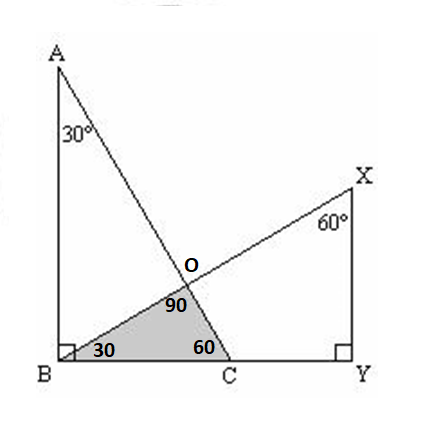

https://gmatclub.com/forum/download/file.php?id=43455 If side BX has length 10 and side AC has length 8, what is the area of the shaded region? A. 2\sqrt{3} B. 4\sqrt{3} C. 6\sqrt{3} D. 8\sqrt{3} E. 12\sqrt{3} image019.jpg

PKN · Accepted Answer

Area of the shaded region=Area of right angled triangle BOC (30-90-60) (Refer enclosed figure)

ABC is a 30-90-60 triangle, Hence  BC=\frac{AC}{2}=\frac{8}{2}=4

Now in the triangle BOC(30-90-60) , Base=OC= \frac{4}{2} =2, height=OB= 2\sqrt{3}
So, area of triangle BOC(shaded region)= \frac{1}{2} *OC*OB=\frac{1}{2} *2*2\sqrt{3} = 2\sqrt{3}

Ans. (A)

siddharthfrancis · Answer

Please explain the solution. Thanks. !!

PKN · Answer

Hi  siddharthfrancis ,
Detailed explanation has been provided in the above post. You may raise specific queries(if any).

abhishekdadarwal2009 · Answer

trianlge 30-60-90 is fine, how did we get BC=AC/2?

what rule?

PKN · Answer

Hi siddharthfrancis abhishekdadarwal2009,
In the triangle ABC , Angle A=30, Angle C=60, Angle B=90
So the corresponding sides are in the ratio:
BC:AB:AC=x:√3x:2x
Or, BC=x and AC=2x
Or, AC is 2 times BC
Or, BC=AC/2

You may go thru the below link for a detailed insight on SPECIAL TRIANGLES.
https://gmatclub.com/forum/math-triangles-87197.html

Hope your query is nullified.
Thank you.

abhishekdadarwal2009 · Answer

Hi siddharthfrancis abhishekdadarwal2009,
In the triangle ABC , Angle A=30, Angle C=60, Angle B=90
So the corresponding sides are in the ratio:
BC:AB:AC=x:√3x:2x
Or, BC=x and AC=2x
Or, AC is 2 times BC
Or, BC=AC/2

You may go thru the below link for a detailed insight on SPECIAL TRIANGLES.
https://gmatclub.com/forum/math-triangles-87197.html

Hope your query is nullified.
Thank you.[/quote]

Now i understand that we use the 30-60-90 rule on the bigger triangle to find one comman side, and then wth that side we use 30-60-90 on the smaller trianlge to find the lenghts of the sides of the triangle and thus finding the area of the smaller triangle.

thanks.

PKN · Answer

Now i understand that we use the 30-60-90 rule on the bigger triangle to find one comman side, and then wth that side we use 30-60-90 on the smaller trianlge to find the lenghts of the sides of the triangle and thus finding the area of the smaller triangle.

thanks.

Your reasoning bears zero fallacies.
You are welcome.

JS1290 · Answer

Hi  Bunuel

Could you please explain where I made a mistake in my solution? I got B as my answer. My strategy was to find the area of ABC and BXY. Then subtracting these two to find the area of BOC.

Area of ABC= 1/2*(4√3)*4 = 8√3
Area of BXY = 1/2*(5√3)*5= 12.5√3

Area of the shaded region: 12.5√3 - 8√3= 4.5√3

Please help!
Thank You!

PKN · Answer

Hi  csaluja  ,
I have highlighted the mistake in reasoning in red color.

JS1290 · Answer

Hi PKN,

Could you please explain why the highlighted part is incorrect? Would greatly appreciate it!

PKN · Answer

Hi  csaluja ,

According to your reasoning ,

Area of BOC= Area of ABC-Area of BXY

Let's break the area of ABC and BXY in terms of area of BOC,

Area of ABC= Area of AOB+Area of BOC--------(1)
Area of BXY=Area of XOCY+Area of BOC--------(2)

Now, subtracting (2) from(1) ,we have
Area of ABC-Area of BXY=Area of AOB-Area of XOCY, which is not equal to area of BOC.

Hope it's clear.

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
