# In the figure shown, the circle has a diameter of 10, which

Author Message
TAGS:

### Hide Tags

Director
Joined: 29 Nov 2012
Posts: 819
In the figure shown, the circle has a diameter of 10, which [#permalink]

### Show Tags

Updated on: 12 Jun 2013, 02:32
3
00:00

Difficulty:

35% (medium)

Question Stats:

73% (01:40) correct 27% (01:38) wrong based on 109 sessions

### HideShow timer Statistics

Attachment:

image 1.png [ 22.88 KiB | Viewed 1602 times ]

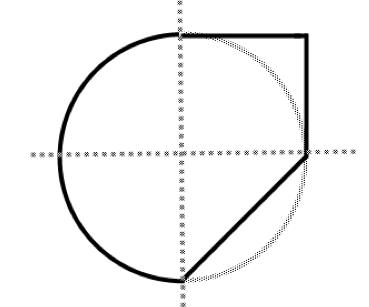

In the figure shown, the circle has a diameter of 10, which is also the side length of the implied square. If an outline is formed by half the circle, one quarter of the square, and a straight line connecting the perpendicular bisectors of the circle, what is the perimeter of this shape?

A. $$5+5(\pi + \sqrt{2})$$
B. $$10 + 10\pi +5 \sqrt{2}$$
C. $$10 + 5(\pi + \sqrt{2})$$
D. $$15 +\pi \sqrt{2}$$
E. $$10\pi\sqrt{3}$$

_________________

Click +1 Kudos if my post helped...

Amazing Free video explanation for all Quant questions from OG 13 and much more http://www.gmatquantum.com/og13th/

GMAT Prep software What if scenarios http://gmatclub.com/forum/gmat-prep-software-analysis-and-what-if-scenarios-146146.html

Originally posted by fozzzy on 12 Jun 2013, 02:24.
Last edited by Bunuel on 12 Jun 2013, 02:32, edited 1 time in total.
Edited the stem and the answer choices.
Math Expert
Joined: 02 Sep 2009
Posts: 46307
Re: In the figure shown, the circle has a diameter of 10, which [#permalink]

### Show Tags

12 Jun 2013, 02:37
2

In the figure shown, the circle has a diameter of 10, which is also the side length of the implied square. If an outline is formed by half the circle, one quarter of the square, and a straight line connecting the perpendicular bisectors of the circle, what is the perimeter of this shape?

A. $$5+5(\pi + \sqrt{2})$$
B. $$10 + 10\pi +5 \sqrt{2}$$
C. $$10 + 5(\pi + \sqrt{2})$$
D. $$15 +\pi \sqrt{2}$$
E. $$10\pi\sqrt{3}$$

Diameter = 10 --> radius =5.

The perimeter of half the circle = $$\frac{2\pi{r}}{2}=5\pi$$;
The perimeter of half the square = $$r+r=10$$;
The length of the straight line = $$\sqrt{5^2+5^2}=5\sqrt{2}$$.

Total = $$5\pi+10+5\sqrt{2}$$.

_________________
VP
Status: Far, far away!
Joined: 02 Sep 2012
Posts: 1099
Location: Italy
Concentration: Finance, Entrepreneurship
GPA: 3.8
Re: In the figure shown, the circle has a diameter of 10, which [#permalink]

### Show Tags

12 Jun 2013, 02:39
1

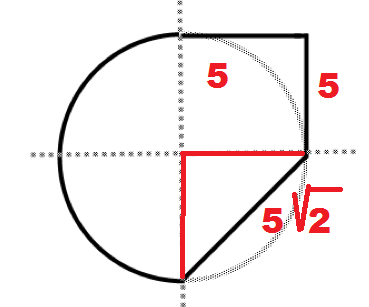

Given $$radius = 5$$, the circumference is $$2*5*\pi$$, so half circumference is $$5\pi$$.

Then we have two sides of a 5-side square, $$5+5=10$$

Then we have an hypostnus of a right triangle with two 5 sides, $$\sqrt{5^2+5^2}=2\sqrt{5}$$

Tot sum=$$5\pi+10+5\sqrt{2}$$
Attachments

image 1.png [ 22.17 KiB | Viewed 1495 times ]

_________________

It is beyond a doubt that all our knowledge that begins with experience.

Kant , Critique of Pure Reason

Tips and tricks: Inequalities , Mixture | Review: MGMAT workshop
Strategy: SmartGMAT v1.0 | Questions: Verbal challenge SC I-II- CR New SC set out !! , My Quant

Rules for Posting in the Verbal Forum - Rules for Posting in the Quant Forum[/size][/color][/b]

Non-Human User
Joined: 09 Sep 2013
Posts: 7057
Re: In the figure shown, the circle has a diameter of 10, which [#permalink]

### Show Tags

17 Apr 2017, 17:58
1
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
