In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above

please help me with answers in details.
ShowHide Answer
Official Answer
A

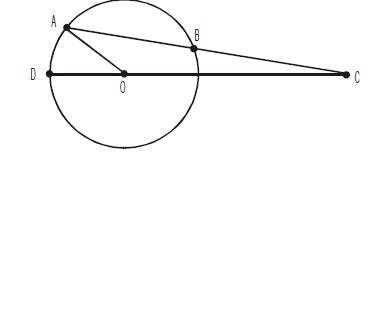

Attachments

probpic.JPG [ 6.68 KiB | Viewed 33357 times ]

avatar
miti
avatar
Joined: 08 Oct 2010
Last visit: 01 Feb 2011
Posts: 3
Given Kudos: 1
Posts: 3
Kudos: 0
In the figure below, AB is the chord of a circle with center 21 Oct 2010, 03:22
Kudos
Add Kudos
Bookmarks
Bookmark this Post
In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above

ans : OB=BC
thus, in the triangle BOC, angle BOC = angle BCO =y
again, OB=AO (as both are radii of the same circle)
thus, in triangle OAB, angleOAB= angle OBA =y (because OAB and BOC are equal triangle)
thus, we can make the equation like this,
180=y+(180-2y)+x
thus, y=x
thus, ans is
c
User avatar
shrouded1
User avatar
Retired Moderator
Joined: 02 Sep 2010
Last visit: 29 Apr 2018
Posts: 608
Own Kudos:
3,231
Given Kudos: 25
Location: London
Products:
My Reviews
Posts: 608
Kudos: 3,231
In the figure below, AB is the chord of a circle with center 21 Oct 2010, 15:35
Kudos
Add Kudos
Bookmarks
Bookmark this Post
honeyhani
In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above

please help me with answers in details.
Show more

OB=BC, So BCO=BOC=x
ABO=2x (exterior angle of triangle BOC, sum of the two opposite interior angles)
OAB=ABO=2x (Isosceles triangle, 2 sides are the radius of the circle)
AOD is an exterior angle of triangle AOC
Hence AOD=OAB+BCO=x+2x=3x=y

Hence answer is (A)
User avatar
Ellipse
User avatar
Joined: 16 Oct 2010
Last visit: 07 Jul 2013
Posts: 64
Own Kudos:
194
 [1]
Given Kudos: 3
Location: United States
Concentration: Finance, Entrepreneurship
Schools: INSEAD Jan '13 IE '15 Kellogg 1YR '15 Sloan '16
GMAT 1: 700 Q49 V35
WE:Information Technology (Finance: Investment Banking)
Schools: INSEAD Jan '13 IE '15 Kellogg 1YR '15 Sloan '16
GMAT 1: 700 Q49 V35
Posts: 64
Kudos: 194
 [1]
In the figure below, AB is the chord of a circle with center 21 Oct 2010, 23:08
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
honeyhani
In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above

please help me with answers in details.
Show more

Sol:
OB = BC (given) => Angle BOC = Angle BCO = y => Angle OBC = 180-2y (in triangle OBC)
Hence Angle OBA = 2y
Since AO = OB (Both radius of the circle)
so Angle OBA = Angle BAO = 2y => Angle AOB = 180 -4y
Now we know all the three angles at point O form by a straight line DC
Hence Angle AOD + Angle AOB + Angle BOC = 180
x + 180 - 4y + y = 180
x - 3y = 0
x = 3y
Answer (A)
User avatar
Bismarck
User avatar
Joined: 18 Jun 2018
Last visit: 15 Mar 2023
Posts: 217
Own Kudos:
481
Given Kudos: 35
Posts: 217
Kudos: 481
In the figure below, AB is the chord of a circle with center 20 Aug 2018, 10:25
Kudos
Add Kudos
Bookmarks
Bookmark this Post
honeyhani
In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above

please help me with answers in details.
Show more

OA:A

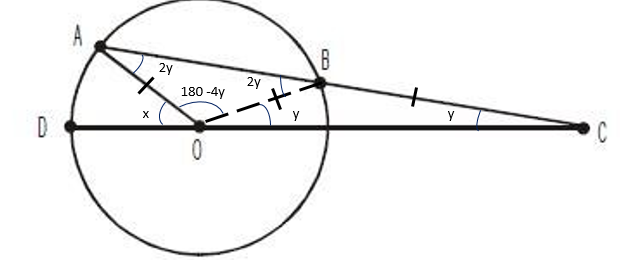

Attachment:
xy.PNG [ 54.81 KiB | Viewed 10108 times ]

Joining \(OB\),\(\angle BOC =\angle BCO =y\) (As \(OB=BC\))
\(\angle OBA = \angle BOC + \angle BCO\) (An exterior angle of a triangle is equal to the sum of the opposite interior angles.)
\(\angle OBA = 2y\)
\(\angle OAB = \angle OBA =2y\) ( As \(OA=OB=r\))
Considering \(\triangle OAC\),
\(\angle DOA =\angle OAC + \angle OCA\) (An exterior angle of a triangle is equal to the sum of the opposite interior angles.)
\(x =y +2y\)
\(x=3y\) so \(k=3\)
User avatar
GMATGuruNY
User avatar
Joined: 04 Aug 2010
Last visit: 02 Apr 2026
Posts: 1,347
Own Kudos:
3,905
Given Kudos: 9
Schools:Dartmouth College
Expert
Expert reply
Posts: 1,347
Kudos: 3,905
In the figure below, AB is the chord of a circle with center 20 Aug 2018, 11:45
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Quote:
In the figure below, AB is the chord of a circle with center O. AB is extended to C such that BC = OB. The straight line CO is produced to meet the circle at D. If ACD= y degrees and AOD = x degrees such that x = ky, then the value of k is

A. 3
B. 2
C. 1
D. None of the above
Show more

OA and OB are radii, so OA=OB.
Since the prompt indicates that OB=BC, we get:
OA=OB=BC.
The following figure is yielded:


Let y=10.
Since the angles inside triangle BCO must sum to 180, and the angles opposite sides OB and BC must be equal, the following figure is yielded:


Since angles ABO and OBC must sum to 180, angle ABO=20.
Since the angles inside triangle ABO must sum to 180, and the angles opposite sides OA and OB must be equal, the following figure is yielded:


Since angles AOD, AOB and BOC must sum to 180, we get:


Since x=30, y=10, and \(k = \frac{x}{y}\), we get:
\(k = \frac{30}{10} = 3\)

Show Spoiler
A
