Points A and B are at opposite ends of a circular pond with

Question

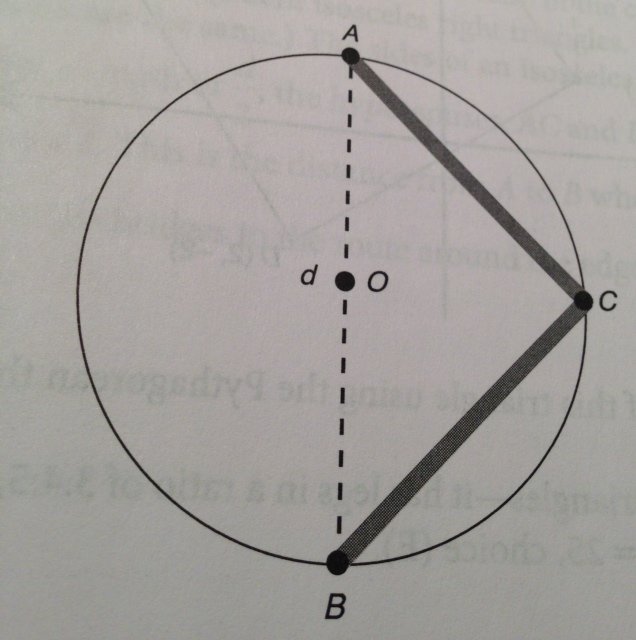

130914 Kaplan Geometry.jpg Points A and B are at opposite ends of a circular pond with diameter d. A bridge connects point A with point C, and another bridge connects point C with point B. The two bridges are of equal length. What is the ratio of the distance from A to B when traveling along the two bridges to the distance when traveling along the edge of the pond? A) \frac{(2\sqrt{2})}{\pi} B) \frac{(d\sqrt{2})}{\pi} C) \frac{2}{\pi} D) \frac{\sqrt{2}}{2\pi} E) \frac{2\sqrt{2}}{d\pi}

Bunuel · Answer

https://gmatclub.com/forum/download/file.php?id=21052
Points A and B are at opposite ends of a circular pond with diameter d. A bridge connects point A with point C, and another bridge connects point C with point B. The two bridges are of equal length. What is the ratio of the distance from A to B when traveling along the two bridges to the distance when traveling along the edge of the pond?

A)  \frac{(2\sqrt{2})}{\pi}

B)  \frac{(d\sqrt{2})}{\pi}

C)  \frac{2}{\pi}

D)  \frac{\sqrt{2}}{2\pi}

E)  \frac{2\sqrt{2}}{d\pi}

A right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle. The reverse is also true: if the diameter of the circle is also the triangle’s hypotenuse, then that triangle is a right triangle.

According to the above angle C must 90 degrees. Next, since AC=BC, then triangle ABC is 45-45-90 triangle, so, its sides are in the ratio  1:1:\sqrt{2} . Thus,  AC=BC=\frac{d}{\sqrt{2}} .

The distance from A to B when traveling along the two bridges =  AC+BC=\frac{d}{\sqrt{2}}+\frac{d}{\sqrt{2}}=\frac{2d}{\sqrt{2}} .

The distance when traveling along the edge of the pond = half of the circumference =  \frac{\pi{d}}{2} .

The ratio =  \frac{(\frac{2d}{\sqrt{2}})}{(\frac{\pi{d}}{2})}=\frac{2*2}{\sqrt{2}\pi}=\frac{2*2*\sqrt{2}}{\sqrt{2}*\sqrt{2}\pi}=\frac{2\sqrt{2}}{\pi} .

Answer: A.

mvictor · Answer

I assigned values for R, so that it would be easier to work with..
R=1, then d=2.

now, we can draw another line from O to C, and get another line, of the length 1. thus, AC must be, according to the 45-45-90 right angle properties, sqrt(2). The CB is as well sqrt(2).
to travel from A to B across the bridges, we need to walk a distance of 2 * sqrt(2)

now, the edge:
C=2*pi*R
C=2*pi.
since AB is a semicircle, the length of the arc AB thus must be pi.

since we are asked for the ratio, we then have:
2 sqrt(2) / pi.

A

KrishnakumarKA1 · Answer

let the radius be r

since the distance of two bridges are equal
triangle BAC is isosceles right triangle
therefore the length of each bridge will be √2r and the total length via bridge = 2r√2

length of the semi perimeter = pi*r

hence the ratio = 2r√2/ pi*r = 2√2/pi

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
