A is the center of the circle, and the length of AB is . The blue shad

Question

areashade_q2.png A is the center of the circle, and the length of AB is 4\sqrt{2} . The blue shaded region is a square. What is the area of the shaded region? A. 4(4 - π) B. 4(8 - π) C. 8(2 - π) D. 8(8 - π) E. 16(4 - π) Kudos for a correct solution .

hsbinfy · Answer

correct choice is E

side of square =2r

4sqt2=r *sqt2

r=4

so we can calculate the area of square and circle and minus
which boils down to option E for the correct answer

bhatiamanu05 · Answer

consider radius of circle = r
so side of square = 2r

r^2+r^2 = {4sqrt(2)}^2
2r^2 = 32
r^2 = 16

so area of circle = pi*r^2 => pi*16
area of square = 4*r^2 = 4*16
so area of shaded region == area of square - area of cirlce == 16(4-pi)

ngie · Answer

Since AB is half the diagonal of the square, the diagonal is  8\sqrt{2} , which is  \sqrt{2}  the side of the square. The side of the square is then  \frac{8\sqrt{2}}{\sqrt{2}}=8 .

The area of the square is then  8^2=64 .

The side of the square equals twice the radium of the circle. Therefore, the area of the circle is  \pi\cdot4^2=16\pi

The shaded area is  64-16\pi=16(4-\pi)

The correct answer is E

peachfuzz · Answer

The line segment AB forms a 45 45 90 triangle with a hypotenuse of  4\sqrt{2}
As a result both a side of the square and the radius is 4.
8^2 - (4^2)π
16(4 - π)

Answer: E

Bunuel · Answer

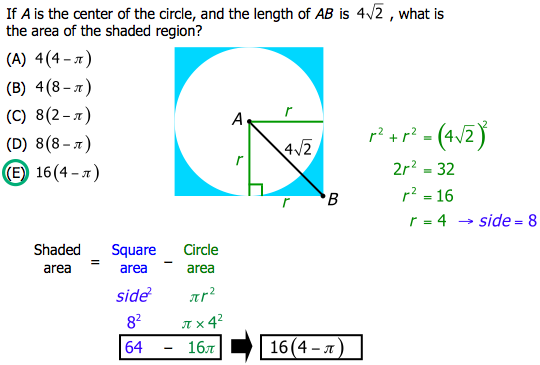

MAGOOSH OFFICIAL SOLUTION: areashade_explanation.png

PareshGmat · Answer

There is a direct relation between area of inscribed circle & area of square

Area of circle = Area of square * \frac{\pi}{4}

Diagonal of square  = 2 * 4\sqrt{2} = 8\sqrt{2}

Side of square  = \sqrt{\frac{(8\sqrt{2})^2}{2}} = 8

Area of square  = 8^2 = 64

Area of circle  = 64 * \frac{\pi}{4} = 16\pi

Area of shaded region  = 64 - 16\pi = 16(4-\pi)

CrackverbalGMAT · Answer

Hi All,
Area of the shaded region = Area of the square – area of the circle.
Since line segment AB forms the 45-45-90 triangle with square.
It gives side of the square as 8. And radius of the circle as 4.
Area of the shaded region = 64 – 16pi.
 = 16(4-Pi).
You can also approach this question using POE.
 the shaded region should be slightly less than 1/4th of the area of the square. Since area of the square is 64. We are looking some answer close to 16.
Let pi = 3.1
A. 4(4 - π) this is less than 4 eliminate.
B. 4(8 - π) this is more than 16 eliminate.
C. 8(2 - π) this is negative eliminate.
D. 8(8 - π) this is more than 16 eliminate.
E. 16(4 - π) this is very close to 16. So answer is E.
POE is just in case if you don’t know how to solve.

testcracker · Answer

okay

since the length of AB is 4√2, the diagonal of the square is 8√2, and thus each side of the square measures 8 and radius of the circle measures 4

now the shaded area = 64 - pi 4^2 = 16(4-pi) = E the answer

thanks

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
