In the figure above, lines k, m and p have slopes r, s and t respectiv

Question

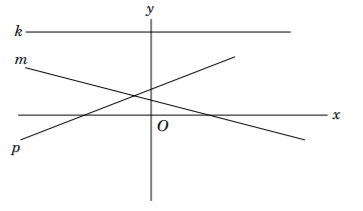

https://gmatclub.com/forum/download/file.php?id=39200 In the figure above, lines k, m and p have slopes r, s and t respectively. Which of the following is a correct ordering of these slopes? (A) r < s < t (B) r < t < s (C) s < r < t (D) s < t < r (E) t < s < r 2017-12-15_1300_002.png

generis · Answer

We need to rank the lines' slopes in order of steepness.
A slope is defined as "bigger," or "steeper," by its absolute value.

Line k is horizontal, slope = 0
The least steep slope is k's, which is  r
 r  should be the first variable in the answers.
Eliminate answers C, D, and E

A or B?
Which is greater,  s , line m's slope, or  t , line p's slope?

This diagram initially frustrated me.
With tired eyes, I couldn't tell which was steeper, line m or line p.
Tired brain, too. I forgot to use the basics.

The slope between two points on a line is the change in y (up or down) divided by the change in x (left to right):
  \frac{rise}{run}= \frac{y_1-y_2}{x_1-x_2}

A good place to determine the coordinates of two points: a line's x- and y-intercepts.

On the diagram, it IS clear that line p's intercepts are farther from the origin than line m's intercepts.*
Estimate.

Line m has a y-intercept at about (0,1) and an x-intercept at (3,0)
Line p's y-intercept is higher, at about (0,2). Its x-intercept is (-3.5,0)

Slope of line m:
  \frac{y_1-y_2}{x_1-x_2}=\frac{0-1}{3-0}=-\frac{1}{3} \approx{-.33}

Slope of line p:
  \frac{y_1-y_2}{x_1-x_2}=\frac{0-2}{(-3.5)-0}=\frac{-2}{-3.5}\approx{.57}

The sign of the slope does not determine steepness.
(A negative slope is not smaller than a positive slope because it has a negative sign.)

Steepness is ranked by the absolute value of the slope.
|.57| > |-.33|

Hence
  s < t , and  r < s < t
Answer  A

*  Both  x- and y-intercepts of p are farther from the origin than m's. Careful. That might mean the slope's ratio is smaller. Slope is change in y  divided  by change in x.

Edited content to reflect change in method. Answer unchanged.

shubhamxyzz · Answer

What's the answer?

Bunuel · Answer

The OA will be automatically revealed on Friday 22nd of December 2017 01:19:09 AM Pacific Time Zone

Meanwhile, you can give it a try.

exc4libur · Answer

Given: k = r, m = s, p = t.

To find the slope of the line:  \frac{(y2-y1)}{(x2-x1)}

Line k seems to be a horizontal line, which means the y coordinate is static (always the same value), so the slope r = 0.
Line m is going downwards, so the slope = s is negative.
Line p is going upwards, so the slope = t is positive.

So, s < r < t = negative < 0 < positive (assuming that k is a horizontal line).

(C) is the answer.

Paulli1982 · Answer

A line that swings upward has positive slope, and a line that swings downward has a negative slope. The slope of a horizontal line has a slope of 0. It's obvious that s<r<t. The answer is C.

generis · Answer

exc4libur  and  Paulli1982  :

I have learned that the sign of a slope just tells us which direction it goes, not whether it is steeper or flatter.
I have learned that the slope of a line tells us the rate of change of y relative to corresponding change in x.
So it is hard for me to understand the reasons you answered the way you did.
As far as I can tell, you rest your case on the number line alone. Is that correct?

As I said, I learned that the slope of a line tells us the  rate of change of y relative to x .
That seems to imply that whether its slope is positive or negative, a line that is close to vertical has a very steep slope.
It also seems to imply that whether its slope is positive or negative, a line that is close to horizontal has a very gradual slope.

If the slope is 4, y increases rapidly compared to x.
If the slope is -4, y decreases rapidly compared to x.

Given those two mathematical relationships, it would seem that the magnitude of the slope, not its sign, determines steepness.
True, the sign tells you whether it goes "right and up", or "right and down."
But I cannot see how a positive or negative sign tells us how quickly y increases or decreases in relation to x.

Stated again: The slope of a linear function is a  rate of change .

A horizontal line, with a slope of zero, does not change. At all. Ever.

Think of a skateboarder.
First she is on a flat sidewalk. Zero slope.
Then she climbs up the left side of a hill facing that sidewalk.
She skateboards down the right side.

Are you willing to argue that she deals with a greater slope while on a flat sidewalk than while going down the hill?
If so, would you please explain why?

Or suppose there is a train.
It goes up a perfectly symmetrical mountain, which looks like this: /\
The train makes it to the top. At the top, it loses its brakes.
Now it is a runaway train. It is hurtling down the other side of the mountain.
Because, and only because, it hurtles downward and to the left, (and has a slope of, say -5), would you say its slope while hurtling without brakes is LESS than the slope on flat ground?
If so, would you please explain why?

I respect disagreement. That said,  Paulli1982  I do not think there is any need for words such as "obvious."
If it were so obvious, I would not be taking a different position.

Please explain to me how and why a horizontal line with no change (y is always the same) has a greater slope than a line that looks like this: \

Please explain how to account for the rate of change in your scenario.

Please explain how the sign of the number denoting of a rate of change in a linear function tells me how steep my hike will be, both up the mountain and down?

I think magnitude of change, or absolute value of the number that describes rate of change, determines greater or smaller slope, steeper or less steep slope.
I think a slope of -4 is greater than a slope of  \frac{1}{2} . Why? It has a greater rate of change.
Greater rate of change? Steeper slope.
Smaller rate of change? Flatter slope.

I am very curious to know  how  you are measuring steepness. And  why . Maybe I am missing something.

If there is some way to order slopes about which I do not know, I would appreciate knowing.

Thanks in advance!

exc4libur · Answer

genxer123

Hey, you do have a point, if the ordering of the slopes is determined by its absolute value then yes, I agree with you.
But, since the answer could be (A) or (B), then the question would have to give us more information.

Since it doesn't give us any more information, I think its not asking for the ordering of the absolute value of the slopes, its just asking for the ordering of the values of "m" in the slope form equation:  y=mx+b .

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
