What is the area of the figure above? 21 Aug 2019, 08:34
Kudos
Add Kudos
7
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
C
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

45% (medium)

Question Stats:

71% (02:15) correct 29% (02:19) wrong based on 105 sessions

History

Date
Time
Result
Not Attempted Yet

What is the area of the figure above?

A. \(40\sqrt{2}\)
B. 64
C. 68
D. 81
E. 92


Show Spoiler
Attachment:
image2264.jpg [ 3.38 KiB | Viewed 5057 times ]
ShowHide Answer
Official Answer
C
User avatar
abhishekdadarwal2009
User avatar
Joined: 04 Sep 2015
Last visit: 07 Dec 2022
Posts: 524
Own Kudos:
491
 [1]
Given Kudos: 123
Location: India
WE:Information Technology (Computer Software)
Products:
My Reviews
Posts: 524
Kudos: 491
 [1]
What is the area of the figure above? 21 Aug 2019, 08:56
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
What is the area:

A. 402√402
B. 64
C. 68
D. 81
E. 92


draw line parallel from both ends and to the opposite side,

then we have a square at the top and two rectangles of dimentions 2*8

so the triangle we are left with 8,8 ,x this will form a 45-45-90 trianlge and rule x,x,xroot2

or we can also say that the area of the triangle =32

then the area of the two rectangles=2*8*2=32

and the square at the top=2*2=4

so total area=32+32+4=68

Option C is correct.
Attachments

triangle.jpg [ 9.75 KiB | Viewed 4659 times ]

User avatar
Kinshook
User avatar
Major Poster
Joined: 03 Jun 2019
Last visit: 15 Sep 2026
Posts: 6,129
Own Kudos:
6,104
 [1]
Given Kudos: 164
Location: India
Schools: HBS '28 CBS '26 Wharton '26
GMAT 1: 690 Q50 V34
WE:Engineering (Transportation)
Products:
My Reviews
Schools: HBS '28 CBS '26 Wharton '26
GMAT 1: 690 Q50 V34
Posts: 6,129
Kudos: 6,104
 [1]
What is the area of the figure above? 21 Aug 2019, 08:59
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
What is the area of the figure above?

A. 40√2
B. 64
C. 68
D. 81
E. 92

If we divide the figure as
A triangle of area = 8*8/2 = 32
A rectangle with area = 10*2 = 20
A rectangle with area = 8*2 = 16

Adding 3 areas = 32 + 20 + 16 = 68

IMO C
User avatar
MayankSingh
User avatar
Joined: 08 Jan 2018
Last visit: 20 Dec 2024
Posts: 289
Own Kudos:
279
Given Kudos: 249
Location: India
Concentration: Operations, General Management
Schools: McDonough '25 (A) Marshall '25 (D) Tepper '25 (WA$) Kenan-Flagler '25 (A) ISB '25 (WL) IIMC '25 (A) Owen '26 (A$$$$)
GMAT 1: 640 Q48 V27
GMAT 2: 730 Q51 V38
GPA: 3.9
WE:Project Management (Manufacturing)
Products:
My Reviews
Schools: McDonough '25 (A) Marshall '25 (D) Tepper '25 (WA$) Kenan-Flagler '25 (A) ISB '25 (WL) IIMC '25 (A) Owen '26 (A$$$$)
GMAT 2: 730 Q51 V38
Posts: 289
Kudos: 279
What is the area of the figure above? Updated on: 21 Aug 2019, 09:11
Originally posted by MayankSingh on 21 Aug 2019, 09:04.
Last edited by MayankSingh on 21 Aug 2019, 09:11, edited 1 time in total.
Kudos
Add Kudos
Bookmarks
Bookmark this Post
IMO-C

Refer attached Image.
Draw a line joining the vertices B & E

This divides the figure into an isosceles triangle & a trapezium.

From fig, Sides of parallel side of trapezium are 10 sqrt2 & (10 sqrt2 -2 sqrt2 ) and distance between them sqrt2

Area= 1/2 x (10 x 10) + 1/2 x (10 sqrt2 + 8sqrt2 ) x sqrt2 = 68
Attachments

WhatsApp Image 2019-08-21 at 9.29.01 PM.jpeg
WhatsApp Image 2019-08-21 at 9.29.01 PM.jpeg [ 76.63 KiB | Viewed 4547 times ]

User avatar
shridhar786
User avatar
Joined: 31 May 2018
Last visit: 08 Feb 2022
Posts: 322
Own Kudos:
1,793
Given Kudos: 132
Location: United States
Concentration: Finance, Marketing
Posts: 322
Kudos: 1,793
What is the area of the figure above? 21 Aug 2019, 09:09
Kudos
Add Kudos
Bookmarks
Bookmark this Post

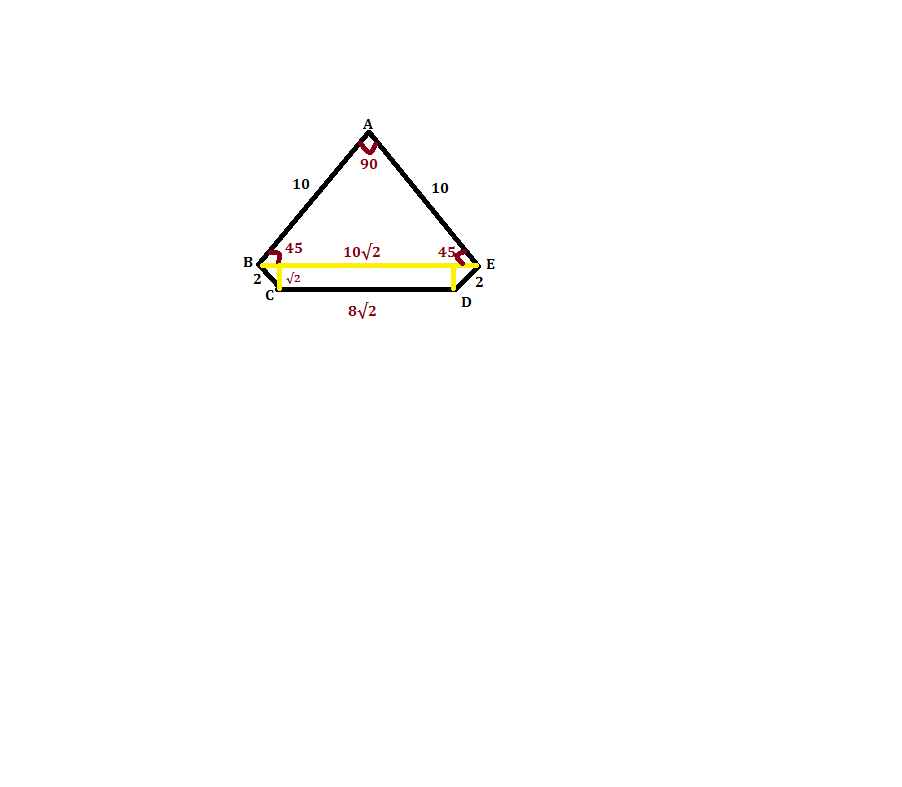

area of the given figure = area of a triangle ABE + area of a trapezium BCDE
= \(\frac{1}{2}\)*10*10 + \(\frac{1}{2}\)(10√2 +8√2 )√2

= 50 + 18
= 68
C is the answer
Attachments

ps.png [ 7.88 KiB | Viewed 4532 times ]

User avatar
Archit3110
User avatar
Major Poster
Joined: 18 Aug 2017
Last visit: 15 Sep 2026
Posts: 8,819
Own Kudos:
5,340
Given Kudos: 243
Status:You learn more from failure than from success.
Location: India
Concentration: Sustainability, Marketing
GMAT Focus 1: 545 Q79 V79 DI73
GMAT Focus 2: 645 Q83 V82 DI81
GPA: 4
WE:Marketing (Energy)
GMAT Focus 2: 645 Q83 V82 DI81
Posts: 8,819
Kudos: 5,340
What is the area of the figure above? 21 Aug 2019, 09:32
Kudos
Add Kudos
Bookmarks
Bookmark this Post
What is the area of the figure above?

A. 402‾√402
B. 64
C. 68
D. 81
E. 92

divide the figure we get 2 rectangles; 10*2 + 8*2 ; 36
and an isosceles ∆ 8:8:8√2 ; area ; 1/2 * 8*8 ; 32
total area ; 36+ 32 ; 68
IMO C
User avatar
ccheryn
User avatar
Joined: 15 Jun 2019
Last visit: 05 Nov 2022
Posts: 133
Own Kudos:
224
Given Kudos: 123
Posts: 133
Kudos: 224
What is the area of the figure above? 21 Aug 2019, 09:32
Kudos
Add Kudos
Bookmarks
Bookmark this Post
its area of square - area of right angled isoceles triangle of non hypotenuse side of 8

=10 ^2- 1/2 *8*8

=100- 32
=68
User avatar
EncounterGMAT
User avatar
Joined: 10 Oct 2018
Last visit: 16 Oct 2019
Posts: 317
Own Kudos:
644
Given Kudos: 185
Status:Whatever it takes!
GPA: 4
Posts: 317
Kudos: 644
What is the area of the figure above? 21 Aug 2019, 10:01
Kudos
Add Kudos
Bookmarks
Bookmark this Post

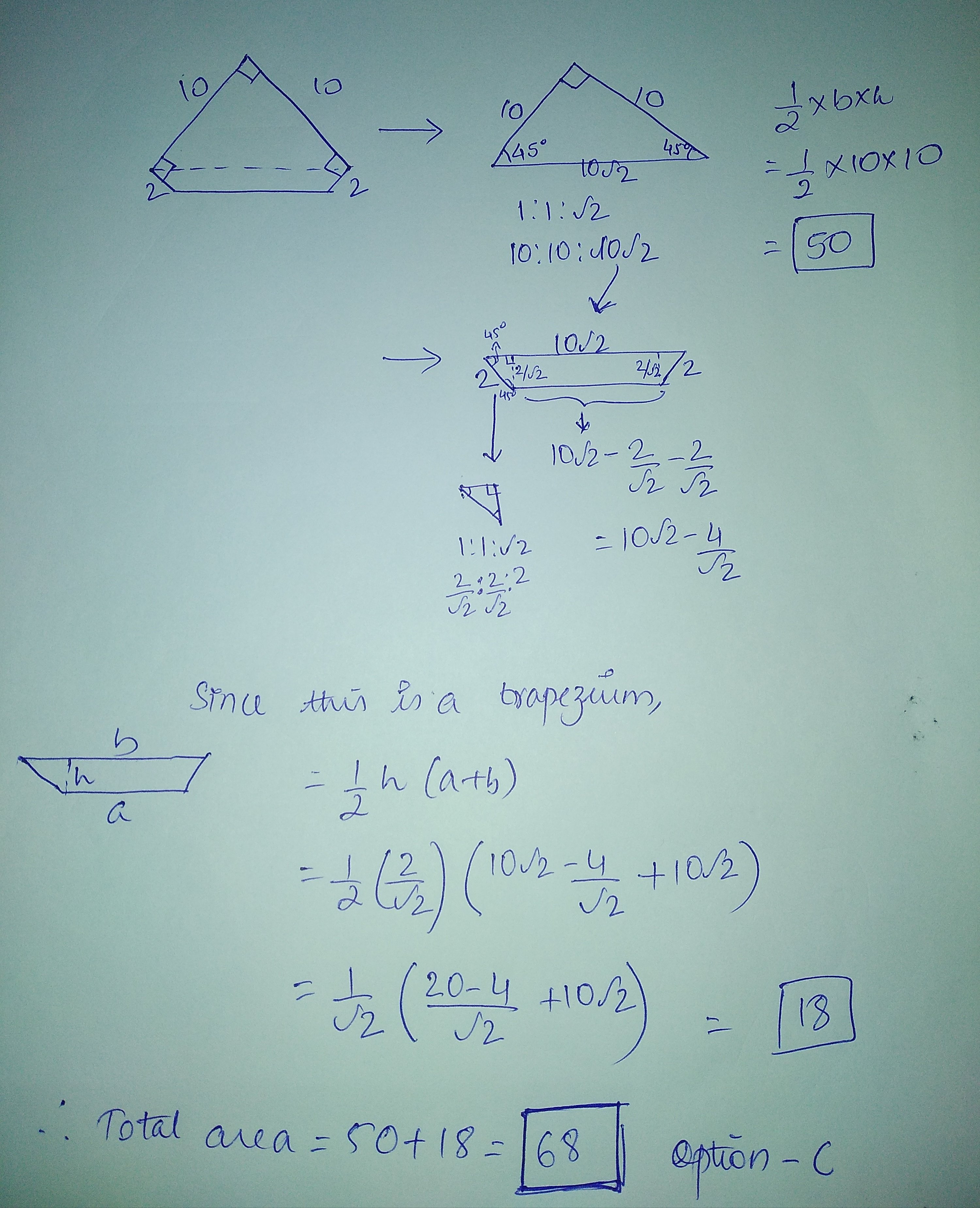

This is how I did. Hope it helps.

Posted from my mobile device
Attachments

IMG_20190821_223035.jpg [ 2.83 MiB | Viewed 4410 times ]

User avatar
lacktutor
User avatar
Joined: 25 Jul 2018
Last visit: 23 Oct 2023
Posts: 658
Own Kudos:
1,495
 [2]
Given Kudos: 69
Posts: 658
Kudos: 1,495
 [2]
What is the area of the figure above? 21 Aug 2019, 10:08
2
Kudos
Add Kudos
Bookmarks
Bookmark this Post

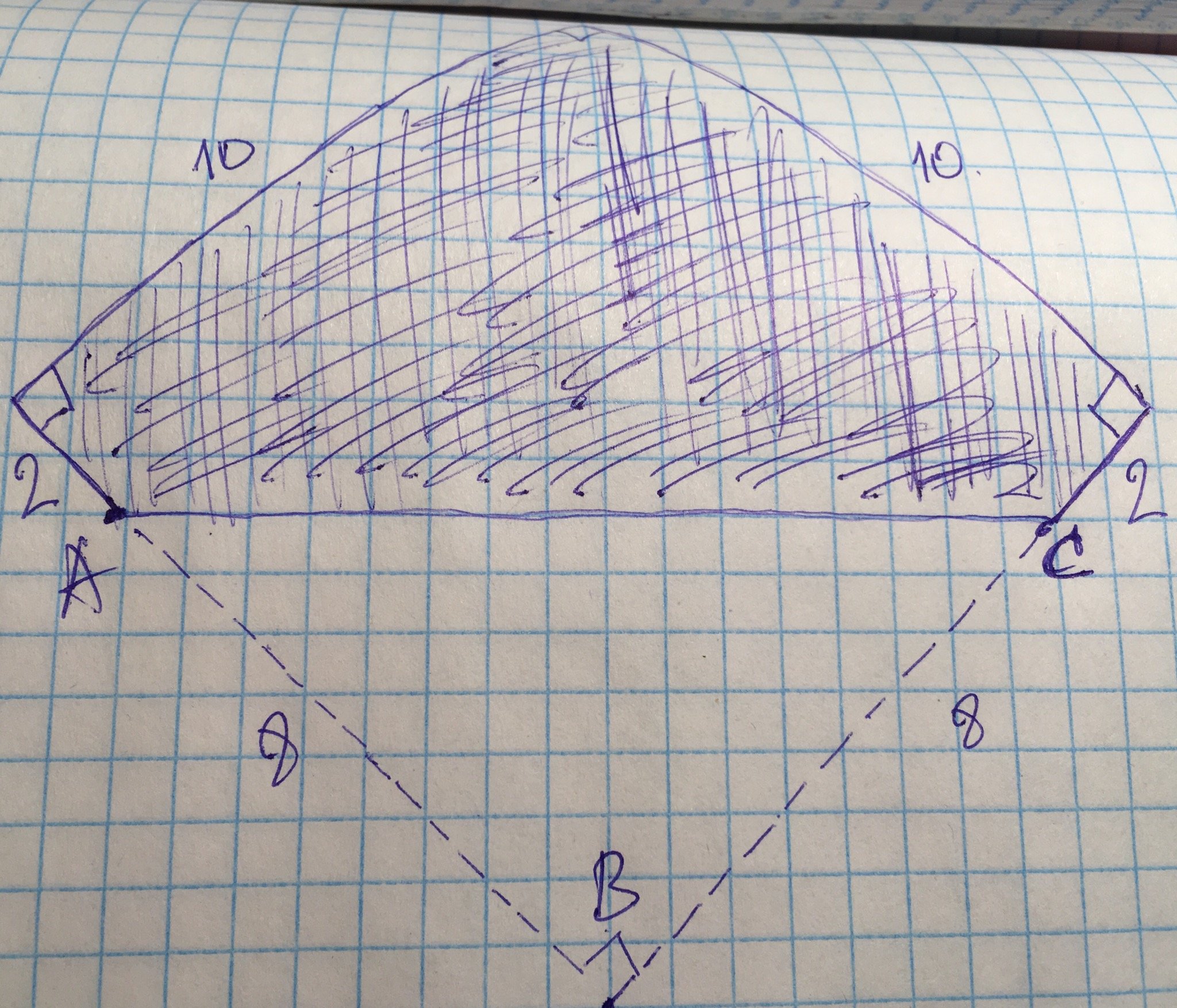

Please, find the attached file.

We can continue the small sides (the length of the side =2) to get the square( the length of the side of square =10.

The area of the square =10*10=100

—> See the picture below.

Triangle ABC is right-angled isosceles triangle.
—> the area of ABC =(8*8)/2=32

—> the area of the figure = 100–32=68
The answer is C.

Posted from my mobile device
Attachments

FDAB4625-FA4B-4D52-B481-160642219A45.jpeg [ 869.06 KiB | Viewed 4376 times ]

User avatar
unraveled
User avatar
Joined: 07 Mar 2019
Last visit: 10 Apr 2025
Posts: 2,696
Own Kudos:
2,413
Given Kudos: 763
Location: India
WE:Sales (Energy)
Posts: 2,696
Kudos: 2,413
What is the area of the figure above? 21 Aug 2019, 10:47
Kudos
Add Kudos
Bookmarks
Bookmark this Post
What is the area of the figure above?

A. 402√402
B. 64
C. 68
D. 81
E. 92

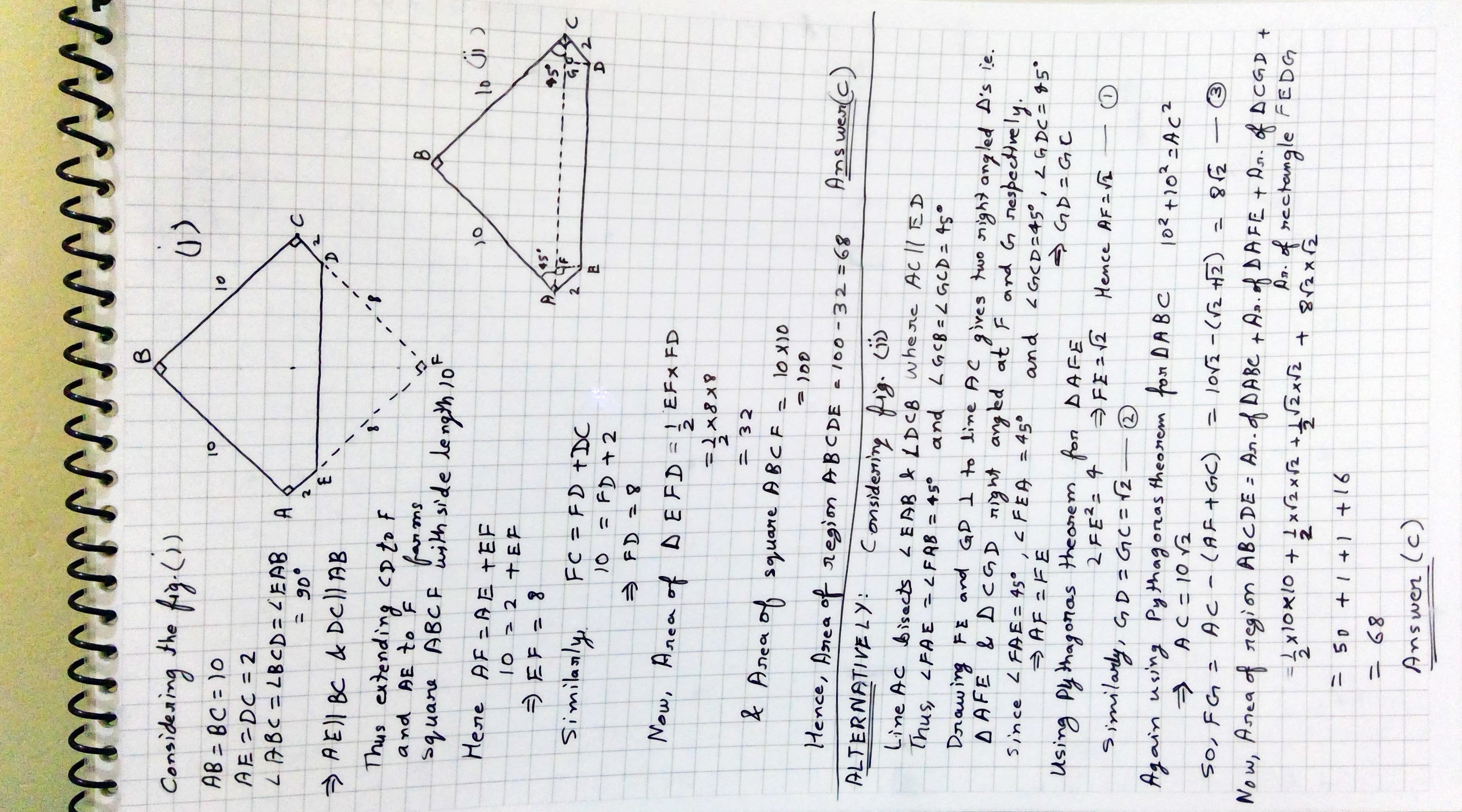

Refer attached snapshot.

Alternative method is slightly longer.

Answer(C)
Attachments

File comment: What is the area of the figure above
What is the area of the figure above.jpg
What is the area of the figure above.jpg [ 1.08 MiB | Viewed 4569 times ]

User avatar
TestPrepUnlimited
User avatar
Joined: 17 Sep 2014
Last visit: 30 Jun 2022
Posts: 1,221
Own Kudos:
1,158
Given Kudos: 6
Location: United States
GMAT 1: 780 Q51 V45
GRE 1: Q170 V167
Expert
Expert reply
GMAT 1: 780 Q51 V45
GRE 1: Q170 V167
Posts: 1,221
Kudos: 1,158
What is the area of the figure above? 21 Aug 2019, 11:34
Kudos
Add Kudos
Bookmarks
Bookmark this Post

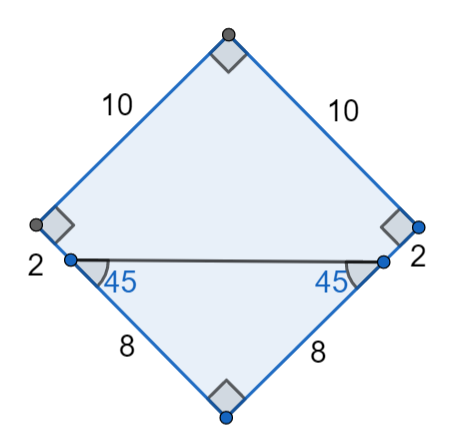

See the image attached below,

We can complete a square since we have 3 angles of 90 degrees, and two sides that are equal. Then we can see the area is a square with length of 10, minus an isosceles right triangle with a side of 8. The triangle is isosceles because both sides are 8. The added outer angle must be 90 because a 4 sided polynomial must have all interior angles adding up to 360.
Therefore the area is 10*10 - 8*8/2 = 100 - 32 = 68.

Answer: C
Attachments

completed image.png
completed image.png [ 35.47 KiB | Viewed 4293 times ]

avatar
sakshikum
avatar
Joined: 24 Jul 2019
Last visit: 24 Aug 2020
Posts: 1
Given Kudos: 11
Posts: 1
Kudos: 0
What is the area of the figure above? 21 Aug 2019, 11:39
Kudos
Add Kudos
Bookmarks
Bookmark this Post
The answer is 68.

Area of the figure = Area of the triangle formed by extending the sides with value 10 and 10 to form one big isosceles triangle - area of 2 small isosceles triangle which have one side as 2.

side of the smaller triangle: one side will be 2 and the hypotenuse = 2*sqrt2

Area of the smaller triangle = (1/2)*2*2 = 2

Side of bigger triangle: Base and height = 10+2=12, 12 and hypotenuse = 12*sqrt2
Area of the bigger triangle = (1/2)*12*12 = 72

Area of the figure = 72 - 2*2 = 68
User avatar
eakabuah
User avatar
Retired Moderator
Joined: 18 May 2019
Last visit: 15 Jun 2022
Posts: 774
Own Kudos:
1,163
Given Kudos: 101
Posts: 774
Kudos: 1,163
What is the area of the figure above? 21 Aug 2019, 11:45
Kudos
Add Kudos
Bookmarks
Bookmark this Post

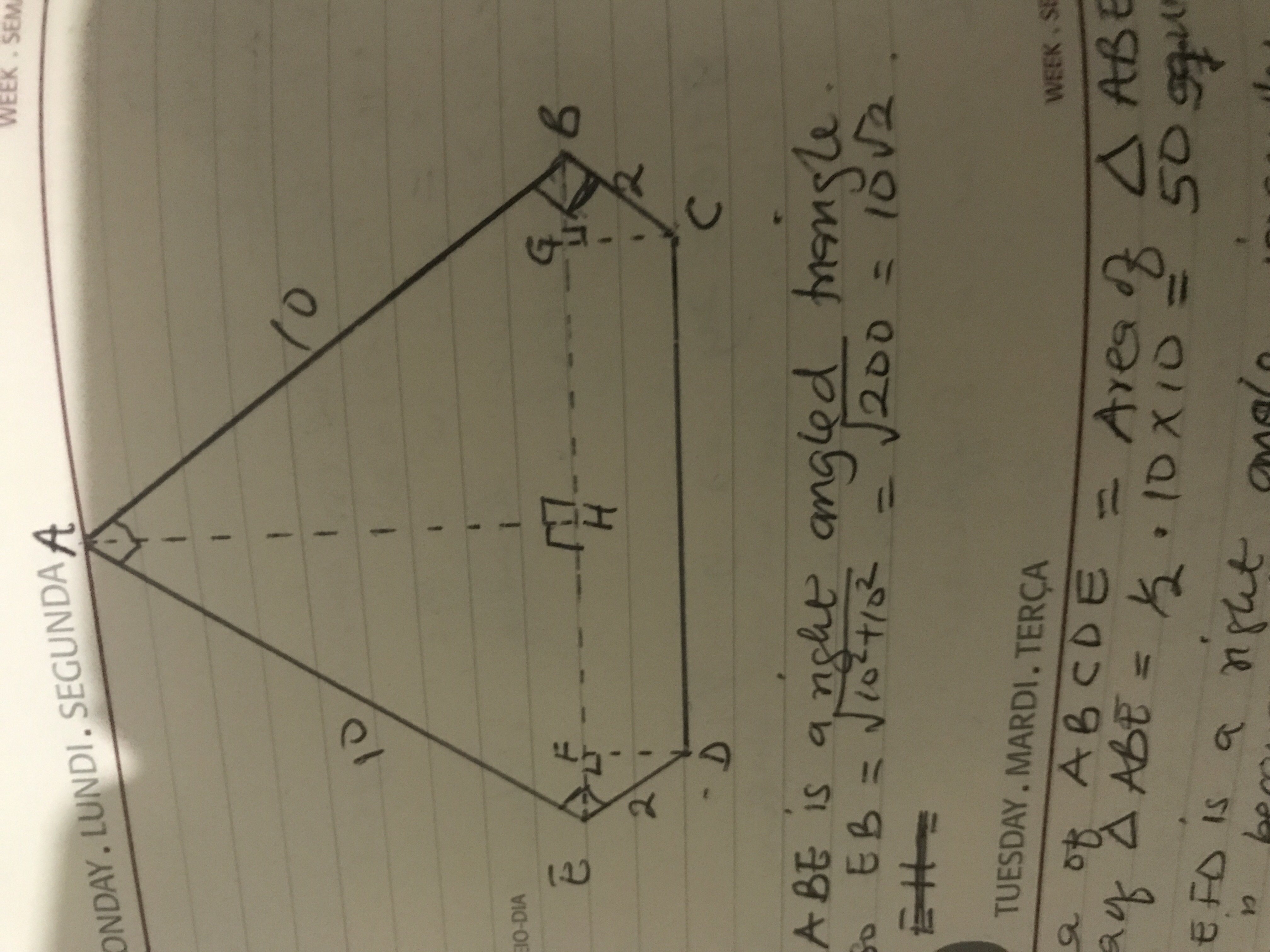

From the image below, triangle ABE is a right angled isosceles triangle. This means that EB=(10^2 + 10^2)^0.5 = 200^0.5 = 10(2)^0.5
Area of solid ABCDE = Area of Triangle ABE + Area of trapezoid EBCD.
Area of triangle ABE = (10*10)/2 = 50.

Angle AED (90) = angle AEB + angle DEF ....(1)
Since we know that triangle ABE is a right angled isosceles triangle, angle AEB = angle ABE = 45. Hence angle DEF=45, implying triangle EFD is a right angled isosceles triangle. This also means that EF=FD=(2)^0.5
Likewise GB=CG=(2)^0.5
Hence DC = EB-EF-GB = 8(2)^0.5
So, Area of EBCD=
{(10(2)^0.5 + 8(2)^0.5)*(2)^0.5}/2 ={(18)(2)/2}
=18
So Area of ABCDE = 50 + 18 = 68

Posted from my mobile device
Attachments

image.jpg [ 1.58 MiB | Viewed 4230 times ]

User avatar
exc4libur
User avatar
Joined: 24 Nov 2016
Last visit: 22 Mar 2022
Posts: 1,678
Own Kudos:
1,495
Given Kudos: 607
Location: United States
Posts: 1,678
Kudos: 1,495
What is the area of the figure above? 21 Aug 2019, 12:45
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Quote:
What is the area of the figure above?

A. 40√2
B. 64
C. 68
D. 81
E. 92
Show more

shaded: area of square - area of triangle = 10*10 - (8*8/2) = 68
User avatar
TheNightKing
User avatar
Joined: 18 Dec 2017
Last visit: 20 Mar 2024
Posts: 1,119
Own Kudos:
1,423
 [1]
Given Kudos: 421
Location: United States (KS)
GMAT 1: 600 Q46 V27
GMAT 1: 600 Q46 V27
Posts: 1,119
Kudos: 1,423
 [1]
What is the area of the figure above? 21 Aug 2019, 13:00
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Just think of it as a square of 10*10 having area as 100.
A right triangle whose 2 sides are 8 and 8 is cut. Area of that triangle is 32.
100-32 is 68.
IMO C

Note : 1min 37sec. But could have solved way quicker if had i realized the shape :)
User avatar
Mohammadmo
User avatar
Joined: 29 Jun 2019
Last visit: 03 Nov 2022
Posts: 346
Own Kudos:
257
Given Kudos: 16
Posts: 346
Kudos: 257
What is the area of the figure above? 21 Aug 2019, 13:50
Kudos
Add Kudos
Bookmarks
Bookmark this Post
As we see in the figure, we could have a squire with sides 10.but the shape is not perfect.
So the area of the shape is less than 100=10*10.
In deed we got a triangle out of the shape whose area is 8*8/2=32
So,100-32=68
Option C

Posted from my mobile device
User avatar
bumpbot
User avatar
Non-Human User
Joined: 09 Sep 2013
Last visit: 04 Jan 2021
Posts: 39,229
Own Kudos:
1,159
Posts: 39,229
Kudos: 1,159
What is the area of the figure above? 12 Sep 2023, 02:55
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

This post was generated automatically.
Moderator:
Bunuel
Math Expert
113537 posts
