E - 2 * sqrt(3) * (pi)

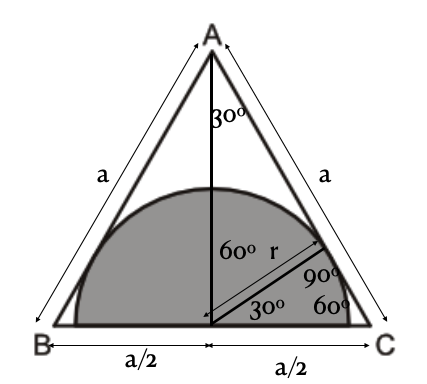

-Draw a full circle - complete the other half of the semi-circle.
Since the diameter of the circle lies on the side of the equilateral triangle, the center of the circle will be the same point that bisects the bottom side of the triangle. Call this Point Center O
-connect a radius from the center of the circle to the point of tangency. Call this Point X.
-call the vertex of the equilateral triangle A.
Rule: any radius of a circle drawn to a tangent line will be perpendicular to that tangent line at the point of tangency.
Thus, we will have a 90 degree angle at Point X
Further, since it is an equilateral triangle, the angle at Vertex A is 60 degrees
Triangle AXO is a 30-60-90 Right Triangle and Side XO = Hypotenuse = Radius of the Circle
-next, find the side of the equilateral triangle:
Set 16 = (s)^2 * sqrt(3) * (1/4)
(S) = side of equilateral triangle =
(8) / (3)^1/4
-Since center O is also the midpoint of the side of the equilateral triangle, AO = (1/2) (side) = (4) / (3)^1/4
-using the ratios of 30-60-90 right triangles, we can find the radius = side across from 60 degree Angle at Vertex A =
[(2) * sqrt(3) ]
___________
(3)^1/4
-now you can find the full area of the circle by SQUARING the radius (expression above) and multiplying the result by (pi)
= (4) (3) / (3)^2/4
= 12 / sqrt(3)
Conjugate the fraction by multiplying the NUM and DEN by sqrt(3) and then multiply the result by (pi)
Area of Full Circle = (4) * sqrt(3) * (pi)
Area of the Semi-Circle will be (1/2) or this area or
(E)
2 * sqrt(3) * (pi)
Posted from my mobile device
