In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area Updated on: 11 Mar 2015, 04:04
Originally posted by gorden on 08 Nov 2008, 18:58.
Last edited by Bunuel on 11 Mar 2015, 04:04, edited 1 time in total.
Renamed the topic, edited the question, added the OA and moved to PS forum.
2
Kudos
Add Kudos
10
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
D
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

45% (medium)

Question Stats:

70% (02:52) correct 30% (03:04) wrong based on 198 sessions

History

Date
Time
Result
Not Attempted Yet
Attachment:
20120325234018989_3525.jpg [ 5.13 KiB | Viewed 12212 times ]
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area of region ABCDE ?

A. 76
B. 84
C. 92
D. 100
E. 108
ShowHide Answer
Official Answer
D
Most Helpful Reply
User avatar
GMAT TIGER
User avatar
Joined: 29 Aug 2007
Last visit: 17 Aug 2011
Posts: 1,012
Own Kudos:
1,796
 [7]
Given Kudos: 19
Posts: 1,012
Kudos: 1,796
 [7]
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area 08 Nov 2008, 19:33
5
Kudos
Add Kudos
2
Bookmarks
Bookmark this Post
gorden
In the figure ABCDE, angle A = angle E =90 degree, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area of region ABCDE ?

A. 76
B. 84
C. 92
D. 100
E. 108
Show more


D. 100

Draw a propendicular from D to AB and name it O.
DO = 8 and AO= 2

1. area of rectangle AODE = 8x2 = 16
2. area of triangle BOD = 1/2 (8x6) = 24

Also draw a propendicular from C to BD and name it M.
BD = sqrt(BO^2 + DO^2) = sqrt (8^2+ 6^2) = 10
BM = DM = 5 and CM = sqrt(BC^2 - BO^2) = 12

3. area of triangle BCD = 1/2 (12810) = 60

so total = 16 + 24 + 60 = 100
General Discussion
User avatar
stonecold
User avatar
Joined: 12 Aug 2015
Last visit: 09 Apr 2024
Posts: 2,231
Own Kudos:
3,643
 [1]
Given Kudos: 893
Schools: Boston U '20 (M)
GRE 1: Q169 V154
Schools: Boston U '20 (M)
GRE 1: Q169 V154
Posts: 2,231
Kudos: 3,643
 [1]
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area 04 Apr 2016, 15:36
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post
It took me 6 minutes to solve this one => here is my approach => i got the diagonal as 10 so the area of bigger triangle using herons formula => 60 and the area of the trapezium =40 => total area => 100
hence D
User avatar
generis
User avatar
Senior SC Moderator
Joined: 22 May 2016
Last visit: 18 Jun 2022
Posts: 5,258
Own Kudos:
37,728
 [4]
Given Kudos: 9,464
Expert
Expert reply
Posts: 5,258
Kudos: 37,728
 [4]
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area 30 Aug 2017, 09:55
2
Kudos
Add Kudos
2
Bookmarks
Bookmark this Post
gorden
Attachment:
The attachment 20120325234018989_3525.jpg is no longer available
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area of region ABCDE ?

A. 76
B. 84
C. 92
D. 100
E. 108
Show more

Attachment:

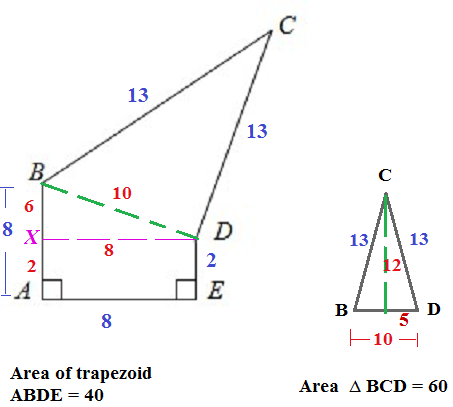

areaofabcde.png [ 38.37 KiB | Viewed 8307 times ]
Area of figure ABCDE =
area of trapezoid ABDE +
area of ∆ BCD.

This problem contains two special right triangles with Pythagorean triplets, which makes lengths for area of ∆ BCD easy to find.

1. Connect B to D and find area of trapezoid ABDE

Area ABDE = \(\frac{b_1 + b_2}{2} * h\)

Given: AB = 8, DE = 2, and AE = 8

Area of trapezoid ABDE = \(\frac{8 + 2}{2} * 8\) = 40

2. Find area of ∆ BCD -- we need the base and height.

3. Base of ∆ BCD

To find base of ∆ BCD, draw a line from D to AB (in the diagram, DX) that is parallel to AE in order to create a right triangle BDX where

DX is one leg of the right triangle
BX is the other leg, and
BD, the base we need, is the hypotenuse

DX = 8
BX = 6 (AX = DE; they are parallel sides of the new rectangle created by the pink line. BX = AB - AX. BX = 8 - 2 = 6)

This is a 3-4-5 right triangle: 6: 8: 10. Base BD = 10

4. Height of ∆ BCD

Because ∆ BCD is an isosceles triangle, its altitude will create two congruent right triangles (see second small figure in diagram). Draw an altitude from C to BD

BD is bisected. Each right triangle has short leg of length 5

Hypotenuse CD = 13. This is a 5-12-13 triangle. Height of ∆ BCD is 12

5. Area of ∆ BCD =\(\frac{10*12}{2}\)= 60

Add the areas of the trapezoid and the triangle: 40 + 60 = 100

Answer D
User avatar
KarishmaB
User avatar
Joined: 16 Oct 2010
Last visit: 23 Apr 2026
Posts: 16,442
Own Kudos:
79,399
 [1]
Given Kudos: 485
Location: Pune, India
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 16,442
Kudos: 79,399
 [1]
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area 19 Oct 2018, 02:41
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
gorden
Attachment:
In the figure, AB = AE = 8, BC = CD = 13, and DE = 2. What is the area of region ABCDE ?

A. 76
B. 84
C. 92
D. 100
E. 108
Show more



Area of trapezoid ABDE = (1/2) * Sum of parallel sides * Altitude = (1/2)*(8 + 2)*8 = 40

To get the length of BD, drop an altitude (say DP) from D to AB. DP = AE = 8, PB = 8-2 = 6. So the triangle DPB is right angled with sides 6-8-10 (multiple of 3-4-5 pythagorean triplet)
Hence BD = 10

Area of triangle BCD = (1/2)*altitude*BD
Since BCD is an isosceles triangle, when we drop the altitude say CM on BD, the base BD will be divided into two equal halves of 5 each and we will get two right triangles with sides in the ratio 5-12-13. Altitude of triangle BCD = 12
Area of triangle BCD = (1/2)*12*10 = 60

Area of ABCDE = Area of ABDE + Area of BCD = 40 + 60 = 100

Answer (D)
