The shaded portion represents what percent of the area?

Question

In the figure below, the shaded portion represents what percent of the area of the triangle ABC?

1. D, E, F are midpoints of the sides of triangle
2. Triangle ABC is a equilateral triangle

adibapat · Answer

How is the answer for this A?
Shouldn't the triangle be equilateral as well to establish a proportion. Otherwise everything remains relative and dependant on the length of each side
 Bunuel

Posted from my mobile device

yashikaaggarwal · Answer

adibapat  its not necessary for the triangle to be of equal sides. When 3 mid points of any triangle are connected, it divide triangle into 4 equal part by congruency of triangle. so the shaded region is 1/2 area of the whole triangle. you can draw any triangle by measure to justify the theory- scalene, isosceles, or equilateral triangle.

nick1816 · Answer

Statement 1-
Area of DEBF = (EB) * FB* (sin B) = 1/2 *BC *1/2*BA* sin B = 1/2 *   = 1/2 * area of ABC

Sufficient

Statement 2- We have no idea about  \frac{EB}{BC}  and  \frac{FB}{BA}

Insufficient

GMATGuruNY · Answer

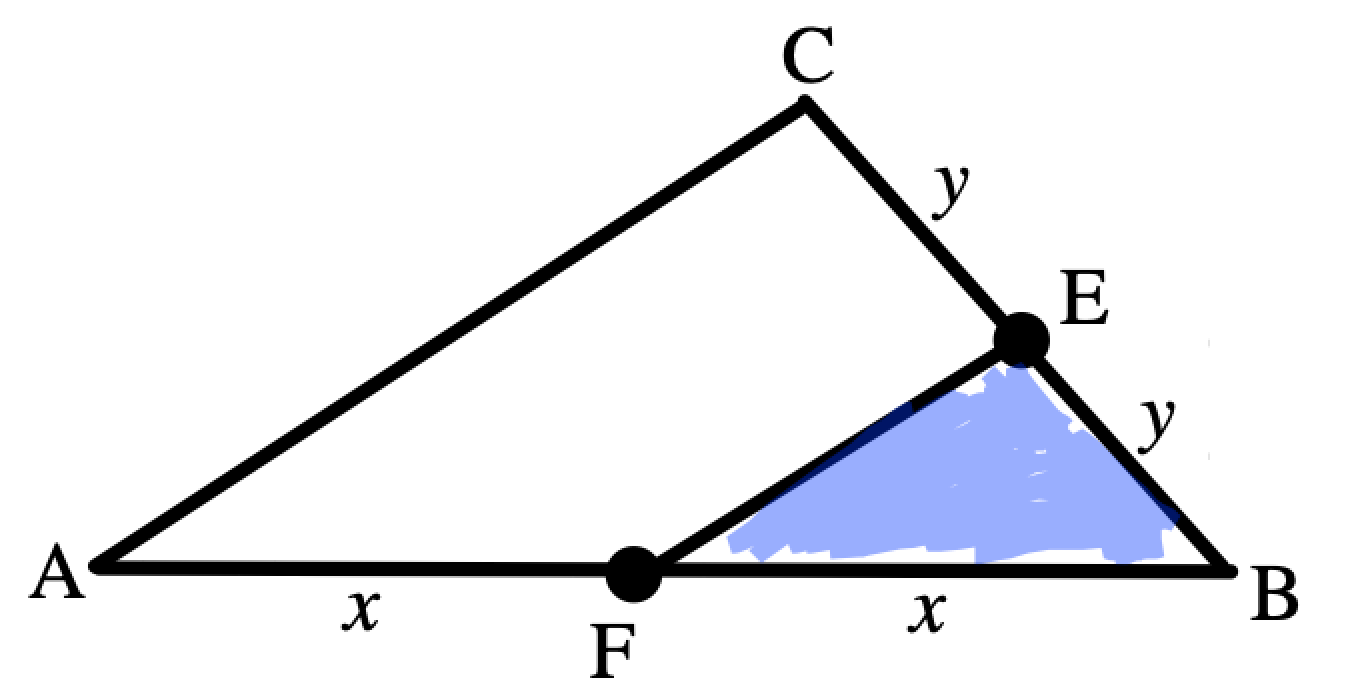

Statement 1: triangle BEF.png In the figure above, E is the midpoint of BC and F is the midpoint of AB. TRIANGLES ABC AND BEF: Triangles ABC and BEF share angle EFB. Shared angle EFB is formed by sides in the same ratio (BC:BE = 2:1, AB:BF = 2:1). Rule: Triangles with a shared angle (EBF) formed by corresponding sides in the same ratio (BC:BE = 2:1, AB:BF = 2:1) are SIMILAR. Thus, triangle ABC is similar to triangle BEF. RULE FOR TWO SIMILAR TRIANGLES: If each side in the larger triangle is k times the corresponding side in the smaller triangle, then the area of the larger triangle is k^2 times the area of the smaller triangle. Here, since each side of ABC is 2 times the corresponding side in BEF, the area of ABC is 4 times the area of BEF. Thus, BEF = \frac{1}{4}ABC . The same line of reasoning can be used to show that ADF = \frac{1}{4}ABC and that CDE = \frac{1}{4}ABC , with the result that DEF = \frac{1}{4}ABC . Thus: shaded region = DEF + BEF = \frac{1}{4}ABC + \frac{1}{4}ABC = \frac{1}{2}ABC = 50 % SUFFICIENT.

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
