P is a point on side AB of a rectangle ABCD, which divides AB ........ 05 Dec 2018, 01:15
Kudos
Add Kudos
22
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
D
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

55% (hard)

Question Stats:

71% (03:05) correct 29% (03:10) wrong based on 223 sessions

History

Date
Time
Result
Not Attempted Yet
P is a point on side AB of a rectangle ABCD, which divides AB in the ratio 5: 3. Q is a point on CD, such that CQ: QD = 3: 1. If the area of rectangle ABCD is 480 sq. units, then what is the area of the quadrilateral ADQP?

    A. 105 sq. units
    B. 150 sq. units
    C. 175 sq. units
    D. 210 sq. units
    E. 270 sq. units

ShowHide Answer
Official Answer
D
User avatar
Archit3110
User avatar
Major Poster
Joined: 18 Aug 2017
Last visit: 25 Apr 2026
Posts: 8,630
Own Kudos:
5,190
 [1]
Given Kudos: 243
Status:You learn more from failure than from success.
Location: India
Concentration: Sustainability, Marketing
GMAT Focus 1: 545 Q79 V79 DI73
GMAT Focus 2: 645 Q83 V82 DI81
GPA: 4
WE:Marketing (Energy)
Products:
GMAT Club Tests Forum Quiz
GMAT Focus 2: 645 Q83 V82 DI81
Posts: 8,630
Kudos: 5,190
 [1]
P is a point on side AB of a rectangle ABCD, which divides AB ........ 05 Dec 2018, 02:30
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post
EgmatQuantExpert
P is a point on side AB of a rectangle ABCD, which divides AB in the ratio 5: 3. Q is a point on CD, such that CQ: QD = 3: 1. If the area of rectangle ABCD is 480 sq. units, then what is the area of the quadrilateral ADQP?

    A. 105 sq. units
    B. 150 sq. units
    C. 175 sq. units
    D. 210 sq. units
    E. 270 sq. units

Show more


EgmatQuantExpert :

Hello I tried doing the question but I am not able to get correct answer , my doubt is on the points P & Q are they both dividing the rectangle on same side i.e lengths/ breadth of the rectangle? without figure its becoming really difficult to understand the question... please provide solution
User avatar
EgmatQuantExpert
User avatar
e-GMAT Representative
Joined: 04 Jan 2015
Last visit: 02 Apr 2024
Posts: 3,657
Own Kudos:
20,884
Given Kudos: 165
Expert
Expert reply
Posts: 3,657
Kudos: 20,884
P is a point on side AB of a rectangle ABCD, which divides AB ........ 05 Dec 2018, 03:00
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Archit3110


Hello I tried doing the question but I am not able to get correct answer , my doubt is on the points P & Q are they both dividing the rectangle on same side i.e lengths/ breadth of the rectangle? without figure its becoming really difficult to understand the question... please provide solution
Show more

Hi Archit3110

Yes, P and Q are points on the opposite sides of rectangle, ABCD. Since, AB and CD will be opposite to each other when you form a rectangle by marking the points, A, B, C and D either in clockwise or in anti-clockwise direction.

Regards,
User avatar
vanam52923
User avatar
Joined: 17 Jul 2017
Last visit: 12 Jun 2025
Posts: 198
Own Kudos:
103
 [1]
Given Kudos: 228
Posts: 198
Kudos: 103
 [1]
P is a point on side AB of a rectangle ABCD, which divides AB ........ 05 Dec 2018, 03:02
Kudos
Add Kudos
Bookmarks
Bookmark this Post
EgmatQuantExpert
P is a point on side AB of a rectangle ABCD, which divides AB in the ratio 5: 3. Q is a point on CD, such that CQ: QD = 3: 1. If the area of rectangle ABCD is 480 sq. units, then what is the area of the quadrilateral ADQP?

    A. 105 sq. units
    B. 150 sq. units
    C. 175 sq. units
    D. 210 sq. units
    E. 270 sq. units

Show more
I think answer is D.

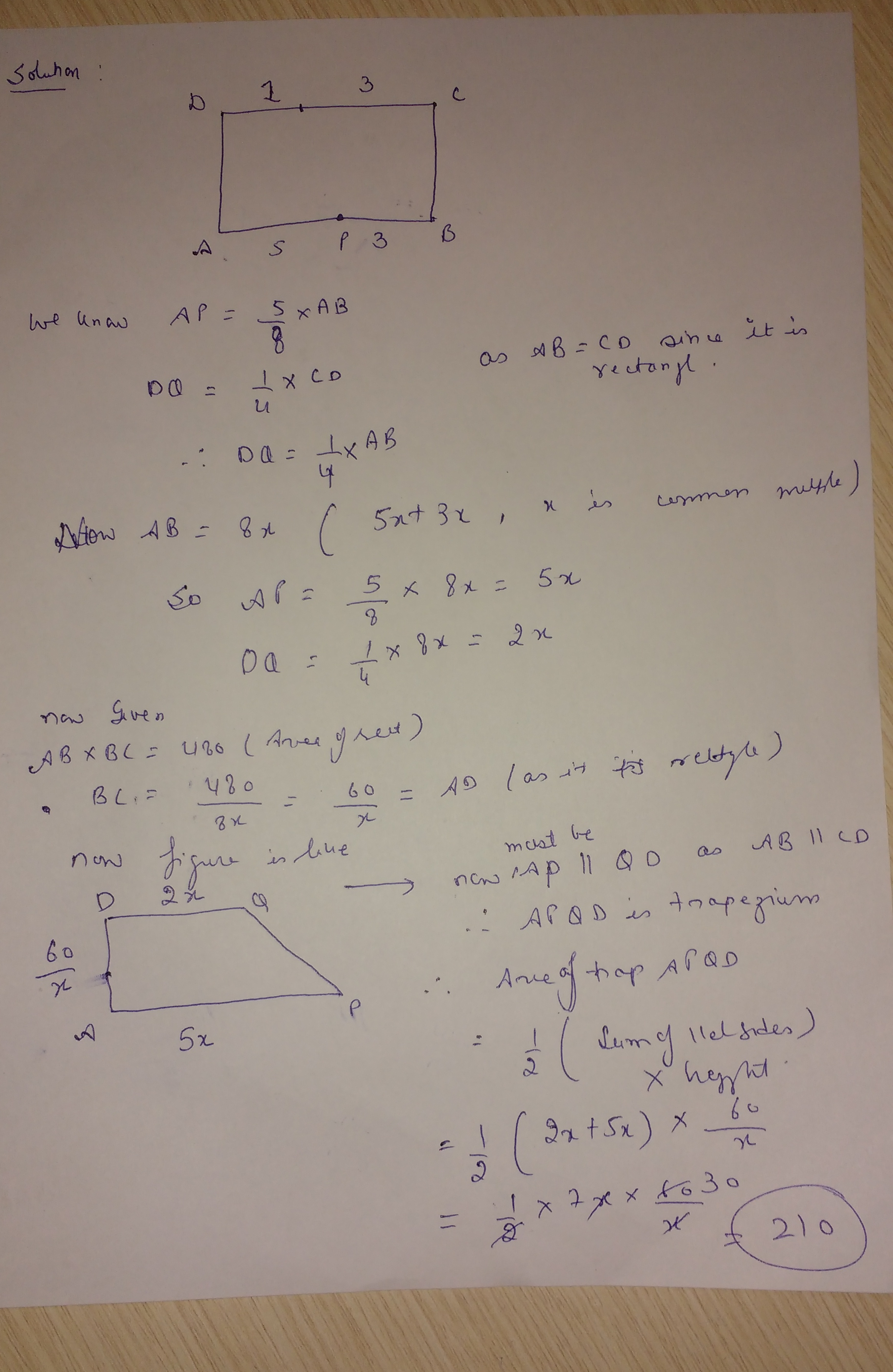

Please see the attached image for the solution.its tough to explain via typing.
I do not know what is the toughness level of this question but it did take me good amount of time to think this way.
Attachments

sol1.png [ 7.32 MiB | Viewed 8082 times ]

User avatar
Archit3110
User avatar
Major Poster
Joined: 18 Aug 2017
Last visit: 25 Apr 2026
Posts: 8,630
Own Kudos:
5,190
 [1]
Given Kudos: 243
Status:You learn more from failure than from success.
Location: India
Concentration: Sustainability, Marketing
GMAT Focus 1: 545 Q79 V79 DI73
GMAT Focus 2: 645 Q83 V82 DI81
GPA: 4
WE:Marketing (Energy)
Products:
GMAT Club Tests Forum Quiz
GMAT Focus 2: 645 Q83 V82 DI81
Posts: 8,630
Kudos: 5,190
 [1]
P is a point on side AB of a rectangle ABCD, which divides AB ........ 05 Dec 2018, 03:25
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
EgmatQuantExpert
Archit3110


Hello I tried doing the question but I am not able to get correct answer , my doubt is on the points P & Q are they both dividing the rectangle on same side i.e lengths/ breadth of the rectangle? without figure its becoming really difficult to understand the question... please provide solution

Hi Archit3110

Yes, P and Q are points on the opposite sides of rectangle, ABCD. Since, AB and CD will be opposite to each other when you form a rectangle by marking the points, A, B, C and D either in clockwise or in anti-clockwise direction.

Regards,
Show more

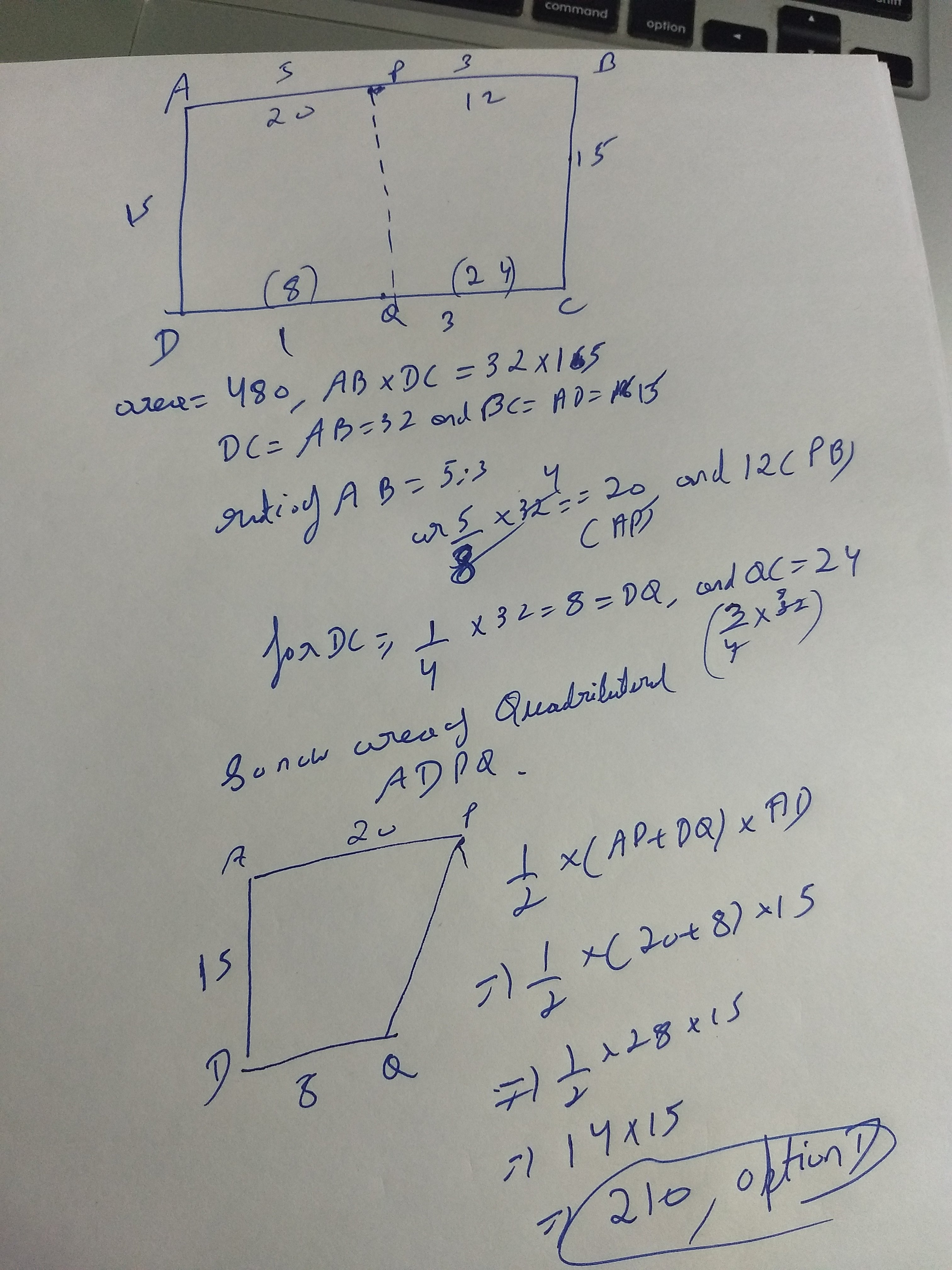

I was doing a calculation mistake... solution attached...

Posted from my mobile device
Attachments

File comment: Solution
IMG_20181205_155333095.jpg [ 3.52 MiB | Viewed 7919 times ]

User avatar
EgmatQuantExpert
User avatar
e-GMAT Representative
Joined: 04 Jan 2015
Last visit: 02 Apr 2024
Posts: 3,657
Own Kudos:
20,884
Given Kudos: 165
Expert
Expert reply
Posts: 3,657
Kudos: 20,884
P is a point on side AB of a rectangle ABCD, which divides AB ........ Updated on: 10 Dec 2018, 02:19
Originally posted by EgmatQuantExpert on 10 Dec 2018, 02:00.
Last edited by EgmatQuantExpert on 10 Dec 2018, 02:19, edited 3 times in total.
Kudos
Add Kudos
Bookmarks
Bookmark this Post

Solution


Given:
    • P is a point on side AB of rectangle ABCD
      o P divides AB in the ratio 5: 3

    • Q is a point on side CD of rectangle ABCD
      o Q divides CD in the ratio 3: 1

    • The area of triangle ABCD = 480 sq. units

To find:
    • The area of quadrilateral ADQP

Approach and Working:



Let us assume that the length of AB = CD = x units, and length of BC = DA = h units
    • This implies,
      o Length of AP = \(\frac{5x}{(5 + 3)} = \frac{5x}{8}\)
      o Length of PB = \(\frac{3x}{(5 + 3)} = \frac{3x}{8}\)
      o Length of CQ = \(\frac{3x}{(1 + 3)} = \frac{3x}{4}\)
      o Length of QD = \(\frac{x}{(1 + 3)} = \frac{x}{4}\)

Area of quadrilateral, ADQP =\(\frac{1}{2} * h * (AP + QD) = \frac{1}{2} * h * (\frac{5x}{8} + \frac{x}{4}) = (\frac{7}{16}) * x * h\)
    o We are given that area of rectangle ABCD = 480 = AB * BC = x * h

Therefore, area of quadrilateral ADQP = \((\frac{7}{16}) * 480 = 210\) sq. units

Hence the correct answer is Option D.

Answer: D

User avatar
vanam52923
User avatar
Joined: 17 Jul 2017
Last visit: 12 Jun 2025
Posts: 198
Own Kudos:
103
Given Kudos: 228
Posts: 198
Kudos: 103
P is a point on side AB of a rectangle ABCD, which divides AB ........ 10 Dec 2018, 02:10
Kudos
Add Kudos
Bookmarks
Bookmark this Post
EgmatQuantExpert

Solution


Given:

We are given that,
    • AB and CD are two parallel chords of a circle
    • O is the center of the circle
    • AB = 12 and CD = 6
    • Diameter of the circle = 6√5

To find:
    • The distance between the two chords, AB and CD

Approach and Working:

From the above figure, we can infer that we need to find the value of EF

In triangle, OAE, we know that,
    • \(AE = \frac{AB}{2} = \frac{12}{2} = 6\)
    • OA = radius of the circle =\(\frac{6√5}{2} = 3√5\)
    • \(∠OEA = 90^o\)

So, we can write, \(OA^2 = OE^2 + AE^2\)
    • Implies, \((3√5)^2 = OE^2 + 6^2\)
    • \(OE^2 = 45 – 36 = 9\)
    • Thus, OE = √9 = 3

Similarly, in triangle DOF, we ca say that
    • \(OD^2 = OF^2 + FD^2\)
      o \((3√5)^2 = OF^2 + (\frac{6}{2})^2\)
      o \(OF^2 = 45 – 9 = 36\)

    • Thus, OF = √36 = 6

Therefore, EF = OF = OE = 6 – 3 = 3

Hence the correct answer is Option B.

Answer: B

Show more
i think you have misplaced this solution here.please check
User avatar
EgmatQuantExpert
User avatar
e-GMAT Representative
Joined: 04 Jan 2015
Last visit: 02 Apr 2024
Posts: 3,657
Own Kudos:
20,884
Given Kudos: 165
Expert
Expert reply
Posts: 3,657
Kudos: 20,884
P is a point on side AB of a rectangle ABCD, which divides AB ........ 10 Dec 2018, 02:13
Kudos
Add Kudos
Bookmarks
Bookmark this Post
vanam52923

i think you have misplaced this solution here.please check
Show more

Hi vanam52923,

Yeah. Thanks for letting us know.
We have noticed it and changed the solution.

Regards,
avatar
nwMike
avatar
Joined: 17 Dec 2019
Last visit: 02 Apr 2020
Posts: 2
Own Kudos:
1
 [1]
Given Kudos: 1
Posts: 2
Kudos: 1
 [1]
P is a point on side AB of a rectangle ABCD, which divides AB ........ 01 Feb 2020, 15:17
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post
There's another easier way. Since the area of the whole rectangle is 480, let AB = DC = 80 (length of rectangle) and BC = AD = 6 (height).

AP:PB = 5:3. hence AP is (5/8)*80 = 50. same for DQ:QC = 1:3. DQ = (1/4)*80 = 20.

Area of ADQP (trapezoid) is (b+B)*h/2=(50+20)*6/3=70*3 = 210.

Hence D.
avatar
fireagablast
avatar
Joined: 30 Jun 2019
Last visit: 17 Aug 2021
Posts: 260
Own Kudos:
129
Given Kudos: 8
Posts: 260
Kudos: 129
P is a point on side AB of a rectangle ABCD, which divides AB ........ 01 Feb 2020, 17:54
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Fastest way to do this is to recognize that the sides whos ratios are given are of the same part of the rectangle
5:3
3:1

Set side AB and DC length equal to 8
5x+1x = 8
x=1
AP=5*1 = 5
PB=3*1 = 3

3x+1x = 8
x=2
DQ = 1*2=2
QC = 3*2 = 6

Solve for height (or missing side of rectangle)
480 = 8*y
60 = y

solve the trapezoid
[(AP+DQ)/2]*h
[(5+2)/2] * 60
7*30
210
User avatar
Balkrishna
User avatar
Joined: 17 Aug 2018
Last visit: 13 May 2022
Posts: 48
Own Kudos:
50
Given Kudos: 308
Status:Chartered Accountant
Location: India
WE:Accounting (Consulting)
Posts: 48
Kudos: 50
P is a point on side AB of a rectangle ABCD, which divides AB ........ 08 Mar 2020, 04:58
Kudos
Add Kudos
Bookmarks
Bookmark this Post
EgmatQuantExpert

Solution


Given:
    • P is a point on side AB of rectangle ABCD
      o P divides AB in the ratio 5: 3

    • Q is a point on side CD of rectangle ABCD
      o Q divides CD in the ratio 3: 1

    • The area of triangle ABCD = 480 sq. units

To find:
    • The area of quadrilateral ADQP

Approach and Working:



Let us assume that the length of AB = CD = x units, and length of BC = DA = h units
    • This implies,
      o Length of AP = \(\frac{5x}{(5 + 3)} = \frac{5x}{8}\)
      o Length of PB = \(\frac{3x}{(5 + 3)} = \frac{3x}{8}\)
      o Length of CQ = \(\frac{3x}{(1 + 3)} = \frac{3x}{4}\)
      o Length of QD = \(\frac{x}{(1 + 3)} = \frac{x}{4}\)

Area of quadrilateral, ADQP =\(\frac{1}{2} * h * (AP + QD) = \frac{1}{2} * h * (\frac{5x}{8} + \frac{x}{4}) = (\frac{7}{16}) * x * h\)
    o We are given that area of rectangle ABCD = 480 = AB * BC = x * h

Therefore, area of quadrilateral ADQP = \((\frac{7}{16}) * 480 = 210\) sq. units

Hence the correct answer is Option D.

Answer: D

Show more



EgmatQuantExpert,

It appears that the image of the rectangle is misleading. CQ:QD is not appearing in the ration of 3:1.

Thank you.
User avatar
Saasingh
User avatar
Current Student
Joined: 11 Apr 2020
Last visit: 06 Aug 2022
Posts: 387
Own Kudos:
266
Given Kudos: 820
Status:Working hard
Location: India
GPA: 3.93
WE:Information Technology (Computer Software)
Products:
My Reviews
Posts: 387
Kudos: 266
P is a point on side AB of a rectangle ABCD, which divides AB ........ 07 Jan 2021, 08:52
Kudos
Add Kudos
Bookmarks
Bookmark this Post

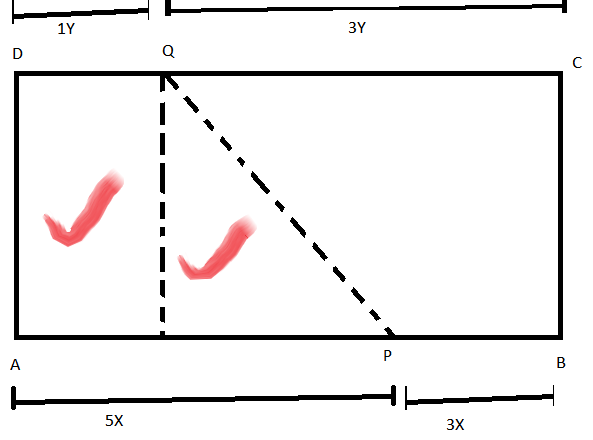

In the figure we can see that : 4y = 8x. Therefore, y = 2x.

We need area of the two red areas combine. This can be calculated as :

Area of rectangle + area of triangle = AD*2x + 0.5*3x*AD = 3.5 x * AD

Also, area of ABCD = 480 = 8x * AD. -------> x * AD = 60.


Putting this value of x*AD in above figure we get : 3.5 * 60 = 210.


Kudos if helps :)

Regards.
Attachments

Screen.png [ 20.16 KiB | Viewed 5336 times ]

User avatar
bumpbot
User avatar
Non-Human User
Joined: 09 Sep 2013
Last visit: 04 Jan 2021
Posts: 38,985
Own Kudos:
1,118
Posts: 38,985
Kudos: 1,118
P is a point on side AB of a rectangle ABCD, which divides AB ........ 14 Dec 2022, 04:49
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

This post was generated automatically.
Moderators:
Bunuel
Math Expert
109831 posts
Krunaal
Tuck School Moderator
852 posts
