Quadrilateral PQRS has PQ = QR = RS = 5, If angle R = 90° and angle Q

Question

Quadrilateral PQRS has PQ = QR = RS = 5, If angle R = 90° and angle Q = 135° what is the area of the quadrilateral?

A.  \frac{25 + \sqrt{2}}{2}

B.  \frac{1 + 25\sqrt{2}}{2}

C.  \frac{25(1 + \sqrt{2})}{2}

D.  25 + \sqrt{2}

E.  25 + 25\sqrt{2}

Project PS Butler
 Subscribe to get Daily Email -   Click Here  |  Subscribe via RSS -   RSS

chetan2u · Answer

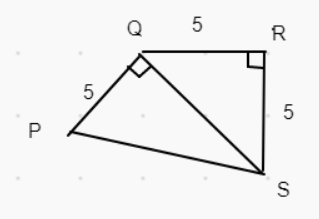

Let us draw the quadrilateral -

Area of the quad PQRS = Area of  	riangle QRS  + Area of  	riangle QPS

Area of  	riangle QRS  =  \frac{1}{2}*5*5=\frac{25}{2}

riangle QPS ......
 \angle PQS=135-45=90 , so it is a right angled triangle, and RS =  \sqrt{5^2+5^2}=5\sqrt{2}
Area of  	riangle QPS  =  \frac{1}{2}*5*5\sqrt{2}=\frac{25\sqrt{2}}{2}

Area of the quad PQRS = Area of  	riangle QRS  + Area of  	riangle QPS = \frac{25}{2}+\frac{25\sqrt{2}}{2} = \frac{25(1 + \sqrt{2})}{2}

C

CEdward · Answer

This question was basically impossible if you had no idea what the shape of that thing looked like. Does GMAT throw these kinds of 'imagination' questions?

veejoy · Answer

All, please check my work but here is how I solved...

Draw line parallel to RS from Q to opposite side, calling the new point T. New angle T is 90 because R is 90 and therefore S is 90. Supplementary angle above T is also 90.

This splits parallelogram into rectangle and a triangle above it.

Since original parallelogram has R=90, S=90 and Q=135, P must be 45.

If P is 45 and T's supplementary angle is 90, angle above Q is also 45. This creates a 45-45-90 triangle, TPQ. Legs are TP and QT. Hypotenuse is PQ.

Since RS=5, then QT=5 (since TS perpendicular to RS). Since QT opposite P, which is 45, TP is also 5 since its opposite a 45 degree angle as well.

Applying Pythagorean Theorem, 5^2 + 5^2 = PQ^2. PQ is 5 sq root 2. Therefore QR is same length since PQ=QR.

Therefore, to get area of rectangle we multiply RS (5) * QR (5 sq root 2) for 25 sq root 2.

Add that to area of triangle (5*5)/2

(25 sqroot 2 +25)/2

This factors to  /2

Option C.

Posted from my mobile device

TestPrepUnlimited · Answer

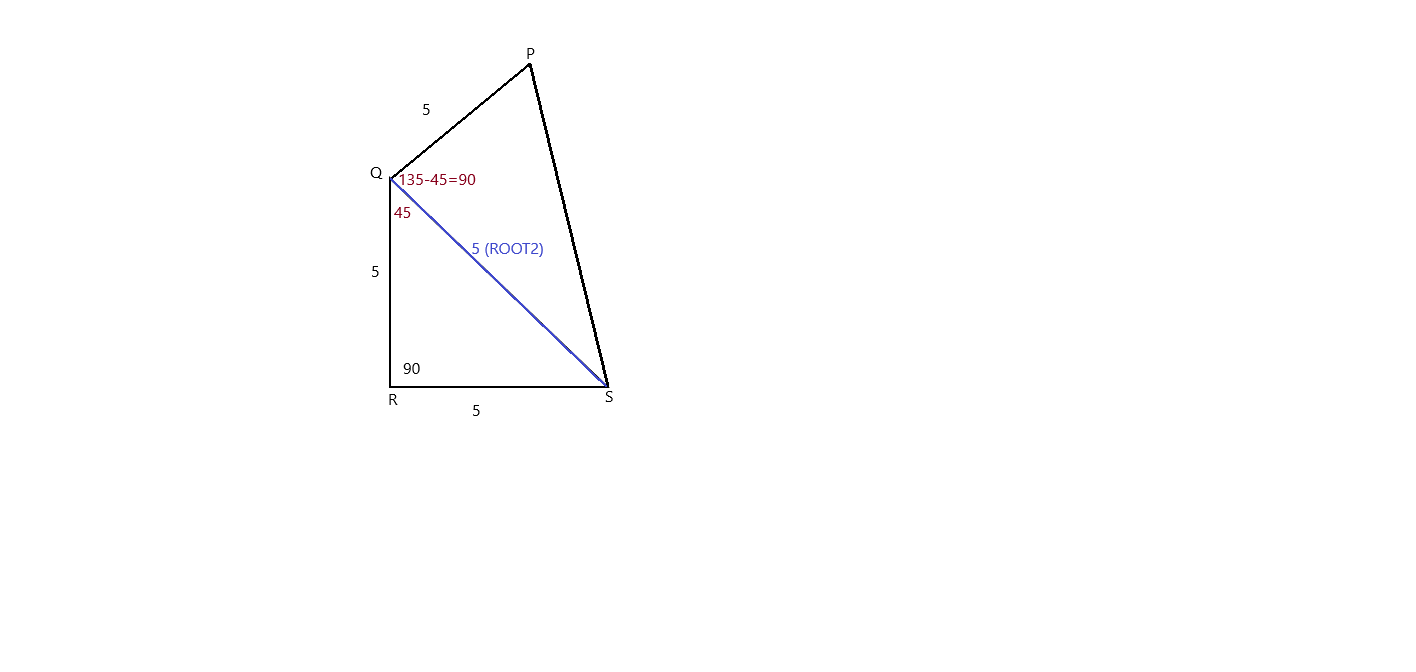

To draw this quadrilateral, first, we are given angles R and Q. If we focus on point R, R is connected by two lengths of 5 and they create an angle of 90 degrees. Similarly, Q is connected by two lengths of 5 and they create an angle of 135 degrees. Then we connect PS and we have our graph.

Notice that triangle QRS is a right triangle, if we connect QS it splits angle PQR into a 90 and 45-degree angle, so triangle PQS is also a right triangle.

QS = 5\sqrt{2} , the areas are  \frac{5^2}{2}  and  \frac{25\sqrt{2}}{2} .

Ans: C

ThatDudeKnows · Answer

The explanations already in the thread are a-okay. Just want to point out that once you draw the figure, you can Ballpark the actual area. The bottom part is almost a full 5x5 square. That's 25. Then we have to account for the top part, which looks like maybe about a quarter the size of the square. Okay, 25+6 = 31.

A.  \frac{25 + 1.4}{2} = \frac{26}{2} = 13
Note even close.

B.  \frac{1 + 25(1.4)}{2}=\frac{1 + 35}{2}=\frac{36}{2}=18
Not even close.

C.  \frac{25(1 + 1.4)}{2}=\frac{25(2.4)}{2} = \frac{60}{2} = 30
Keep it.

D.  25 + 1.4 = 26
Close but clearly too small.

E.  25 + 25(1.4) = 25+35 = 60
Not even close.

Answer choice C.

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
