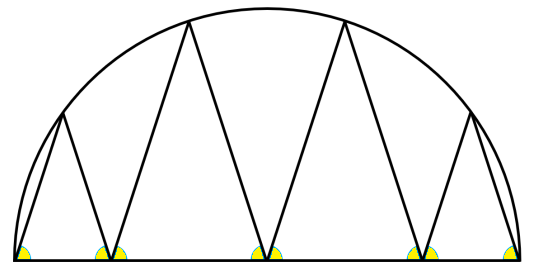

If in the semicircle above, each of the yellow angles equal to x°, what is the value of x ?
A. 48°
B. 60°
C. 72°
D. 75°
E. 78°
|
M37-34
Attachment:
Experience GMAT Club Test Questions
Yes, you've landed on a GMAT Club Tests question
Craving more? Unlock our full suite of GMAT Club Tests here
Want to experience more? Get a taste of our tests with our free trial today
Rise to the challenge with GMAT Club Tests. Happy practicing!
23 Nov 2021, 06:01
Kudos
Bookmarks
Official Solution:
If in the semicircle above, each of the yellow angles equal to \(x°\), what is the value of \(x\) ?
A. \(48°\)
B. \(60°\)
C. \(72°\)
D. \(75°\)
E. \(78°\)

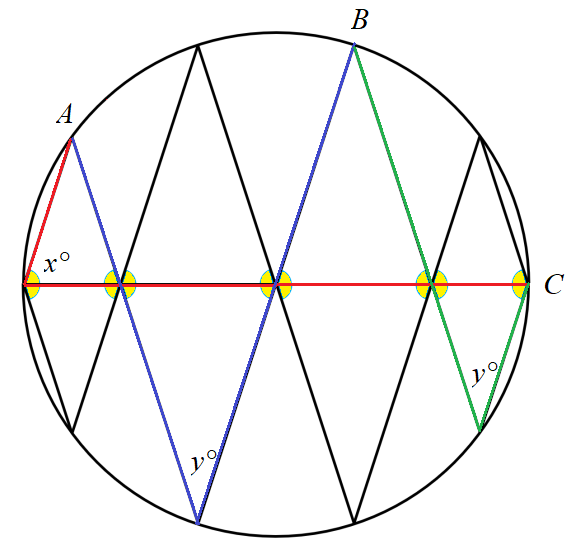

Draw a mirror image of the figure around the diameter as shown below:
Consider minor arc AC. According to the The Central Angle Theorem, the measure of inscribed angle is always half the measure of the central angle (half the measure of the arc it subtends). So, if yellow angle is \(x°\), then (minor arc AC) = \(2x°\).
Say the third angle in the triangles is equal to \(y°\). The same way as above, (minor arc AC) = (minor arc AB) + (minor arc BC) = \(2y° + 2y°=4y°\).
So, we have that (minor arc AC) = \(2x = 4y\).
Finally, since the sum of the angles in a triangle is 180°, then \(x + x + y = 180\). Substitute \(y = \frac{x}{2}\) into \(2x +y = 180°\) to get \(2x +\frac{x}{2} = 180\).
Solving gives \(x = 72°\).
Answer: C
If in the semicircle above, each of the yellow angles equal to \(x°\), what is the value of \(x\) ?
A. \(48°\)
B. \(60°\)
C. \(72°\)
D. \(75°\)
E. \(78°\)
Draw a mirror image of the figure around the diameter as shown below:
Consider minor arc AC. According to the The Central Angle Theorem, the measure of inscribed angle is always half the measure of the central angle (half the measure of the arc it subtends). So, if yellow angle is \(x°\), then (minor arc AC) = \(2x°\).
Say the third angle in the triangles is equal to \(y°\). The same way as above, (minor arc AC) = (minor arc AB) + (minor arc BC) = \(2y° + 2y°=4y°\).
So, we have that (minor arc AC) = \(2x = 4y\).
Finally, since the sum of the angles in a triangle is 180°, then \(x + x + y = 180\). Substitute \(y = \frac{x}{2}\) into \(2x +y = 180°\) to get \(2x +\frac{x}{2} = 180\).
Solving gives \(x = 72°\).
Answer: C
General Discussion
19 Aug 2021, 08:10
Kudos
Bookmarks
Did just a guess work
All triangles are similar, hence all the 8 angles have same value. Options have only 2 angles which are divisible by 8 (choice A=48 and C=72). As the angles are near to 90 degs. hence chose 72 degs.
All triangles are similar, hence all the 8 angles have same value. Options have only 2 angles which are divisible by 8 (choice A=48 and C=72). As the angles are near to 90 degs. hence chose 72 degs.
