If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
Updated on: 13 Oct 2013, 02:51
Question Stats:
77% (03:22) correct 23% (05:43) wrong based on 1268 sessions
HideShow timer Statistics
If a circle passes through points \((1, 2)\), \((2, 5)\), and \((5, 4)\), what is the diameter of the circle? A. \(\sqrt{18}\) B. \(\sqrt{20}\) C. \(\sqrt{22}\) D. \(\sqrt{26}\) E. \(\sqrt{30}\)
Official Answer and Stats are available only to registered users. Register/ Login.
Originally posted by bz9 on 12 Feb 2007, 00:00.
Last edited by Bunuel on 13 Oct 2013, 02:51, edited 2 times in total.
Renamed the topic and edited the question.




Math Expert
Joined: 02 Sep 2009
Posts: 52278

Re: Cord Geometry
[#permalink]
Show Tags
10 Jan 2010, 08:59
gottabwise wrote: lonewolf: I'd like to know the answer as well. Great question.
I got B. Draw a coord plane, plotted pts, draw right triangle. Used distance formula for each side. Thought about the radius formula for circumscribed circles. Nixed idea. Noticed isoceles right triangle and realized sqrt 20 was diameter b/c it's the hypotenuse. Ended there. Glad I tried the problem. A right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle. The reverse is also true: if the diameter of the circle is also the triangle’s hypotenuse, then that triangle is a right triangle. Attachment:

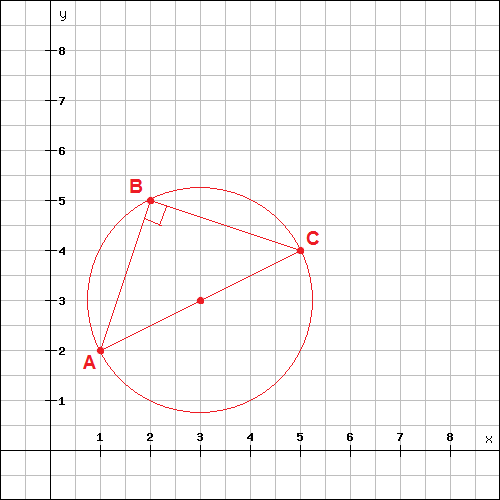

Math_Tri_inscribed.png [ 6.47 KiB  Viewed 27849 times ]
So: If two chords of a circle form a right angle degree (for example: AB, BC), then the chord AC must be the diameter of the circle. TRUE. As for the question: the slope of line segment: A(1,2) and B(2,5) is 3 AND the slope of line segment: B(2,5) and C(5,4) is 1/3, the slopes are negative reciprocals hence these line segments are perpendicular to each other. We have right triangle ABC, AC=hypotenuse=Diameter. Also one tip: any three points, which are not collinear, define the unique circle on XYplane. For more please see the Triangles and Circles chapters of Math Book in my signature. Hope it's clear.
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics




SVP
Joined: 01 May 2006
Posts: 1775

(B) for me
The equation of circle C in the XY plan is :
(xa)^2 + (yb)^2 = r^2
Where :
o (a,b) is the center of the circle
o r is the radius of the circle
Knowing that, u can plug the coordonates of each points to get a, b and r.
(1, 2) on C implies:
(a1)^2 + (b2)^2 = r^2
<=> a^2 2*a + 1 + b^2  4*b + 4 = r^2 (1)
(2, 5) on C implies:
(a2)^2 + (b5)^2 = r^2
<=> a^2 4*a + 4 + b^2  10*b + 25 = r^2 (2)
(5, 4) on C implies:
(a5)^2 + (b4)^2 = r^2
<=> a^2 10*a + 25 + b^2 8*b + 16 = r^2 (3)
(1)  (2)
<=> 2*a  3 + 6*b 21 =0
<=> 2*a + 6*b = 24
<=> a + 3*b = 12 (4)
(1)  (3)
<=> 8*a 24 + 4*b  12 = 0
<=> 2*a + b = 9 (5)
(5) 2*(4)
<=> 5*b = 15
<=> b = 3
From (1), we find a :
a = 12  3*b = 12  3*3 = 3
Still from (1):
(a1)^2 + (b2)^2 = r^2
<=> (2)^2 + (1)^2 = r^2
<=> r = sqrt(5)
Thus,
D = 2*sqrt(5) = sqrt(20)




Senior Manager
Joined: 23 Jun 2006
Posts: 387

Re: Cord Geometry
[#permalink]
Show Tags
12 Feb 2007, 08:53
kevincan wrote: bz9 wrote: These types of question really baffle me. I know Fig is pretty wicked with the graph paper so any help would be appreciated.
Circle passes through points A(1, 2), B(2, 5), and C(5, 4). What is the diameter of the circle?
a. sqrt(18) b. sqrt(20) c. sqrt(22) d. sqrt(26) e. sqrt(30) Yipes! What do you notice about the slopes of line segments AB and BC?
yeah.... that's what i'd do. one should notice that the triangle ABC has right angle (in B), which means thata AC is the diameter. than it is easy to compute the distance between two points... (getting same result as Fig)



Manager
Joined: 12 Feb 2006
Posts: 114

Ok,
If I'm doing this right, the slope of A, B is 3 and B, C is 1/3 i.e. perpendicular bisector. Therefore, as hobbit pointed out, B is a right trangle. Then use P theorm to solve.
Thanks a lot guys. Makes total sense.



Intern
Joined: 10 Jun 2009
Posts: 26
Location: Stockholm, Sweden

Re: Cord Geometry
[#permalink]
Show Tags
16 Jun 2009, 05:04
1. Since the circle has an inscribed square we first have to compute the lenght of the side of the square which is 1^2 + 3^2 = 10. 2. After that we have to calculate the diagonal of the square which is 10 (the squared root of 10) + 10 = root 20.



Current Student
Status: What's your raashee?
Joined: 12 Jun 2009
Posts: 1765
Location: United States (NC)
Concentration: Strategy, Finance
Schools: UNC (KenanFlagler)  Class of 2013
WE: Programming (Computer Software)

Re: Cord Geometry
[#permalink]
Show Tags
16 Jun 2009, 07:22
yeah just use the distance formula and you can see it is same sides(right triangle) so 11sqrt(2) you get sqrt(2)*sqrt(10) = sqrt(20)
_________________
If you like my answers please +1 kudos!



Manager
Joined: 22 Jul 2009
Posts: 168

Re: Cord Geometry
[#permalink]
Show Tags
19 Aug 2009, 19:10
Diameter = distance between (1,2) and (5,4) = sqrt [ (51)^2 + (42)^2 ] = sqrt [ 16 + 4 ] = sqrt [20]
Simple is good.



Manager
Joined: 22 Sep 2009
Posts: 191
Location: Tokyo, Japan

Re: Cord Geometry
[#permalink]
Show Tags
25 Nov 2009, 00:05
Good method. Simple and quick.
Just for refreshing memories... If two chords of a circle form a right angle degree (for example: AB, BC), then the chord AC must be the diameter of the circle.
Is the above statement always true?



Manager
Joined: 24 Jul 2009
Posts: 171
Location: Anchorage, AK
Schools: Mellon, USC, MIT, UCLA, NSCU

Re: Cord Geometry
[#permalink]
Show Tags
10 Jan 2010, 00:05
lonewolf: I'd like to know the answer as well. Great question. I got B. Draw a coord plane, plotted pts, draw right triangle. Used distance formula for each side. Thought about the radius formula for circumscribed circles. Nixed idea. Noticed isoceles right triangle and realized sqrt 20 was diameter b/c it's the hypotenuse. Ended there. Glad I tried the problem.
_________________
Reward wisdom with kudos.



Manager
Joined: 24 Jul 2009
Posts: 171
Location: Anchorage, AK
Schools: Mellon, USC, MIT, UCLA, NSCU

Re: Cord Geometry
[#permalink]
Show Tags
11 Jan 2010, 20:26
Bunuel wrote: gottabwise wrote: lonewolf: I'd like to know the answer as well. Great question.
I got B. Draw a coord plane, plotted pts, draw right triangle. Used distance formula for each side. Thought about the radius formula for circumscribed circles. Nixed idea. Noticed isoceles right triangle and realized sqrt 20 was diameter b/c it's the hypotenuse. Ended there. Glad I tried the problem. A right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle. The reverse is also true: if the diameter of the circle is also the triangle’s hypotenuse, then that triangle is a right triangle. Attachment: Math_Tri_inscribed.png So: If two chords of a circle form a right angle degree (for example: AB, BC), then the chord AC must be the diameter of the circle. TRUE. As for the question: the slope of line segment: A(1,2) and B(2,5) is 3 AND the slope of line segment: B(2,5) and C(5,4) is 1/3, the slopes are negative reciprocals hence these line segments are perpendicular to each other. We have right triangle ABC, AC=hypotenuse=Diameter. Also one tip: any three points, which are not collinear, define the unique circle on XYplane. For more please see the Triangles and Circles chapters of Math Book in my signature. Hope it's clear. Thanks for the explanation. Reworked the problem. Got the negative reciprocal slopes. Did distance formula. Now see how I can get the correct answer in 3 quick steps. Appreciate the lesson learned about perpendicular line segments.
_________________
Reward wisdom with kudos.



Intern
Joined: 07 Aug 2012
Posts: 4

Re: Cord Geometry
[#permalink]
Show Tags
10 Aug 2012, 06:03
I dont know how you could assuse AC is the diameter. Because there is nothing to indicate that AC goes through the center right? I am a little confused about the solution.



Math Expert
Joined: 02 Sep 2009
Posts: 52278

Re: Cord Geometry
[#permalink]
Show Tags
10 Aug 2012, 06:43



Senior Manager
Joined: 14 May 2011
Posts: 254
Location: Costa Rica
Concentration: Healthcare, International Business
GMAT 1: 710 Q42 V45 GMAT 2: 740 Q48 V42
GPA: 3.3
WE: Research (Consulting)

Re: Cord Geometry
[#permalink]
Show Tags
11 Aug 2012, 14:33
Bunuel wrote: pramoddikshith wrote: I dont know how you could assuse AC is the diameter. Because there is nothing to indicate that AC goes through the center right? I am a little confused about the solution. AC is the diameter because angle at B is 90 degrees. Check this post: circlepassesthroughpoints1225and42105.html#p672194Bunuel is this particular property tested often on the GMAT, not the right triangle one, but the formular mentioned at the top: The equation of circle C in the XY plan is : (xa)^2 + (yb)^2 = r^2
_________________
How to improve your RC score, pls Kudo if helpful! http://gmatclub.com/forum/howtoimprovemyrcaccuracy117195.html Work experience (as of June 2012) 2.5 yrs (Currently employed)  Mckinsey & Co. (US Healthcare Analyst) 2 yrs  Advertising industry (client servicing)



Retired Moderator
Status: 2000 posts! I don't know whether I should feel great or sad about it! LOL
Joined: 04 Oct 2009
Posts: 1148
Location: Peru
Schools: Harvard, Stanford, Wharton, MIT & HKS (Government)
WE 1: Economic research
WE 2: Banking
WE 3: Government: Foreign Trade and SMEs

Re: Circle passes through points (1, 2), (2, 5), and (5, 4).
[#permalink]
Show Tags
25 Aug 2012, 19:05
+1 B The angle in the point (2; 5) is right. You can calculate that evaluating the slopes of the lines formed by the points. With that angle, we can know that the line formed by the points (1;2) and (5;4) is the diameter of the circle.
_________________
"Life’s battle doesn’t always go to stronger or faster men; but sooner or later the man who wins is the one who thinks he can."
My Integrated Reasoning Logbook / Diary: http://gmatclub.com/forum/myirlogbookdiary133264.html
GMAT Club Premium Membership  big benefits and savings



Math Expert
Joined: 02 Sep 2009
Posts: 52278

Re: If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
13 Oct 2013, 02:51
If a circle passes through points \((1, 2)\), \((2, 5)\), and \((5, 4)\), what is the diameter of the circle?A. \(\sqrt{18}\) B. \(\sqrt{20}\) C. \(\sqrt{22}\) D. \(\sqrt{26}\) E. \(\sqrt{30}\) Look at the diagram below: Calculate the lengths of the sides of triangle ABC: \(AB=\sqrt{10}\); \(BC=\sqrt{10}\); \(AC=\sqrt{20}=\sqrt{2}*\sqrt{10}\); As we see the ratio of the sides of triangle ABC is \(1:1:\sqrt{2}\), so ABC is 45°45°90° right triangle (in 45°45°90° right triangle the sides are always in the ratio \(1:1:\sqrt{2}\)). So, we have right triangle ABC inscribed in the circle. Now, a right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle , so \(AC=diameter=\sqrt{20}\). Answer: B.
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics



Senior Manager
Joined: 06 Aug 2011
Posts: 336

Re: If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
11 Feb 2014, 02:55
Bunuel wrote: If a circle passes through points \((1, 2)\), \((2, 5)\), and \((5, 4)\), what is the diameter of the circle?A. \(\sqrt{18}\) B. \(\sqrt{20}\) C. \(\sqrt{22}\) D. \(\sqrt{26}\) E. \(\sqrt{30}\) Look at the diagram below: Calculate the lengths of the sides of triangle ABC: \(AB=\sqrt{10}\); \(BC=\sqrt{10}\); \(AC=\sqrt{20}=\sqrt{2}*\sqrt{10}\); As we see the ratio of the sides of triangle ABC is \(1:1:\sqrt{2}\), so ABC is 45°45°90° right triangle (in 45°45°90° right triangle the sides are always in the ratio \(1:1:\sqrt{2}\)). So, we have right triangle ABC inscribed in the circle. Now, a right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle , so \(AC=diameter=\sqrt{20}\). Answer: B. Bunuel.. How did we get that ab and bc are square root 10?
_________________
Bole So Nehal.. Sat Siri Akal.. Waheguru ji help me to get 700+ score !



Math Expert
Joined: 02 Sep 2009
Posts: 52278

Re: If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
11 Feb 2014, 03:05
sanjoo wrote: Bunuel wrote: If a circle passes through points \((1, 2)\), \((2, 5)\), and \((5, 4)\), what is the diameter of the circle?A. \(\sqrt{18}\) B. \(\sqrt{20}\) C. \(\sqrt{22}\) D. \(\sqrt{26}\) E. \(\sqrt{30}\) Look at the diagram below: Calculate the lengths of the sides of triangle ABC: \(AB=\sqrt{10}\); \(BC=\sqrt{10}\); \(AC=\sqrt{20}=\sqrt{2}*\sqrt{10}\); As we see the ratio of the sides of triangle ABC is \(1:1:\sqrt{2}\), so ABC is 45°45°90° right triangle (in 45°45°90° right triangle the sides are always in the ratio \(1:1:\sqrt{2}\)). So, we have right triangle ABC inscribed in the circle. Now, a right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle , so \(AC=diameter=\sqrt{20}\). Answer: B. Bunuel.. How did we get that ab and bc are square root 10? Check Distance between two points here: mathcoordinategeometry87652.html
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics



Senior Manager
Joined: 06 Aug 2011
Posts: 336

Re: If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
11 Feb 2014, 05:54
Ohkey Bunuel.. Thanks alot ! now question becomes easy to solve ! It has been long time i haven't touch coordinate geometry !
_________________
Bole So Nehal.. Sat Siri Akal.. Waheguru ji help me to get 700+ score !



Math Expert
Joined: 02 Sep 2009
Posts: 52278

Re: If a circle passes through points (1, 2), (2, 5), and (5, 4)
[#permalink]
Show Tags
11 Feb 2014, 06:04




Re: If a circle passes through points (1, 2), (2, 5), and (5, 4) &nbs
