What is the area of the triangle in the figure above?

Question

https://gmatclub.com/forum/download/file.php?id=28755 What is the area of the triangle in the figure above? A. 2+2\sqrt{3} B. 4\sqrt{3} C. 8 D. 8\sqrt{3} E. 12 2015-12-27_2141.png

chetan2u · Accepted Answer

Hi,
the Q may be 700+, since you require to know to play around with Geometrical figures..
 the best way is to look how we can draw a 90 degree angle , which will help us to break the figure down to simpler terms

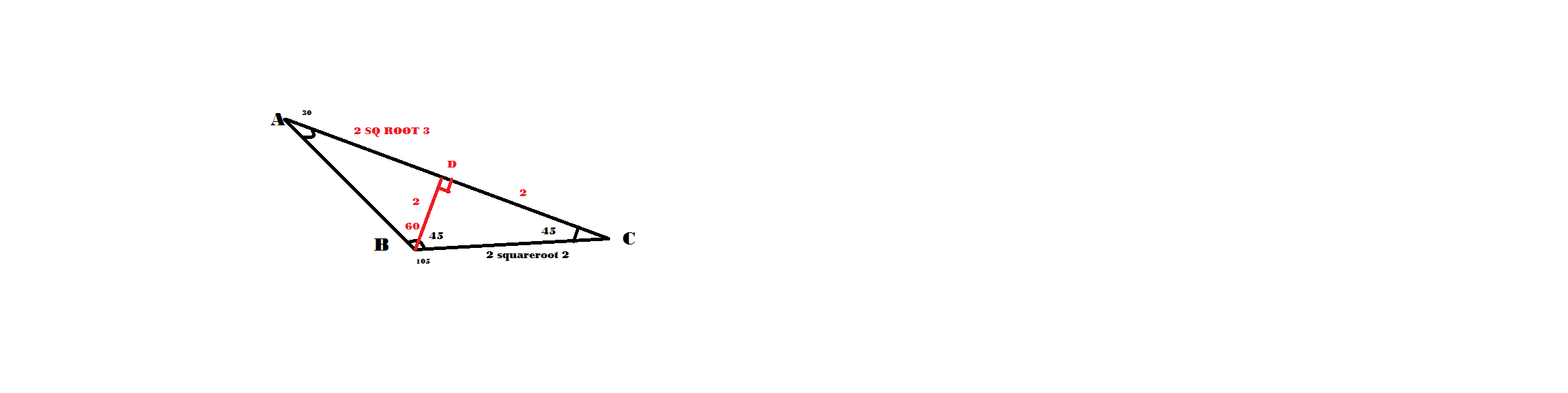

  https://gmatclub.com/forum/download/file.php?mode=view&id=28776  ..
here we see the third angle C shouold be 45, so we draw a perpendicular from B to AC..
now we have two triangles ABD and BCD..
lets see the first triangle BCD..
angle BCD and CBD are 45 and CDB is 90...
 Hyp = BC= 2\sqrt{2} ...
so the sides BD and CD=2..
area of BCD=1/2 * 2*2=2...

lets see the second triangle ABD..
it is 30-60-90 triangle...
and therefore the sides BD:AD:AB are in ratio  1:\sqrt{3}:2 ..
BD is 2, so AD =  2\sqrt{3} ..
so  area = 1/2 * 2\sqrt{3}*2=2\sqrt{3} ..

total Area=2+ 2\sqrt{3}
ans A

EMPOWERgmatRichC · Answer

Hi All,

Since the GMAT is built around existing patterns/rules/logic, the Geometry questions that you face on Test Day will almost always be based on standard shapes and formulas that you already know (or should know). Any time a question involves a shape that is 'weird', that shape can almost always be broken-down into smaller standard shapes - you can then use your knowledge of those shapes to answer the given question (although the math involved might be 'step-heavy').

Here, the weird shape is a 30/45/105 triangle. As chetan2u pointed out in his explanation, this triangle can be split into a 30/60/90 and a 45/45/90. From there, you can use the given side length, along with the rules for those 2 right triangles, to figure out ALL of the other side lengths and the total area of the shape.

GMAT assassins aren't born, they're made,
Rich

ScottTargetTestPrep · Answer

If we sketch the altitude (i.e., height) from the 105-degree angle to the opposite side, we have created two special right triangles: a 0-60-90 right triangle at the top and a 45-45-90 right triangle at the bottom (and the only labeled side will be the hypotenuse of the 45-45-90 right triangle) .

Since the 45-45-90 right triangle at the bottom has hypotenuse 2√2, each of its legs is 2. Since one of these legs is the height of the overall triangle, it’s also the side opposite the 30-degree angle of the 30-60-90 right triangle at the top. So the side opposite the 60-degree angle is 2√3.

Now, using the fact that the area of a right triangle is ½ the product of its two legs, the area of the 45-45-90 right triangle is ½ x 2 x 2 = 2, and the area of 30-60-90 right triangle is ½ x 2 x 2√3 = 2√3. Therefore, the area of the overall triangle is 2 + 2√3.

Answer: A

cadeepakbohra · Answer

Can someone suggest mistake in below solution.

Suppose Triangle is ABC with Angle A1 = 30, B = 105 and C = 45. Now, to calculate height, we draw one perpendicular line AD from A on BC (Extended). So now Triangle ADC is a right angle (45-90-45) and other triangle is ADB (15-90-75).
Now come to line DC which is having B as one point on it. Angle DAB = 15 and BAC = 30, So DB : BC = 15 : 30 = 1:2. BC is given = 2 * sq. root 2. So total DC = BC *3/2 = 3 * Sq. root 3.

As ADC is a 90-45-45 triangle, so AD will also be 3 * Sq. root3.

Now Triangle ABC. Base = BC = 2 * sq. root 2 and height = AD = 3 * Sq. root3

Area = (2 * sq. root 2) * (3 * Sq. root3) /2 = 6.

Can someone explain, what principle is wrong in above calculation.

Deepak

Argp · Answer

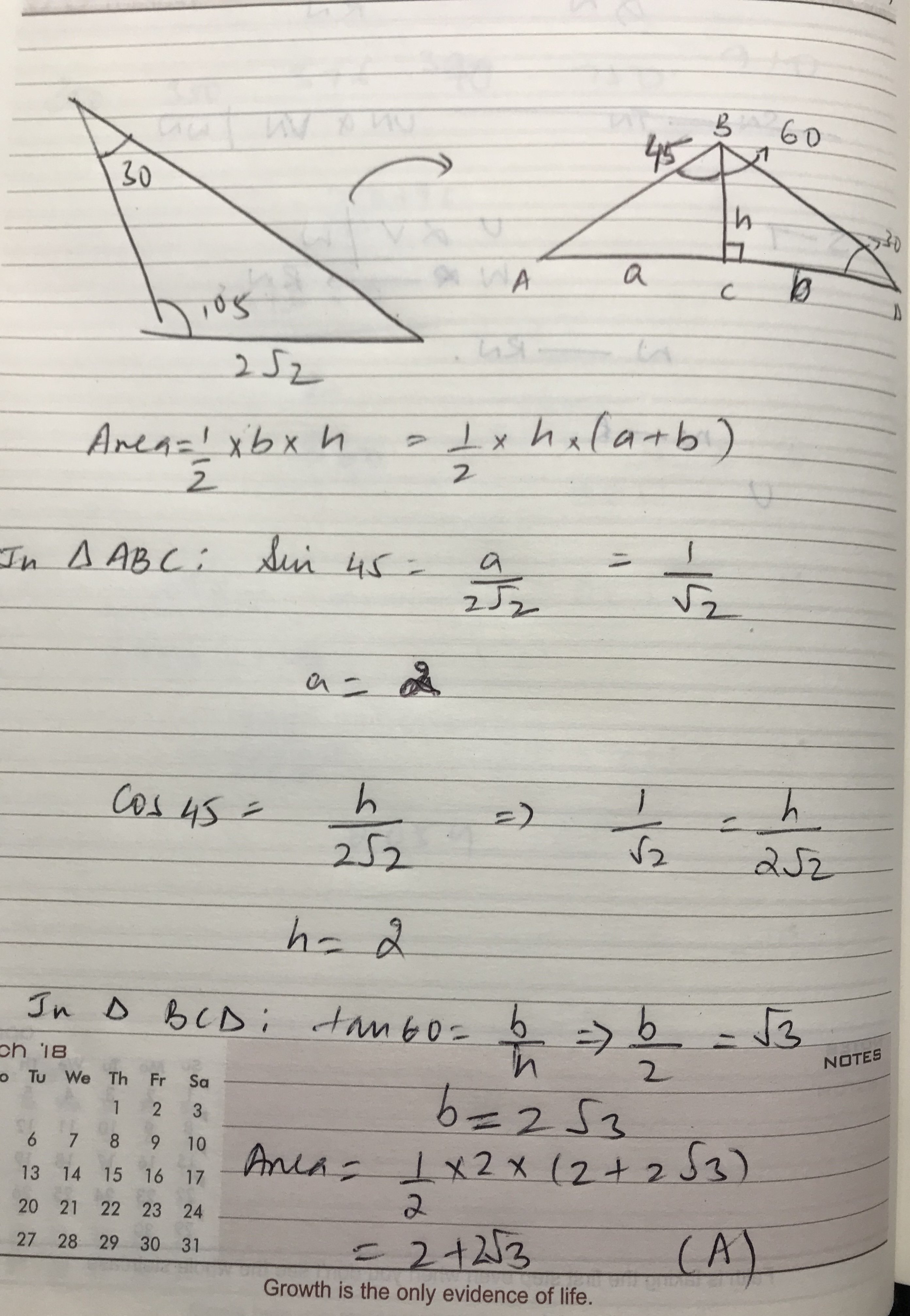

Here's a solution using the trigonometry table:

Qaisarjutt · Answer

in question 4 why base 2 under root 2 is used rather than 2

Posted from my mobile device

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
