The figure below is a square. What is its perimeter (measured in units

Question

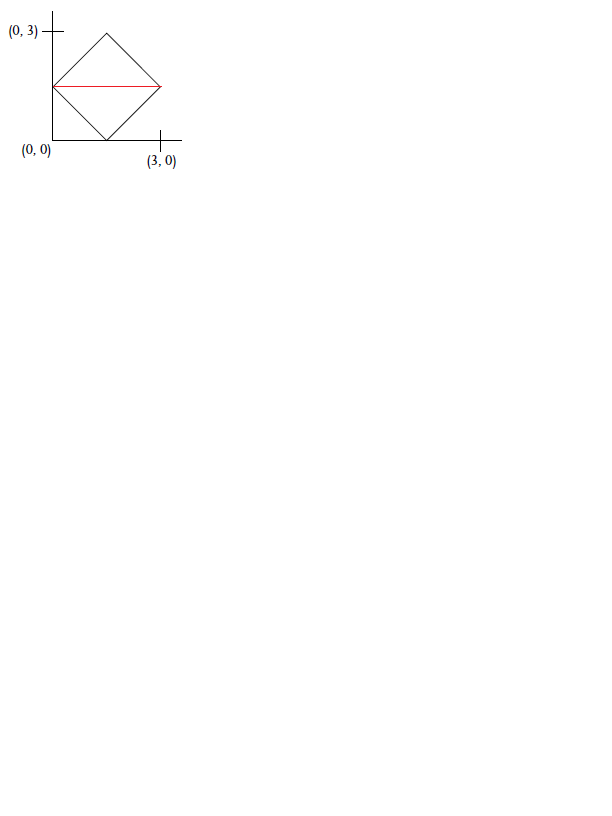

The figure below is a square. What is its perimeter (measured in units)? 2014-12-04_1851.png A) 6 \sqrt{2} B) 9 C) 12 D) 12 \sqrt{2} E) 18 Source: Chili Hot GMAT

hopeful101candidate · Answer

The figure below is a square. What is its perimeter (measured in units)?

From the figure, we can see that the diagonal of the square measures 3 units, which corresponds to the 90 degree angle. Therefore, the measure of each side of the square is 3/sqrt(2) units. The perimeter would then be: 4 * 3/sqrt(2) = 12/sqrt(2). If you simplify, you get: 12*sqrt(2)/2, which equals 6*sqrt(2).

Answer is A.

smartyguy · Answer

The figure below is a square. What is its perimeter (measured in units)?

Attachment:

img.png [ 4.67 KiB | Viewed 5900 times ]

A) 6 \(\sqrt{2}\)
B) 9
C) 12
D) 12 \(\sqrt{2}\)
E) 18

Draw the diagonal first horizontal or vertical your wish.

AS we know sides of a square make 90 degree angle.

so the length of the diagonal is 3 as mentioned with the help of a diagonal we can find the side of the square.

their are two ways to find a side of the square :

1) using the triangle property of 45:45:90
from which we can easily find the side i.e \(\frac{3}{\sqrt{2}}\)

2) By using the diagonal formula i.e \(\sqrt{2}*a\) = diagonal ---> where a is the side of the square.

from here we can easily find the side i.e \(\frac{3}{\sqrt{2}}\)

So the perimeter of the square is\(4*\frac{3}{\sqrt{2}}\) = 6 \(\sqrt{2}\) Ans!

Hence A! ans

Regards
SG

AliciaSierra · Answer

Length of the any diagonal of square = side of square *  \sqrt{2}
Length of diagonal of below square = 3
Let us say side of below square is  S

so  S   \sqrt{2}   = 3

S =   \frac{3}{\sqrt{2}}

Perimeter =  S*4  =  \frac{3}{\sqrt{2}} *4 =  6*\sqrt{2}

Answer : A

peachfuzz · Answer

We know that the small triangle near the origin is a 45-45-90 triangle. We know the short sides of the triangle has length of 1.5. This makes the Hypotenuse (side of the square)  1.5 \sqrt{2}  . Multiply  1.5 \sqrt{2}  by 4 and we get A)  6 \sqrt{2}

PareshGmat · Answer

Answer = A) 6 \sqrt{2} Refer diagram below: 2014-12-04_1851.png Perimeter of square = 4 * \sqrt{1.5^2 + 1.5^2} = 4 * \sqrt{4.5} = \sqrt{72} = 6\sqrt{2}

Bunuel · Answer

The correct answer is A.

intheend14 · Answer

Since we have a square, we can identify that the diagonals are equal to 3. This means the sides equal 3/sqrt(2). So, the perimeter is simply 2 times the length of a side or 4*3/sqrt(2) = 4*3*sqrt(2)/2 = 6*sqrt(2).

Choice A

Choice A

mathiaskeul · Answer

a^2+b^2=c^2

In the left bottom corner there is a right triangle, from which we know that it measures on the a- and b-sides.

1.5^2+1.5^2=(3/2)^2+(3/2)^2= 9/4+9/4 = 4.5 OF 9/2

sqrt(9/2)= 3/sqrt(2)

simplifying by multiplying top and bottom by sqrt(2)

3sqrt(2)/2

4 times 3sqrt(2)/2 is 12sqrt(2)/2 is 6sqrt(2)

Answer is A

Abhishek009 · Answer

In the figure length of the diagonal is 3 units.

We know that for a square diagonals are always equal and length of a diagonal is  a√2  { a = sides of a square }

So, lets workout -

a√2 = 3
a = 3/√2

=> 4a=12/√2

=> √2*12/2

=> 6√2

Hence answer is (A)

powellmittra · Answer

Area = D^2/2 = 9/2
Length = sqrt (9/2)

Perimeter = 3/sqrt(2)*4 = 6 sqrt(2)

is this solution correct?

Donnie84 · Answer

Another approach:

Let's look at the 2 vertices of the square that lie on x and y axes. Distance between the 2 points will give us the length of the side of the square and we can calculate the perimeter.

The 2 vertices are at the midpoints and their coordinates will be (1.5,0) and (0,1.5) since coordinates of a midpoint are the average of the coordinates of the end points.

Distance between the vertices = sq root (2*9/4) or 3/2 sq root (2).
Multiple this by 4 we get 6 sq root (2).

Answer (A).

chetan2u · Answer

Yes, your approach is correct.. :good

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
