In the figure above, the grid consists of unit squares and P, Q and R

Question

https://gmatclub.com/forum/download/file.php?id=36819 In the figure above, the grid consists of unit squares and P, Q and R are points of intersection of the grid as shown. What is the perimeter of triangular region PQR? (A) 15 (B) 17 (C) 20 (D) 5 + 5√2 (E) 10 + 5√2 2017-08-09_1257.png

Luckisnoexcuse · Answer

Consider PR as hypotenuse of a right angled triangle with other sides as 4 and 3 then PR = 5
Consider QP as hypotenuse of a right angled triangle with other sides as 4 and 3 then QP = 5
Consider QR as hypotenuse of a right angled triangle with other sides as 1 and 7 then QR =  5\sqrt{2}
PR + QP + QR =  10 +5\sqrt{2}
E

niks18 · Answer

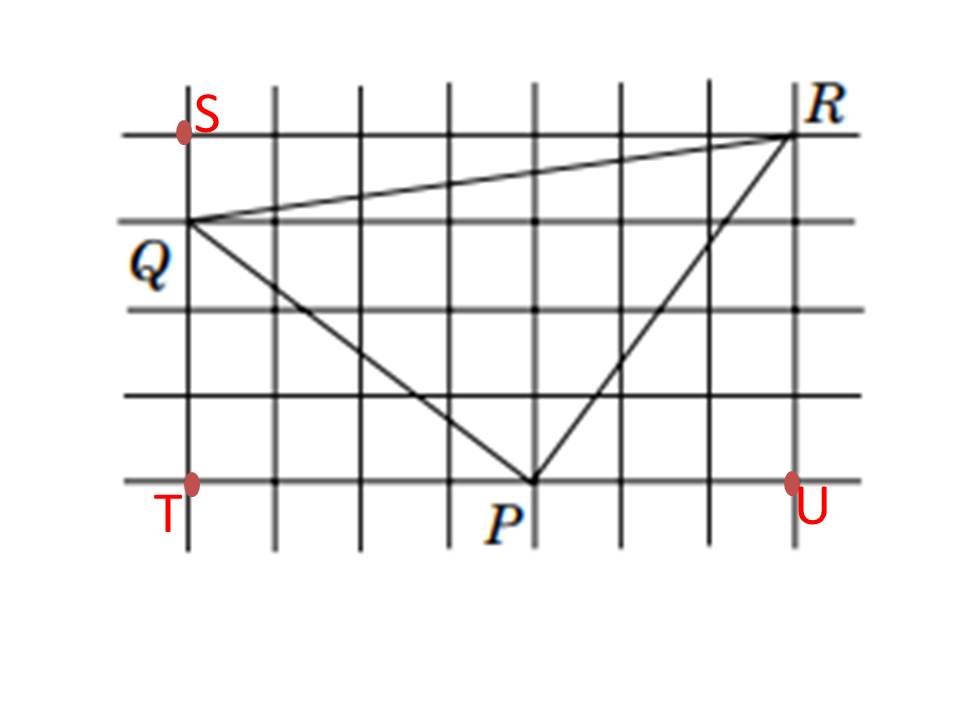

as is evident from the figure, we have right angle triangles, QRS, QTP, & PUR that will provide the length of sides QR, QP & PR.

For triangle QRS
side SR = 7 (number of columns between S & R)
Side QS = 1 (number of rows between Q & S)
therefore QR =  \sqrt{(7^2+1^2)} =  5\sqrt{2}

Similarly for triangle QTP
QT=3, TP=4, hence QP=5

and for triangle PUR
PU=3, UR=4, hence PR =5

So the perimeter of triangle PQR = 5+5+ 5\sqrt{2} = 10 +  5\sqrt{2}

EgmatQuantExpert · Answer

Solution

Given
 • In the figure above, the grid consists of unit squares
• P, Q and R are points of intersection of the grid as shown

To find
 • The perimeter of triangular region PQR
 o For finding perimeter, we need to find the length of all the sides of PQR

Approach and Working out
 Side PQ
 • PQ^2 = 3^2 + 4^2 = 5^2
• PQ = 5
Similarly,
QR^2 = 1^2 + 7^2 = 50
 • QR = 5√2
PR^2 = 3^2 + 4^2 = 5^2
 • PR = 5

Perimeter = 10 + 5√2

Thus, option E is the correct answer.
  Correct Answer: Option E

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
