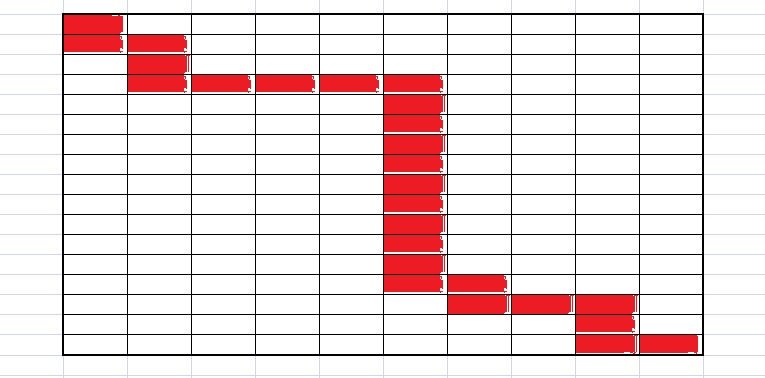

Bug will travel along diagonal, that makes\(tan^{-1}(10/17)\) angle with the length of the floor. In other words, bug will travel 1m along the width for every 1.7m along the length.
1. For first 1 m along the width, bug will travel 1.7 m along the length or he has to travel through 2 tiles. {Up to 1 m along the length, he will travel through 1 tile and from
1 to 1.7m along the length, he will travel through 2nd tile. Similarly we will find number of tiles he will visit for next 9 cases}
2. For second 1 m along the width, bug will travel to 3.4 m along the length or he has to travel through 3 tiles.
3. For third 1 m along the width, bug will travel to 5.1 m along the length or he has to travel through 3 tiles.
4. For fourth 1 m along the width, bug will travel to 6.8 m along the length or he has to travel through 2 tiles.
5. For fifth 1 m along the width, bug will travel to 8.5 m along the length or he has to travel through 3 tiles.
6. For sixth 1 m along the width, bug will travel to 10.2 m along the length or he has to travel through 3 tiles.
7. For seventh 1 m along the width, bug will travel to 11.9 m along the length or he has to travel through 2 tiles
8. For eighth 1 m along the width, bug will travel to 13.6 m along the length or he has to travel through 3 tiles
9. For ninth 1 m along the width, bug will travel to 15.3 m along the length or he has to travel through 3 tiles
10. For last 1m along the width, bug will travel to 17 m along the length or he has to travel through 2 tiles.
On total number of tiles, bug will visit= 2+3+3+2+3+3+2+3+3+2=26
Bunuel

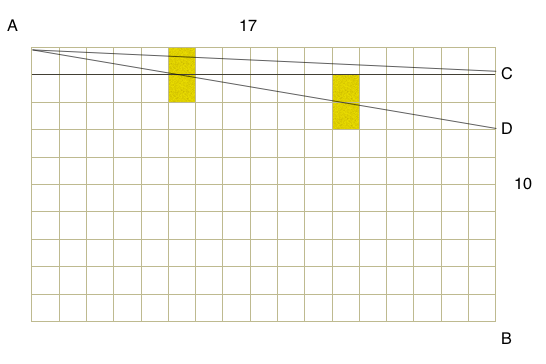

A rectangular floor that is 10 feet wide and 17 feet long is tiled with 170 one-foot square tiles. A bug walks from one corner to the opposite corner in a straight line. Including the first and the last tile, how many tiles does the bug visit?
A. 17
B. 25
C. 26
D. 27
E. 28
