In the diagram given below, ∠ABD = ∠CDB = ∠PQD = 90°. If AB: CD = 3:1

Question

Competition Mode Question https://gmatclub.com/forum/download/file.php?id=50421 In the diagram given below, ∠ABD = ∠CDB = ∠PQD = 90°. If AB: CD = 3:1, the ratio of CD:PQ A. 1:0.69 B. 1:0.75 C. 1:0.72 D. 1:0.50 E. None of these diagram.PNG

EncounterGMAT · Accepted Answer

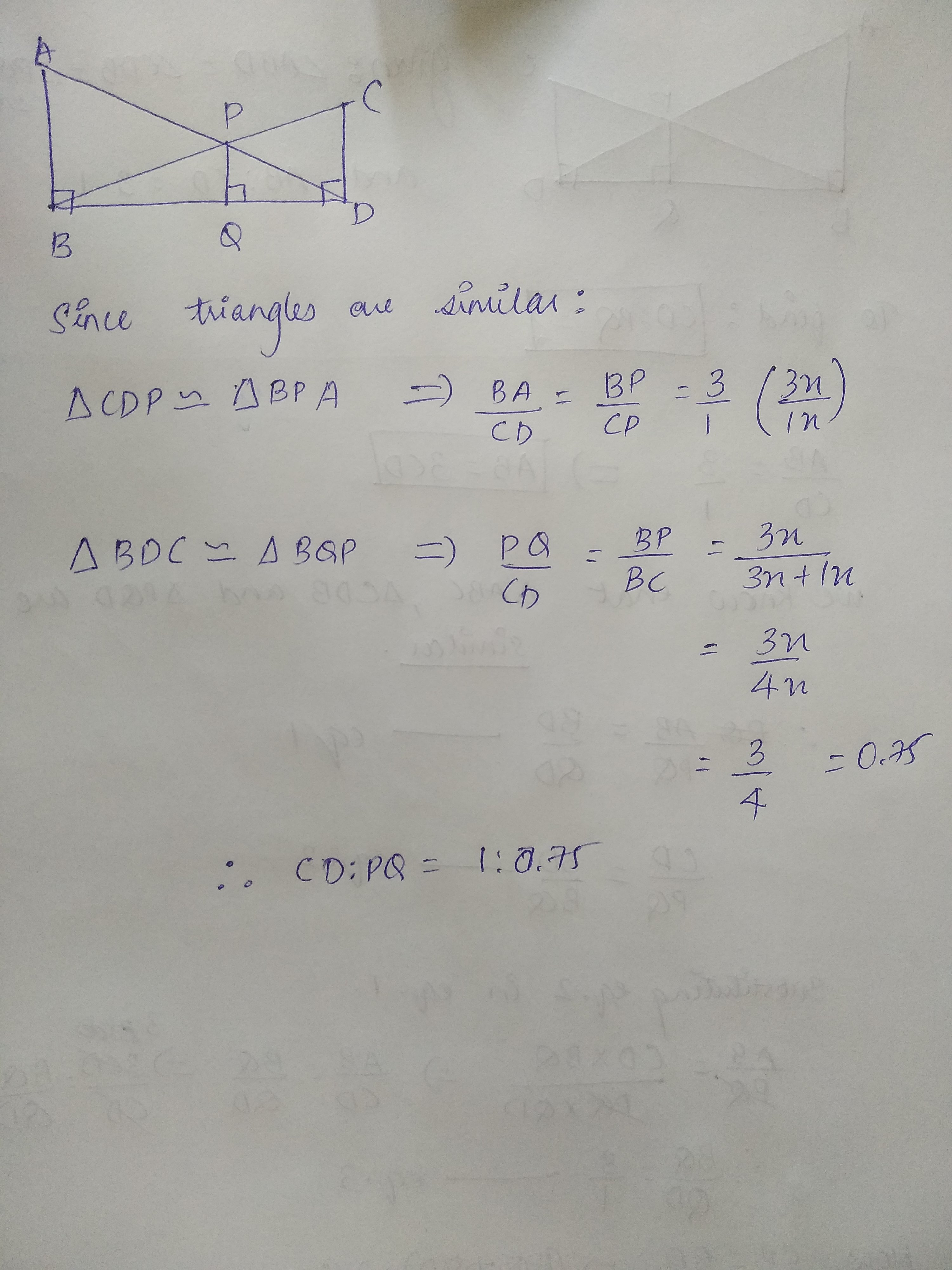

IMO answer is option B. I have done by two methods. Here's how I did:

Posted from my mobile device

madgmat2019 · Answer

triangles, ABD, PQD are similar , AB=3CD , BD= BQ + QD

so AB/PQ = BD/QD

CDB,PQB are simialr

CD/PQ = BD/QB

SOLVING above we will get PQ/CD = 3/4
 I.E CD/PQ = 1/0.75

OA:B

shridhar786 · Answer

triangle BQP is similar to triangle BDC (AAA similarity)

\frac{BD}{BQ}  =  \frac{CD}{PQ}

BD =  \frac{CD*BQ}{PQ} ---(1)

triangle DBA is similar to triangle DQP (AAA similarity)

\frac{BD}{QD}  =  \frac{AB}{PQ}

BD =  \frac{AB*QD}{PQ} ---(2)

(1) = (2) we get

\frac{CD*BQ}{PQ}  =  \frac{AB*QD}{PQ}

\frac{BD}{BQ}  =  \frac{CD}{AB}

\frac{BD}{BQ}  =  \frac{1}{3}  (given  \frac{AB}{CD} = \frac{3}{1} )

from triangle BQP and triangle BDC

\frac{BD}{BQ}  =  \frac{CD}{PQ}

so  \frac{CD}{PQ} = \frac{1}{3}

E is the correct answer

Mohammadtaghikian · Answer

B is correct

According to Thales theorem
CD/PQ=BD/BQ=BQ+QD/BQ=4/3
CD=1then PQ=0.75

Posted from my mobile device

unraveled · Answer

In the given figure, since  ∠ABD = ∠CDB = ∠PQD = 90° ,  AB || PQ || CD .
BC and AD are two lines intersecting these lines. Thus,  Δ ABP ˜ Δ DCP (AAA congruency) where  ∠A = ∠D, ∠B = ∠C  and ∠P is common.

Hence
 \frac{AB}{CD} = \frac{BP}{CP} = \frac{AP}{PD} = \frac{3}{1}  → ①

Also  Δ BQP ˜ Δ BDC (AAA congruency) where  ∠Q = ∠D, ∠P = ∠C  and ∠B is common.
Thus,  \frac{BQ}{BD} = \frac{BP}{BC} = \frac{PQ}{CD}

  \frac{PQ}{CD} = \frac{BP}{(BP + PC)}
  = \frac{3PC}{(3PC + PC)}
  = \frac{3PC}{4PC}
  = \frac{3}{4}
  = \frac{0.75}{1}

Answer (B).

exc4libur · Answer

ABD and CDB have the same base and their sides are in proportion; since, AB:CD=3:1, then let their base BD=4;
now, imagine this diagram in a plane, with AB at the origin;
point A(0,3) B(0,0) C(4,1) D(4,0), and point P is the place where both lines AD and BC intersect;
line AD: m=(0-3)/(4-0)=-3/4…y=-3x/4+b…1=-3(4)/4+b…b=3…y=-3x/4+3
line BC: m=(1-0)/(4-0)=1/4…y=x/4+b…1=(4)/4+b…b=0…y=x/4
equate lines: y=x/4 and y=-3x/4+3… x/4=-3x/4+3…x=3…y=x/4=(3/4)/4=3/4
point P(3,3/4) so CD:PQ=1:3/4

Answer (B)

lacktutor · Answer

In the diagram given above,
∠ABD = ∠CDB = ∠PQD = 90°. If AB: CD = 3:1 --> the ratio of CD:PQ=???

∆ABD and ∆PQD are similar triangles
-->  \frac{AB}{PQ} = \frac{BD}{QD}  --> AB= \frac{PQ*BD}{QD}

∆CDB and ∆PQB are similar triangles
-->  \frac{CD}{PQ} = \frac{BD}{(BD-QD)}  --> CD= \frac{PQ*BD}{(BD-QD)}

\frac{AB}{CD}=\frac{3}{1}=(\frac{PQ*BD}{QD})/\frac{PQ*BD}{(BD-QD)}= \frac{(BD-QD)}{QD}
3= \frac{(BD-QD)}{QD}
--> BD=4*QD

CD= \frac{PQ*4*QD}{3*QD} = \frac{PQ*4}{3}
 \frac{CD}{PQ}=\frac{4}{3}=\frac{1}{(3/4)} =1:0.75

The answer is B.

Shishou · Answer

The triangles ABP and PCD are similar becasue they have the same sized angles. Their heights will be in the same ratio as AB and CD are in. They heights are BQ and QD.The ratio of BQ :QD =3:1 since the ratio of their bases AB:CD is 3:1. Also one can see that CBD is similar to PBQ,meaning their bases which are the heights of ABP and PCD will have to be in the ratio of 4 :3 This allows us to say that the ratio of CD to PQ is also 4:3.

Answer is B

Answer is B

Kinshook · Answer

Since triangles BCD and BPQ are similar
CD:PQ = BD:BQ ----------1

Since triangles ABD and PQD are similar
AB:PQ = BD:QD -----------2

(2)/(1)
AB:CD = BQ:QD = 3:1
BD:BQ = 4:3 = 1: .75

IMO B
