In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 04:46
Kudos
Add Kudos
5
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
C
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

55% (hard)

Question Stats:

58% (02:44) correct 42% (02:46) wrong based on 83 sessions

History

Date
Time
Result
Not Attempted Yet

In the given figure, AB and CD are the longest chords of the circle with their lengths equal to 8 units. If the length of the minor arc BC is 1/6th of the perimeter of the circle, what is the length of the chord BD?

A. 2√3
B. 4
C. 4√3
D. 8
E. 8√3


Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS


Show Spoiler
Attachment:
Q.png [ 10.65 KiB | Viewed 3692 times ]
ShowHide Answer
Official Answer
C
Most Helpful Reply
User avatar
yashikaaggarwal
User avatar
Senior Moderator - Masters Forum
Joined: 19 Jan 2020
Last visit: 29 Mar 2026
Posts: 3,088
Own Kudos:
3,158
 [5]
Given Kudos: 1,510
Location: India
Schools: Cranfield (A) Warwick MiM "23 (M)
GPA: 4
WE:Analyst (Internet and New Media)
Schools: Cranfield (A) Warwick MiM "23 (M)
Posts: 3,088
Kudos: 3,158
 [5]
In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 05:07
1
Kudos
Add Kudos
4
Bookmarks
Bookmark this Post
Arc BC is 1/6 of whole circle. That means angle BOC subtends 60° angle at the centre.
‹BOC=‹AOD (opposite angles)
Join AD.
In triangle AOD.
Angle AOD is 60°
AO = DO (radius) hence AOD is an equilateral triangle
AO=DO=AD

Since, AB is the biggest Chord.
It subtends 90°angle on the circle, therefore ∆ABD is a right angle triangle. In which,
AB=8 & AD=4
Also AB^2= AD^2+BD^2
8^2=4^2+BD^2
64-16=BD^2
48=BD^2
BD=4√3

Answer is C

Posted from my mobile device
General Discussion
User avatar
sambitspm
User avatar
Joined: 05 Aug 2019
Last visit: 13 Jan 2022
Posts: 317
Own Kudos:
311
 [2]
Given Kudos: 130
Location: India
Concentration: Leadership, Technology
GMAT 1: 600 Q50 V22
GMAT 2: 670 Q50 V28 (Online)
GPA: 4
GMAT 2: 670 Q50 V28 (Online)
Posts: 317
Kudos: 311
 [2]
In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 06:25
1
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post

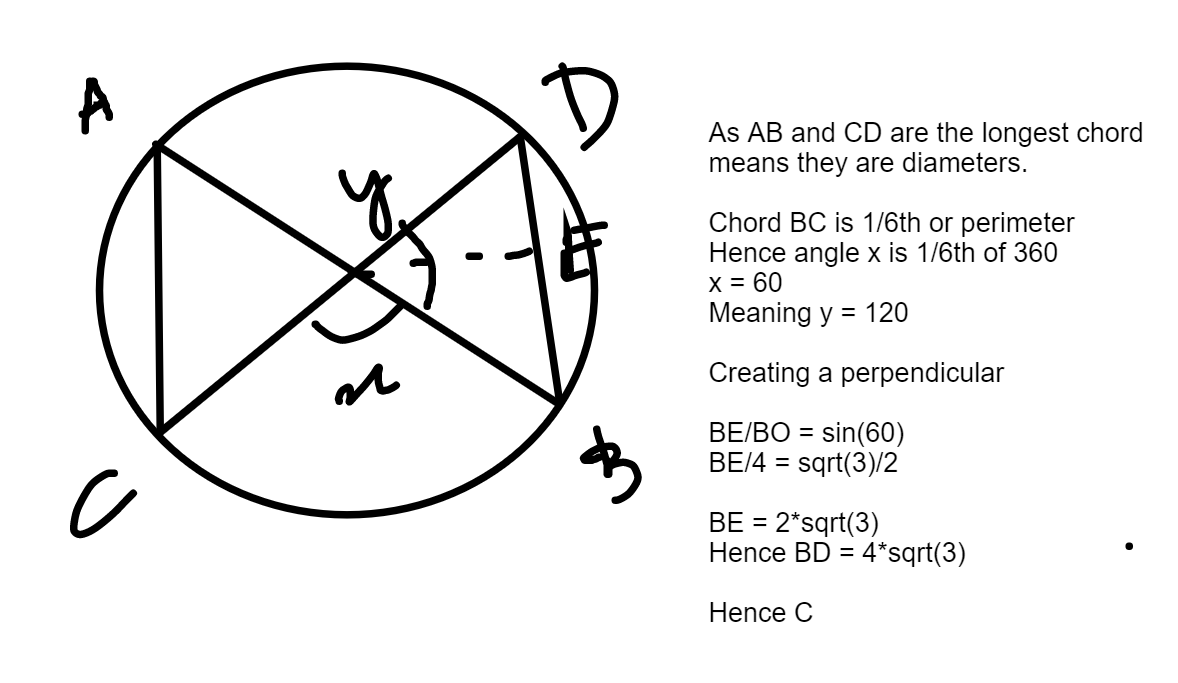

Kindly see the attachment
Attachments

1.PNG [ 78.6 KiB | Viewed 3364 times ]

User avatar
satya2029
User avatar
Joined: 10 Dec 2017
Last visit: 29 Sep 2025
Posts: 229
Own Kudos:
255
 [1]
Given Kudos: 138
Location: India
Posts: 229
Kudos: 255
 [1]
In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 07:11
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

In the given figure, AB and CD are the longest chords of the circle with their lengths equal to 8 units. If the length of the minor arc BC is 1/6th of the perimeter of the circle, what is the length of the chord BD?

A. 2√3
B. 4
C. 4√3
D. 8
E. 8√3


Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS


Show Spoiler
Attachment:
Show more
Longest chord= Diameter= 2* radius
Radius= 4
perimeter= 8pi
Since CBD is half of the perimeter, and we know BC in terms of perimeter
4pi=1/6*8pi+arc BD
Arc BD= 4pi-4pi/3=8pi/3
and the angle that the arc BD makes with the center is
\((360/8pi)* 8pi/3\)
120
let the center is O so in triangle BOD
it's 30-30-120 as OB=OD and the sides are in the ratio of \(1:1:1\sqrt{3}\)
OB=OD=4
Hence \(BD=4\sqrt{3}\)
C:)

Or
as BC is 1/6th of the perimeter, it makes 60 degree with the center so in BOD, angle at O is 120
it's 30-30-120 as OB=OD and the sides are in the ratio of \(1:1:1\sqrt{3}\)
OB=OD=4
Hence \(BD=4\sqrt{3}\)
C:)
User avatar
HoneyLemon
User avatar
Stern School Moderator
Joined: 26 May 2020
Last visit: 02 Oct 2023
Posts: 627
Own Kudos:
571
Given Kudos: 219
Status:Spirited
Concentration: General Management, Technology
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
WE:Analyst (Computer Software)
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
Posts: 627
Kudos: 571
In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 09:43
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

In the given figure, AB and CD are the longest chords of the circle with their lengths equal to 8 units. If the length of the minor arc BC is 1/6th of the perimeter of the circle, what is the length of the chord BD?

A. 2√3
B. 4
C. 4√3
D. 8
E. 8√3



Show Spoiler
Attachment:
The attachment Q.png is no longer available
Show more

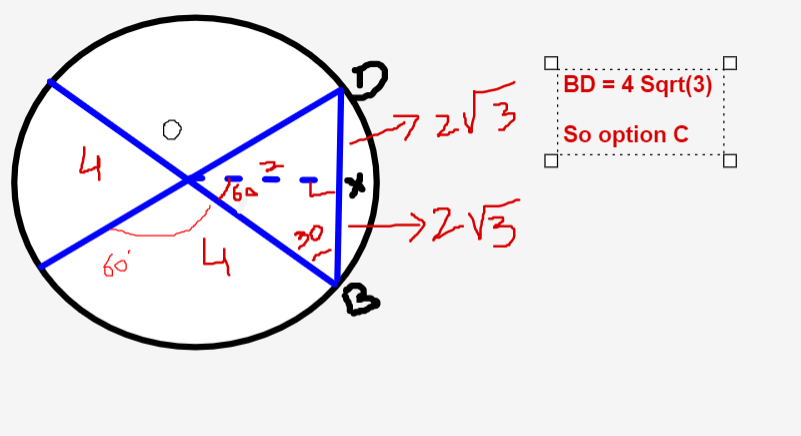

IMO C . Solution in the figure attached .
Attachments

File comment: Figure simplified
03_june.png [ 45.73 KiB | Viewed 3198 times ]

User avatar
Lipun
User avatar
Joined: 05 Jan 2020
Last visit: 08 Jan 2025
Posts: 143
Own Kudos:
160
Given Kudos: 291
Posts: 143
Kudos: 160
In the given figure, AB and CD are the longest chords of the circle wi 03 Jun 2020, 09:57
Kudos
Add Kudos
Bookmarks
Bookmark this Post
The chords are longest implies AB and CD are diameters.
=> CBD form a right triangle with CBD=90.
Let AB and CD intersect at O. Since BD is \(\frac{1}{6}\)th of the circumference, therefore COB=60. => OBD = ODB =30.
Thus, CBD is a 30-60-90 triangle and it's hypotenuse is 8 units.
So, BD = 4\(\sqrt{3}\)
