The figure above is a cube with edges of length 9. Points C and D lie 07 Dec 2020, 01:15
Kudos
Add Kudos
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
B
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

35% (medium)

Question Stats:

75% (02:31) correct 25% (02:48) wrong based on 63 sessions

History

Date
Time
Result
Not Attempted Yet

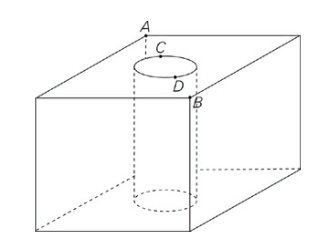

The figure above is a cube with edges of length 9. Points C and D lie on diagonal AB such that points A, C, D, and B are equally spaced. As shown, a right circular cylindrical hole is cut out of the cube so that segment CD is a diameter of the top of the hole. What is the volume of the resulting figure?

A. \(729-162\pi\)

B. \(729-\frac{81\pi}{2}\)

C. \(729-81\pi\)

D. \(729-9\pi\)

E. \(729\)



Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS

Show Spoiler
Attachment:
1.jpg [ 18.01 KiB | Viewed 3420 times ]
ShowHide Answer
Official Answer
B
User avatar
rajatchopra1994
User avatar
Joined: 16 Feb 2015
Last visit: 22 Jun 2024
Posts: 1,052
Own Kudos:
1,308
Given Kudos: 30
Location: United States
Posts: 1,052
Kudos: 1,308
The figure above is a cube with edges of length 9. Points C and D lie 07 Dec 2020, 05:10
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Explanation:

Diagonal AB = Side of Cube x √2 = 9√2
Diameter of Cylinder = 9√2/3 = 3√2 , r = 3√2/2
Area of Cylinder CD = π*r^2*h = π*(3√2/2)^2*9 = π*9x2x9/4 = 81π/2
Area of Cube = (side)^3 = 9^3 = 729

Resultant area = 729 - 81π/2

IMO-B
User avatar
Pankaj0901
User avatar
Joined: 18 Dec 2018
Last visit: 17 Dec 2022
Posts: 403
Own Kudos:
53
 [1]
Given Kudos: 737
Location: India
WE:Account Management (Hospitality and Tourism)
Posts: 403
Kudos: 53
 [1]
The figure above is a cube with edges of length 9. Points C and D lie 07 Dec 2020, 11:15
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
IMO answer B
Diagonal AB = 9√2
=> Diameter Cylinder = 9√2/3 = 3√2
=> radius = 3/√2
=> Area of Cylinder CD = π*r^2*h = π*((3/√2)^2)*9 = π*9x2x9/4 = 81π/2
Required area = 729 - 81π/2

Bunuel

The figure above is a cube with edges of length 9. Points C and D lie on diagonal AB such that points A, C, D, and B are equally spaced. As shown, a right circular cylindrical hole is cut out of the cube so that segment CD is a diameter of the top of the hole. What is the volume of the resulting figure?

A. \(729-162\pi\)

B. \(729-\frac{81\pi}{2}\)

C. \(729-81\pi\)

D. \(729-9\pi\)

E. \(729\)



Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS

Show Spoiler
Attachment:
Show more
User avatar
akadiyan
User avatar
Retired Moderator
Joined: 31 May 2017
Last visit: 20 Jun 2025
Posts: 724
Own Kudos:
706
 [1]
Given Kudos: 53
Concentration: Technology, Strategy
Schools: IIMA PGPX'23 Bayes Said '23
Products:
My Reviews
Schools: IIMA PGPX'23 Bayes Said '23
Posts: 724
Kudos: 706
 [1]
The figure above is a cube with edges of length 9. Points C and D lie 07 Dec 2020, 21:34
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
The figure above is a cube with edges of length 9. Points C and D lie on diagonal AB such that points A, C, D, and B are equally spaced. As shown, a right circular cylindrical hole is cut out of the cube so that segment CD is a diameter of the top of the hole. What is the volume of the resulting figure?

Side length of the cube = 9
Diagonal of a cube = Side \(\sqrt{2}\) = 9\(\sqrt{2}\)

The points A,C,D and B are equally placed , so consider the distance between any 2 points as x, so 3x = diagonal of the cube
3x = 9\(\sqrt{2}\)
x = \(\frac{9\sqrt{2} }{ 3}\) = 3\(\sqrt{2}\)
Diameter of the cylinder = 3\(\sqrt{2}\)
Radius of the cylinder = \(\frac{3\sqrt{2} }{ 2}\)

Area of cylinder = \(\pi* r^2 * h\) = \(\pi * (3\sqrt{2})^2*9\) = \(\frac{81 \pi }{ 2}\)

Area of cube = \(Side^3\) = \(9^3\) = 729

Volume = 729 - \(\frac{81 \pi }{ 2}\)

Ans: B
User avatar
exc4libur
User avatar
Joined: 24 Nov 2016
Last visit: 22 Mar 2022
Posts: 1,680
Own Kudos:
1,469
Given Kudos: 607
Location: United States
Posts: 1,680
Kudos: 1,469
The figure above is a cube with edges of length 9. Points C and D lie 08 Dec 2020, 06:15
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

The figure above is a cube with edges of length 9. Points C and D lie on diagonal AB such that points A, C, D, and B are equally spaced. As shown, a right circular cylindrical hole is cut out of the cube so that segment CD is a diameter of the top of the hole. What is the volume of the resulting figure?

A. \(729-162\pi\)

B. \(729-\frac{81\pi}{2}\)

C. \(729-81\pi\)

D. \(729-9\pi\)

E. \(729\)
Show more

cub-vol: 9^3=729
a-c-d-b=9V2, c-d=9V2/3=3V2
r=3V2/2, h=9
cyl-vol: pi.r^2*h=81/2.pi

(B)
