A chord of length 5 cm subtends an angle of 60° at the centre of a cir

Question

A chord of length 5 cm subtends an angle of 60° at the centre of a circle. The length, in cm, of a chord that subtends an angle of 120° at the centre of the same circle is

A. 2π
B. 8
C. 6√2
D. 5√3
E. 10

Are You Up For the Challenge: 700 Level Questions

nick1816 · Answer

∠AOB =60
OA=OB
Hence, ∠OAB = ∠OBA =60

OAB is an equilateral triangle, so OA=OB = 5

Draw a perpendicular on CD from O.

Triangle OEC is (60-90-30) triangle; Hence, CE = 5*(√3/2)

CD = 2*CE = 2* 5*(√3/2) = 5√3

OR

5/sin30 = CD/sin120

CD = 5√3

GMATinsight · Answer

Answer: Option D

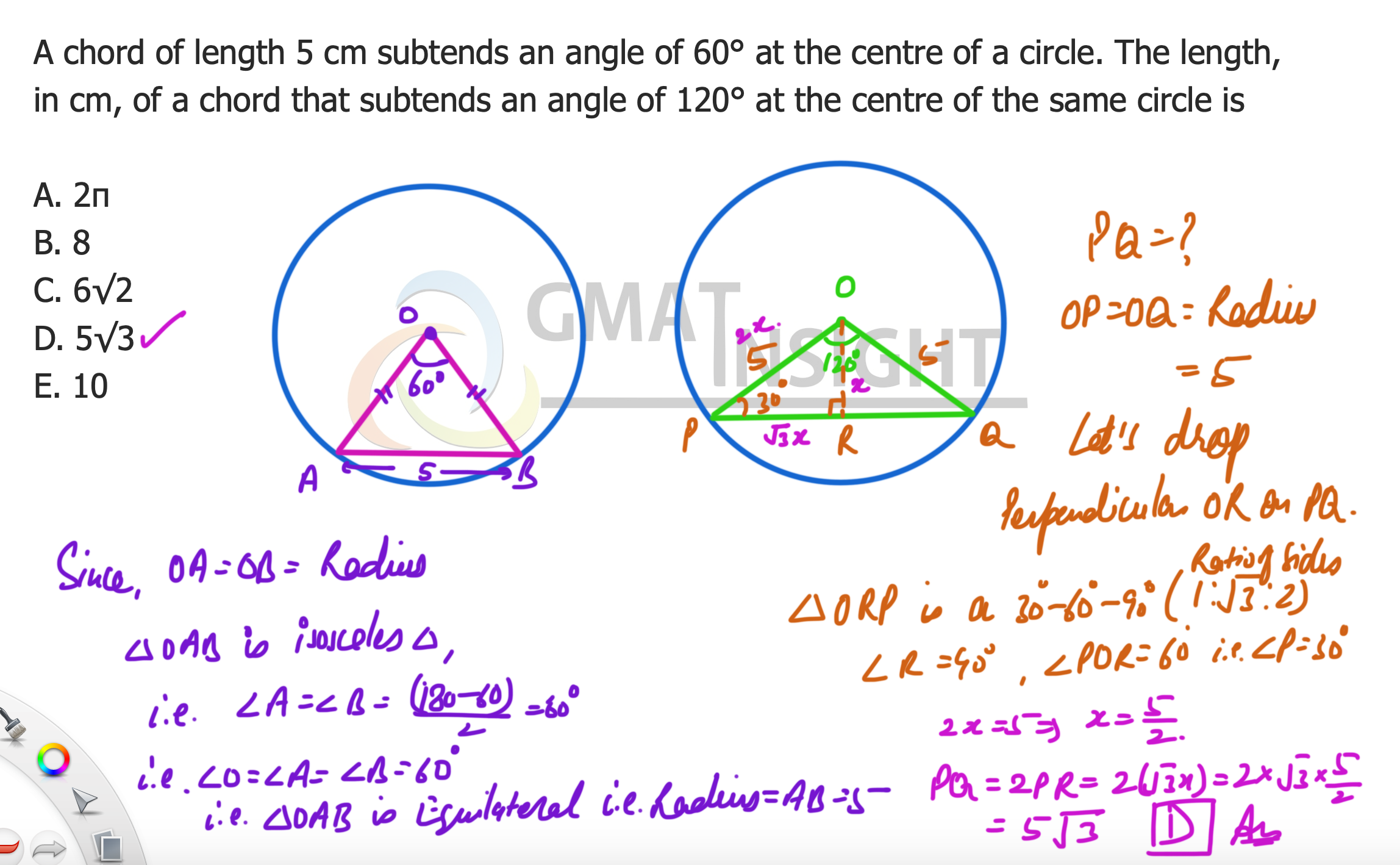

Detailed explanation is in picture attached

P.S. Use of trigonometry should be strictly avoided by test aspirants

fauji · Answer

Formula to find chord length if radius r and angle a are given:  2rSin(\frac{a}{2})

Given:
- We have chord length 5 cm, and angle is 60 deg.
- Since length to both ends of chord is same(i.e. radius), we have equilateral triangle with 5cm each side.

Now, radius = 5 cm and angle is 120 deg.

To find chord length: 2rSin(a/2) =>  2*5*Sin (\frac{120}{2})  =  10*\frac{\sqrt{3}}{2}

=>  5\sqrt{3}

Option D

nick1816 · Answer

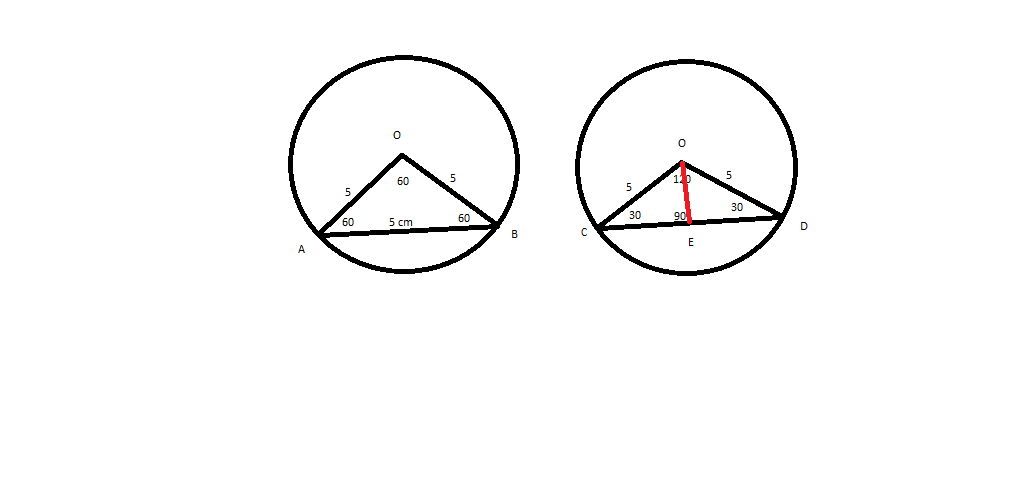

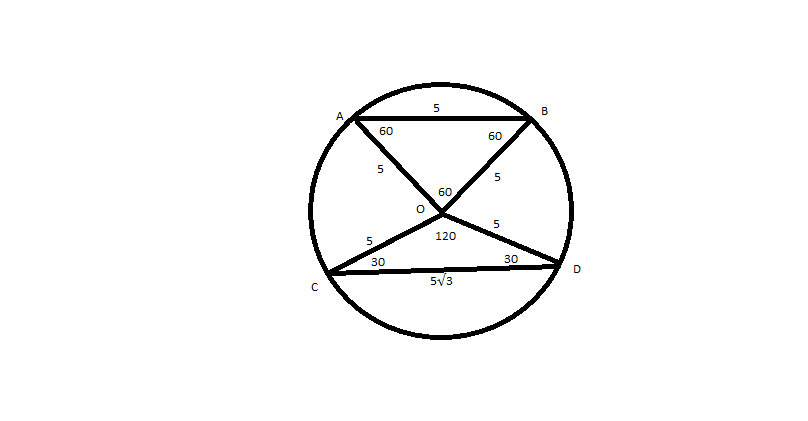

Untitled.png Suppose AB makes 60° at the centre of a circle. Join OA and OB. Since OA=OB, angle A= angle B; hence, OAB is an equilateral triangle. OA=OB=AB=5 Suppose CD makes 120° at the centre of a circle. OC:OD:CD = 1:1:√3 = 5:5:5√3 CD = 5√3

CrackverbalGMAT · Answer

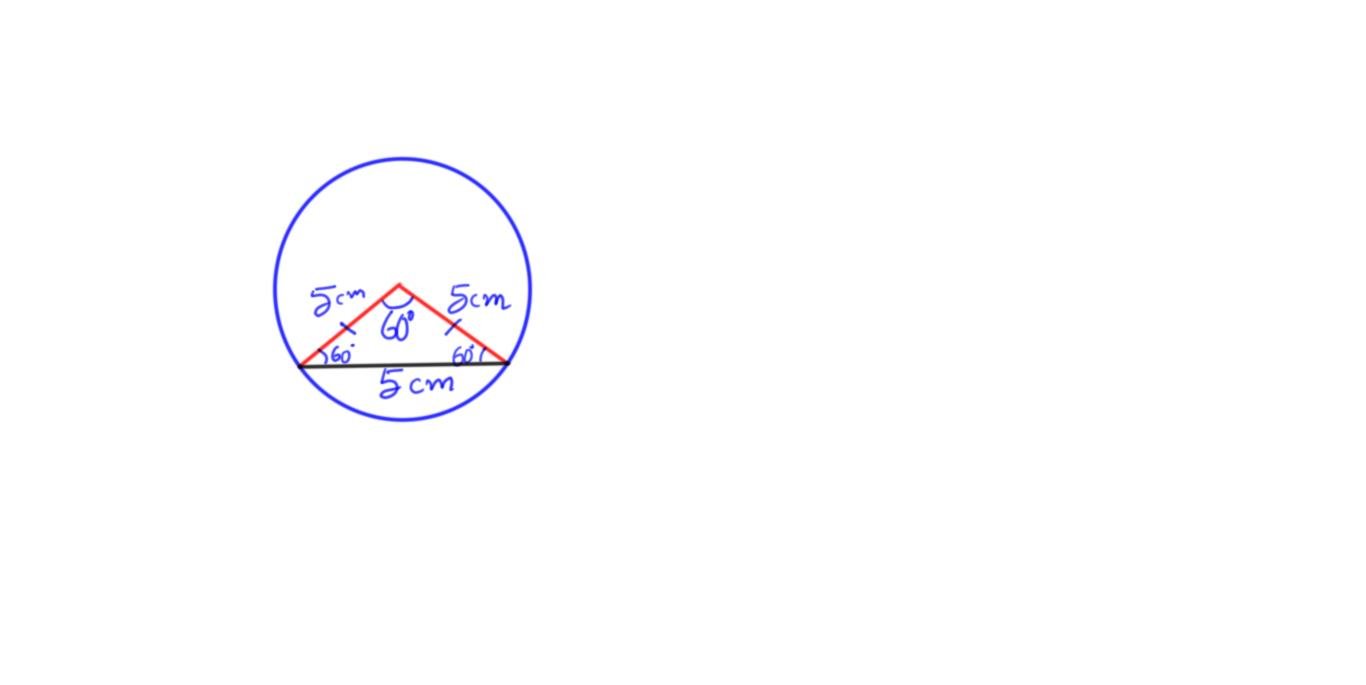

Let’s draw the figure to match the conditions given in the question. The figure looks like the one below:

Attachment:

7th May 2020 - Reply 5 - 1.jpg [ 23.42 KiB | Viewed 9432 times ]

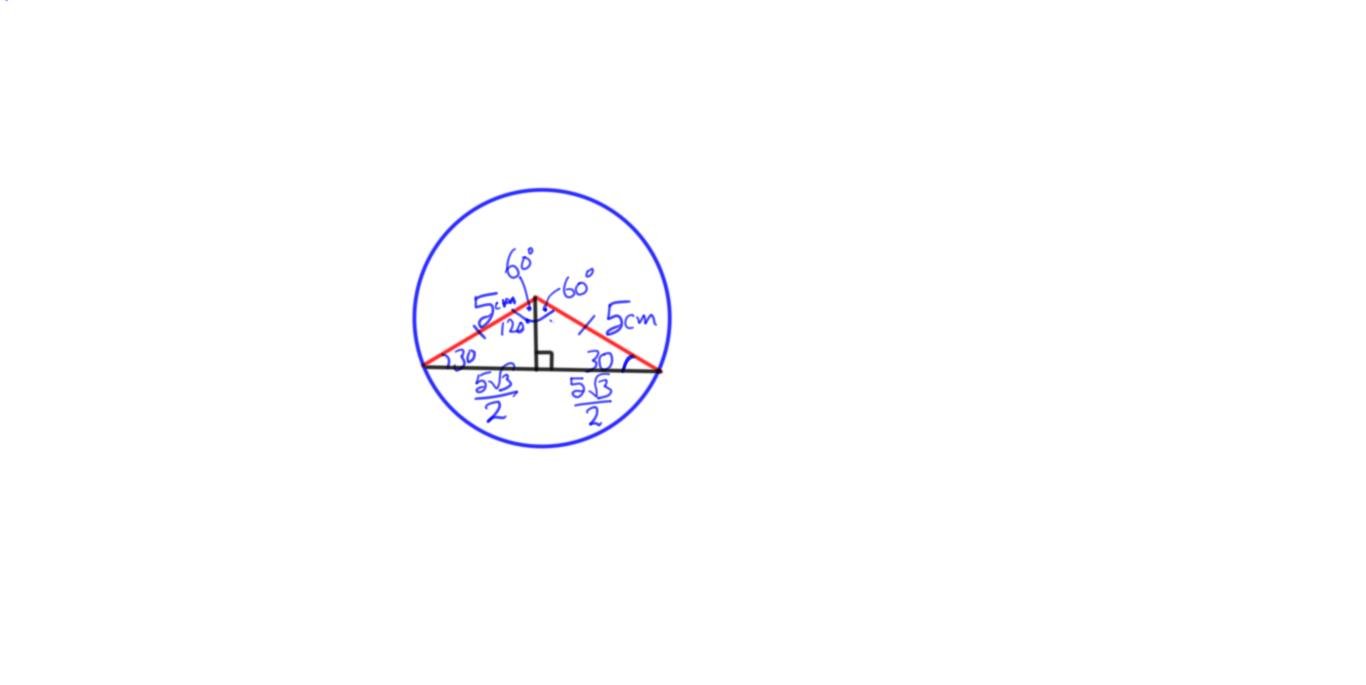

From the above, we can conclude that the radius of the given circle is 5 cm. Let us now draw another circle of radius 5 cm which has a longer chord which makes an angle of 120-degree at the centre. The diagram looks like the one below:

Attachment:

7th May 2020 - Reply 5 - 2.jpg [ 24.99 KiB | Viewed 9374 times ]

The perpendicular drawn from the centre of a circle onto a chord bisects the chord.

This perpendicular also happens to bisect the central angle in this case, and hence we have TWO 30-60-90 right angled triangles.

In each of these triangles, hypotenuse = 5 cm. Therefore,

Side opposite to the 30-degree angle =\( \frac{5}{2}\) and

Side opposite to the 60-degree angle (half of the chord) = (\(\frac{5}{2}\))√3

Since half of the chord = (\(\frac{5}{2}\))√3, length of the chord = (\(\frac{5}{2}\))√3 * 2 = 5√3

The correct answer option is B.

Hope that helps!

hasanloubani · Answer

the second triangle is isoceles so the sides must be in ratio 1:1:√2. why you take the 3rd side as √3?

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
