12 Days of Christmas GMAT Competition with Lots of Fun

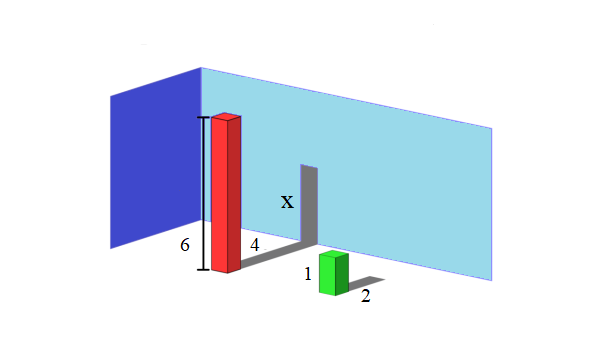

In the image above, the green bar has a height of 1 and casts a shadow of 2 on the floor and the red bar has a height of 6 and casts a shadow of 4 on the floor which continues to a height of x on a parallel to the bars wall. What is the value of x? (Assume that the light source is distant, the floors and walls are perfectly flat, and the floor is perpendicular to the bars and walls)
A. 1.5
B. 2
C. 2.5
D. 3
E. 4
In the image above, the green bar has a height of 1 and casts a shadow of 2 on the floor and the red bar has a height of 6 and casts a shadow of 4 on the floor which continues to a height of x on a parallel to the bars wall. What is the value of x? (Assume that the light source is distant, the floors and walls are perfectly flat, and the floor is perpendicular to the bars and walls)
A. 1.5
B. 2
C. 2.5
D. 3
E. 4
M37-102
Attachment:
Experience GMAT Club Test Questions
Yes, you've landed on a GMAT Club Tests question
Craving more? Unlock our full suite of GMAT Club Tests here
Want to experience more? Get a taste of our tests with our free trial today
Rise to the challenge with GMAT Club Tests. Happy practicing!
09 Dec 2021, 03:35
Kudos
Bookmarks
Official Solution:
In the image above, the green bar has a height of 1 and casts a shadow of 2 on the floor and the red bar has a height of 6 and casts a shadow of 4 on the floor which continues to a height of \(x\) on a parallel to the bars wall. What is the value of \(x\)? (Assume that the light source is distant, the floors and walls are perfectly flat, and the floor is perpendicular to the bars and walls)
A. \(1.5\)
B. \(2\)
C. \(2.5\)
D. \(3\)
E. \(4\)

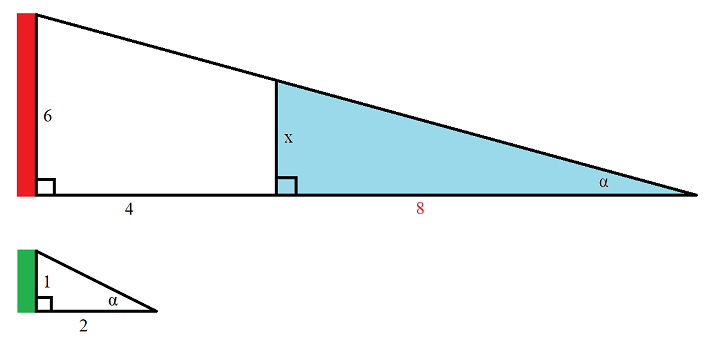

Consider the side view of the figure:
Notice that the rays of light should make the same angle \(α\) at the ground. So, all three angles in two triangles shown are equal to each other, which makes these triangles similar. The ratio of the base to the height of the bottom triangle is \(2:1\), hence ratio of the base to the height of the top triangle must also be \(2:1\). So, the base of the top triangle is \(6*2=12\) (this means that if there were no wall, the red bar would cast a shadow of 12). In this case the base of the little blue triangle at the top is \(12-4=8\).
Now, consider the top triangle. The entire top triangle is similar to its part on the right (little blue triangle) so again since the ratio of the base to the height of entire top triangle is \(2:1\), hence ratio of the base to the height (\(x\)) of the little blue triangle must also be \(2:1\). So, the height (\(x\)) of the little blue triangle \(8:2=4\)
Answer: E
In the image above, the green bar has a height of 1 and casts a shadow of 2 on the floor and the red bar has a height of 6 and casts a shadow of 4 on the floor which continues to a height of \(x\) on a parallel to the bars wall. What is the value of \(x\)? (Assume that the light source is distant, the floors and walls are perfectly flat, and the floor is perpendicular to the bars and walls)
A. \(1.5\)
B. \(2\)
C. \(2.5\)
D. \(3\)
E. \(4\)
Consider the side view of the figure:
Notice that the rays of light should make the same angle \(α\) at the ground. So, all three angles in two triangles shown are equal to each other, which makes these triangles similar. The ratio of the base to the height of the bottom triangle is \(2:1\), hence ratio of the base to the height of the top triangle must also be \(2:1\). So, the base of the top triangle is \(6*2=12\) (this means that if there were no wall, the red bar would cast a shadow of 12). In this case the base of the little blue triangle at the top is \(12-4=8\).
Now, consider the top triangle. The entire top triangle is similar to its part on the right (little blue triangle) so again since the ratio of the base to the height of entire top triangle is \(2:1\), hence ratio of the base to the height (\(x\)) of the little blue triangle must also be \(2:1\). So, the height (\(x\)) of the little blue triangle \(8:2=4\)
Answer: E
General Discussion
16 Dec 2020, 19:34
Kudos
Bookmarks
In the image above, the green bar has a height of 1 and casts a shadow of 2 on the floor and the red bar has a height of 6 and casts a shadow of 4 on the floor which continues to a height of x on a parallel to the bars wall. What is the value of x? (Assume that the light source is distant, the floors and walls are perfectly flat, and the floor is perpendicular to the bars and walls)
A. 1.5
B. 2
C. 2.5
D. 3
E. 4
In general, Length of shadow : Height of the bar = 2 : 1, according to the example of the green bar.

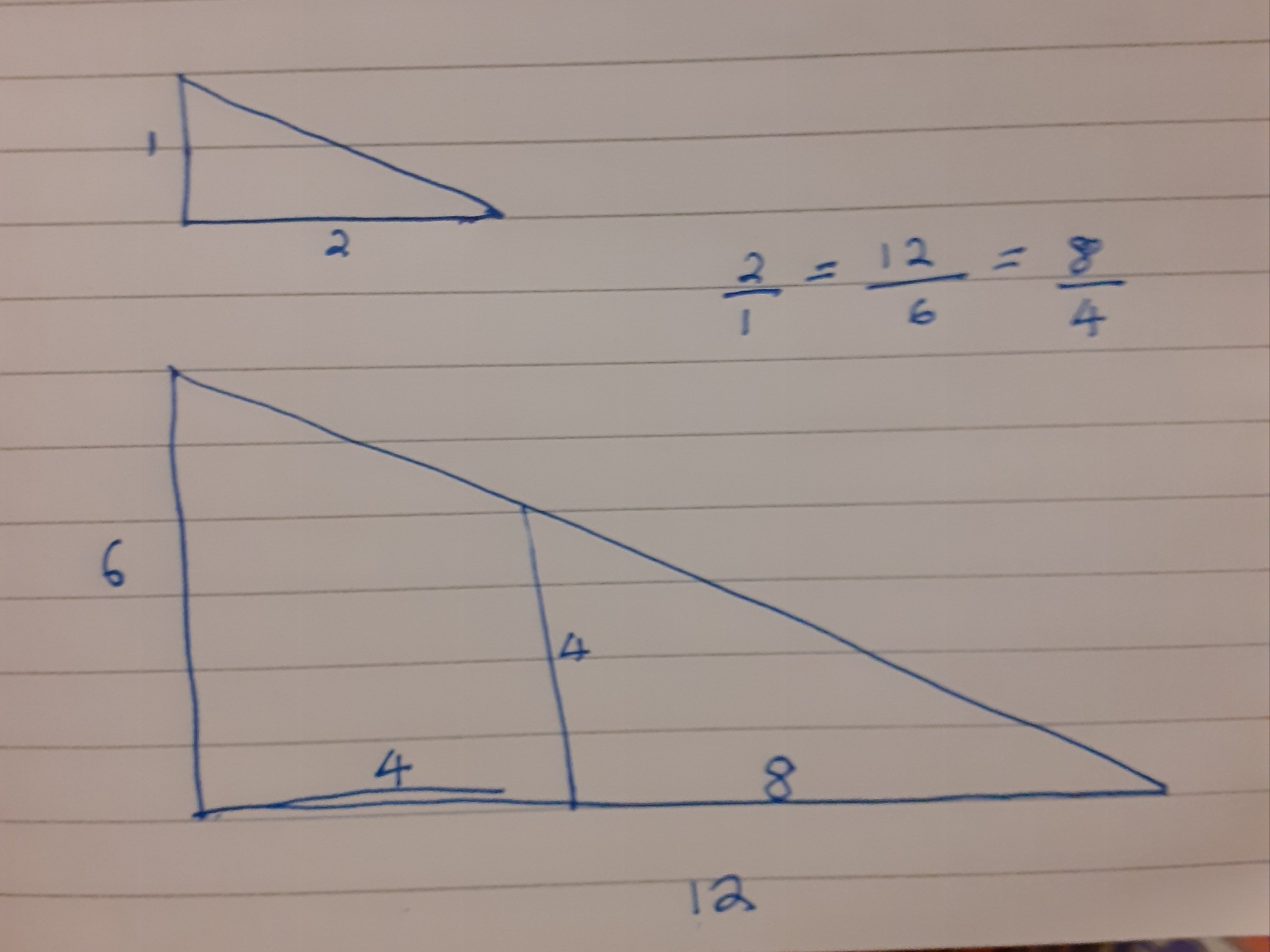

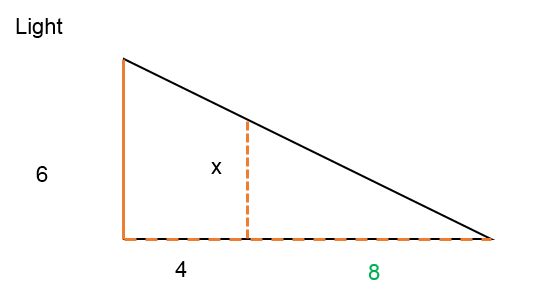

If there is no wall, then the red bar will cast a shadow of 12. But there is a wall, then let see the picture as attached8 : 2 =
--> x : 8 = 1 : 2 --> x = 8 : 2 = 4
--> Correct answer: E
Attachments
no.1.PNG [ 5.53 KiB | Viewed 4978 times ]
