In ∆ ABC above, AB = BC, and CD bisects angle C. If y = x/3, then z =

Question

https://gmatclub.com/forum/download/file.php?id=37011 In ∆ ABC above, AB = BC, and CD bisects angle C. If y = x/3, then z = (A) 40 (B) 60 (C) 64 (D) 72 (E) 80 2017-08-18_1027_001.png

Luckisnoexcuse · Answer

angle BAC = angle BCA = z
angle BCD = angle DCA = z/2
in triangle ADC
180 = x+z+z/2 = x+3z/2.....(i)
in triangle BDC
180 = 180-x+y+z/2
x-y-z/2=0...........................(ii)
in triangle ABC
180=z+z+y
180=2z+y..........................(iii)

we know y=x/3
x=3y
2y=z/2
4y=z

2z+y=180
2z+z/4=180
9z/4=180
z=80, y=20 and x=60
E

generis · Answer

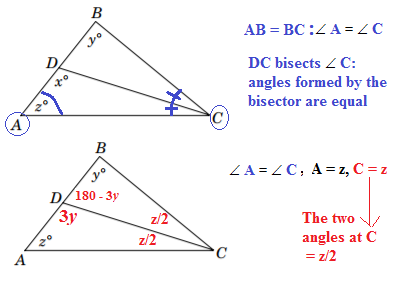

ABCxyztriangle.png Derivation of figure's annotations: AB = BC: ∠ A = ∠ C CD bisects ∠ C: two angles formed by the bisector are equal ∠ A = ∠ C, and ∠ A = z . So ∠ C = z Angles at ∠ C formed by bisector = z/2 Isolate one variable: 1) Given: y = \frac{x}{3} . x = 3y x shows up in the figure only once; replace it with 3y in figure 2 ∠ BDC and 3y are on a straight line. ∠ BDC = (180 - 3y) 2) All three triangles' angles measures now are expressed in terms of y and z. Find one variable in terms of the other. ∆ ABC: 2z + y = 180 ∆ ADC: z + \frac{z}{2} + 3y = 180 ∆ BDC: y + (180 - 3y) + \frac{z}{2} = 180 3) Use ∆ BDC first: with 180 on both sides of the equation, RHS will = 0. That's a good start. y + (180 - 3y) + \frac{z}{2} = 180 y + 180 - 3y + \frac{z}{2} = 180 -2y + \frac{z}{2}= 0 \frac{z}{2} = 2y , z = 4y 4) Find y , where z = 4y . ∆ ABC is simplest for substitution 2z + y = 180 2(4y) + y = 180 9y = 180 y = 20 5) If y = 20 , from z = 4y , z = 80 Answer E

PranayBudime · Answer

Given that AB=BC,
Therefore Angle C = Angle A = z
Also, CD is the angular bisector for angle C, so Angle BCD = Angle ACD = z/2
and y= x/3

As we know Angle ADC+ Angle BDC = 180 (Straight angle)
x+Angle BDC =180
Angle BDC = 180-x

Now that we have all angles
Solve for Z using sum of angles property in triangles ADC and BDC
In ADC,  z+x+z/2 =180
=>  x+3z/2 =180  --(1)

In BDC,  x/3+180-x+z/2=180
=>  z/2 =2x/3
=>  x =3z/4  --(2)
use value of x from (2) in (1)
 3z/4 + 3z/2 = 180
Therefore z=80

Ans: E

shivam2506 · Answer

In ∆ ABC z+y+c=180 or 2z+y=180 as AB=BC so z=c (Iso. triangle). So we can write it as 12z+2x=1080.....(1)

In ∆ ADC, z+x+c/2 = 180 or 3z+2x=360......(2)

Solving 1 & 2 we get z=80, So IMO "E" is correct answer.

Jsound996 · Answer

For these type of questions, I like to derive the equations so I can isolate the variable of choice, which is Z
From the Information above, we know that AB = BC, which means that ∠BAC = ∠BCA
∠BAC = Z, then ∠BCA = Z

∠ABC +∠BAC +∠BCA =180, or Y+Z+Z=180  Equation 1

Now look at Triangle △ADC
∠ADC is equal to x, or 3y, and ∠DCA is equal to 0.5z because Line CD bisects the triangle, which means it divides ∠BCA by 2.

∠ADC+∠DAC+∠DCA = 180
3Y+Z+0.5Z=180  Equation 2

Now that we have 2 unique equations, we can isolate Z and solve it.
Z = 80

ScottTargetTestPrep · Answer

First, we see that angle CDB is (180 - x), so angle BCD is:

180 - y - (180 - x) = x - y

Since y = x/3, we can substitute this for y, obtaining x - x/3 = 2x/3 for angle CDB

Since angle C is bisected, by CD, we know that angle ACD is also 2x/3.

Thus, angle C is 4x/3, which is also equal to z (because triangle ABC is isosceles).

So, finally, we have:

4x/3 + 4x/3 + x/3 = 180

9x/3 = 180

3x = 180

x = 60

Recall that 4x/3 equals angle z; thus z = 4(60)/3 = 4*20 = 80.

Answer: E

dkilroy · Answer

I have not done geometry in a while, so this took me about 10 minutes, but I got the right answer thinking it through and remembering some basic concepts. IMPORTANT: It is helpful to use x=3y instead of y=x/3! Kudos to all the correct solutions!

CEdward · Answer

Let this be a lesson that one algebra mistake can ruin it all...Took a colossal 9 minutes for a very straightforward question. This is all algebra.

y + 2z = 180 (Since we know that AB = BC) --> x/y + 2z = 180

For the smaller triangle:

x + z + z/2 = 180 --> 2z + z + 2x = 360 --> 3z + 2z = 360 --> 2x = 360 - 3x --> x = 180 - 3z/2 --> x = 360 - 3z/2

y = x/3 = 1/3 x (360 - 3z/2) = 360 - 3z/2 (plug this into the equation above)

360 - 3z/6 + 2z = 180 --> z = 80

E.

ThatDudeKnows · Answer

The two previous responses in this thread mention taking 10 minutes and 9 minutes to solve this. Yikes!! If you find yourself knowing right out of the gate that your scratch paper is going to look like alphabet soup, maybe try a different way! How about rather than doing a bunch of algebra, we just Plug In The Answers (PITA)?

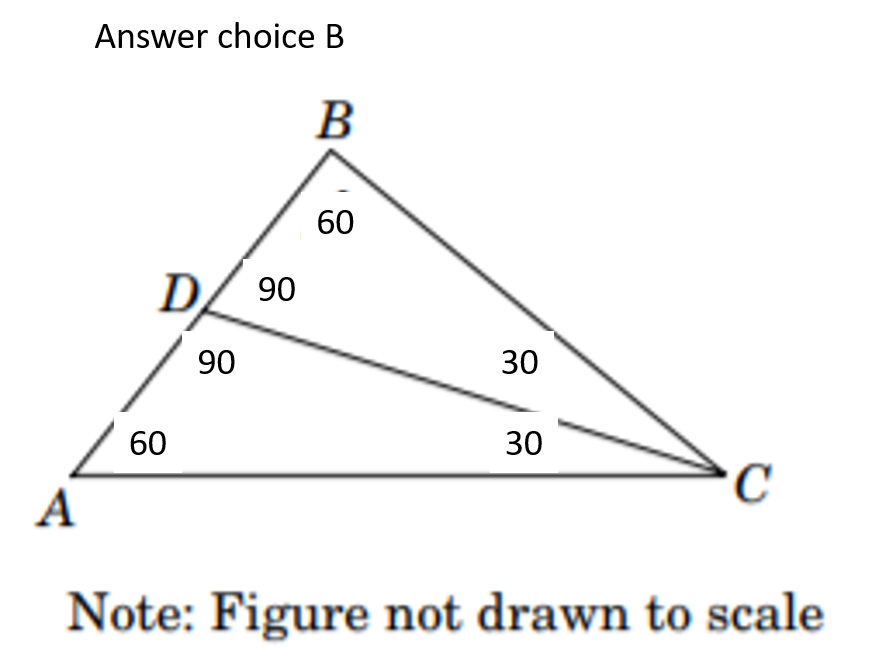

B looks easy to work with. Let's try that (see diagram). Since AB=BC, z = the two angles at C combined. Answer choice B makes z=60. The two angles at C are both 30. x is 90. The supplementary angle at x is 90. That makes y=60. Does that fit for y=x/3? 60=(90/3)? Nope. B is wrong.

That only took a few seconds, so at this point I'd probably just try one of the other answer choices, likely A or E. Either way, by the time we try E, it's going to add up to maybe around a minute. Sure beats 9 or 10 minutes!!

If you get good at PITA, you'd only need to test D once you've already tried B. D gets us closer to where we want to go, but still not quite there. So it would have to be E.

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
