Three identical circles are drawn in a rectangle as shown above. If th

SORT BY:
Date
Kudos
Tags:
Find Similar Topics
Show Tags
Hide Tags
User avatar
L
Bunuel
Math Expert
Joined: 02 Sep 2009
Posts: 92900
Own Kudos [?]: 618811 [4]
Given Kudos: 81588
Send PM
CAT Tests Forum Quiz Mode
Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   19 Jun 2020, 04:07
4
Bookmarks
Expert Reply
00:00
A
B
C
D
E

Difficulty:

15% (low)

Question Stats:

83% (02:09) correct 17% (03:24) wrong based on 71 sessions
Hide Show timer Statistics

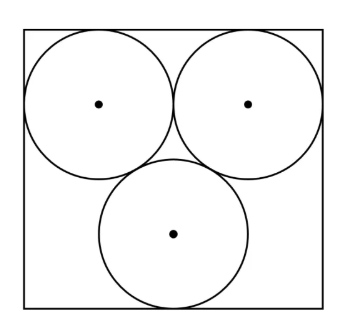

Three identical circles are drawn in a rectangle as shown above. If the radius of each circle is 1, what is the area of the rectangle?


A. \(8+\sqrt{3}\)

B. \(8+2\sqrt{3}\)

C. \(8+3\sqrt{3}\)

D. \(8+4\sqrt{3}\)

E. \(8+5\sqrt{3}\)


Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS


Are You Up For the Challenge: 700 Level Questions

Show Spoiler
Attachment:
2020-06-19_1504.png [ 20.12 KiB | Viewed 3244 times ]
ShowHide Answer
Official Answer
D
Most Helpful Reply
User avatar
L
nick1816
Retired Moderator
Joined: 19 Oct 2018
Posts: 1878
Own Kudos [?]: 6296 [5]
Given Kudos: 704
Location: India
Send PM
Re: Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   19 Jun 2020, 04:29
4
Kudos
1
Bookmarks

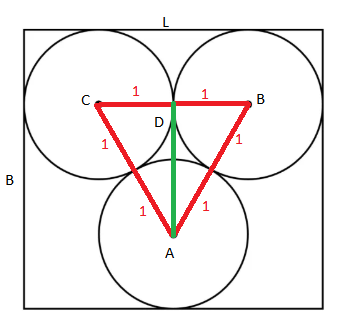

Attachment:
2020-06-19_1504.png [ 21.34 KiB | Viewed 3061 times ]

L =1+1+1+1 = 4

B = AD +1+1

\(AD = \sqrt{2^2-1^2}\) = √3

B =√3+2

L*B = 4*(√3+2) = 4√3+8
General Discussion
User avatar
L
yashikaaggarwal
Senior Moderator - Masters Forum
Joined: 19 Jan 2020
Posts: 3137
Own Kudos [?]: 2769 [3]
Given Kudos: 1510
Location: India
Schools: Cranfield (A) Warwick MiM "23 (M)
GPA: 4
WE:Analyst (Internet and New Media)
Send PM
Re: Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   19 Jun 2020, 04:17
3
Kudos
Connect radius of circles,
Resulting an equilateral triangle of side 2
The height of equilateral triangle = (Side/2)*√3
Height = 2/2*√3
Height = √3
Height or breadth of rectangle= height of equilateral+2*radius.
=> 2+√3
Length of rectangle = 4*radius
=> 4*1 => 4

Area of rectangle = 4*(2+√3)
=> 8+4√3

Answer is D

Posted from my mobile device
User avatar
G
Shrey08
Manager
Manager
Joined: 04 Mar 2020
Posts: 135
Own Kudos [?]: 129 [1]
Given Kudos: 304
Location: India
GMAT 1: 640 Q47 V30
Send PM
Re: Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   19 Jun 2020, 04:46
1
Kudos
Option D

Let's denote the center of each circle as A, B, and C starting from top left and moving clockwise.
Draw a straight line passing through centers A and B. This is gives us the one side of the rectangle. which is nothing but 4 times the radius. lets call it S1= 4.

Notice that the centers A B and C form an equilateral triangle with side 2.
drop a perpendicular from C on line AB. Lets say it meets at point O

for the triangle AOC
AC = 2; AO=1 and OC = \(\sqrt{3}\) (using Pythagorean theorem)

using these we can find the other side on rectangle \(S2= \sqrt{3} + 1 + 1\)

S2 = 2+ \(\sqrt{3}\)

Area = S1*S2

\(4*(2+\sqrt{3})\)
\(8+4\sqrt{3}\)
User avatar
G
sambitspm
Senior Manager
Senior Manager
Joined: 05 Aug 2019
Posts: 317
Own Kudos [?]: 279 [1]
Given Kudos: 130
Location: India
Concentration: Leadership, Technology
GMAT 1: 600 Q50 V22
GMAT 2: 670 Q50 V28 (Online)
GPA: 4
Send PM
Re: Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   20 Jun 2020, 11:45
1
Kudos

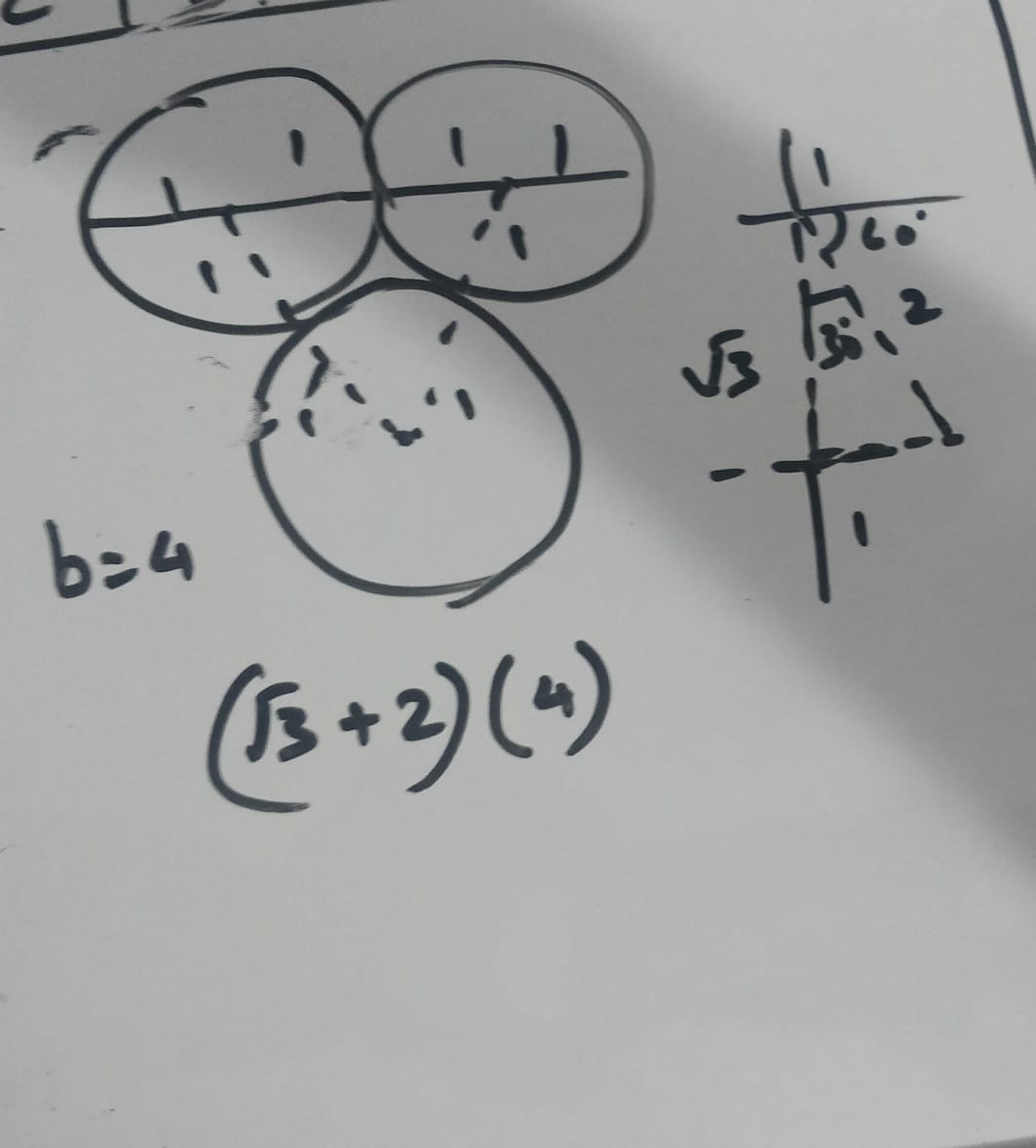

Kindly see the attachment.

width = b
The length is calculated in the right side.
D
Attachments

1.jpeg [ 51.62 KiB | Viewed 2844 times ]

User avatar
bumpbot
Non-Human User
Joined: 09 Sep 2013
Posts: 32655
Own Kudos [?]: 821 [0]
Given Kudos: 0
Send PM
Re: Three identical circles are drawn in a rectangle as shown above. If th [#permalink] New post   22 Jan 2022, 13:22
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
