Bunuel

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?

A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4




Note that as BE=DE the triangles BCE and CDE are congruent (all three sides are equal) --> \(\angle{BCE}=\angle{DCE}\). So if we extend the line segment CE it will meet with the crosspoint of the diagonals, let's call it point O. Also note that EO will be perpendicular to BD, as diagonals in square make a right angle.

(The area of BCE) = (The area of BOE) - (The area of BOC).

Area of BOC is one fourth of the square's =\(\frac{1}{4}\).

Area BOE, \(\frac{1}{2}*BO*EO\). \(BO=\frac{\sqrt{2}}{2}\), half of the diagonal of a square. \(EO=CE+CO=1+\frac{\sqrt{2}}{2}=\frac{2+\sqrt{2}}{2}\), CO is also half of the diagonal of a square.

So \(AreaBOE=\frac{1}{2}*BO*EO=\frac{1}{2}*\frac{\sqrt{2}}{2}*\frac{2+\sqrt{2}}{2}=\frac{\sqrt{2}+1}{4}\).

Area \(BCE=BOE-BOC=\frac{\sqrt{2}+1}{4}-\frac{1}{4}=\frac{\sqrt{2}}{4}\)

Answer: B.

Attachment:
Square ABCD.JPG






Hi Bunuel,

Please, can you explain this in lame terms as to how the area of BOC is one forth and the diagonal part?


Is there any other way to solve it?
User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 02 May 2026
Posts: 110,017
Own Kudos:
Given Kudos: 105,989
Products:
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 110,017
Kudos: 812,522
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Shef08
Bunuel

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?

A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4




Note that as BE=DE the triangles BCE and CDE are congruent (all three sides are equal) --> \(\angle{BCE}=\angle{DCE}\). So if we extend the line segment CE it will meet with the crosspoint of the diagonals, let's call it point O. Also note that EO will be perpendicular to BD, as diagonals in square make a right angle.

(The area of BCE) = (The area of BOE) - (The area of BOC).

Area of BOC is one fourth of the square's =\(\frac{1}{4}\).

Area BOE, \(\frac{1}{2}*BO*EO\). \(BO=\frac{\sqrt{2}}{2}\), half of the diagonal of a square. \(EO=CE+CO=1+\frac{\sqrt{2}}{2}=\frac{2+\sqrt{2}}{2}\), CO is also half of the diagonal of a square.

So \(AreaBOE=\frac{1}{2}*BO*EO=\frac{1}{2}*\frac{\sqrt{2}}{2}*\frac{2+\sqrt{2}}{2}=\frac{\sqrt{2}+1}{4}\).

Area \(BCE=BOE-BOC=\frac{\sqrt{2}+1}{4}-\frac{1}{4}=\frac{\sqrt{2}}{4}\)


Answer: B.

Attachment:
The attachment Square ABCD.JPG is no longer available






Hi Bunuel,

Please, can you explain this in lame terms as to how the area of BOC is one forth and the diagonal part?


Is there any other way to solve it?

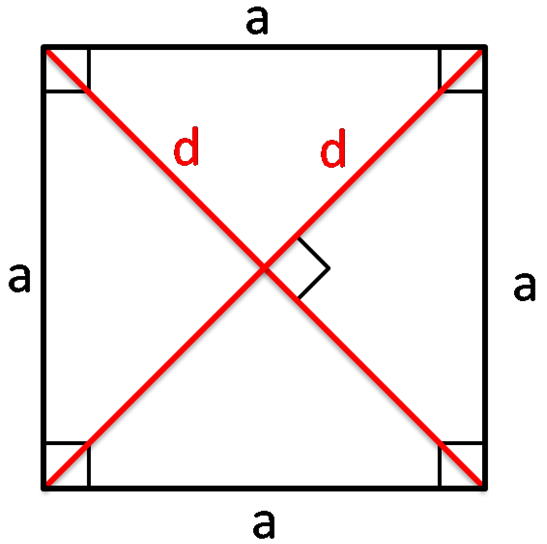

Diagonals of a square are perpendicular bisectors of each other. That is, they cut each other in half and at 90 degrees. As you can see above diagonals of a square cut the square into four equal parts.

For other solutions please check the discussion. There are many different solutions there.

Attachment:
Untitled.png [ 27.17 KiB | Viewed 9256 times ]
User avatar
Manas1212
Joined: 31 Jul 2017
Last visit: 10 Aug 2019
Posts: 68
Own Kudos:
Given Kudos: 474
Location: India
Posts: 68
Kudos: 116
Kudos
Add Kudos
Bookmarks
Bookmark this Post
singh_amit19

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?


A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4


Attachment:
The attachment squareabcd.jpg is no longer available


Hi Bunuel,

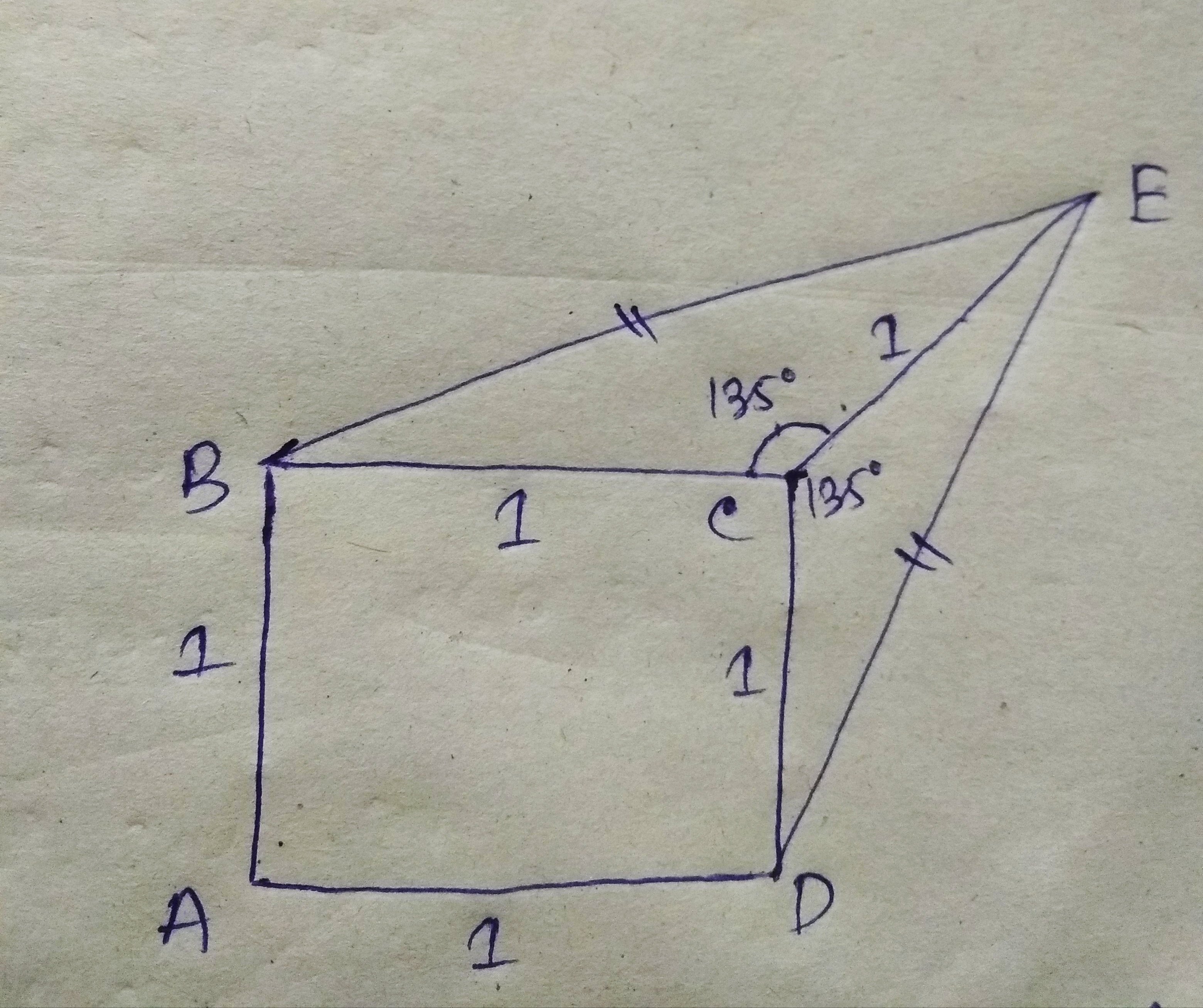

I tried solving this problem in the following way.

\(\triangle\) BCD and \(\triangle\) CDE are similar triangles (Side-Side-Side)

So \(\angle\) DCE =\(\angle\) BCE

\(\angle\)DCE+\(\angle\)BCE=360-90= 270 degrees

So \(\angle\) DCE=\(\angle\)BCE =135 degree

Area of any triangle = 1/2 ab sin (angle between the sides)
= 1/2 *1 * 1 Sin(90+45)
=\(\frac{1}{2\sqrt[]{2}}\)
=\(\frac{\sqrt{2}}{4}\)

This way of solving would eliminate drawing extra sides in the figure. i hope you find this helpful.
Attachments

IMG_20190316_182755.jpg [ 2.21 MiB | Viewed 8923 times ]

User avatar
energetics
Joined: 05 Feb 2018
Last visit: 09 Oct 2020
Posts: 294
Own Kudos:
Given Kudos: 325
Posts: 294
Kudos: 975
Kudos
Add Kudos
Bookmarks
Bookmark this Post
~45 SECOND "SOLUTION"
I estimated the height of triangle BCE by using my pen after measuring the side square ABCE. I estimated BCE height to be 3/4 as ABCE side length was 1.
So b*h/2 ... (1*3/4) / 2 = 3/8 = .375

Looking at answers starting with C) which is .5, we need something smaller.
Trying B) √2/4 = 1.4/4 = .7/2 = .35
Trying A) 1/3 = .33
Between these two, B) is closer to .375 so I picked it.

It's not foolproof but it's the best method for Geometry when you're running low on time and not seeing a quick solution, imo.
User avatar
dcummins
Joined: 14 Feb 2017
Last visit: 16 Mar 2026
Posts: 1,021
Own Kudos:
Given Kudos: 368
Location: Australia
Concentration: Technology, Strategy
GMAT 1: 560 Q41 V26
GMAT 2: 550 Q43 V23
GMAT 3: 650 Q47 V33
GMAT 4: 650 Q44 V36
GMAT 5: 600 Q38 V35
GMAT 6: 710 Q47 V41
WE:Management Consulting (Consulting)
Products:
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Do we seriously always assume 2D figures????

Holy cow... i've only realised this now... this would have made my life so much easier!
avatar
Amlu95
Joined: 21 Apr 2019
Last visit: 26 Nov 2020
Posts: 30
Own Kudos:
Given Kudos: 27
Location: India
GMAT 1: 640 Q41 V37
GMAT 1: 640 Q41 V37
Posts: 30
Kudos: 15
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Hey, I dont understand this part of Bunnel's explanation.

I too tried to find the area of the two triangles and subtract them. But I got lost in the calculations to find the actual height.

12∗BO∗EO12∗BO∗EO . BO=2√2
avatar
NiravUmaretiya
Joined: 03 Feb 2020
Last visit: 22 May 2021
Posts: 11
Own Kudos:
5
 [1]
Given Kudos: 22
Posts: 11
Kudos: 5
 [1]
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Since ⧠ABCD is a square, internal ∠BCD is 90
Thus, external ∠BCD is 270 (… … 360-90=270)

Now segment CE is an angle bisector for external ∠BCD (… … BE=DE)
Thus, ∠BCE = 135 (… … 270/2 = 135)

Now, Extending segment BC and EF to make a right angle triangle
so ∠CFE = 90

Because, ∠BCE = 135, ∠ECF = 45 (… … 180 – 135 = 45)
This make △CEF an isosceles right angle triangle.

So, CF:FE:EC = 1:1:√2
Now, we know, that CE=1
Thus, CF=FE= 1/√2

With this, we have height of the △BCF = 1/√2
And given is the base of the △BCF = 1

So Area of △BCE = ½ * (Base) * (Height)
= ½ * 1 * 1/√2
=1/2√2
=√2/4

Ans:B

Attachments

Q1.JPG [ 17 KiB | Viewed 8159 times ]

avatar
jimmyvithalani
Joined: 20 Jan 2020
Last visit: 16 Sep 2020
Posts: 19
Own Kudos:
Given Kudos: 16
Posts: 19
Kudos: 6
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Hi,

I tried to find the length of CO considering COD as a right triangle.
so \(CD^2\) = \(CO^2\) + \(OD^2\)

Because CO = OD, then

\(CD^2\) = \(CO^2\) + \(CO^2\)
\(CD^2\) = 2(\(CO^2\))
\(1^2\) = 2(\(CO^2\))
\(\frac{1}{2}\) = \(CO^2\)
\(\sqrt{\frac{1}{2}}\) = CO

But this does not match with the actual CO length of \(\frac{\sqrt{2}}{2}\)

Can someone please explain what silly mistake I am making?
Thanks.
User avatar
IloveMBA123
Joined: 22 Jul 2019
Last visit: 22 Mar 2024
Posts: 61
Own Kudos:
12
 [1]
Given Kudos: 38
Posts: 61
Kudos: 12
 [1]
Kudos
Add Kudos
Bookmarks
Bookmark this Post
ALthough i answered correctly by taking a bold guess; assuming the BED is an equilateral triangle

How to answer the question without knowing the length of AE?

We know CE =1 and BE =DE; However, AE is not given.

AE can be longer or shorter than 1cm and <EBD or <EDB is not necessary 60%
User avatar
hemantbafna
Joined: 30 Jan 2020
Last visit: 02 Mar 2021
Posts: 162
Own Kudos:
Given Kudos: 527
Location: India
WE:Accounting (Accounting)
Posts: 162
Kudos: 90
Kudos
Add Kudos
Bookmarks
Bookmark this Post
singh_amit19

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?


A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4

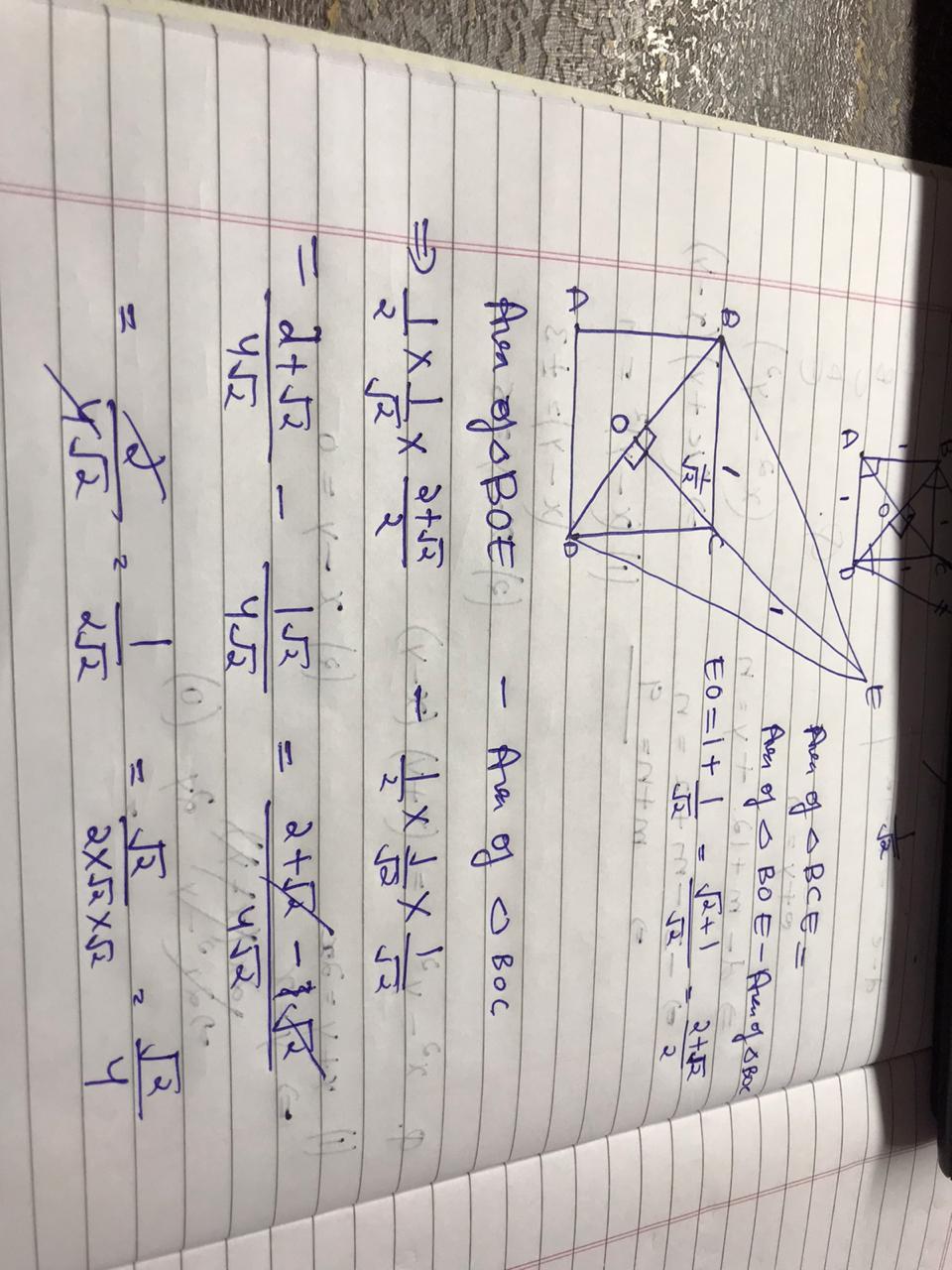

Please find attached the explanation for the question.



Attachment:
The attachment squareabcd.jpg is no longer available

Attachments

WhatsApp Image 2020-07-13 at 2.30.30 PM.jpeg
WhatsApp Image 2020-07-13 at 2.30.30 PM.jpeg [ 146.2 KiB | Viewed 7728 times ]

User avatar
KevinMaloneSr
Joined: 26 Nov 2019
Last visit: 03 Jun 2022
Posts: 31
Own Kudos:
Given Kudos: 509
Location: India
Posts: 31
Kudos: 24
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?

A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4




Note that as BE=DE the triangles BCE and CDE are congruent (all three sides are equal) --> \(\angle{BCE}=\angle{DCE}\). So if we extend the line segment CE it will meet with the crosspoint of the diagonals, let's call it point O. Also note that EO will be perpendicular to BD, as diagonals in square make a right angle.

(The area of BCE) = (The area of BOE) - (The area of BOC).

Area of BOC is one fourth of the square's =\(\frac{1}{4}\).

Area BOE, \(\frac{1}{2}*BO*EO\). \(BO=\frac{\sqrt{2}}{2}\), half of the diagonal of a square. \(EO=CE+CO=1+\frac{\sqrt{2}}{2}=\frac{2+\sqrt{2}}{2}\), CO is also half of the diagonal of a square.

So \(AreaBOE=\frac{1}{2}*BO*EO=\frac{1}{2}*\frac{\sqrt{2}}{2}*\frac{2+\sqrt{2}}{2}=\frac{\sqrt{2}+1}{4}\).

Area \(BCE=BOE-BOC=\frac{\sqrt{2}+1}{4}-\frac{1}{4}=\frac{\sqrt{2}}{4}\)

Answer: B.

Attachment:
Square ABCD.JPG

Hey Bunuel - how is CE=1?
User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 02 May 2026
Posts: 110,017
Own Kudos:
Given Kudos: 105,989
Products:
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 110,017
Kudos: 812,522
Kudos
Add Kudos
Bookmarks
Bookmark this Post
KevinMaloneSr
Bunuel

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?

A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4




Note that as BE=DE the triangles BCE and CDE are congruent (all three sides are equal) --> \(\angle{BCE}=\angle{DCE}\). So if we extend the line segment CE it will meet with the crosspoint of the diagonals, let's call it point O. Also note that EO will be perpendicular to BD, as diagonals in square make a right angle.

(The area of BCE) = (The area of BOE) - (The area of BOC).

Area of BOC is one fourth of the square's =\(\frac{1}{4}\).

Area BOE, \(\frac{1}{2}*BO*EO\). \(BO=\frac{\sqrt{2}}{2}\), half of the diagonal of a square. \(EO=CE+CO=1+\frac{\sqrt{2}}{2}=\frac{2+\sqrt{2}}{2}\), CO is also half of the diagonal of a square.

So \(AreaBOE=\frac{1}{2}*BO*EO=\frac{1}{2}*\frac{\sqrt{2}}{2}*\frac{2+\sqrt{2}}{2}=\frac{\sqrt{2}+1}{4}\).

Area \(BCE=BOE-BOC=\frac{\sqrt{2}+1}{4}-\frac{1}{4}=\frac{\sqrt{2}}{4}\)

Answer: B.

Attachment:
Square ABCD.JPG

Hey Bunuel - how is CE=1?

It's given in the stem. Check the highlighted part above.
User avatar
KevinMaloneSr
Joined: 26 Nov 2019
Last visit: 03 Jun 2022
Posts: 31
Own Kudos:
Given Kudos: 509
Location: India
Posts: 31
Kudos: 24
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel
KevinMaloneSr
Bunuel

In the figure, each side of square ABCD has length 1, the length of line Segment CE is 1, and the length of line segment BE is equal to the length of line segment DE. What is the area of the triangular region BCE?

A. 1/3

B. \(\frac{\sqrt{2}}{4}\)

C. 1/2

D. \(\frac{\sqrt{2}}{2}\)

E. 3/4




Note that as BE=DE the triangles BCE and CDE are congruent (all three sides are equal) --> \(\angle{BCE}=\angle{DCE}\). So if we extend the line segment CE it will meet with the crosspoint of the diagonals, let's call it point O. Also note that EO will be perpendicular to BD, as diagonals in square make a right angle.

(The area of BCE) = (The area of BOE) - (The area of BOC).

Area of BOC is one fourth of the square's =\(\frac{1}{4}\).

Area BOE, \(\frac{1}{2}*BO*EO\). \(BO=\frac{\sqrt{2}}{2}\), half of the diagonal of a square. \(EO=CE+CO=1+\frac{\sqrt{2}}{2}=\frac{2+\sqrt{2}}{2}\), CO is also half of the diagonal of a square.

So \(AreaBOE=\frac{1}{2}*BO*EO=\frac{1}{2}*\frac{\sqrt{2}}{2}*\frac{2+\sqrt{2}}{2}=\frac{\sqrt{2}+1}{4}\).

Area \(BCE=BOE-BOC=\frac{\sqrt{2}+1}{4}-\frac{1}{4}=\frac{\sqrt{2}}{4}\)

Answer: B.

Attachment:
Square ABCD.JPG

Hey Bunuel - how is CE=1?

It's given in the stem. Check the highlighted part above.

Wow- I am sorry for wasting your time... Bunuel

Posted from my mobile device
avatar
Gaurav25993
Joined: 07 Sep 2019
Last visit: 12 Dec 2021
Posts: 6
Given Kudos: 40
Posts: 6
Kudos: 0
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Dear Bunnel,

Thank you for your detailed explanation. Cant we assume that it is a cube, i was thinking in that direction while solving the question.

Happy to hear your thoughts.

Regards,
Gaurav
User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 02 May 2026
Posts: 110,017
Own Kudos:
Given Kudos: 105,989
Products:
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 110,017
Kudos: 812,522
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Gaurav25993
Dear Bunnel,

Thank you for your detailed explanation. Cant we assume that it is a cube, i was thinking in that direction while solving the question.

Happy to hear your thoughts.

Regards,
Gaurav

It' a square: In the figure, each side of square ABCD has length 1...
User avatar
Bambi2021
Joined: 13 Mar 2021
Last visit: 23 Dec 2021
Posts: 306
Own Kudos:
Given Kudos: 226
Posts: 306
Kudos: 142
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel
Considering your figure with O as the middle of the square.

I tried to get the length of BO by using BC as hypotenuse. Why is this not possible?

BO = CO -->

BO^2 + BO^2 = 1^2

2*BO^2 = 1^2

BO = (1/2)^0,5 = 1/(2^0,5)

Thanks!
User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 02 May 2026
Posts: 110,017
Own Kudos:
812,522
 [1]
Given Kudos: 105,989
Products:
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 110,017
Kudos: 812,522
 [1]
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bambi2021
Bunuel
Considering your figure with O as the middle of the square.

I tried to get the length of BO by using BC as hypotenuse. Why is this not possible?

BO = CO -->

BO^2 + BO^2 = 1^2

2*BO^2 = 1^2

BO = (1/2)^0,5 = 1/(2^0,5)

Thanks!

That's correct: \(BO=\frac{1}{\sqrt{2}}=\frac{\sqrt{2}}{2}\) (we are getting \(\frac{\sqrt{2}}{2}\) by multiplying \(\frac{1}{\sqrt{2}}\) by \(\frac{\sqrt{2}}{\sqrt{2}}\)).
   1   2   3
Moderators:
Math Expert
110017 posts
Tuck School Moderator
852 posts
