The figure above is formed by two overlapping squares, each having sides of 6 centimeters in length. If P and Q are the midpoints of the intersecting sides, what is the area, in square centimeters, of the enclosed region?
(A) 72
(B) 63
(C) 60
(D) 54
(E) 45
Attachment:
2017-09-27_1107.png [ 2.17 KiB | Viewed 12080 times ]
27 Sep 2017, 07:17
Kudos
Bookmarks
Bunuel
Attachment:

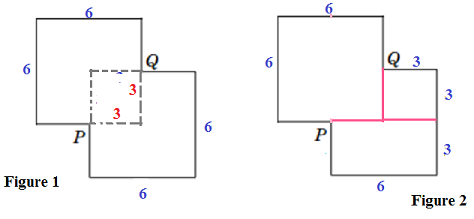

squaresoverlap.png [ 13.32 KiB | Viewed 10719 times ]
Each square has a side of length 6 cm.
P and Q are midpoints.
Thus the sides of the squares are bisected.
In Figure 1, short sides of overlap = \(\frac{6}{2}\)= 3\(cm\)
The area of each square is (6 * 6) = 36 \(cm^2\)
The area of the overlap is (3 * 3) = 9 \(cm^2\)
Area of enclosed region in square centimeters?
Square + Square - Overlap
36 + 36 - 9 = 63
Method II - Divide region into areas. Find and add the areas of each region
See Figure 2: outline different interior areas of the enclosed figure
P and Q , being midpoints, bisect each side of 6 cm into 3 cm each
The short sides of the interior areas are 3 cm. The long sides are 6 cm
Upper left corner, square's area: (6 * 6) = 36 \(cm^2\)
Area of small square: (3*3) = 9 \(cm^2\)
Bottom rectangle's area: (3*6) = 18 \(cm^2\)
Area of enclosed region in square centimeters?
Add regions' areas
36 + 9 + 18 = 63
ANSWER B
27 Sep 2017, 07:26
Kudos
Bookmarks
The figure above is formed by two overlapping squares, each having sides of 6 centimeters in length. If P and Q are the midpoints of the intersecting sides, what is the area, in square centimeters, of the enclosed region?
P and Q are midpoints.
So here 2 squares overlap at the 1/4 part of each square.
So Total Area = Area of each square - Common area = 2* Area of square - 1/4 part of square
= 2*(6*6) - 1/4(6*6) = 72-9 = 63
Or we can say Area of overlapped part = square of side 3 => Area = 3*3 =9
So area of given figuer = Area of each square - Common area = 2*(6*6) -9 = 63
Answer: B
P and Q are midpoints.
So here 2 squares overlap at the 1/4 part of each square.
So Total Area = Area of each square - Common area = 2* Area of square - 1/4 part of square
= 2*(6*6) - 1/4(6*6) = 72-9 = 63
Or we can say Area of overlapped part = square of side 3 => Area = 3*3 =9
So area of given figuer = Area of each square - Common area = 2*(6*6) -9 = 63
Answer: B
