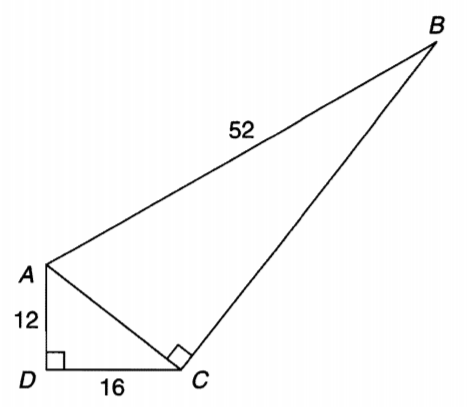

What is the area of quadrilateral ABCD shown?

Question

https://gmatclub.com/forum/download/file.php?id=58586 What is the area of quadrilateral ABCD shown? A. 480 B. 525 C. 550 D. 576 E. 1152 Project PS Butler Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS 2020-10-27_12-24-45.png

Sr1994 · Answer

Area of quadrilateral ABCD = Area of Triangle ADC + Area of Triangle ABC

We need to find the hypotenuse of the triangle ADC.

AC^2  =  16^2  +  12^2
= 256 + 144
= 400
 AC = 20

Area of triangle ADC =  \frac{1}{2}  * 16 * 12
 Area of triangle ADC = 96

Area of triangle ABC. Here, we have to find the base length, BC.
We already know AC = 20

52^2  =  20^2  +  BC^2
 BC^2  =  52^2  -  20^2
 BC = 48

Area of triangle ABC =  \frac{1}{2}  * 48 * 20
 Area of triangle ABC = 480

Therefore, total area = 480 + 96
 total area = 576

Answer D

Abhishek009 · Answer

Both  △ ADC  and  △ ACB  are right angled triangle...

△ ADC  is a expanded form of  3 - 4 - 5  triangle , So,  AC = 20

So,  BC = \sqrt{52^2 - 20^2}=48

Thus, Area of the figure is  \frac{1}{2}*12*16 + \frac{1}{2}*20*48 = 96 + 480 = 576 , Answer must be (D)

IanStewart · Answer

The small triangle, with legs of length 12 and 16, is just four times as big as a 3-4-5 triangle. So its hypotenuse is 20. The triangle at the top is four times as big as a 5-12-13 triangle, so the missing side (BC) is 48. Now we can just add the areas of the two triangles, or you can just use units digits: the triangle with sides 20 and 48 will have an area ending in zero, and the triangle at the bottom has an area of (12)(16)/2 = 6*16, which ends in 6, so the answer will end in 6, and must be D.

winterschool · Answer

AC = (12^2 + 16^2)^1/2 = 20

BC = (52^2 - 20^2)^1/2 = 48

area of ABCD = 16*12/2 + 20*48/2 = 96 + 480 = 576

Answer D

ceanma · Answer

Is there a quick way to calculate this equation?

petrichor · Answer

this is one way ( not sure if its the quickest )

\sqrt{52^2 - 20^2}
=>  \sqrt{(52+20)(52-20)}
=>  \sqrt{72*32}

taking the nearest perfect squares,  \sqrt{72}=8  and  \sqrt{32}=6

so approximately,  \sqrt{72*32}= 8*6 = 48

jhavyom · Answer

Traingle ADC is a right angled triangled which is right angled at B
The sides of the triangle forms pythogorean triplets.

AD = 12, DC = 16, therefore AC = 20

Traingle ABC is a right angled triangled which is right angled at C
The sides of the triangle forms pythogorean triplets.

AC = 20, AB = 52, therefore BC = 48

Area ABCD = Area ABC + Area ADC
= (1/2)*20*48 + (1/2)*12*16
= 480 + 96
= 576

chetan2u · Answer

GMAT is all about making use of opportunities that are thrown at us in term of choices, wordings, number properties etc.

Here, 12-16 as two legs of right angled triangle should tell you that you are looking at 3-4-5 triangle, so hypotenuse = 20.
Now, the area of 12-16-20 triangle is 12*16*1/2=96.

The choices have all integer values, so surely all sides of bigger triangle are integers, say a, 20, 52. The area = 20*a*1/2 =10a, where a is an integer.
The units digit of 10a will be 0, so units digit of 96+10a will be 6.
Only D fits in.

Note :- We knew the method but looking at 20 being one of the side, we avoided calculations and got to our answer.

AnkitHRD · Answer

To visualize smaller triangle as 3-4-5 is easy but it's little difficult for the bigger one.

I just took 4 out of all the sides and then left with 3-4-5 <-- calculated for smaller triangle, so area - 1/2*3*4 = 6

Bigger triangle = 5-__-13 = 5-12- 13 and area = 1/2 5*12 = 30

Total area = (30+6) *16 = 576 (since we have taken 4 out of all sides we now need to bring it back)

IanStewart · Answer

With right triangles and numbers this big, the triangles are usually going to be multiples of 3-4-5 or 5-12-13 triangles, so that's the first thing I'd look for. This triangle is just four times bigger than the 5-12-13 triangle, so the missing side is 48. If you did arrive at that square root though, and wanted to compute its value, you can use the difference of squares:

\sqrt{52^2 - 20^2} = \sqrt{(52+20)(52-20)} = \sqrt{(72)(32)} = \sqrt{(2)(36)(32)} = \sqrt{(64)(36)} = (8)(6) = 48

With answer choices this close together, I wouldn't recommend estimating the roots (which was done in a post above, and which would be fine if the answers were more spread out).

ScottTargetTestPrep · Answer

Solution:

We see that the area of quadrilateral ABCD is the sum of the areas of right triangles ADC and ABC. Triangle ADC is a 3-4-5 right triangle with AC = 5(4) = 20 (notice that 12 = 3(4) and 16 = 4(4)). Since AC = 30, triangle ABC is a 5-12-13 right triangle with BC = 12(4) = 48 (notice that 20 = 5(4) and 52 = 13(4)). Therefore, the area of triangle ADC is ½ x 12 x 16 = 96, and the area of triangle ABC is ½ x 20 x 48 = 480. So, the area of quadrilateral ABCD is 96 + 480 = 576.

Answer: D
