The variables a, b, c, d, and e each represent measures of angles as

Question

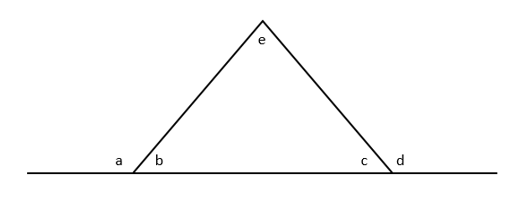

https://gmatclub.com/forum/download/file.php?id=35643 The variables a, b, c, d, and e each represent measures of angles as outlined in the figure above. What is the measure of angle e? (1) a + d = 230 (2) b = c abcde.png

Luckisnoexcuse · Answer

Bunuel  i think image was not uploaded properly

leeum · Answer

I think the answer is C.

Statement 1 doesn't necessarily tell us anything unless we know b=c, which we can't assume. Insufficient

Statement 2 tells us b=c, which means a+b=180 and c+d = 180. Insufficient

Taken together, we can solve for e.

arvind910619 · Answer

Imo A
We can use exterior angle property of triangles to find out the value of angle E
A=E+C
D=E+B
Adding together we have 230=2E+C+B
But we know from triangle property that sum of three angles is 180 hence the value of angle is 50.

Sent from my ONE E1003 using  GMAT Club Forum mobile app

mohshu · Answer

+1 for A

E+B+C = 180
substituting in the equation will the answer

Luckisnoexcuse · Answer

I will also go with A sum of internal angles of triangle is 180 and sum of two angles on a straight line is also 180

Sent from my iPhone using GMAT Club Forum

Bunuel · Answer

_________________
Edited. Thank you.

Jk8269 · Answer

I vote for A.

From 1, we know a+d = 230,
 here we can write a = e + c and d = b +e
 so now equation turns to : e+c + b+e = 230
 implies e+180 = 230 (since we know b+c+e =180)
 so e = 230-180 = 50
Statment 2 is not useful to deduct e

sisirkant · Answer

Here is my as follows:
a+b+c+d equals to 360
so b+c equals to 360-230=130

e+b+c= 180
=> e = 180 - (b+c) = 50

So A is sufficient

And now with b=c, we can not deduce anything. So b=c is not insufficient.

My Answer is A

ripinpeace · Answer

Answer is A.

A tells us the angle of the bottom two.

B means it could be any {1,1,178}{2,2,176} etc

JTR · Answer

Answer is A.
1) Given a+d = 230.
b = 180-a ; c= 180-d; e= 180-(b+c).

therefore e = 180-{(180-a) + (180-d)} => 180-{360-(a+d)} => 180-{360-230} => 180-130 => 50. A is sufficient.

2 ) If b=c; then, e=180-(b+c) =>180-2b or 180-2C. Not sufficient.

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
