Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
05 Feb 2011, 17:04
Question Stats:
39% (01:41) correct 61% (01:47) wrong based on 355 sessions
HideShow timer Statistics
Quadrilateral ABCD is inscribed in circle K. The diameter of K is 20. AC is perpendicular to BD. What is the area of ABCD? (1) AB = AD (2) The length of CE is 8.
Official Answer and Stats are available only to registered users. Register/ Login.
_________________
Consider me giving KUDOS, if you find my post helpful. If at first you don't succeed, you're running about average. ~Anonymous




Math Expert
Joined: 02 Sep 2009
Posts: 50661

Re: Help!
[#permalink]
Show Tags
06 Feb 2011, 05:42

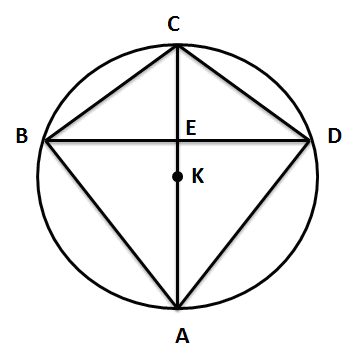

Attachment:
Circle.PNG [ 11.42 KiB  Viewed 31498 times ]
Quadrilateral ABCD is inscribed in circle K. The diameter of K is 20. AC is perpendicular to BD. What is the area of ABCD?First note that as AC is perpendicular to BD and CA is a diameter then triangles CDA and CBA are congruent (they are mirror images of each other). Thus the area of quadrilateral ABCD is twice the area of triangle CDA, which equals to 1/2*DE*CA=1/2*DE*20=10*DE (AC is perpendicular to BD means DE is the height of CDA), so area of ABCD=2*CDA=20*DE. All we need to find is the lengths of the line segment DE. Alternately as ABCD is a kite (triangles CDA and CBA are congruent then CB=CD and AB = AD > ABCD is a kite) then its area equals to \(\frac{d_1*d_2}{2}\) and as one diagonal is a diameter CA, which equals to 20, then we need the second diagonal BD which equals to 2*DE. Next, you should know the following properties to solve this question: • A right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle. The reverse is also true: if the diameter of the circle is also the triangle’s hypotenuse, then that triangle is a right triangle.So, as CA is a diameter then angles CDA and CBA are right angles. • Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle. Thus, the perpendicular DE divides right triangle CDA into two similar triangles CDE and DAE. Now, as in similar triangles, corresponding sides are all in the same proportion then CE/DE=DE/EA > DE^2=CE*EA. (1) AB = AD > we knew this ourselves (from the fact that triangles CDA and CBA are congruent). Not sufficient. (2) The length of CE is 8 > EA=CACE=208=12 > DE^2=CE*EA=8*12=96. Sufficient. Answer: B. Check this for more: mathtriangles87197.html
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics




Manager
Joined: 30 Aug 2010
Posts: 88
Location: Bangalore, India

Re: Help!
[#permalink]
Show Tags
10 Feb 2011, 04:27
Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.
Well, this is a nice one. Howevr, the given qtn can be easily solved with out using this. the area of the Quadrilateral ABCD = 2 * area of trianlge ACD. area of triangle ACD = 1/2*AC * DE = 1/2 * 20 * DE we knw that AC = 20 (i.e. diameter) ==>the area of the Quadrilateral ABCD = 2 * area of trianlge ACD = 2 ( 1/2*AC * DE) = 20*DE Stmnt1: AB = AD.. We can move the BD line up/down on the diameter (AC) keeping that line (BD) perpendicular to AC and also keeping AB=AD. Well but the area of the Quad will change as the line (BD) moves Up/Down...JUST IMAGINE....Hence this stmnt is of no use. Stmnt2: CE=8 connect k and D making a line KD that is radius = 20/2 = 10 now we also know that CK (radius) = 10. hence KE = CKCE = 108 = 2 Now we have EKD, the right angle triangle, with EK = 2 and KD = 10 ==> \(DE = \sqrt{KD^2EK^2}\) ==> \(DE = \sqrt{96}\) ==> the area of the Quadrilateral ABCD = 20*DE = \(20*\sqrt{96}\) Answer B. Regards, Murali.




Manager
Joined: 04 Apr 2010
Posts: 134

Re: Help!
[#permalink]
Show Tags
06 Feb 2011, 06:27
Great explanation Bunuel! Kudos!
_________________
Consider me giving KUDOS, if you find my post helpful. If at first you don't succeed, you're running about average. ~Anonymous



Retired Moderator
Joined: 16 Nov 2010
Posts: 1428
Location: United States (IN)
Concentration: Strategy, Technology

Re: Help!
[#permalink]
Show Tags
09 Feb 2011, 04:10
Great stuff for enlightening about this axiom " Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle."
_________________
Formula of Life > Achievement/Potential = k * Happiness (where k is a constant)
GMAT Club Premium Membership  big benefits and savings



VP
Status: There is always something new !!
Affiliations: PMI,QAI Global,eXampleCG
Joined: 08 May 2009
Posts: 1041

Re: Help!
[#permalink]
Show Tags
04 May 2011, 01:15
a not sufficient.giving no values.
b. triangles CED and CDA are similar. Hence (CE/CD) = (CD/CA)
CD = 20 * 6 = 120 ^ 1/2
thus area of triangle CDA can be found,which multiplied by 2 will give area of ABCD



Intern
Joined: 19 Sep 2011
Posts: 26
WE: Consulting (Consulting)

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
05 Oct 2012, 00:35
Hi Bunuel,
As always a great explanation. However i could not understand this part..Could you please explain it. Thanks.
"First note that as AC is perpendicular to BD and CA is a diameter then triangles CDA and CBA are congruent (they are mirror images of each other). Thus the area of quadrilateral ABCD is twice the area of triangle CDA, "



Director
Joined: 22 Mar 2011
Posts: 601
WE: Science (Education)

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
05 Oct 2012, 01:19
There are two important properties that can help in answering this question: 1) In any quadrilateral with perpendicular diagonals, the area is given by half the product of the diagonals. 2) A diameter perpendicular to a chord bisects that chord. In addition, any point on the diameter, is equally distant from the endpoints of the chord. In the attached drawing, it means that necessarily AB = AD and BC = DC. AC being the perpendicular bisector of BD means that BE = ED. Now to our question: (1) AB = AD doesn't help. It follows from the property of the diameter perpendicular to a chord. In addition, think of moving the chord BD parallel to itself, it will remain perpendicular to the diameter AC, AB will remain equal to AD, but the area of the quadrilateral will change. Not sufficient. (2) Since CE = 8 and CK is radius, then EK = 10  8 = 2. From the right triangle KED we can compute ED (using Pythagoras's) and having ED in fact we have BD = 2ED. Then the area of the quadrilateral can be computed as we have both diagonals. Sufficient. Answer B.
Attachments
KiteInCircle.jpg [ 25.07 KiB  Viewed 23894 times ]
_________________
PhD in Applied Mathematics Love GMAT Quant questions and running.



Senior Manager
Joined: 21 Jan 2010
Posts: 272

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
05 Oct 2012, 16:18
Bunnel, I am not sure about the solutions being proposed here. I think it should be E. All the solutions i see here are based on the assumptions that the quadrilateral is a kite and nowhere this is mentioned. I have my doubts about this assumption as nothing is given about other properties of kite. Ex :
The two line segments connecting opposite points of tangency have equal length.
THanks,



Director
Joined: 22 Mar 2011
Posts: 601
WE: Science (Education)

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
06 Oct 2012, 00:44
vdadwal wrote: Bunnel, I am not sure about the solutions being proposed here. I think it should be E. All the solutions i see here are based on the assumptions that the quadrilateral is a kite and nowhere this is mentioned. I have my doubts about this assumption as nothing is given about other properties of kite. Ex :
The two line segments connecting opposite points of tangency have equal length.
THanks, In the attached drawing, in the triangle BKD, BK = DK = radius. It follows that triangle BKD is isosceles, so KE being perpendicular to BD (it is given that the diameter AC is perpendicular to BD) it bisects the base BD of the triangle. Or, you can compare the two triangles BKE and DKE, they are congruent. Therefore, AC is the perpendicular bisector of BD, and every point on it, is equally distant from B and D. Or, you can continue with comparing pairs of triangles  ABE congruent to ADE, therefore ABD isosceles (AB = AD). Similarly, BCD is isosceles, so BC = DC. It follows that ABCD is a kite.
Attachments
KiteInCirclemore.jpg [ 26.73 KiB  Viewed 23764 times ]
_________________
PhD in Applied Mathematics Love GMAT Quant questions and running.



Senior Manager
Joined: 28 Jul 2011
Posts: 364
Location: United States
Concentration: International Business, General Management
GPA: 3.86
WE: Accounting (Commercial Banking)

Re: Help!
[#permalink]
Show Tags
15 Dec 2012, 09:47
Bunuel wrote: Attachment: Circle.PNG Quadrilateral ABCD is inscribed in circle K. The diameter of K is 20. AC is perpendicular to BD. What is the area of ABCD?First note that as AC is perpendicular to BD and CA is a diameter then triangles CDA and CBA are congruent (they are mirror images of each other). Thus the area of quadrilateral ABCD is twice the area of triangle CDA, which equals to 1/2*DE*CA=1/2*DE*20=10*DE (AC is perpendicular to BD means DE is the height of CDA), so area of ABCD=2*CDA=20*DE. All we need to find is the lengths of the line segment DE. Alternately as ABCD is a kite (triangles CDA and CBA are congruent then CB=CD and AB = AD > ABCD is a kite) then its area equals to \(\frac{d_1*d_2}{2}\) and as one diagonal is a diameter CA, which equals to 20, then we need the second diagonal BD which equals to 2*DE. Next, you should know the following properties to solve this question: • A right triangle inscribed in a circle must have its hypotenuse as the diameter of the circle. The reverse is also true: if the diameter of the circle is also the triangle’s hypotenuse, then that triangle is a right triangle.So, as CA is a diameter then angles CDA and CBA are right angles. • Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle. Thus, the perpendicular DE divides right triangle CDA into two similar triangles CDE and DAE. Now, as in similar triangles, corresponding sides are all in the same proportion then CE/DE=DE/EA > DE^2=CE*EA. (1) AB = AD > we knew this ourselves (from the fact that triangles CDA and CBA are congruent). Not sufficient. (2) The length of CE is 8 > EA=CACE=208=12 > DE^2=CE*EA=8*12=96. Sufficient. Answer: B. Check this for more: mathtriangles87197.htmlBunnel I always have confusion about taking which sides into consideration when we are equating corresponding corresponding sides, can you please throw some light into this...i.e how to write the equation CE/DE=DE/EA
_________________
+1 Kudos If found helpful..



Director
Joined: 25 Apr 2012
Posts: 689
Location: India
GPA: 3.21
WE: Business Development (Other)

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
16 Dec 2012, 04:31
EvaJager wrote: There are two important properties that can help in answering this question:
1) In any quadrilateral with perpendicular diagonals, the area is given by half the product of the diagonals. 2) A diameter perpendicular to a chord bisects that chord. In addition, any point on the diameter, is equally distant from the endpoints of the chord. In the attached drawing, it means that necessarily AB = AD and BC = DC. AC being the perpendicular bisector of BD means that BE = ED.
Now to our question:
(1) AB = AD doesn't help. It follows from the property of the diameter perpendicular to a chord. In addition, think of moving the chord BD parallel to itself, it will remain perpendicular to the diameter AC, AB will remain equal to AD, but the area of the quadrilateral will change. Not sufficient.
(2) Since CE = 8 and CK is radius, then EK = 10  8 = 2. From the right triangle KED we can compute ED (using Pythagoras's) and having ED in fact we have BD = 2ED. Then the area of the quadrilateral can be computed as we have both diagonals. Sufficient.
Answer B. Hello Eve, Thanks for the your approach to handle this Q.I thought your approach was better I wanted your inputs w.r.t Similarity of triangles. Please refer to the attachment for the same Q. I am confused on how do we define the proportion of sides ie. Which side upon which side is proportional. Is there any general rule that we can follow. This sometimes confuses me while solving Questions on Similarity of triangles Looking forward to your inputs. Thanks Mridul
_________________
“If you can't fly then run, if you can't run then walk, if you can't walk then crawl, but whatever you do you have to keep moving forward.”



Intern
Joined: 30 Apr 2013
Posts: 34

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
02 May 2013, 11:59
Quick question
: "(2) The length of CE is 8 > EA=CACE=208=12 > DE^2=CE*EA=8*12=96. Sufficient."
What am I missing here? How do you get DE^2 = CE * EA??? is there a triangle property that I missed out on?



Math Expert
Joined: 02 Sep 2009
Posts: 50661

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
03 May 2013, 02:59



Senior Manager
Joined: 13 May 2013
Posts: 428

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
10 Dec 2013, 12:31
Quadrilateral ABCD is inscribed in circle K. The diameter of K is 20. AC is perpendicular to BD. What is the area of ABCD? (1) AB = AD AB = AD, BE = ED. However, we know nothing about BE = ED length. Depending on the vertical height of BD in relation to it's position up and down CA, the area of the quadrilateral can be of greatly different area. Insufficient. (2) The length of CE is 8. If the length of CE = 8 then EA = 12. Furthermore, we can derive the height of this triangle. We know that the diameter is 20 which means the center is at 10. If CE = 8 then EK = 2. We also know that the radius = 10 so we can find the length of ED. We now have the length of the base and the height which allows us to find area. Because CA bisects and is perpendicular to BD, we know that CD = CB and that DA = BA so the triangles are similar which means that they both have the same area. Sufficient. Please see link for diagram. http://i.imgur.com/LIkYtR0.png



Intern
Joined: 10 Aug 2015
Posts: 32
Location: India
GPA: 3.5
WE: Consulting (Computer Software)

Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
30 Apr 2016, 23:38
bhandariavi wrote: Quadrilateral ABCD is inscribed in circle K. The diameter of K is 20. AC is perpendicular to BD. What is the area of ABCD? (1) AB = AD (2) The length of CE is 8. Here is my 2 cents. We can solve it using a simple circle property and much faster/easier way. Also explained the property. Statement 1 is clearly insufficient bcz we are not given the lengths of any sides or the other diagonal. Remember this The perpendicular from the center of the circle to a chord bisects the chord. (why well create triangle by joining the two ends of a chord from center(2 radii). So we have an isosceles triangle. Now the perpendicular drawn from unequal angle vertex to the opposite side is the median, angle bisector and perpendicular bisector of that side. ) Statement2. So we know ED=BD. AC =20 so KC= 10 and KE = 2 and CE=8. Now we can easily find ED using pythagoras formula. So BE = 2 ED. now we can find the area of ABCD in 2 way. Let's say we dont know the area of kite = d1*d2/2. Still we can find area of triangle CBD and ABC bcz we know the base BE = sqrt(96) and Altitudes CE and AE correspondingly. Sum of those two area = Area of ABCD. So answer is



Manager
Joined: 29 Nov 2011
Posts: 100

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
02 May 2016, 21:32
Bunuel wrote: rsworase wrote: Quick question
: "(2) The length of CE is 8 > EA=CACE=208=12 > DE^2=CE*EA=8*12=96. Sufficient."
What am I missing here? How do you get DE^2 = CE * EA??? is there a triangle property that I missed out on? It's explained here: quadrilateralabcdisinscribedincirclekthediameterof108776.html#p865608• Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle. Thus, the perpendicular DE divides right triangle CDA into two similar triangles CDE and DAE. Now, as in similar triangles, corresponding sides are all in the same proportion then CE/DE=DE/EA > DE^2=CE*EA. Hope it's clear. The ratio of any pair of corresponding sides is the same. Bunuel, why we have taken CE/DE=DE/EA , why not CE/DE=EA/DE base to base and perpendicular to perpendicular. Please explain



Manager
Joined: 23 Jan 2016
Posts: 194
Location: India
GPA: 3.2

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
05 May 2016, 01:43
is it clear from the question that K is the centre of the circle and the CA passes through the diameter? Option B would only be sufficient if this were true...



Manager
Joined: 17 Sep 2015
Posts: 94

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
12 Aug 2016, 23:51
muralimba wrote: Perpendicular to the hypotenuse will always divide the triangle into two triangles with the same properties as the original triangle.
Well, this is a nice one. Howevr, the given qtn can be easily solved with out using this. the area of the Quadrilateral ABCD = 2 * area of trianlge ACD. area of triangle ACD = 1/2*AC * DE = 1/2 * 20 * DE we knw that AC = 20 (i.e. diameter) ==>the area of the Quadrilateral ABCD = 2 * area of trianlge ACD = 2 ( 1/2*AC * DE) = 20*DE Stmnt1: AB = AD.. We can move the BD line up/down on the diameter (AC) keeping that line (BD) perpendicular to AC and also keeping AB=AD. Well but the area of the Quad will change as the line (BD) moves Up/Down...JUST IMAGINE....Hence this stmnt is of no use Stmnt2: CE=8 connect k and D making a line KD that is radius = 20/2 = 10 now we also know that CK (radius) = 10. hence KE = CKCE = 108 = 2 Now we have EKD, the right angle triangle, with EK = 2 and KD = 10 ==> \(DE = \sqrt{KD^2EK^2}\) ==> \(DE = \sqrt{96}\) ==> the area of the Quadrilateral ABCD = 20*DE = \(20*\sqrt{96}\) Answer B. Regards, Murali. Gr8 explanation : Just one doubt : how do we assume that ABCD is divided into two congruent triangles ABC and ADC ? Why are they mirror images of each other? Or a kite ? Thanks in advance
_________________
You have to dig deep and find out what it takes to reshuffle the cards life dealt you



NonHuman User
Joined: 09 Sep 2013
Posts: 8822

Re: Quadrilateral ABCD is inscribed in circle K. The diameter of
[#permalink]
Show Tags
20 Oct 2018, 15:06
Hello from the GMAT Club BumpBot! Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up  doing my job. I think you may find it valuable (esp those replies with Kudos). Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
