Official Explanation
1. Consider each of the following statements. Indicate Yes if the given information supports the statement. Otherwise, indicate No.
All of the listed stainless steels with a carbon content of 0.08% are Austenitic.

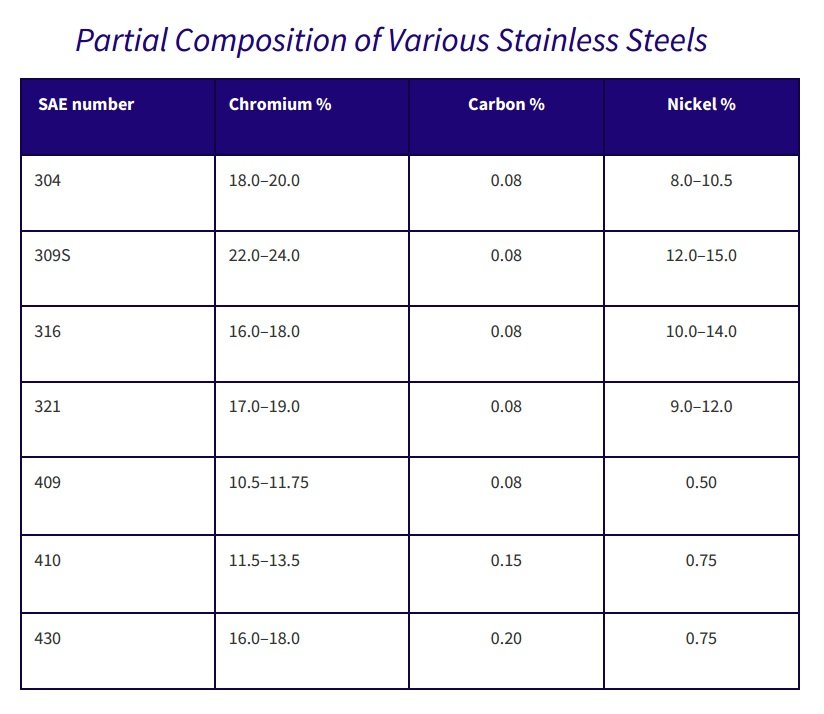

The text in Tab 1 indicates that Austenitic steels contain 16%–26% chromium, not more than 0.8% carbon, and 6%–15% nickel. These steels are also neither magnetic nor heat treatable. The question restricts itself to steels that are 0.08% carbon, so find those steels in Tab 2. They are SAE 304 through SAE 409. Of these, all have allowable chromium percentages, but SAE 409 has only 0.5% nickel. Therefore, it is not Austenitic. Alternatively, you could check Tab 3 for the magnetic and heattreatable characteristics. Here, you’ll see that SAE 409 is magnetic and therefore not Austenitic.
The answer is No.
A stainless steel among those listed with a Rockwell hardness of at least 85 must be either Austenitic or Ferritic.

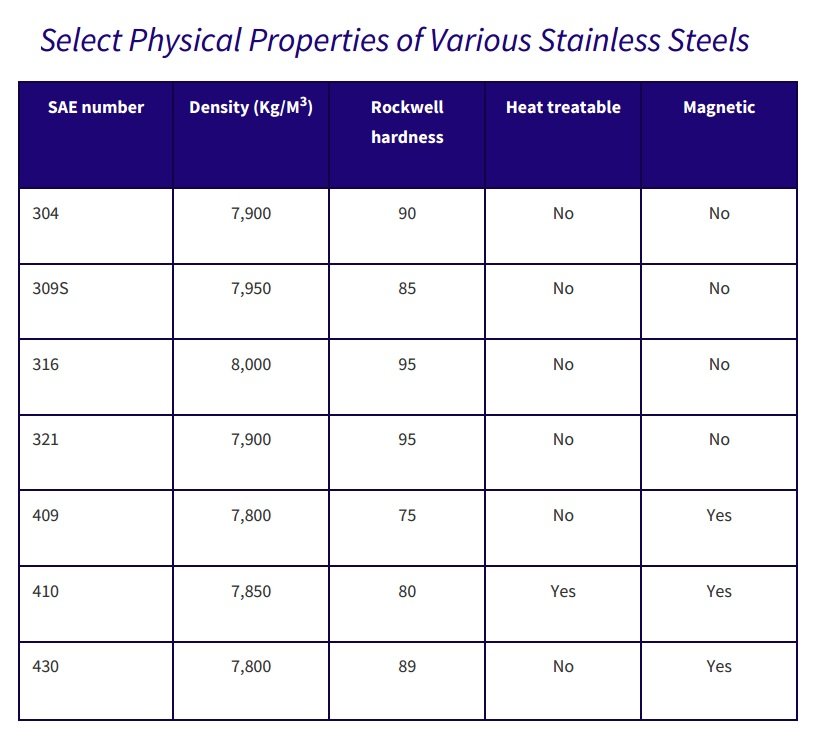

Because this specifies a hardness of 85 or above, begin by examining the table in Tab 3; all of the SAE 300-series steels and SAE 430 have a hardness of 85 or higher. Next, return to the text in Tab 1 to determine what constitutes Ferritic steel: it is magnetic but not heat treatable. You’ve already determined from the previous question that an Austenitic steel is neither. Put another way, any steel in the table that is not heat treatable is either Austenitic or Ferritic. According to the table in Tab 3, none of the SAE 300-series steels is heat treatable and neither is SAE 430, so
The answer is Yes.
Of the steels listed, the average density of Austenitic steels is greater than the average density of Ferritic steels.
From the first two questions in this set, you’ve determined from the information in the text and the table in Tab 3 that all of the SAE 300-series steels are Austenitic. You’ve also determined that SAE 409 and SAE 430 are Ferritic. A glance at Tab 3 will confirm that SAE 410, being both magnetic and heat treatable, is neither Austenitic nor Ferritic. Rather than doing complex calculations, notice that the two Ferritic steels, SAE 409 and SAE 430, each have a density of 7,800, while all of the Austenitic steels are above 7,850. Thus, you can conclude that the Austenitic steels have a higher average density, so
The answer is Yes.
2. Based on the information in the passage and tables, the stainless steel with the highest ratio of carbon to nickel has which of the following hardness ratings?
Because this question asks for a ratio of carbon to nickel, think of carbon as the numerator of a fraction and nickel as the denominator. The highest ratio will be the fraction with the largest numerator relative to the denominator. Therefore, you can quickly eliminate all of the SAE 300-series steels, since their denominators are many times greater than any of the SAE 400-series steels while their numerators are less than or equal to those of the 400 series. Now use estimation to compare SAE 409 to SAE 410: 0.08 over 0.50 is less than 0.15 over 0.75, since 0.15 is nearly twice 0.08 but 0.75 is considerably less than twice 0.50. What about SAE 430? Since it has a bigger numerator than SAE 410 but the same denominator, it must have the highest ratio. Now find its hardness rating in the table in Tab 3: 89.
Therefore, (C) is correct.
