The area of the region bounded by the curves y = |x - 2|, x = 1, x =

Question

The area of the region bounded by the curves y = |x - 2|, x = 1, x = 5 and the x-axis is _________ sq. units

A) 1
B) 2
C) 3
D) 4
E) 5

Chethan92 · Answer

When x = 1, y = |x-2| = 1
x = 5, y = 3

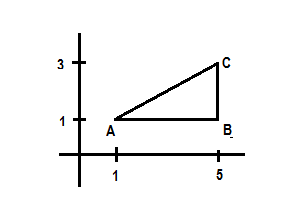

Plotting this on graph we get,
Base AB = 4.
Height BC = 2
Area = 1/2*AB*BC = 4

D is the answer.

eabhgoy · Answer

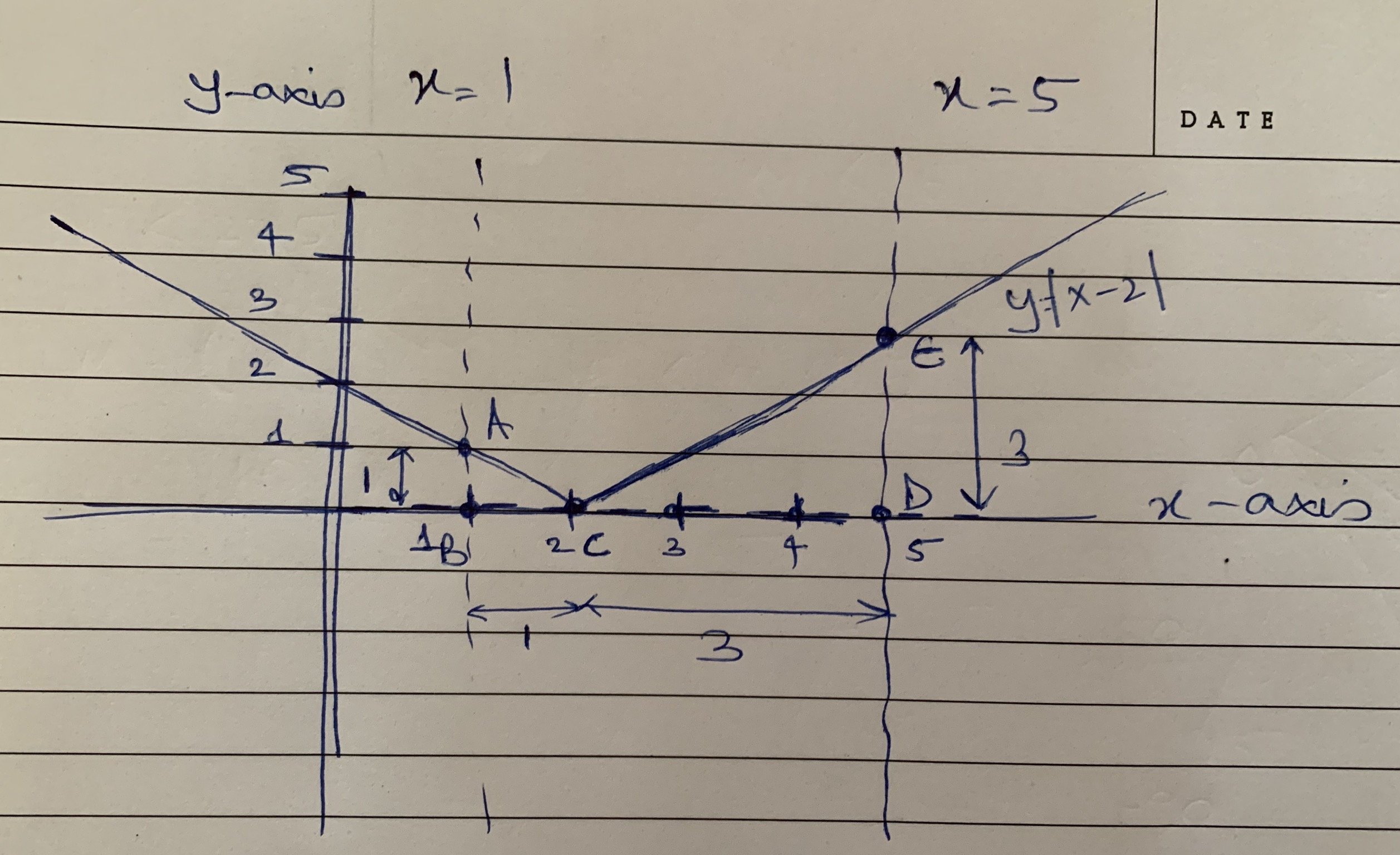

As we can see the 4 lines in the rough image below.

Two triangles are formed by the four lines.

Area of ABC = 1/2 * b * h = 1/2 * AB * BC = 1/2 * 1 * 1 = 1/2
Area of CED = 1/2 * CD * ED = 1/2 * 3 * 3 = 9/2

Total Area = 1/2 + 9/2 = 10/2 = 5

Hence the correct answer is E.

exc4libur · Answer

y=x-2: y=0 x=2, and x=0 y=-2, points (2,0;0,-2)
y=-x+2: y=0 x=2, and x=0 y=2, points (2,0;0,2)
x=1 intersects y=x-2 at y=(1)-2=-1, point (1,-1)
x=1 intersects y=-x+2 at y=-(1)+2=1, point (1,1)
x=5 intersects y=x-2 at y=(5)-2=3, point (5,3)
x=5 intersects y=-x+2 at y=-(5)+2=-3, point (5,-3)

plot these points on the plane and you will get two triangles:
triangle a: 1•1/2=0.5
triangle b: 3•3/2=4.5
total area: 5

Answer (E)

baraa900 · Answer

can anyone explain this question? in details?

CrackverbalGMAT · Answer

Hello Baraa900.

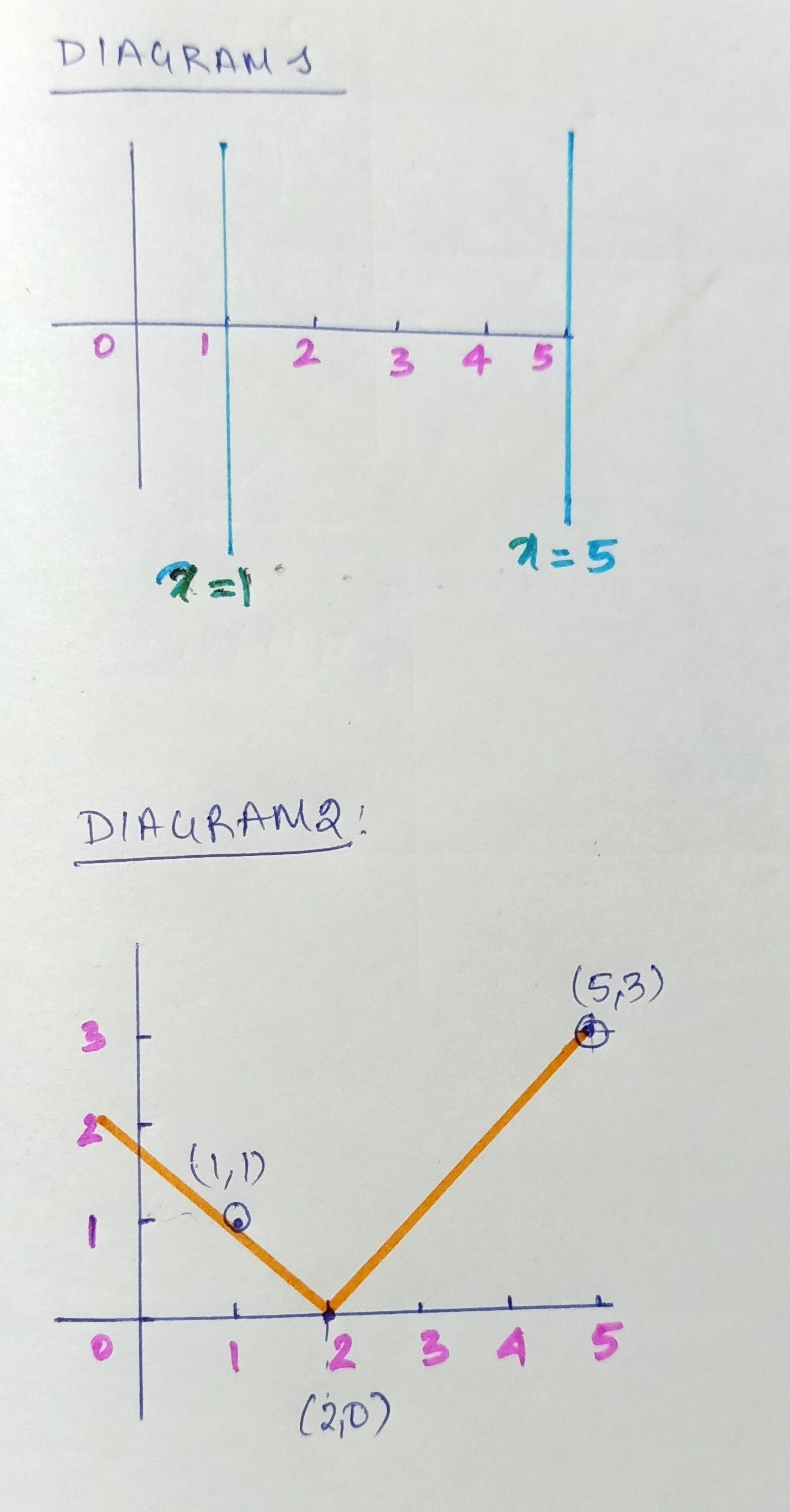

Diagram 1, shows the lines x = 1 and x = 5, which are 2 vertical lines.

Diagram 2 shows the line y = |x - 2|. Since this is a modulus, it denotes 2 different lines.

When x = 2, y = |0| = 0. This is the common point of intersection

When x = 1, y = |-1| = 1. At this point this line intersects the horizontal x = 1

When x = 5, y = |3| = 3. At this point this line intersects the horizontal x = 5

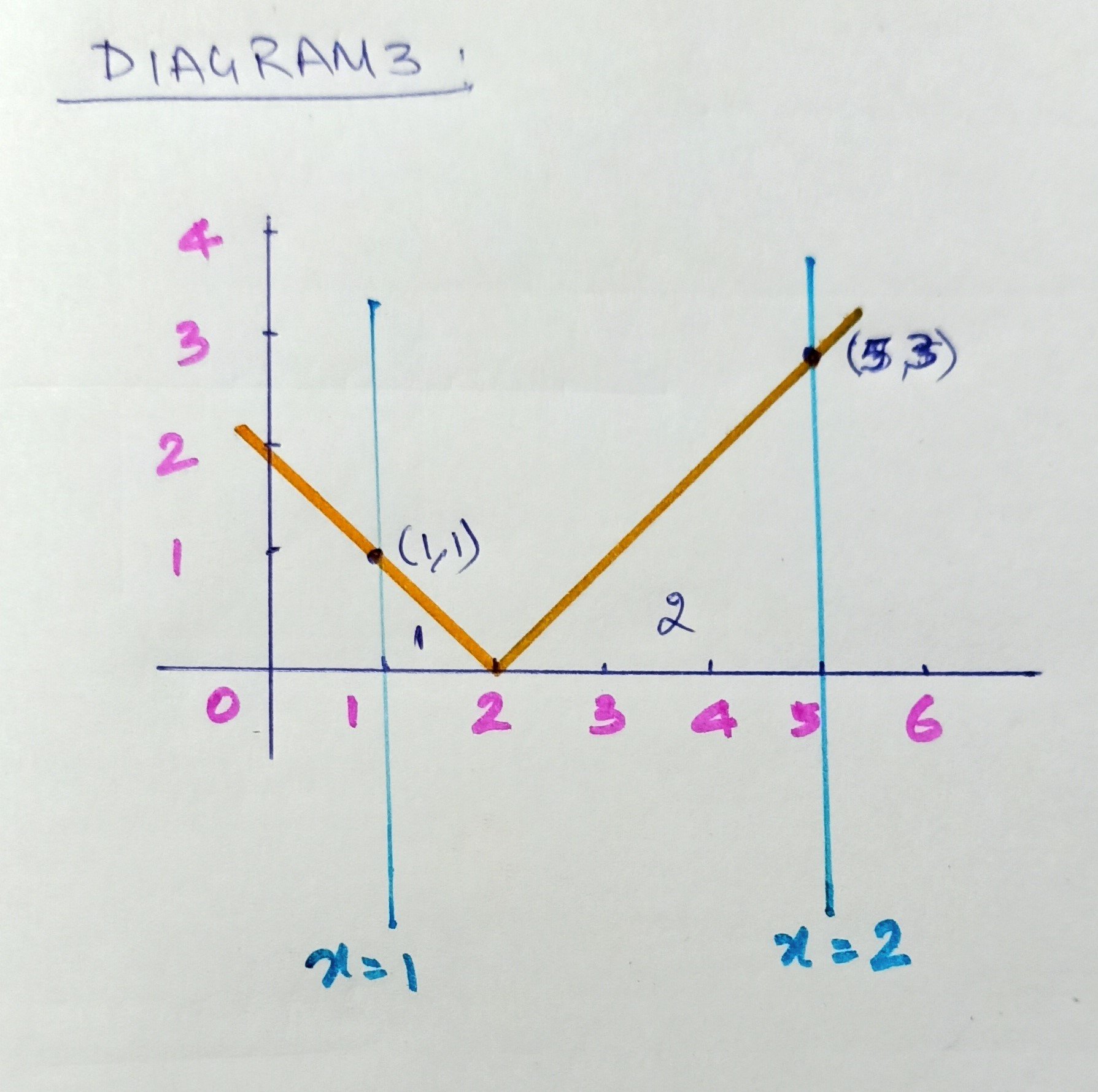

Diagram 2 shows the 2 triangle formed by y = |x - 2|, x = 1, x = 5 and the x axis.

The base of Triangle 1 = 2 - 1 = 1 and the height = 1. Area = 1/2 * 1 * 1 = 0.5

The base of Triangle 2 = 5 - 2 = 3 and the height = 3. Area = 1/2 * 3 * 3 = 4.5

The required area = 0.5 + 4.5 = 5

Option E

Arun Kumar

Kinshook · Answer

Asked: The area of the region bounded by the curves y = |x - 2|, x = 1, x = 5 and the x-axis is _________ sq. units

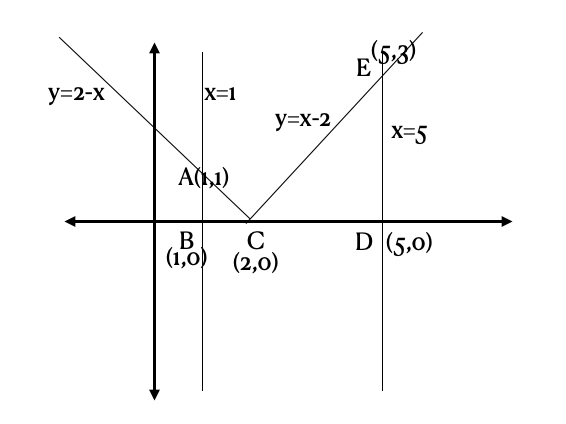

Attachment:

Screenshot 2020-11-29 at 9.22.33 PM.png [ 31.58 KiB | Viewed 6955 times ]

The area of the region bounded by the curves y = |x - 2|, x = 1, x = 5 and the x-axis = The area of triangle ABC + The area of triangle CDE
The area of triangle ABC = 1/2 * AB * BC = 1/2 * 1 * 1 = 1/2
The area of triangle CDE = 1/2 * CD * DE = 1/2 * 3 *3 = 9/2

The area of the region bounded by the curves y = |x - 2|, x = 1, x = 5 and the x-axis = 1/2 + 9/2 = 10/2 = 5

IMO E

RohitSinha · Answer

Area of two triangle formed= 0.5*1*1+0.5*3*3=5

KarishmaB · Answer

To understand the graphs of absolute values, check this post: https://www.gmatclub.com/forum/veritas-prep-resource-links-no-longer-available-399979.html#/2011/0 ... h-to-mods/

bumpbot · Answer

Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
