The flowchart represents a mathematical algorithm that takes two

Question

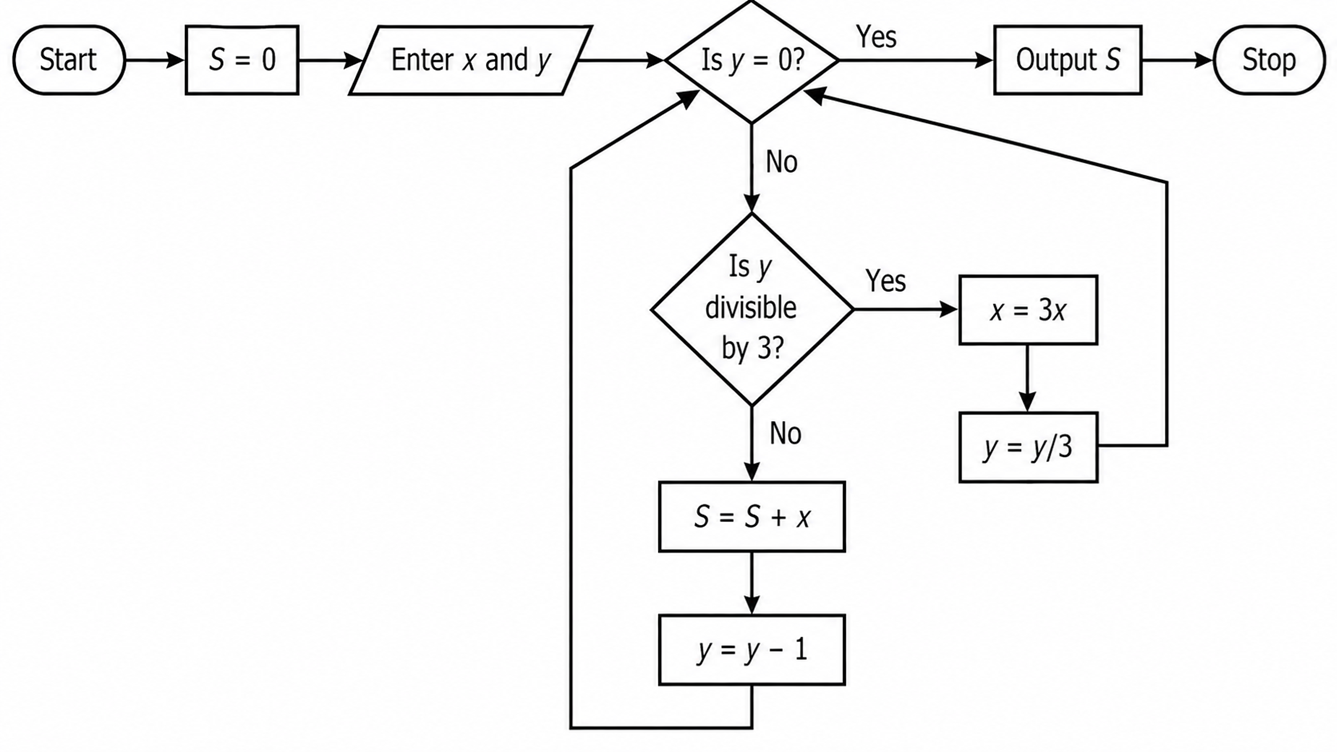

https://gmatclub.com/forum/download/file.php?id=89609 The flowchart represents a mathematical algorithm that takes two positive integers as the input and returns a positive integer as the output. Processes are indicated in the rectangular symbols in the flowchart. Each process is symbolized by an equation, such as S = S + x. In this particular process, the current values of the variables S and x are added together and the sum then becomes the value of S. For example, if the value of S is 4 and the value of x is 9 before the process S = S + x is completed, then the value of S is 13 and the value of x is 9 after the process is completed. Use the drop-down menus to fill in the blanks in the following statements based on the algorithm represented by the flowchart. If 12 and 20 are entered as the values for x and y, respectively, then immediately after the process x = 3x is completed for the second time, the value of S is GRAPH_1_PLACEHOLDER . If 15 and 17 are entered as the values for x and y, respectively, then the process S = S + x is completed GRAPH_2_PLACEHOLDER times before the algorithm stops. GMAT-Club-Forum-ivkh393i.png

Bunuel · Accepted Answer

https://gmatclub.com/forum/download/file.php?id=89609

The flowchart represents a mathematical algorithm that takes two positive integers as the input and returns a positive integer as the output. Processes are indicated in the rectangular symbols in the flowchart. Each process is symbolized by an equation, such as S = S + x. In this particular process, the current values of the variables S and x are added together and the sum then becomes the value of S. For example, if the value of S is 4 and the value of x is 9 before the process S = S + x is completed, then the value of S is 13 and the value of x is 9 after the process is completed.

Use the drop-down menus to fill in the blanks in the following statements based on the algorithm represented by the flowchart.

If 12 and 20 are entered as the values for x and y, respectively, then immediately after the process x = 3x is completed for the second time, the value of S is  GRAPH_1_PLACEHOLDER .

If 15 and 17 are entered as the values for x and y, respectively, then the process S = S + x is completed  GRAPH_2_PLACEHOLDER  times before the algorithm stops.

Official Solution:

Drop-down 1:

Start with:

S = 0, x = 12, y = 20

Since 20 is not divisible by 3:

S = 0 + 12 = 12
y = 20 - 1 = 19

Since 19 is not divisible by 3:

S = 12 + 12 = 24
y = 19 - 1 = 18

Since 18 is divisible by 3:

x = 3 * 12 = 36
y = 18/3 = 6

This is the first time the process x = 3x is completed.

Since 6 is also divisible by 3:

x = 3 * 36 = 108

This is the second time the process x = 3x is completed. The value of S has not changed since it became 24.

Therefore, the value of S is  24 .

Drop-down 2:

Start with x = 15 and y = 17. We only need to count how many times the process S = S + x is completed.

17 is not divisible by 3, so S = S + x is completed for the first time, and y becomes 16.
16 is not divisible by 3, so S = S + x is completed for the second time, and y becomes 15.
15 is divisible by 3, so x becomes 45 and y becomes 5.
5 is not divisible by 3, so S = S + x is completed for the third time, and y becomes 4.
4 is not divisible by 3, so S = S + x is completed for the fourth time, and y becomes 3.
3 is divisible by 3, so x becomes 135 and y becomes 1.
1 is not divisible by 3, so S = S + x is completed for the fifth time, and y becomes 0.

The algorithm then stops.

Therefore, the process S = S + x is completed  5  times.

Correct answer:
Drop-down 1: "24"
Drop-down 2: "5"

dhart · Answer

24 &5

abhikc3004 · Answer

Making a table and simulating the logic is helpful:

Case 1:

S
(=S+x)

  x
(=3x)
  y
(=   y/3
or  y-1)

  0
 12
 20

  24
 12
 18

  24
 36
 6

  24
 108
 2

Hence,  S = 24

Case 2:

Condition
Counter
  S
(=S+x)
  x
(=3x)
  y
(=   y/3
or  y-1)

0
 15
 17

  1
 15
 15
 16

  2
 30
 15
 15

  -
 75
 45
 5

  3
 75
 45
 4

  4
 120
 45
 3

  -
 120
 135
 1

  5
 255
 135
 0 (end)

The algorithm stops at  y = 0 , hence no. of iterations of  S = S+x  is  5 .

Bunuel  - this took me around 4 minutes to compute, which is feel is a lot. Is there a shortcut/smarter way to tackling such questions?
