The figure represents the design of a drawbridge that spans a channel 54 meters in width. If the two raisable sections are equal in length and overlap each other by a measure of 2 meters, what will be the clearance width of the bridge in meters, when the sections are raised to an angle of 60 degree ?

A) 25
B) 26
C) 27
D) 28
E) 54


Given that raisable sections have an overlap of 2 meters when they cover the channel of 54 meters. Since the raisable sections are of equal length, the length of each section will be 28 metres.. Why (Because consider if there is no overlap and 2 sections are equal in length so to cover the channel each will be 27 meters but since there is overlap of 2 meters so each section will be 28 metres)

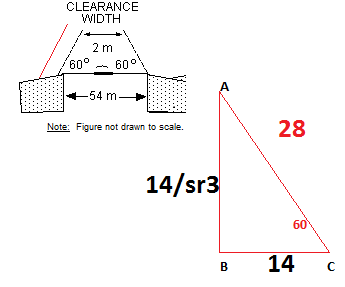

Attachment:
1.png [ 12.08 KiB | Viewed 8060 times ]
Now when inclined to 60 degrees, the length of section is 28 metres and we end up with a 30-60-90 degree triangle..So the side opposite 30 degree angle 14 metres

So total clearance will be [m]54-14*2

Ans B =26 meters
User avatar
GMATinsight
User avatar
Major Poster
Joined: 08 Jul 2010
Last visit: 26 Apr 2026
Posts: 6,977
Own Kudos:
Given Kudos: 128
Status:GMAT/GRE Tutor l Admission Consultant l On-Demand Course creator
Location: India
GMAT: QUANT+DI EXPERT
Schools: IIM (A) ISB '24
GMAT 1: 750 Q51 V41
WE:Education (Education)
Products:
Expert
Expert reply
Schools: IIM (A) ISB '24
GMAT 1: 750 Q51 V41
Posts: 6,977
Kudos: 16,922
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

The figure represents the design of a drawbridge that spans a channel 54 meters in width. If the two raisable sections are equal in length and overlap each other by a measure of 2 meters, what will be the clearance width of the bridge in meters, when the sections are raised to an angle of 60 degree ?

A) 25
B) 26
C) 27
D) 28
E) 54

Attachment:
The attachment 1.png is no longer available

Kudos for a correct solution.

Answer: Option B

Check solution
Attachments

File comment: www.GMATinsight.com

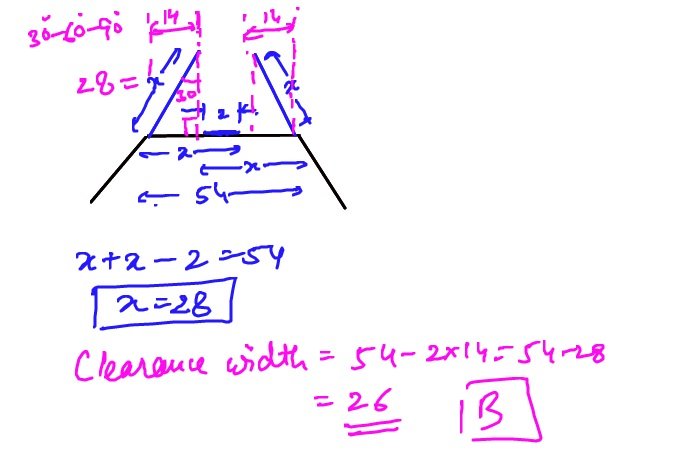

6.jpg [ 57.47 KiB | Viewed 7182 times ]

User avatar
sahilvijay
Joined: 29 Jun 2017
Last visit: 16 Apr 2021
Posts: 289
Own Kudos:
931
 [1]
Given Kudos: 76
GPA: 4
WE:Engineering (Transportation)
Products:
Posts: 289
Kudos: 931
 [1]
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

The figure represents the design of a drawbridge that spans a channel 54 meters in width. If the two raisable sections are equal in length and overlap each other by a measure of 2 meters, what will be the clearance width of the bridge in meters, when the sections are raised to an angle of 60 degree ?

A) 25
B) 26
C) 27
D) 28
E) 54

Attachment:
The attachment 1.png is no longer available

Kudos for a correct solution.


Bunuel => awaiting kudos for correct solution.(mentioning first time though 8-) )
Attachments

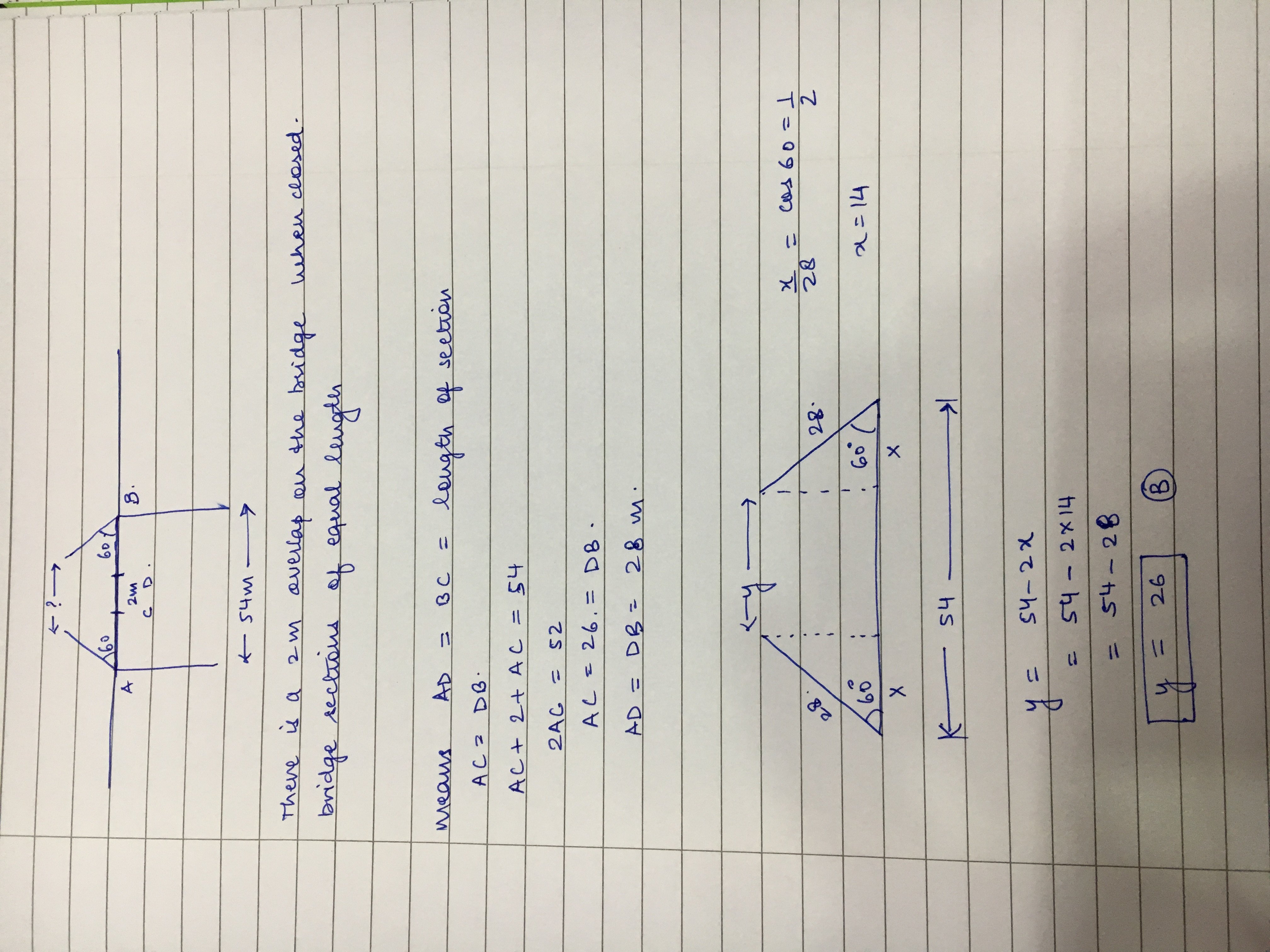

IMG_4620.JPG [ 1.87 MiB | Viewed 6671 times ]

User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 26 Apr 2026
Posts: 109,837
Own Kudos:
Given Kudos: 105,895
Products:
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 109,837
Kudos: 811,375
Kudos
Add Kudos
Bookmarks
Bookmark this Post
sahilvijay
Bunuel

The figure represents the design of a drawbridge that spans a channel 54 meters in width. If the two raisable sections are equal in length and overlap each other by a measure of 2 meters, what will be the clearance width of the bridge in meters, when the sections are raised to an angle of 60 degree ?

A) 25
B) 26
C) 27
D) 28
E) 54

Attachment:

Kudos for a correct solution.


Bunuel => awaiting kudos for correct solution.(mentioning first time though 8-) )

This works for 1 week till the OA is revealed.
User avatar
sahilvijay
Joined: 29 Jun 2017
Last visit: 16 Apr 2021
Posts: 289
Own Kudos:
Given Kudos: 76
GPA: 4
WE:Engineering (Transportation)
Products:
Posts: 289
Kudos: 931
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel
sahilvijay
Bunuel

The figure represents the design of a drawbridge that spans a channel 54 meters in width. If the two raisable sections are equal in length and overlap each other by a measure of 2 meters, what will be the clearance width of the bridge in meters, when the sections are raised to an angle of 60 degree ?

A) 25
B) 26
C) 27
D) 28
E) 54

Attachment:

Kudos for a correct solution.


Bunuel => awaiting kudos for correct solution.(mentioning first time though 8-) )

This works for 1 week till the OA is revealed.
Okay i was not knowing this.
User avatar
EddyEd
Joined: 06 Jan 2016
Last visit: 15 May 2019
Posts: 24
Own Kudos:
Given Kudos: 88
Posts: 24
Kudos: 17
Kudos
Add Kudos
Bookmarks
Bookmark this Post
I found an alternative way to solve the problem and less intensive in calculations as you can see in the attached image:



Since the angle is 60º and the movement of the sections comes from the rotation of them, we will have 2 equilateral triangles formed with the vertex of initial and 60º position.

In the case that we wouldn't have any overlapping between the sections gap at 60º would be equal to the section length itself (green diagram), but since there is overlapping we have to subtract the overlapping length from the ideal gap/length of the section as seen in the blue diagram.

Thus, 28-2=6
