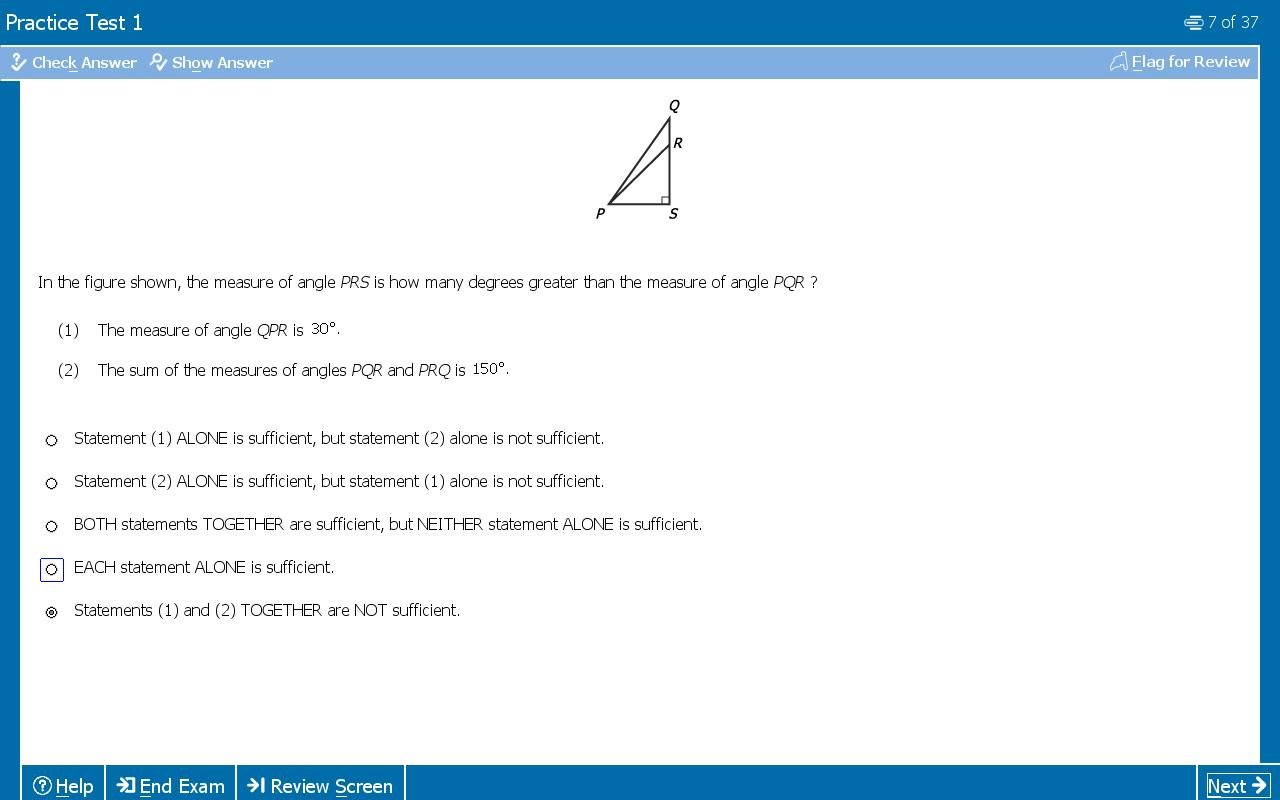

In the figure shown, the measure of angle PRS is how many degrees grea

SORT BY:
Tags:
Show Tags
Hide Tags
Intern
Joined: 30 Nov 2009
Posts: 1
Own Kudos [?]: 253 [253]
Given Kudos: 0
Math Expert
Joined: 02 Sep 2009
Posts: 95507
Own Kudos [?]: 658655 [91]
Given Kudos: 87257
Intern
Joined: 10 Apr 2012
Posts: 15
Own Kudos [?]: 120 [43]
Given Kudos: 0
Concentration: Finance, Economics
GMAT 1: 760 Q50 V44
General Discussion
Manager
Joined: 19 Aug 2010
Posts: 51
Own Kudos [?]: 99 [4]
Given Kudos: 2
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
3
Kudos

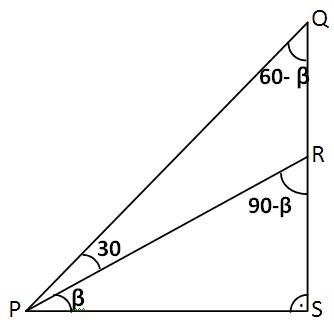

grafical solution is always easier.
Attachments

grafik.JPG [ 9.73 KiB | Viewed 100751 times ]

Director
Joined: 14 Jul 2010
Status:No dream is too large, no dreamer is too small
Posts: 953
Own Kudos [?]: 5077 [8]
Given Kudos: 690
Concentration: Accounting
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
6
Kudos
2
Bookmarks
1) Angle PRS = QPR + PQR
PRS = 30 + PQR
PRS - PQR = 30 SUFFICIENT
2) PQR + PRQ = 150
PQR + 180-PRS = 150
PRS - PQR = 30 SUFFICIENT

ANS. D
Magoosh GMAT Instructor
Joined: 28 Dec 2011
Posts: 4490
Own Kudos [?]: 29041 [11]
Given Kudos: 130
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
8
Kudos
3
Bookmarks
Hi, there! I'm happy to help with this one.

What's tricky about this problem is that there are three different triangles in the diagram, and we have to apply the "180 degree Triangle Theorem" in each one.

First of all, from the diagram, we know in triangle PRS, that (angle SPR) + (angle PRS) + 90 = 180, or in other words, (angle SPR) + (angle PRS) = 90

In triangle PQS, we know that (angle SPQ) + (angle SQR) + 90 = 180, or in other words, (angle SPQ) + (angle PQR) = 90.

Set those two equal:

(angle SPR) + (angle PRS) = (angle SPQ) + (angle PQR)

(angle SPQ) - (angle SPR) = (angle PRS) - (angle PQR)

The question is asking: "the measure of angle PRS is how many degrees greater than the measure of angle PQR?" In other words, they are asking for (angle PRS) - (angle PQR), and our equation above tells us that: if we know (angle SPQ) - (angle SPR), then we know (angle PRS) - (angle PQR).

Statement #1: (angle QPR) = 30 degrees

We know that (angle SPQ) = (angle SPR) + (angle QPR) (big angle equals the sum of the two little angles the comprise it)

Therefore (angle SPQ) = (angle SPR) + 30 --> (angle SPQ) - (angle SPR) = 30 ---> (angle PRS) - (angle PQR) = 30

Statement #1 is sufficient by itself. .

Statement #2: (angle PQR) + (angle PRQ) = 150 degrees

Well, in triangle PQR, we know that: (angle PQR) + (angle PRQ) + (angle QPR) = 180 degrees

If (angle PQR) + (angle PRQ) = 150 degrees, then 150 + (angle QPR) = 180 degrees ---> (angle QPR) = 30, and we have the same information we had in statement #1, so statement #2 is also sufficient by itself.

Answer Choice D. Does that make sense?

Here's another GMAT DS question on the 180 degree Triangle Theorem, just for practice.

https://gmat.magoosh.com/questions/1009

The question at that link should be followed by a video explanation of the answer.

Please let me know if you have any more questions.

Mike
Attachments

triangle PQS.jpg [ 14.73 KiB | Viewed 122964 times ]

Intern
Joined: 30 Oct 2012
Posts: 3
Own Kudos [?]: 1 [0]
Given Kudos: 9
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
Bunuel
In the figure shown, the measure of angle PRS is how many degrees greater than the measure of angle PQR.

Attachment:
Q: <PRS-<PQR=?

(1) The measure of angle QPR is 30°. <QPR=30 --> in triangle QPR three angles sum=180=<QPR+<PQR+<PRQ -->180=30+<PQR+(180-<PRS) --> 30=<PRS-<PQR SUFFICIENT

(2) The sum of the measures of angles PQR and PRQ is 150°. Basically the same information is given <PQR+<PRQ=150 --> <PQR+180-<PRS=150 --> 30=<PRS-<PQR SUFFICIENT

Hi, sorry for the stupid question but it is something I can't grasp.

The text when it refers to angles PRS or PGR to which angles is it visually referring to?

I literally can't understand on the chart which are the angles the problem is asking about.

Math Expert
Joined: 02 Sep 2009
Posts: 95507
Own Kudos [?]: 658655 [0]
Given Kudos: 87257
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
jzpat
Bunuel
In the figure shown, the measure of angle PRS is how many degrees greater than the measure of angle PQR.

Attachment:
The attachment TriangleQPS.JPG is no longer available
Q: <PRS-<PQR=?

(1) The measure of angle QPR is 30°. <QPR=30 --> in triangle QPR three angles sum=180=<QPR+<PQR+<PRQ -->180=30+<PQR+(180-<PRS) --> 30=<PRS-<PQR SUFFICIENT

(2) The sum of the measures of angles PQR and PRQ is 150°. Basically the same information is given <PQR+<PRQ=150 --> <PQR+180-<PRS=150 --> 30=<PRS-<PQR SUFFICIENT

Hi, sorry for the stupid question but it is something I can't grasp.

The text when it refers to angles PRS or PGR to which angles is it visually referring to?

I literally can't understand on the chart which are the angles the problem is asking about.

An angle can be identified like this: ∠PQR. The angle symbol, followed by three points that define the angle, with the middle letter being the vertex, and the other two on the legs.

Attachment:

Angle.png [ 5.63 KiB | Viewed 120463 times ]
So in the figure above the red angle would be ∠PQR or ∠RQP (so long as the vertex is the middle letter, the order is not important).

Hope it's clear.
Director
Joined: 29 Nov 2012
Posts: 575
Own Kudos [?]: 6237 [0]
Given Kudos: 543
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
angle PRS = QPR ( 30) + PQR is this exterior angle property?
Math Expert
Joined: 02 Sep 2009
Posts: 95507
Own Kudos [?]: 658655 [1]
Given Kudos: 87257
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
1
Kudos
fozzzy
angle PRS = QPR ( 30) + PQR is this exterior angle property?

Yes it is. Angle PRS is an exterior angle of angle PRQ: <PRS = 180 - <PRQ = 180 - (180 - <QPR - <PQR) = <QPR + <PQR
Intern
Joined: 14 Oct 2013
Posts: 10
Own Kudos [?]: 24 [1]
Given Kudos: 31
Location: India
Concentration: General Management
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
1
Bookmarks
Hi I used the following method. Turned out to be the quickest for me.

Theorem: An exterior angle of a triangle is equal to the sum of the opposite interior angles.

So, as per the theorem, for Triangle PRQ we have ...
PRS = RPQ + PQR

which gives,

RPQ= PRS - PQR .

Now if we know the measure of RPQ. We are sorted. :D

1) RPQ = 30. SUFFICIENT.

2) same as 1. SUFFICIENT

So D.
Target Test Prep Representative
Joined: 14 Oct 2015
Status:Founder & CEO
Affiliations: Target Test Prep
Posts: 19460
Own Kudos [?]: 23246 [4]
Given Kudos: 286
Location: United States (CA)
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
3
Kudos
1
Bookmarks
Sylvan

In the figure shown, the measure of angle PRS is how many degrees greater than the measure of angle PQR ?

(1) The measure of angle QPR is 30°.
(2) The sum of the measures of angles PQR and PRQ is 150°.

Attachment:
Attachment:

Solution:

We need to determine by how many degrees the measure of angle PRS exceeds the measure of angle PQR.

Statement One Only:

The measure of angle QPR is 30°.

Let the measure of RPS be x. Then, the two interior angles of the triangle PQS are 90 and 30 + x. Thus, the third interior angle of the same triangle is 180 - (90 + 30 + x) = 180 - 120 - x = 60 - x. So, in terms of x, the angle PQS measures 60 - x.

Now, look at the triangle PRS. Two of the interior angles of this triangle are 90 and x; thus, the third interior angle (which is angle PRS) is 180 - (90 + x) = 90 - x.

Using the two expressions, we can determine that the angle PRS exceeds the angle PQS by 90 - x - (60 - x) = 90 - x - 60 + x = 30 degrees.

Statement one is sufficient to answer the question.

Statement Two Only:

The sum of the measures of angles PQR and PRQ is 150°.

This means angle QPR is 180 - 150 = 30°. Using the same procedure that we used in statement one, we can determine the difference between the measures of angles PRS and PQR using QPR = 30.

Statement two is sufficient to answer the question.

Manager
Joined: 06 Jun 2018
Posts: 115
Own Kudos [?]: 19 [0]
Given Kudos: 19
Location: India
GRE 1: Q169 V157
GPA: 3.01
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
Well, is it safe to assume that QRS is a straight line in this question? I marked E because I did not assume that QRS is a straight line, and thus angle QRP + angle PRS = 180 was not something that I could consider in my solution.
Math Expert
Joined: 02 Sep 2009
Posts: 95507
Own Kudos [?]: 658655 [2]
Given Kudos: 87257
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
2
Kudos
zerotoone
Well, is it safe to assume that QRS is a straight line in this question? I marked E because I did not assume that QRS is a straight line, and thus angle QRP + angle PRS = 180 was not something that I could consider in my solution.

Problem Solving
Figures: All figures accompanying problem solving questions are intended to provide information useful in solving the problems. Figures are drawn as accurately as possible. Exceptions will be clearly noted. Lines shown as straight are straight, and lines that appear jagged are also straight. The positions of points, angles, regions, etc., exist in the order shown, and angle measures are greater than zero. All figures lie in a plane unless otherwise indicated.

Data Sufficiency:
Figures:
• Figures conform to the information given in the question, but will not necessarily conform to the additional information given in statements (1) and (2).
• Lines shown as straight are straight, and lines that appear jagged are also straight.
• The positions of points, angles, regions, etc., exist in the order shown, and angle measures are greater than zero.
• All figures lie in a plane unless otherwise indicated.

Hope it helps.
Tutor
Joined: 17 Jul 2019
Posts: 1299
Own Kudos [?]: 1791 [1]
Given Kudos: 66
GMAT 1: 780 Q51 V45
GMAT 2: 780 Q50 V47
GMAT 3: 770 Q50 V45
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
1
Kudos
Video solution from Quant Reasoning starts at 15:25
Subscribe for more: https://www.youtube.com/QuantReasoning? ... irmation=1
Intern
Joined: 04 Mar 2019
Posts: 15
Own Kudos [?]: 2 [0]
Given Kudos: 106
GMAT 1: 680 Q45 V38
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]

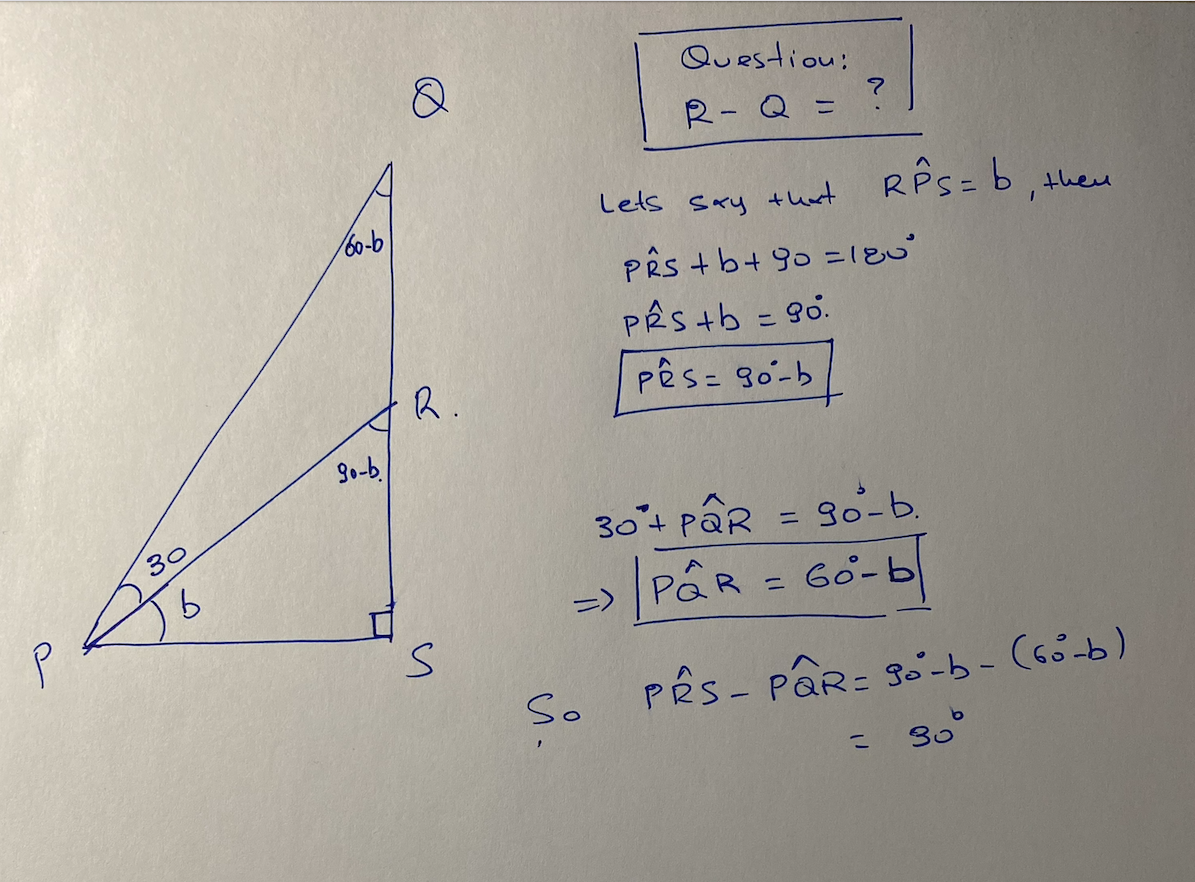

Here is my solution
Attachments

Screenshot 2021-04-23 at 6.32.39 PM.png [ 1.59 MiB | Viewed 40230 times ]

GMAT Club Legend
Joined: 03 Oct 2013
Affiliations: CrackVerbal
Posts: 4914
Own Kudos [?]: 7918 [0]
Given Kudos: 221
Location: India
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
Top Contributor

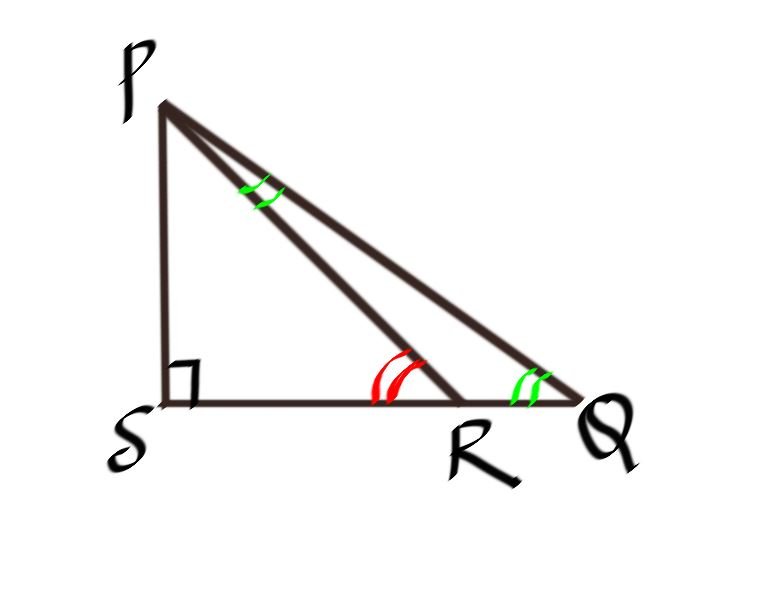

Redrawing the figure is a good strategy to apply in this question; it makes it easy to identify that angle PRS is the exterior angle wrt triangle PQR.

Attachment:

2nd June 2021 - Reply 4.JPG [ 28.41 KiB | Viewed 39949 times ]

In a triangle, the exterior angle is equal to the sum of the non-adjacent opposite interior angles. As shown in the diagram, angle PRS (highlighted in red) is the exterior angle and therefore equal to the sum of angles PQR and QPR (highlighted in green).
Angle PRS = Angle PQR + Angle QPR.

The above equation can be reorganized to give us exactly what we want. Since we are trying to find the value of Angle PRS – Angle PQR, we can rewrite the above equation as

Angle PRS – Angle PQR = Angle QPR.
Any information about angle QPR is sufficient information.

From statement I alone, angle QPR is 30 degrees. Sufficient.
Answer options B, C and E can be eliminated. Possible answer options are A or D.

From statement II alone, sum of angles PQR and PRQ is 150 degrees. Since the sum of the three interior angles of a triangle is 180 degrees, this means that angle QPR is 30 degrees.
Statement II alone is sufficient. Answer option A can be eliminated.

The correct answer option is D.

Hope that helps!
Aravind B T
Intern
Joined: 24 Sep 2022
Posts: 30
Own Kudos [?]: 3 [0]
Given Kudos: 9
Location: Georgia
GMAT 1: 720 Q50 V38
GPA: 3.71
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
Hi guys,

After solving the question using a lot of x-s and y-s, I gave some more thought to this problem and noticed very easy thing here. We can solve this question in 20 seconds without even using any calculation.

So the logics is that angles of triangle must sum to 180 right? So assume we only had the smaller triangle first. If one angle is right (90 degrees), than the others must sum to 90. ok, if now we move the upper point (move R all the way to Q), than the angle of P increases, by 30 degrees in this case. Accordingly, the angle of the other corner must reduce by the same degree right? so that the sum of the two is 90 degrees again.

So the other angle must reduce by the same amount as the leftmost angle increases.
Non-Human User
Joined: 09 Sep 2013
Posts: 34846
Own Kudos [?]: 878 [0]
Given Kudos: 0
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
Re: In the figure shown, the measure of angle PRS is how many degrees grea [#permalink]
