The circle above is inscribed inside right triangle ABC. What is the

Question

Competition Mode Question https://gmatclub.com/forum/download/file.php?id=56021 The circle above is inscribed inside right triangle ABC (angle B is a right angle). What is the radius of the circle if BC = 8? A. \frac{\sqrt{8}}{4} B. \frac{\sqrt{2}}{\sqrt{2}+1} C. 8-4\sqrt{2} D. 4\sqrt{2} E. \frac{4\sqrt{2}}{\sqrt{2}-1} download (7).png

exc4libur · Accepted Answer

radius of circle inscribed in a right triangle:
(a+b-hyp)/2 or area/semi-perimeter

since one angle is 45 this is an isosceles right triangle
sides proportion = x:x:x√2 = 8:8:8√2

radius: (8+8-8√2)/2=16-8√2/2=8(2-√2)/2=8-4√2

ans (C)

***other formulas

radius circle INSCRIBED equilateral:
(side of triangle)/2√3=(side√3)/6

radius circle CIRCUMscribed equilateral:
(side of triangle)/√3=(side√3)/3

GMATWhizTeam · Answer

Solution
 • Circle is inscribed in the triangle ABC.
 o Let us assume that the radius of the given circle is r.
• Triangle ABC is right angled at B.
• ∠BCA = 45
 o So, triangle ABC is a 45-45-90 triangle.
  Hence, ∠BCA = ∠CAB = 45
 And, BC = AB = 8
 • Therefore, AC  = 8\sqrt{2}
• Based on the above information let us re-draw the given diagram as below:
  https://www.dropbox.com/s/ykyd5aqg7e1phzy/16_07_tri.jpg?dl=1
• From the above diagram,
 o Area of triangle ABC = Area of triangle AOB + Area of triangle BOC + Area of triangle COA

⟹ \frac{1}{2}*BC*AB = \frac{1}{2}*AB*OF + \frac{1}{2}*BC*OD = \frac{1}{2}*AC*OE

⟹ \frac{1}{2}*8*8 = \frac{1}{2}*8*r +\frac{1}{2}*8*r + \frac{1}{2}*8 \sqrt{2}*r

⟹ 2r + \sqrt{2}r = 8

⟹ r = \frac{8}{2 +\sqrt{2}} = \frac{8*(2 -\sqrt{2})}{(2 +\sqrt{2})(2 -\sqrt{2})} = \frac{8*(2 -\sqrt{2})}{2} = 8 - 4\sqrt{2}

Thus, the correct answer is  Option C.

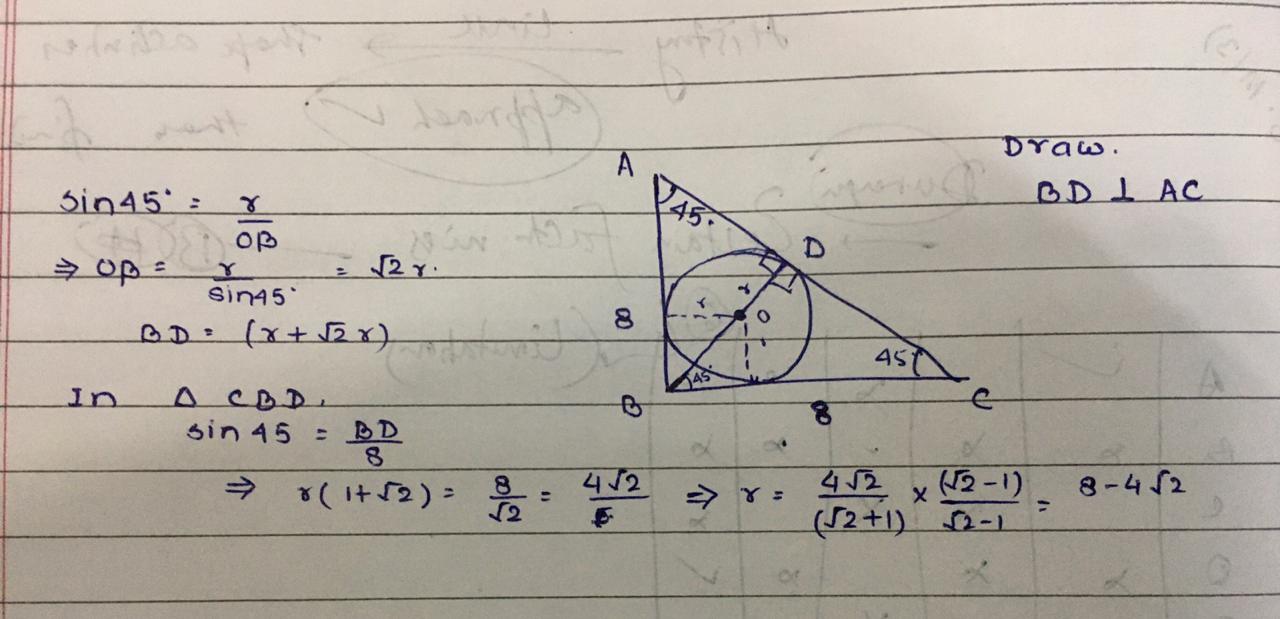

MayankSingh · Answer

IMO C

Refer attached image.

GMATinsight · Answer

Radius of Incircle = ∆/s

∆ = Area of Triangle
s = Semiperimeter  = \frac{a+b+c}{2}  where a, b and c are sides of triangle

∆ = Area of Triangle =  (\frac{1}{2})8*8 = 32
s = Semiperimeter  = \frac{8+8+8√2}{2}

i.e. Radius of Incircle = (1/2)*8*8/ = \frac{32*2}{8(2+√2)} = \frac{8}{(2+√2)} = \frac{8(2-√2)}{2} = 8-4√2

\frac{8}{(2+√2)} = \frac{8*(2-√2)}{(2+√2)*(2-√2)} = \frac{8*(2-√2)}{(2^2-√2^2)} = = \frac{8*(2-√2)}{(4-2)} = 8-4√2

Answer: Option C

nick1816 · Answer

Legs of isosceles right angle triangle= 8

Hypotenuse = 8√2

Incenter of a right angle triangle  =\frac{ 8+8 - 8√2 }{2} = 8 - 4√2

unraveled · Answer

The circle above is inscribed inside right triangle ABC (angle B is a right angle). What is the radius of the circle if BC = 8?

A.  \frac{√8}{4}

B.  \frac{√2}{√2 + 1}

C. 8 − 4√2

D. 4√2

E.  \frac{4√2}{√2-1}
AB = a, BC = b and AC = c
Here AB = BC = 8 since triangle ABC has angles(eventually sides) in ratio 1:1:√2.
Hence AC = 8√2
Radius of circle,  r = \frac{a + b - c }{2}
 r = \frac{8 + 8 - 8√2}{2}
r = 8 - 4√2

Answer C.

GMATinsight · Answer

SOLUTION-2

https://www.youtube.com/watch?v=9Ps3jJEQvos

Answer: Option C

Shubham1213372 · Answer

There is direct formula to calculate radius if circle is inscribed in right traingle and that is :

R= (a+b-c)/2.

We know given traingle is right traingle whose angles are 90°,45°,45°
Let AC =c
BC =b
AB =a

BC(b) = AB(a) = 8.
By hypotenuse formula,

AC(c) = √8^2 + 8^2
AC(c) = 8√2

We get a,b, and c values.
Put in the formula.

=(a+b-c)/2
=(8+8-8√2)/2
=4+4-4√2
=8-4√2

Hence, correct answer should be C

Posted from my mobile device

Shubham1213372 · Answer

There is direct formula to calculate radius if circle is inscribed in right traingle.
 R= (a+b-c)/2

We know given traingle is right traingle whose angles are 90°,45°,45°
Let AC =c ,BC =b, and AB =a
Given: BC = 8
BC and AB angles are equals hence there sides will also be equal.
Therefore, BC(b) = AB(a) = 8.
By hypotenuse formula,

AC(c) = √8^2 + 8^2
AC(c) = √64+64
AC(c) = √128
AC(c) = 8√2

We get a,b, and c values.Put in the formula.

=(a+b-c)/2
=(8+8-8√2)/2
=4+4-4√2
=8-4√2

Hence, correct answer should be C

Expecting Kudos, if it helps.

Archit3110 · Answer

The circle above is inscribed inside right triangle ABC (angle B is a right angle). What is the radius of the circle if BC = 8?
Radius of incircle in right angled can be determined by

(a+b-c)/2

where a, b & c are sides of right angled ∆:

; side of triangle 8: 8: 8 sqrt 2 as its a 45:45:90 ∆ x:x:x√2
radius of circle 8-4 sqrt 2.
OPTION C

debjit1990 · Answer

Ans: C
angles are:90-45-45
so ab=bc=8
ac=8√2
r=(a+b-c)/2
=(8+8-8√2)/2=8−4√2

monikakumar · Answer

45 45 90 triangle
so 1:1:root2

a=8, b=8, c =8root2
inradius = a+b-c/2
8+8-8root2/2
8(2-root2)/2
4(2-root2)
8-4root2

Ans C

v12345 · Answer

Radius of inscribed circle in isosceles right triangle =  \frac{side}{2}(2-\sqrt{2}) = 4(2-\sqrt{2})  =  8 - 4\sqrt{2}

Hence, OA is (C).

Gowtham91 · Answer

The given triangle is an isosceles right triangle. And hence AB=BC=8. And AC= 8\sqrt{2}

Formula for inradius of a circle inscribed in a right triangle when the sides are known =  \frac{a+b-c}{2}   , where a and b are sides of the triangle and c is the hypotenuse.

Threfore we have inradius =  \frac{8+8-8\sqrt{2}}{2}  =  8-4\sqrt{2}  -  Option C

bumpbot · Answer

Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

 This post was generated automatically.
