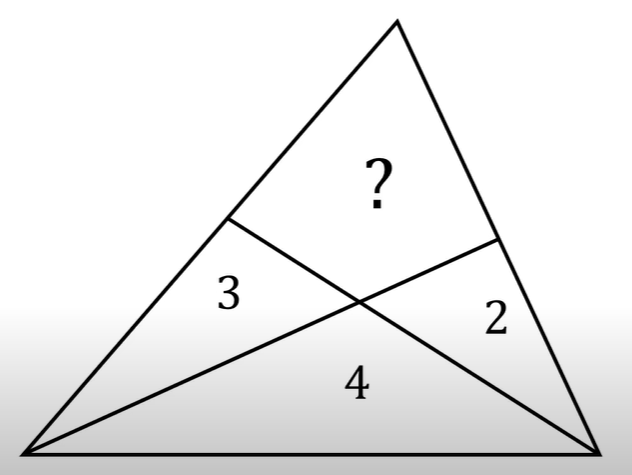

A triangle shown above is divided into three smaller triangles, with a 17 Jun 2020, 03:56
1
Kudos
Add Kudos
16
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
C
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

95% (hard)

Question Stats:

37% (02:31) correct 63% (02:27) wrong based on 76 sessions

History

Date
Time
Result
Not Attempted Yet

A triangle shown above is divided into three smaller triangles, with areas of 2, 3 and 4, and a quadrilateral. What is the area of the quadrilateral?

A. 6
B. 7
C. 39/5
D. 8
E. 41/5


Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS

Are You Up For the Challenge: 700 Level Questions

Show Spoiler
Attachment:
2020-06-17_1439.png [ 48.87 KiB | Viewed 7430 times ]
ShowHide Answer
Official Answer
C
Most Helpful Reply
User avatar
yashikaaggarwal
User avatar
Senior Moderator - Masters Forum
Joined: 19 Jan 2020
Last visit: 10 Aug 2026
Posts: 3,094
Own Kudos:
3,231
 [6]
Given Kudos: 1,510
Location: India
Schools: Cranfield (A) Warwick MiM "23 (M)
GPA: 4
WE:Analyst (Internet and New Media)
Schools: Cranfield (A) Warwick MiM "23 (M)
Posts: 3,094
Kudos: 3,231
 [6]
A triangle shown above is divided into three smaller triangles, with a 17 Jun 2020, 06:09
3
Kudos
Add Kudos
3
Bookmarks
Bookmark this Post
Let the triangle be ABC
Area of triangle = A
Area 3 = X
Area 4 = Y
Area 2 = Z
Using Ladder theorem ;
1/A + 1/y = 1/x+y + 1/y+z
1/A + 1/4 = 1/3+4 + 1/4+2
1/A + 1/4 = 1/7 + 1/6
1/A + 1/4 = 6+7/42
1/A + 1/4 = 13/42
1/A = 13/42 - 1/4
1/A = 52-42/168
1/A = 10/168
A = 16.8

Area of triangle = Triangle 2 + Triangle 3 + Triangle 4 + Quadrilateral
16.8 - 2 - 3 - 4 = Area of quadrilateral
7.8 = Area if Quadrilateral
=> 78/10 => 39/5

Answer is C

Posted from my mobile device
General Discussion
User avatar
nick1816
User avatar
Retired Moderator
Joined: 19 Oct 2018
Last visit: 12 Mar 2026
Posts: 1,840
Own Kudos:
8,829
 [4]
Given Kudos: 707
Location: India
Posts: 1,840
Kudos: 8,829
 [4]
A triangle shown above is divided into three smaller triangles, with a 17 Jun 2020, 05:04
1
Kudos
Add Kudos
3
Bookmarks
Bookmark this Post
Attachment:

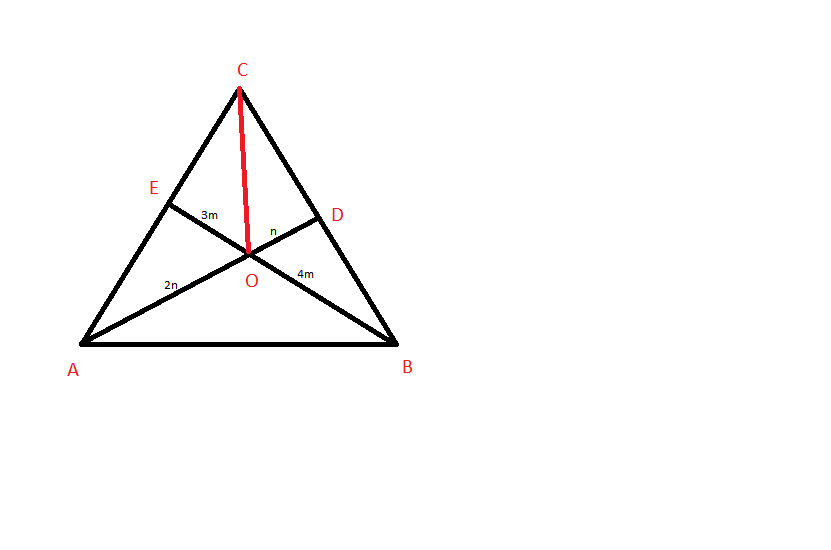

Untitled (1).png
Untitled (1).png [ 8.13 KiB | Viewed 6583 times ]
Suppose area of CEO = x and area of COD =y

OE : OB = 3:4 (Ratios of the areas of AEO and AOB)

Hence, Area of CEO : Area COB = 3:4

Area of CEO : (Area of COD +Area of DOB) = 3:4

x : (y+2) = 3:4

4x=3y+6 ........(1)

AO : OD = 4:2 (Ratios of the areas of AOB and DOB)

Hence, Area of AOC : Area DOC = 4:2

(Area of AOE + Area of COE) : Area of DOB= 4:2

(3+x) : y = 2:1

3+x=2y.......(2)

From (1) and (2)

x= 21/5 ; y=18/5

x+y = 39/5


Bunuel

A triangle shown above is divided into three smaller triangles, with areas of 2, 3 and 4, and a quadrilateral. What is the area of the quadrilateral?

A. 6
B. 7
C. 39/5
D. 8
E. 41/5


Project PS Butler


Subscribe to get Daily Email - Click Here | Subscribe via RSS - RSS

Are You Up For the Challenge: 700 Level Questions

Show Spoiler
Attachment:
The attachment 2020-06-17_1439.png is no longer available
Show more
User avatar
HoneyLemon
User avatar
Stern School Moderator
Joined: 26 May 2020
Last visit: 02 Oct 2023
Posts: 626
Own Kudos:
572
Given Kudos: 219
Status:Spirited
Concentration: General Management, Technology
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
WE:Analyst (Computer Software)
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
Posts: 626
Kudos: 572
A triangle shown above is divided into three smaller triangles, with a 18 Jun 2020, 07:40
Kudos
Add Kudos
Bookmarks
Bookmark this Post
nick1816
Attachment:
OE : OB = 3:4 (Ratios of the areas of AEO and AOB)

Hence, Area of CEO : Area COB = 3:4

Area of CEO : (Area of COD +Area of DOB) = 3:4

x : (y+2) = 3:4

4x=3y+6 ........(1)

AO : OD = 4:2 (Ratios of the areas of AOB and DOB)

Hence, Area of AOC : Area DOC = 4:2

(Area of AOE + Area of COE) : Area of DOB= 4:2

(3+x) : y = 2:1

3+x=2y.......(2)

From (1) and (2)

x= 21/5 ; y=18/5

x+y = 39/5


Bunuel

A triangle shown above is divided into three smaller triangles, with areas of 2, 3 and 4, and a quadrilateral. What is the area of the quadrilateral?

A. 6
B. 7
C. 39/5
D. 8
E. 41/5

Show more

nick1816.. I couldnot understand how OE : OB = 3:4 .. may you please help me on this .
User avatar
nick1816
User avatar
Retired Moderator
Joined: 19 Oct 2018
Last visit: 12 Mar 2026
Posts: 1,840
Own Kudos:
8,829
 [1]
Given Kudos: 707
Location: India
Posts: 1,840
Kudos: 8,829
 [1]
A triangle shown above is divided into three smaller triangles, with a 18 Jun 2020, 08:48
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post
DasAshishAshutosh
Attachment:

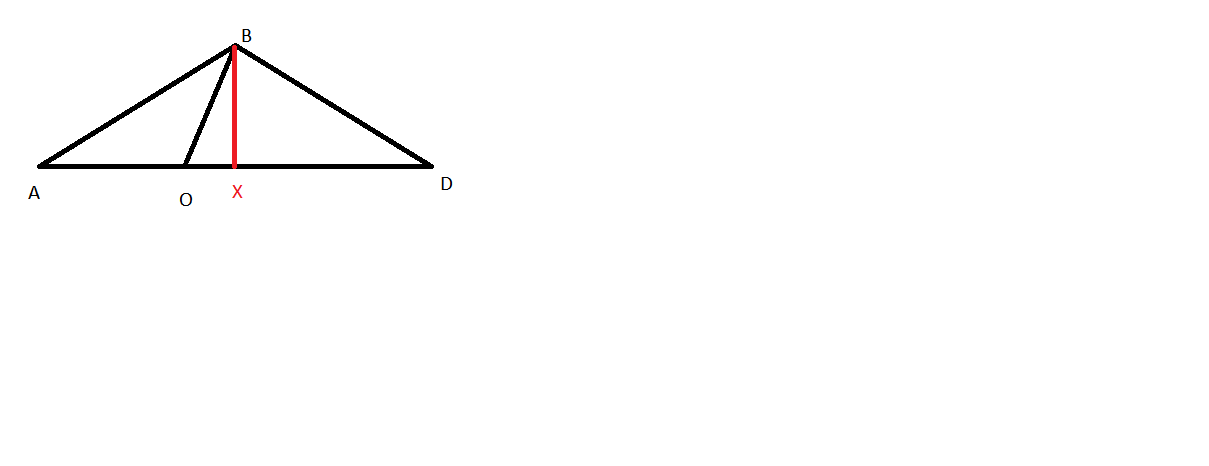

Untitled.png [ 5.5 KiB | Viewed 6383 times ]

Draw an altitude from B on AD at X.

Area of BOA = 1/2 * BX * AO

Area of BOD = 1/2 *BX * DO


Area of BOA/Area of BOD = AO/DO

Since the altitude of both triangles is common from point B, ratio of their areas is same as that of their base.

If you still have any doubt, you can ask.
User avatar
HoneyLemon
User avatar
Stern School Moderator
Joined: 26 May 2020
Last visit: 02 Oct 2023
Posts: 626
Own Kudos:
572
 [1]
Given Kudos: 219
Status:Spirited
Concentration: General Management, Technology
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
WE:Analyst (Computer Software)
Schools: Stern '23 LBS '23 Said '23 IIMB EPGP'22 INSEAD Jan'23 intake
Posts: 626
Kudos: 572
 [1]
A triangle shown above is divided into three smaller triangles, with a 18 Jun 2020, 17:17
Kudos
Add Kudos
1
Bookmarks
Bookmark this Post
nick1816
DasAshishAshutosh
Attachment:

Draw an altitude from B on AD at X.

Area of BOA = 1/2 * BX * AO

Area of BOD = 1/2 *BX * DO


Area of BOA/Area of BOD = AO/DO

Since the altitude of both triangles is common from point B, ratio of their areas is same as that of their base.

If you still have any doubt, you can ask.
Show more

I got it . Thanks a lot nick1816. Indeed a tough one for me .
avatar
rcgard
avatar
Joined: 07 Aug 2019
Last visit: 09 Jul 2020
Posts: 9
Own Kudos:
5
 [1]
Given Kudos: 65
Posts: 9
Kudos: 5
 [1]
A triangle shown above is divided into three smaller triangles, with a 19 Jun 2020, 04:20
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
nick1816 can you please let me know how you obtained:

Area of CEO : (Area of COD +Area of DOB) = 3:4

x : (y+2) = 3:4

I am not sure where the 'y' came from in the '(y+2)'.

Thanks for your help.
User avatar
nick1816
User avatar
Retired Moderator
Joined: 19 Oct 2018
Last visit: 12 Mar 2026
Posts: 1,840
Own Kudos:
8,829
 [1]
Given Kudos: 707
Location: India
Posts: 1,840
Kudos: 8,829
 [1]
A triangle shown above is divided into three smaller triangles, with a 19 Jun 2020, 04:39
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Hey rcgard

That was my bad. I assigned y for 2 distinct variables. I've edited the solution.

Area of CEO = x and Area of COD =y

Thanks!
avatar
Shobhit7
avatar
Joined: 01 Feb 2017
Last visit: 29 Apr 2021
Posts: 239
Own Kudos:
442
Given Kudos: 148
Posts: 239
Kudos: 442
A triangle shown above is divided into three smaller triangles, with a 20 Jun 2020, 10:40
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Area of a triangle = ½*base*height
Ratio of areas of triangles = base1 * height1 / base 2*height2
If height 1 = height 2, then ratio of areas = base 1 / base 2

With this understanding, lets divide the quadrilateral into two triangles with area A1 and A2 and name the vertices from A to F as in the diagram below.
To solve this question, we need to consider triangles with different bases and same height and equate the ration of bases to the ratio of areas.

Triangles AFB and BFC
B1/B2 = A2 / 3
Triangles ADB and BDC
B1/B2 = (A1 + A2 + 2) / 7
So, A2/3 = (A1 + A2 + 2)/7
-3A1 + 4A2 = 6

Triangles AFE and EFD
B3/B4 = A1 / 2
Triangles ACE and EFD
B3/B4 = (A1 + A2 + 3) / 6
So, A1/2 = (A1 + A2 + 3)/6
2A1 - A2 = 3

Solving the two equations, we get A1= 18/5 and A2= 21/5 and A+A2= 39/5, Ans C
Attachments

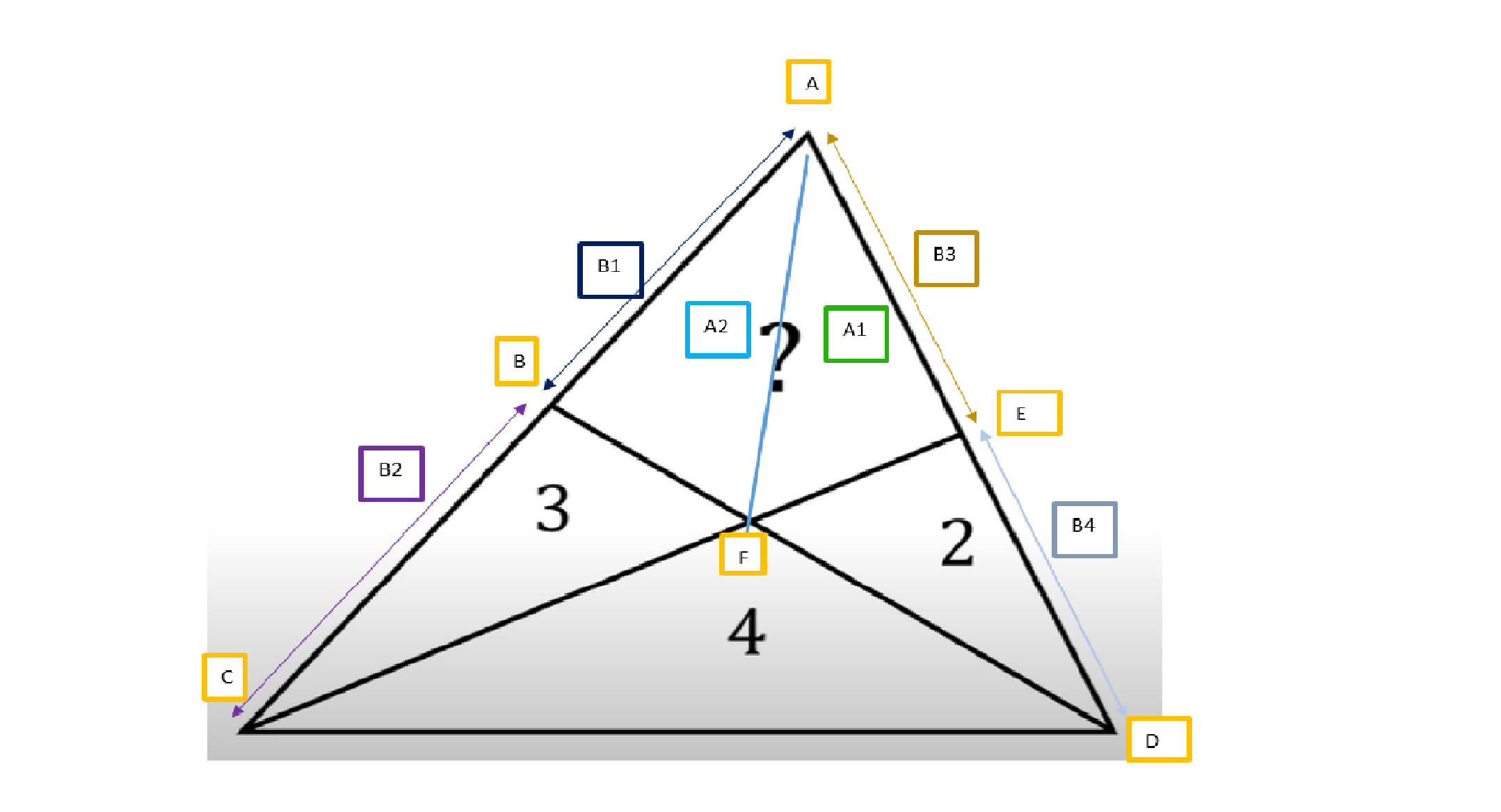

New Bitmap Image (2).png
New Bitmap Image (2).png [ 119.3 KiB | Viewed 6066 times ]

avatar
him1105
avatar
Joined: 24 Mar 2020
Last visit: 28 Mar 2022
Posts: 9
Own Kudos:
3
Given Kudos: 324
Location: India
Schools: Fuqua '24 ISB '23 Rotman '24
GMAT 1: 670 Q49 V32
Schools: Fuqua '24 ISB '23 Rotman '24
GMAT 1: 670 Q49 V32
Posts: 9
Kudos: 3
A triangle shown above is divided into three smaller triangles, with a 23 Jun 2020, 03:00
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Can someone please clear my doubt....how do we know that those lines originating from vertices are altitude/height??

Posted from my mobile device
User avatar
ScottTargetTestPrep
User avatar
Target Test Prep Representative
Joined: 14 Oct 2015
Last visit: 25 Sep 2026
Posts: 22,752
Own Kudos:
27,040
 [3]
Given Kudos: 302
Status:Founder & CEO
Affiliations: Target Test Prep
Location: United States (CA)
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 22,752
Kudos: 27,040
 [3]
A triangle shown above is divided into three smaller triangles, with a 23 Jun 2020, 08:55
1
Kudos
Add Kudos
2
Bookmarks
Bookmark this Post
Bunuel

A triangle shown above is divided into three smaller triangles, with areas of 2, 3 and 4, and a quadrilateral. What is the area of the quadrilateral?

A. 6
B. 7
C. 39/5
D. 8
E. 41/5


Show more
Solution:

Whenever we have a triangle that is partitioned into 4 regions like the one shown, we can use the Ladder Theorem,

1/A + 1/Z = 1/(X + Z) + 1/(Y + Z)

where A is the area of the entire triangle, X is the area of the triangular region on the left, Y is the area of the triangular region on the right, and Z is the area of the triangular region at the bottom.

Therefore, we have:

1/A + 1/4 = 1/(3 + 4) + 1/(2 + 4)

1/A + 1/4 = 1/7 + 1/6

1/A = 1/7 + 1/6 - 1/4

1/A = 12/84 + 14/84 - 21/84

1/A = 5/84

A = 84/5

Therefore, the area of the quadrilateral region is:

84/5 - 3 - 2 - 4 = 84/5 - 9 = 84/5 - 45/5 = 39/5

Answer: C
User avatar
bumpbot
User avatar
Non-Human User
Joined: 09 Sep 2013
Last visit: 04 Jan 2021
Posts: 39,284
Own Kudos:
1,162
Posts: 39,284
Kudos: 1,162
A triangle shown above is divided into three smaller triangles, with a 18 Aug 2023, 00:33
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Automated notice from GMAT Club BumpBot:

A member just gave Kudos to this thread, showing it’s still useful. I’ve bumped it to the top so more people can benefit. Feel free to add your own questions or solutions.

This post was generated automatically.
Moderator:
Bunuel
Math Expert
113944 posts
