What are the coordinates for the point on Line AB
[#permalink]
Show Tags
Updated on: 21 Aug 2013, 14:41
Question Stats:
89% (01:03) correct 11% (00:15) wrong based on 85 sessions
HideShow timer Statistics
What are the coordinates for the point on Line AB (see figure) that is three times as far from A as from B, and that is in between points A and B? Attachment:
mgmat.png [ 8.21 KiB  Viewed 22972 times ]
OA:
Originally posted by hoaivinh on 10 Sep 2011, 08:26.
Last edited by Bunuel on 21 Aug 2013, 14:41, edited 2 times in total.
Edited the question, added the figure and the OA.




MBA Section Director
Affiliations: GMAT Club
Joined: 22 Feb 2012
Posts: 6207
City: Pune

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
26 Sep 2013, 00:20

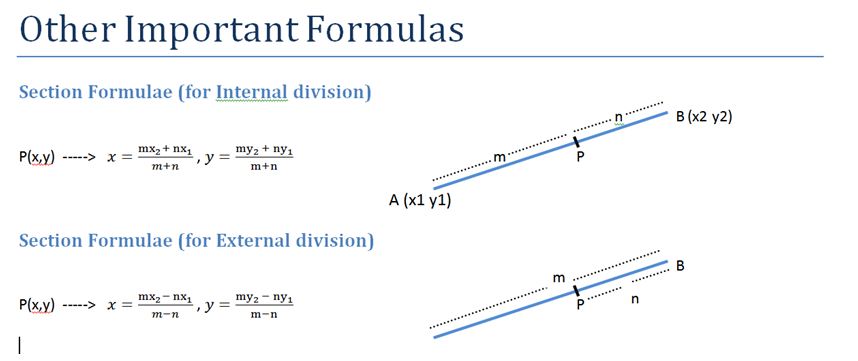

Refer the formula attached in the figure below. Let P (x,y) be a point on line AB such that AP/PB = 3/1. Coordinate of X = \(\frac{mx2 + nx1}{m + n}\) > \(\frac{3(2) + 1(5)}{3+1}\) > \(\frac{6  5}{4}\) > \(\frac{11}{4}\) Coordinate of Y = \(\frac{my2 + ny1}{m + n}\) > \(\frac{3(0) + 1(6)}{3+1}\) > \(\frac{6}{4}\) > \(\frac{3}{2}\) Hence p(x,y) = \((\frac{11}{4})\), \((\frac{3}{2})\) Note the following points about posting. 1) If you want to attach a figure with the post, just copy and paste the figure in MS Paint then save the file as png image. Then simply type the question stem in the post text box and attach the saved png image to the post 2) Post the question in relevant forum. e.g. This question should be posted in GMAT quantitative  Problem solving subforum, and should not be in General GMAT questions. 3) Post the question along with OA. Hope that helps!
Attachments
Untitled.png [ 53.89 KiB  Viewed 22541 times ]
_________________
Starts from Feb 4th: MBA Video Series, Video answers to specific components and questions about the MBA application.




Manager
Status: Trying to survive
Joined: 29 Jun 2011
Posts: 164
GMAt Status: Quant section
Concentration: Finance, Real Estate
GMAT Date: 12302011
GPA: 3.2

Re: Coordinate Plane  Find the point with distance
[#permalink]
Show Tags
10 Sep 2011, 09:39
hoaivinh wrote: Hi folks,
This is a rather hard question on coordinate plane and I need your help. "What are the coordinates for the point on line AB that is 3 times as far as from B, and that is between points A and B, knowing that A(5,6) and B(2,0)"
At first, I worked out the xaxis distance from A to B is 3 (5+2) and yaxis distance from A to B is 6 (60). I divide 4 segments, x for per segments, then I have 4x. 3x from A and x from B. Then I get stuck there. But I do not understand why the explanation in the answer is that "3x=4, x=0.75. The point is located on xaxis 2.75". I really do not understand.
Thank you. The xcoordinate of the point is x=0.75 away from 2, and thus it's located on 2.75
_________________
How can i lose my faith in life's fairness when i know that the dreams of those who sleep on the feathers are not more beautiful than the dreams of those who sleep on the ground?  Jubran Khaleel Jubran



Intern
Joined: 24 Jun 2011
Posts: 2

Re: Coordinate Plane  Find the point with distance
[#permalink]
Show Tags
10 Sep 2011, 18:08
Silver89 wrote: hoaivinh wrote: Hi folks,
This is a rather hard question on coordinate plane and I need your help. "What are the coordinates for the point on line AB that is 3 times as far as from B, and that is between points A and B, knowing that A(5,6) and B(2,0)"
At first, I worked out the xaxis distance from A to B is 3 (5+2) and yaxis distance from A to B is 6 (60). I divide 4 segments, x for per segments, then I have 4x. 3x from A and x from B. Then I get stuck there. But I do not understand why the explanation in the answer is that "3x=4, x=0.75. The point is located on xaxis 2.75". I really do not understand.
Thank you. The xcoordinate of the point is x=0.75 away from 2, and thus it's located on 2.75 Thank you Silver89. But how is 3x=4? That's the thing I got stuck.



Intern
Joined: 17 Aug 2013
Posts: 3
Location: United States
Concentration: Finance, Economics
GMAT Date: 12172013
GPA: 3.95

Re: What are the coordinates for the point on line AB that is 3
[#permalink]
Show Tags
21 Aug 2013, 13:34
Well, in this case, I think it is a typo. Because they say 3x=4 is equal to x=0.75 which is not true because x = 4/3 or 1.25 in decimal.
They associate 4x=3 which is the difference between 5 and 3. So x=0.75 to which they add the 2 from the Xcoordinates, which gives you 2.75.
You do the same for the yaxis 4x=6 which gives x=1.5.
The answer is 2.75,1.5



Math Expert
Joined: 02 Sep 2009
Posts: 55266

Re: What are the coordinates for the point on line AB that is 3
[#permalink]
Show Tags
21 Aug 2013, 14:42
gabbag00 wrote: Well, in this case, I think it is a typo. Because they say 3x=4 is equal to x=0.75 which is not true because x = 4/3 or 1.25 in decimal.
They associate 4x=3 which is the difference between 5 and 3. So x=0.75 to which they add the 2 from the Xcoordinates, which gives you 2.75.
You do the same for the yaxis 4x=6 which gives x=1.5.
The answer is 2.75,1.5 Edited the question, added the figure and the OA: whatarethecoordinatesforthepointonlineab120415.html#p973190
_________________



Manager
Joined: 10 Sep 2013
Posts: 72
Concentration: Sustainability, International Business

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
26 Sep 2013, 00:33
vishalrastogi wrote: What are the coordinates for the points on line AB (see figure) that is three times as far from A as from B, and that is in between points A and B? Please post the OA next time. Since the point lies on the line AB it should satisfy the line equation: y+6 = (06)/(2+5)*(x+5) Therefore, y+6 = 2(x+5) The only option that satisfies this equation is: X = 2.75, y = 1.5
_________________
Kudos if I helped



Senior Manager
Joined: 04 Jul 2014
Posts: 295
Location: India
GMAT 1: 640 Q47 V31 GMAT 2: 640 Q44 V34 GMAT 3: 710 Q49 V37
GPA: 3.58
WE: Analyst (Accounting)

What are the coordinates for the point on Line AB
[#permalink]
Show Tags
28 Nov 2014, 01:47
Hi experts, I found this approach in a flashcard to this question: a) The total xaxis distance from one point to the other is 3 (5  2) b) The total yaxis distance from one point to other is 6 (6 – 0) c) Considering that the distance between A and B is 4x, and we need a point which is 3x distant from A and x distance from B. d) 4x = 3 > x = 0.75. (Have corrected the typo here seeing a post above) The point is located on xaxis at 2.75 e) 4y = 6 > y = 1.5. The point is located on yaxis at 1.5 f) The answer is (2.75, 1.5) Kindly help me understand how the 0.75 becomes 2.75 and how the 1.5 remains as 1.5.
_________________
Cheers!! JAIf you like my post, let me know. Give me a kudos!



Current Student
Joined: 26 Dec 2014
Posts: 10

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
04 Mar 2015, 16:03
So for this question couldn't we just take the midpoint between A and B and then take that answer and find the midpoint between midpoint of AB and B?
Gives us 11/4, 3/2



Manager
Joined: 17 Nov 2013
Posts: 83

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
30 Apr 2016, 10:27

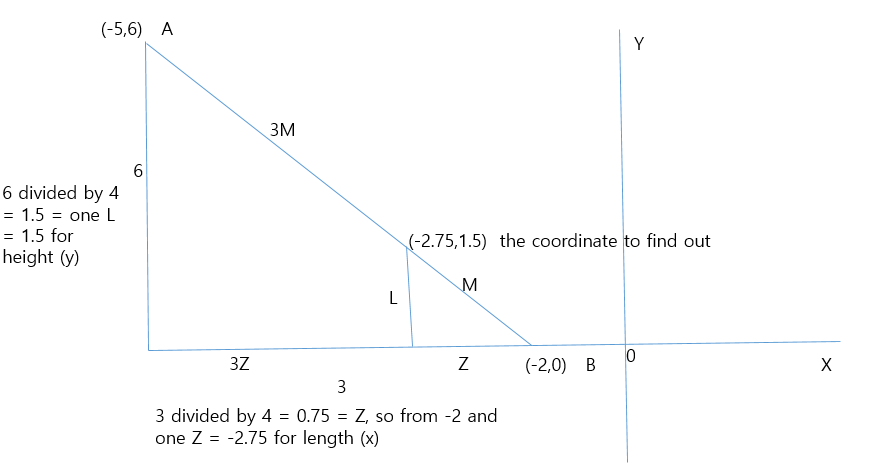

Hi! See attached. I have worked it out in ppt and attached it in this document.
Attachments
File comment: see attached
MGMAT book 4 pag123 #10.PNG [ 21.93 KiB  Viewed 18109 times ]



Intern
Joined: 22 Jun 2016
Posts: 9

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
22 Jun 2016, 03:47
Can somebody please tell me where I am going wrong. Taking ABC with A being ( 5,6) , B being (2,0) and C being (5,0) . Length of AC is 6 cm. Length of CB is 3 cm . Using Pytho theorem we can get that  6^2 + 3^2 = AB^2 36 + 9 = 45 = AB ^ 2 So, AB = 4X = X = sqrt(45) /4 Now using similiarity , we can find that the x and y coordinates of the smaller triangle. Mark the small triangle as BED . ED / 6 = [ sqrt(45)/4 ] / sqrt(45) = 1/4 ED or the Y coordinate for the point D will be = 6/4 = 1.5 EB / 3 = 1/4 EB or X coordinate for the point D will be = 3/4 = 0.75 I know I am wrong somewhere ! Can somebody please point it out to clear my concept. Thanks in advance



Director
Joined: 12 Nov 2016
Posts: 725
Location: United States
GPA: 2.66

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
15 Jun 2017, 02:53
hoaivinh wrote: What are the coordinates for the point on Line AB (see figure) that is three times as far from A as from B, and that is in between points A and B? Attachment: The attachment mgmat.png is no longer available OA: It is critical to know the internal section formula in order to solve this question. Basically, this formula allows us to solve for a point on a line such as line AB , let's say point "P" , provided we know the ratio of the distance between that point and the other two end points on that line ( the end points are the coordinates given in the problem ) which is this is scenario AP to BP. Now, there's two ways of understanding the formula what the question is referring to when it states a point that is "three times as far from A as from B" is that if you split line AB into two parts then the length between A and the hypothetical (imaginary point in question) P is 3 times greater than P to point B. Algebraically, we can say this ratio is 3x to x, or really just more simply 3 to 1. But as we look at the diagram how do we really understand each component of the internal section formula? That is to say how do we appropriately plug in 3 and 1 to m and n. Should 3 be m or should 3 be n? If we reverse engineer the formula [{m(x2) + n(x1) / m + n} , {m(y2) + n (y1)/ m +n}]  the sum of our ratio, m and n, equals the denominator of the fraction. But wait this is also the same thing as m/ m + n (x2, y2) + n/m +n (x1,y2) The key to properly assigning each x coordinate to either m or n respectively depends on where you partition the line this is why a triangle helps. So if we take coordinate A for example such as in the both of my diagrams and the problem, we would align the coordinate of A with the number that corresponds to ratio of the line that is across the partition.
Attachments
image1.JPG [ 805.57 KiB  Viewed 15787 times ]
image1 (1).JPG [ 741.08 KiB  Viewed 15779 times ]



Director
Affiliations: IIT Dhanbad
Joined: 13 Mar 2017
Posts: 724
Location: India
Concentration: General Management, Entrepreneurship
GPA: 3.8
WE: Engineering (Energy and Utilities)

What are the coordinates for the point on Line AB
[#permalink]
Show Tags
Updated on: 15 Jun 2017, 23:18
hoaivinh wrote: What are the coordinates for the point on Line AB (see figure) that is three times as far from A as from B, and that is in between points A and B? Attachment: mgmat.png OA: the points are A(5,6) and B (2,0) We need to find the point which divides AB in the ratio 3:1 It is given by the formula (mx2 +nx1)/(m+n) , (my2+ny1)/(m+n) So, [(3*2+1*5)/(3+1) , (3*0+1*6)/(3+1)] = [11/4, 3/2] is the required point...
_________________
CAT 2017 (98.95) & 2018 (98.91) : 99th percentiler UPSC Aspirants : Get my app UPSC Important News Reader from Play store. MBA Social Network : WebMaggu
Appreciate by Clicking +1 Kudos ( Lets be more generous friends.) What I believe is : "Nothing is Impossible, Even Impossible says I'm Possible" : "Stay Hungry, Stay Foolish".
Originally posted by shashankism on 15 Jun 2017, 07:12.
Last edited by shashankism on 15 Jun 2017, 23:18, edited 1 time in total.



Director
Joined: 12 Nov 2016
Posts: 725
Location: United States
GPA: 2.66

What are the coordinates for the point on Line AB
[#permalink]
Show Tags
15 Jun 2017, 18:59
hoaivinh wrote: What are the coordinates for the point on Line AB (see figure) that is three times as far from A as from B, and that is in between points A and B? Attachment: The attachment mgmat.png is no longer available OA: Here is an updated diagram hopefully the color coding helps make it more clear how to correctly plug in each set of coordinates with correct ratio here we ca see m is 2 and therefore it must be matched up with the coordinate pair as per the internal section formula [2/2+ 3 (7,9)] , [ 3/2 +3 (5,3)] = m/ m + n (7,9) , n/ m + n (5,3) = P(x,y)  here p is the imaginary point between A and B OR mx2x1/ m + n , my2y1/ m + n = P(x,y)  mathematically this is the same as the formula but just compressed here's why 2 (7) / (2+3) + 3 (5)/ 2 +3) = 14/ (2 +3) + 15/ (2+3) is the same thing as 14 + 15/ 2+ 3  and when you add these you get the x coordinate so instead of multiplying it as through the first formula the second formula just compresses everything but for the sake of understanding the concept the first formula may be better to start with.
Attachments
image1.JPG [ 664.78 KiB  Viewed 15714 times ]



Director
Affiliations: IIT Dhanbad
Joined: 13 Mar 2017
Posts: 724
Location: India
Concentration: General Management, Entrepreneurship
GPA: 3.8
WE: Engineering (Energy and Utilities)

What are the coordinates for the point on Line AB
[#permalink]
Show Tags
15 Jun 2017, 23:20
Nunuboy1994 .. Well you have presented the problem with a nice diagram..
_________________
CAT 2017 (98.95) & 2018 (98.91) : 99th percentiler UPSC Aspirants : Get my app UPSC Important News Reader from Play store. MBA Social Network : WebMaggu
Appreciate by Clicking +1 Kudos ( Lets be more generous friends.) What I believe is : "Nothing is Impossible, Even Impossible says I'm Possible" : "Stay Hungry, Stay Foolish".



Director
Affiliations: IIT Dhanbad
Joined: 13 Mar 2017
Posts: 724
Location: India
Concentration: General Management, Entrepreneurship
GPA: 3.8
WE: Engineering (Energy and Utilities)

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
17 Jun 2017, 00:13
gmatprep2o16 wrote: Can somebody please tell me where I am going wrong. Taking ABC with A being ( 5,6) , B being (2,0) and C being (5,0) . Length of AC is 6 cm. Length of CB is 3 cm . Using Pytho theorem we can get that  6^2 + 3^2 = AB^2 36 + 9 = 45 = AB ^ 2 So, AB = 4X = X = sqrt(45) /4 Now using similiarity , we can find that the x and y coordinates of the smaller triangle. Mark the small triangle as BED . ED / 6 = [ sqrt(45)/4 ] / sqrt(45) = 1/4 ED or the Y coordinate for the point D will be = 6/4 = 1.5 EB / 3 = 1/4 EB or X coordinate for the point D will be = 3/4 = 0.75 I know I am wrong somewhere ! Can somebody please point it out to clear my concept. Thanks in advance WHy are you trying to solve this way .. Something is not clear in your solution. You are just dividing the distance between AB and taking it as coordinate... Try to use internal section formula.. it is much easier to solve and will save you a lots of time. After all getting a good score in GMAT is all about time. So try to find shorter methods to solve question and move towards next question ASAP. Otherwise getting a 50 or 51 in QA will be difficult.
_________________
CAT 2017 (98.95) & 2018 (98.91) : 99th percentiler UPSC Aspirants : Get my app UPSC Important News Reader from Play store. MBA Social Network : WebMaggu
Appreciate by Clicking +1 Kudos ( Lets be more generous friends.) What I believe is : "Nothing is Impossible, Even Impossible says I'm Possible" : "Stay Hungry, Stay Foolish".



Manager
Joined: 12 Nov 2016
Posts: 136
Concentration: Entrepreneurship, Finance
GMAT 1: 620 Q36 V39 GMAT 2: 650 Q47 V33

What are the coordinates for the point on Line AB
[#permalink]
Show Tags
11 Dec 2017, 11:41
Hi! Where this problem comes from? Not official GMAT? Do real GMAT problems like that appear on the exam so that I need to memorize this internal section formula (which by the way is never included in any theoretical basis for GMAT and even unofficial flashcards (this problem is solved differently not via formula there?)? I also found it is easier to resolve this question by simple dividing by 4 of x and y distance and adding to existing point... I do not see any need to know this internal section formula here at all..



Intern
Joined: 06 Feb 2018
Posts: 16

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
20 Mar 2018, 14:56
Could Bunuel or chetan2u provide a solution to this problem? Thanks!



Math Expert
Joined: 02 Aug 2009
Posts: 7684

Re: What are the coordinates for the point on Line AB
[#permalink]
Show Tags
20 Mar 2018, 18:48
mahrah wrote: Could Bunuel or chetan2u provide a solution to this problem? Thanks! Hi.. A very easy approach will be to make similar triangles.. What it will mean is .. Whatever effect it has on the the line given, the SAME effect will be on x and y coordinates.. So the points are closer to B.. 1) x coordinate Weighted average method.. Divide the distance by 4 as per the question and add to coordinate of B.. So 2+(5(2))/4=20.75=2.75 2) y coordinate.. Similarly y= 0+(60)/4=0+1.5=1.5 (X,y)=(2.75,1.5)
_________________
